JBL VTX A12 AF Array Frame with Extension Bar

The JBL VTX A12 AF Array Frame is a precision-engineered rigging solution designed specifically for suspending VTX A12 line array enclosures in a wide range of professional sound reinforcement applications. Built from high-grade steel with an anti-corrosion coating, the A12 AF combines strength and durability with a compact, lightweight design to simplify transport, setup, and storage.

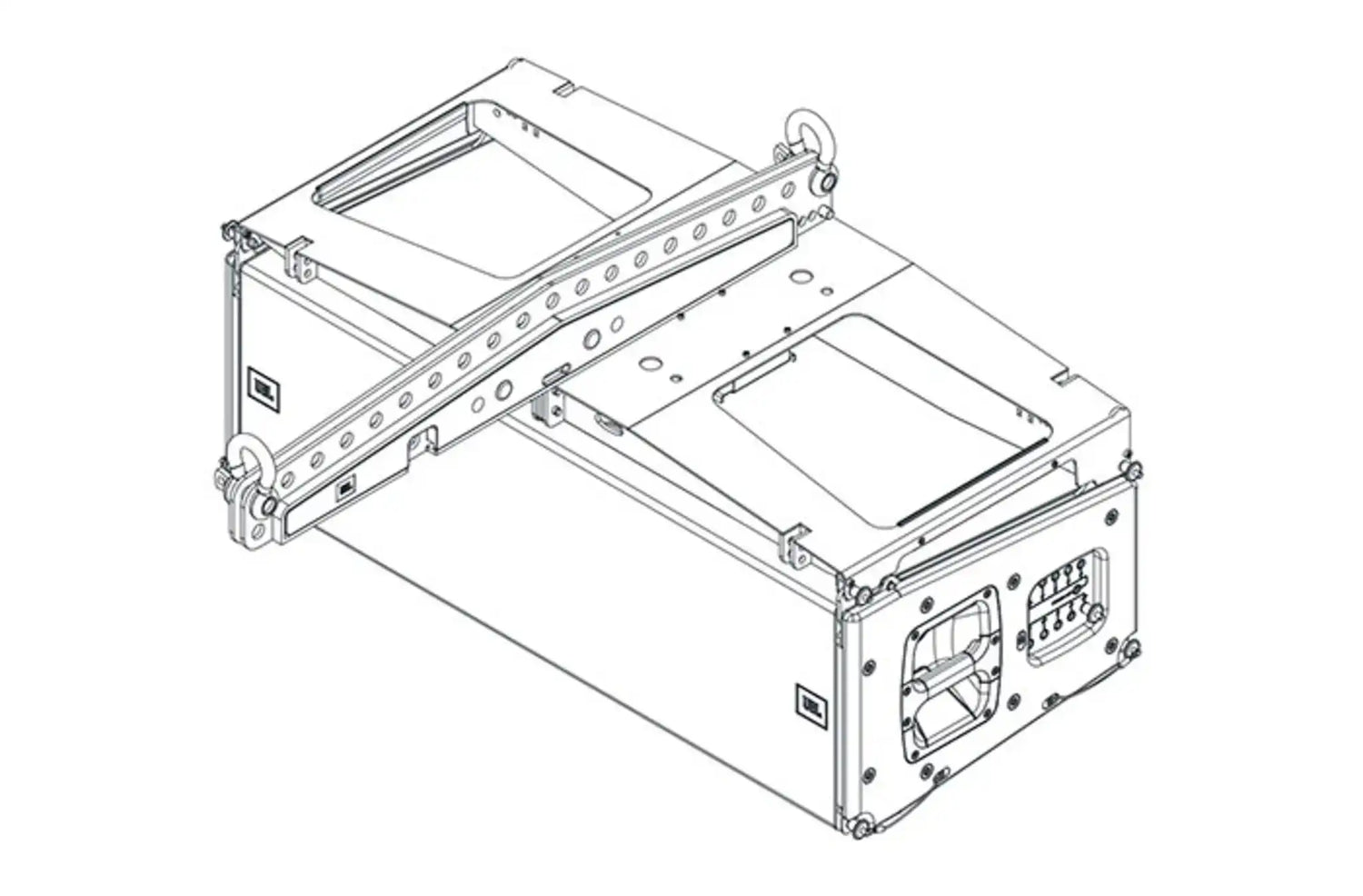

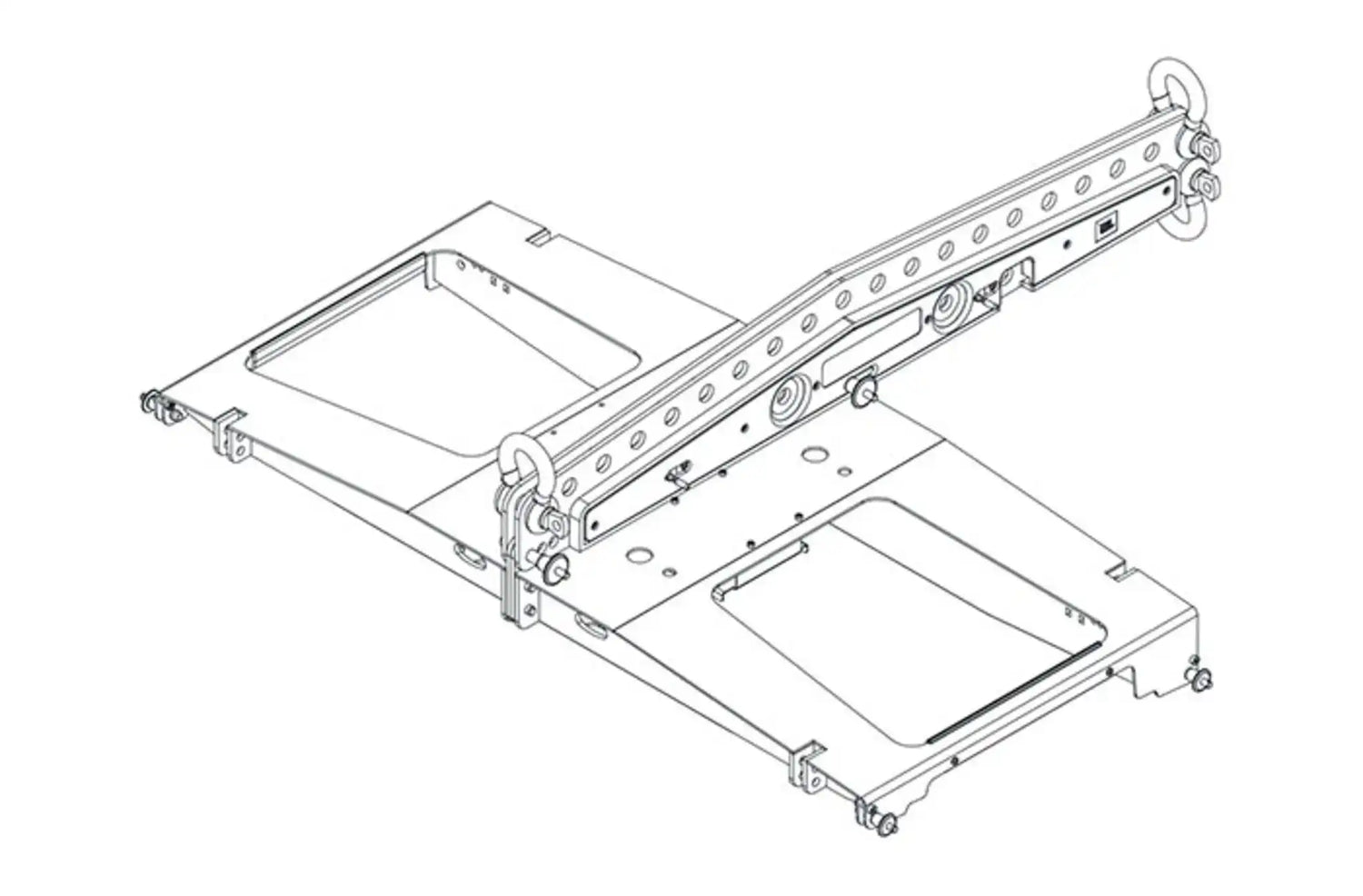

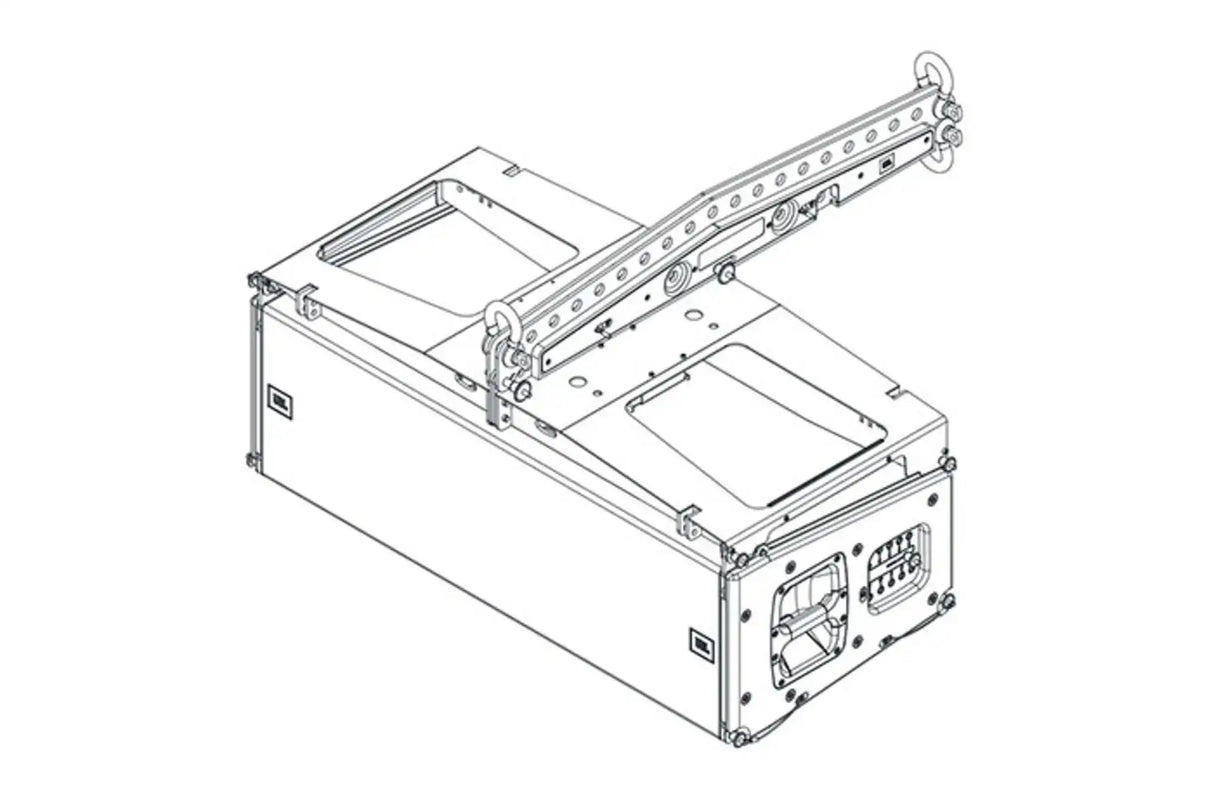

This array frame offers multiple suspension options including single-point, front-to-back, and side-by-side configurations. To maximize flexibility, it features 0.5-degree pick point resolution, enabling fine adjustments for precise aiming and coverage. The included VTX A12 AF EB Extension Bar enhances its versatility, allowing both up-tilt and down-tilt aiming options, and conveniently stores above the main frame during transport for efficient handling.

Supporting up to 24 VTX A12 enclosures (with a recommended safe working limit of 12), the VTX A12 AF ensures reliable and safe suspension for large-scale systems. For added convenience, the frame is equipped with a laser bracket compatible with third-party inclinometers such as JBL VTX LZ, TEQ-SAS, and Recline, making it easier to achieve accurate array alignment.

With its integrated carrying handle, included shackles, and thoughtful design for both deployment and transport, the VTX A12 AF is an essential accessory for rental companies, touring professionals, and permanent installations where performance, safety, and efficiency are paramount.

Features

• Purpose-built array frame for VTX A12 enclosures

• Supports up to 24 VTX A12 cabinets (safe limit: 12)

• Single-point, front-to-back, and side-by-side suspension options

• 0.5-degree pick point resolution for precise aiming

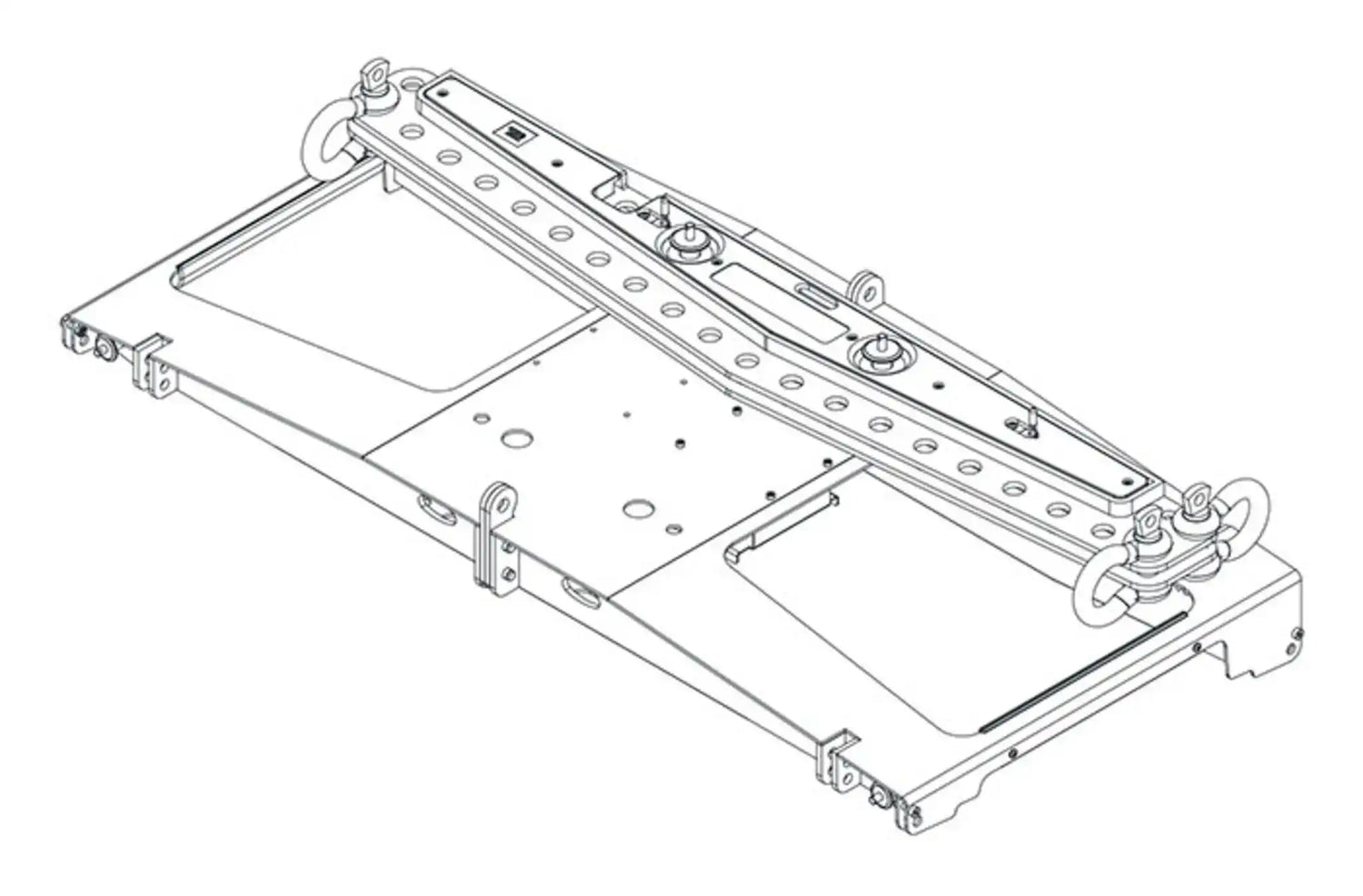

• Includes VTX A12 AF EB Extension Bar with built-in storage position

• Compatible with 5/8-inch shackles (three included)

• Laser bracket supports third-party inclinometers (JBL VTX LZ, TEQ-SAS, Recline)

• Lightweight yet durable construction with anti-corrosion coating

• Compact design for easy transport and storage
