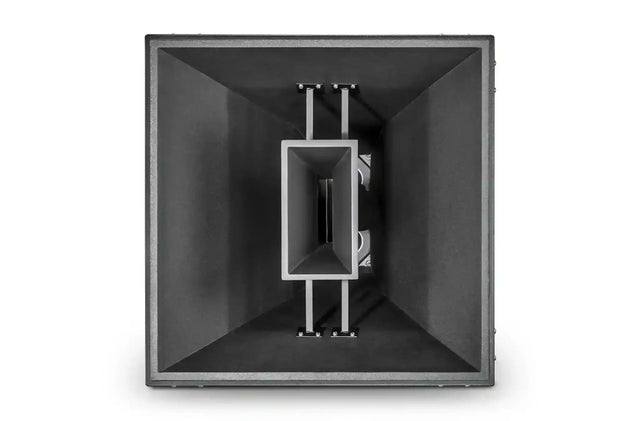

JBL PD764i-215 Dual 15-inch 3-Way Horn-Loaded Speaker – 60° x 40° Coverage

The JBL PD764i-215 is a high-output, dual 15-inch, 3-way horn-loaded loudspeaker designed for professional sound reinforcement in large-scale installations and live events. Leveraging JBL’s Precision Directivity™ technology, the PD764i-215 provides unmatched audio clarity and projection, delivering high-impact sound at distances far beyond traditional single-driver designs. A single module generates over 104 dB SPL continuously at 50 meters, ensuring that your audience experiences detailed, powerful audio even in expansive venues.

Equipped with dual 15-inch Differential Drive® low-frequency woofers, dual 8-inch CMCD-82H horn-loaded midrange drivers, and dual 2432H 1.5-inch exit compression drivers, the PD764i-215 produces deep lows, articulate mids, and crisp highs with excellent pattern control down to 400 Hz. The IFS™ (Interference Free Summation) dual high-frequency module eliminates destructive interference and boosts output by up to 6 dB, while the co-axial mid/high-frequency layout improves arrayability and reduces system size.

Built for durability and flexibility, the trapezoidal enclosure is made from high-quality birch plywood with 18 mm and 16 mm panels and features an integrated rigging system with 52 suspension points for easy array construction. The speaker supports bi-amp operation with an optional tri-amp configuration and includes custom DSP presets compatible with Crown ITHD and IT4x3500HD amplifiers. For outdoor or extreme environments, the WRC/WRX version offers weatherized construction, stainless steel hardware, and IP55-rated protection. The PD764i-215 ensures reliable, professional-grade performance with powerful bass, detailed mids, and clear highs for demanding audio applications.

Features:

• 60° x 40° coverage pattern, suitable for horizontal or vertical array orientation

• IFS™ dual HF module increases output by 6 dB, eliminating destructive interference

• Dual 15-inch Differential Drive® low-frequency woofers

• Dual 8-inch CMCD-82H midrange drivers

• Dual 2432H 1.5-inch high-frequency compression drivers

• Pattern control maintained below 400 Hz

• Co-axial mid/high-frequency module layout for compact arrayability

• Integrated rigging system with 52 suspension points

• Bi-amp standard, optional tri-amp configuration

• WRC/WRX version for outdoor or extreme environments with IP55 rating

• Custom DSP for Crown ITHD and IT4x3500HD amplifiers
