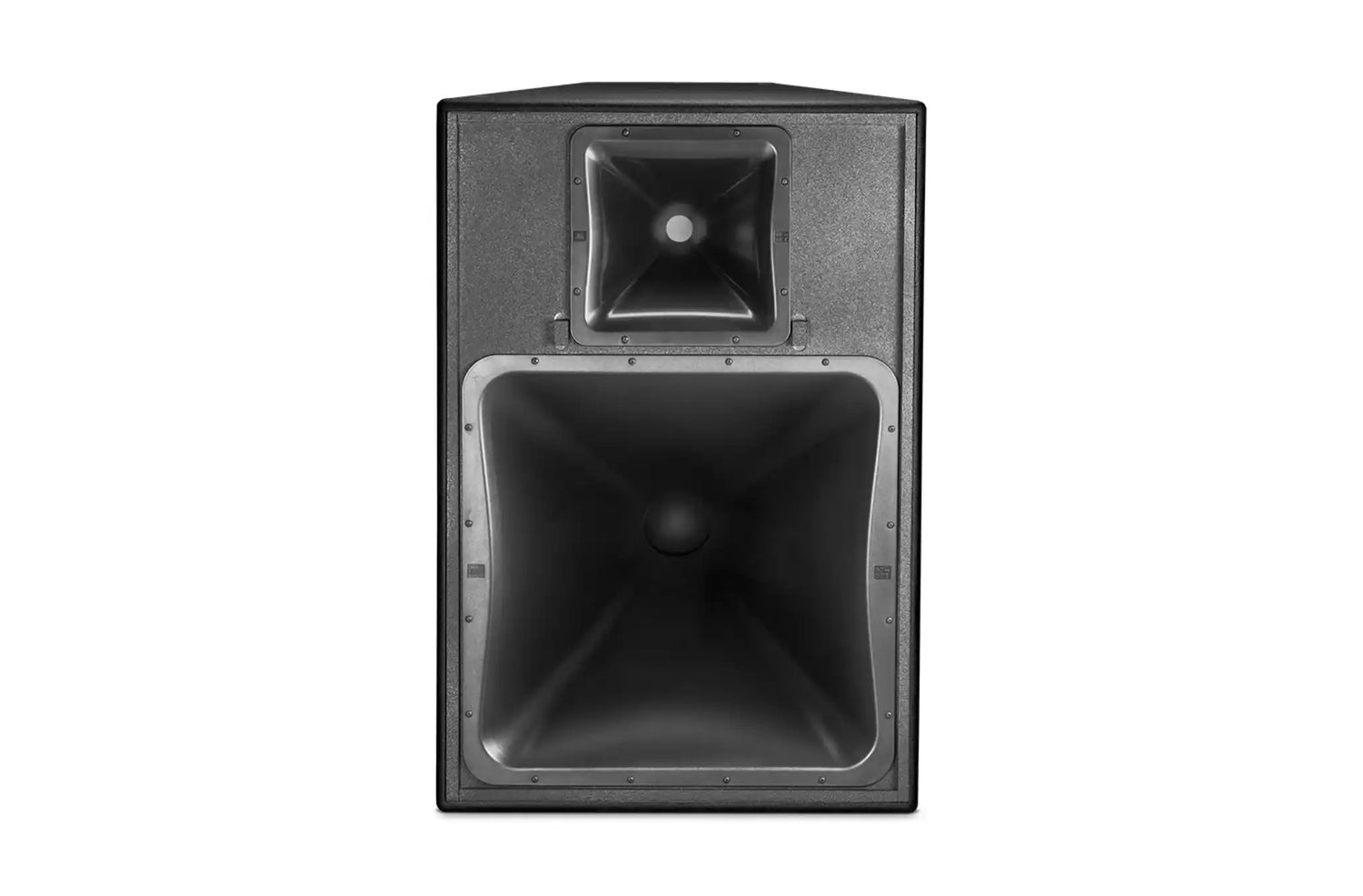

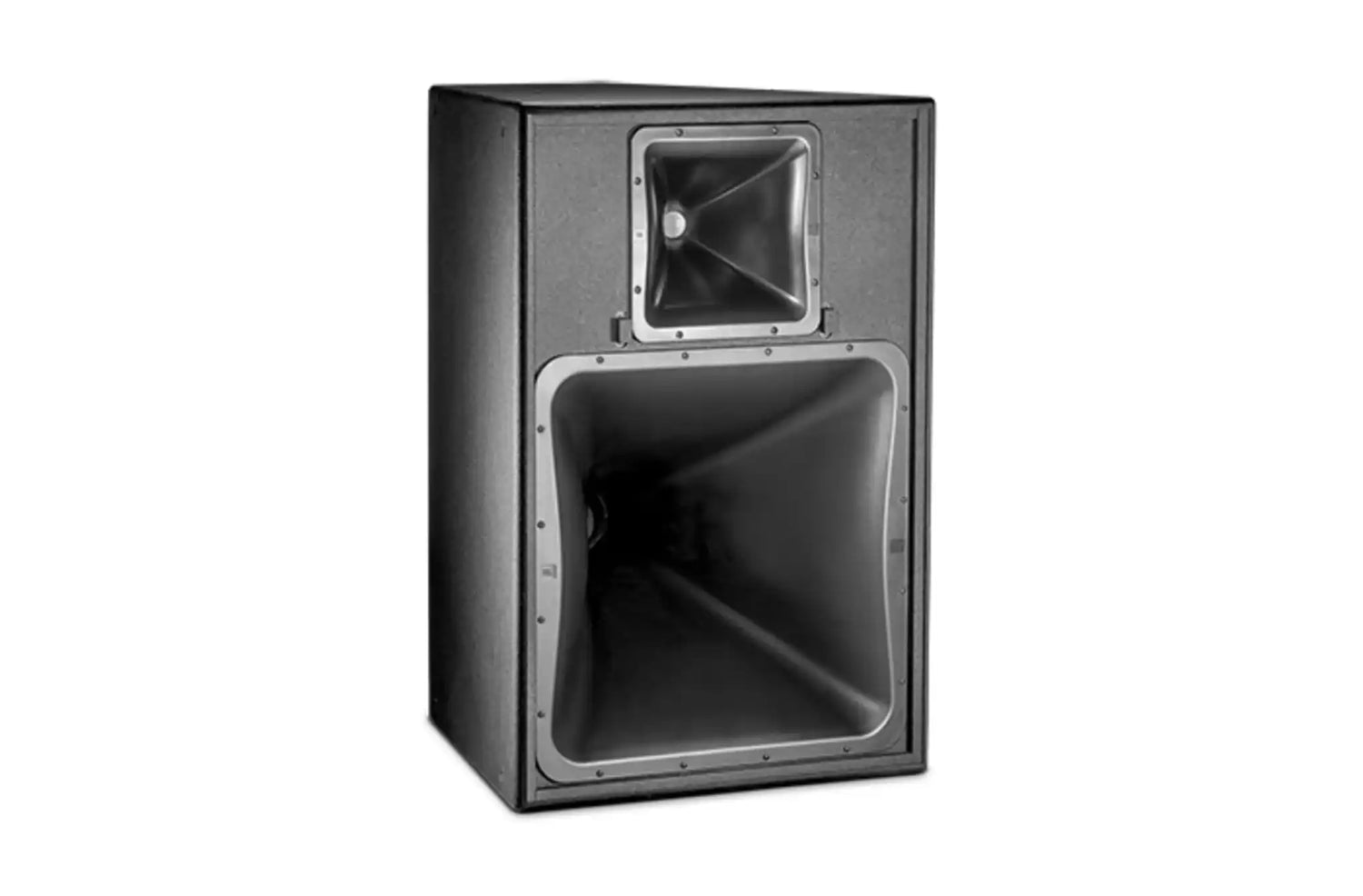

JBL PD6212/43 12-inch 2-Way Horn-Loaded Speaker – 40° x 30° Coverage
The JBL PD6212/43 Precision Directivity loudspeaker is engineered for high-output sound reinforcement with exceptional pattern control. This dual-purpose 12-inch, 2-way horn-loaded speaker is ideal for standalone applications in music or speech systems where frequency extension to 80 Hz is sufficient, or it can be paired with subwoofers to form a complete extended bandwidth full-range system. Designed for professional audio installations, the PD6212/43 delivers clarity, precision, and reliable performance at high SPL levels.
The 12-inch horn-loaded low-frequency driver and large-format high-frequency driver combine high sensitivity with exceptional continuous SPL capability, producing consistent sound even at long distances. Large PT™ Progressive Transition™ waveguides ensure broad coverage, low distortion, and smooth frequency response. Both low- and high-frequency waveguides are rotatable, allowing the cabinet to be oriented horizontally or vertically for flexible deployment in arrays or clusters.
The speaker includes a steep-slope, 6th order Linkwitz-Riley passive crossover network, which can be switched between bi-amp and passive modes to suit a variety of system configurations. Rugged construction includes a trapezoidal cabinet made from 16 mm exterior-grade plywood, a black DuraFlex™ finish, and optional white finish (-WH). Optional WRC weather-resistant versions are available for outdoor use where shelter from direct exposure is provided. Input connections include Neutrik Speakon® NL4 and CE-compliant barrier strip terminals with loop-through capability. With its professional-grade components, advanced acoustic design, and durable construction, the PD6212/43 is a versatile choice for installations requiring high output and precise directivity.
Features:
-
12-inch horn-loaded LF driver and large-format HF driver for high sensitivity and continuous SPL
-
PT™ Progressive Transition™ waveguides for broad pattern control and low distortion
-
Rotatable LF and HF waveguides for horizontal or vertical orientation
-
Steep-slope 6th order Linkwitz-Riley passive crossover with bi-amp/passive switchable mode
-
Trapezoidal cabinet with 16 mm exterior-grade plywood construction
-
Black DuraFlex™ finish; optional white (-WH) finish
-
Optional WRC weather-resistant version
-

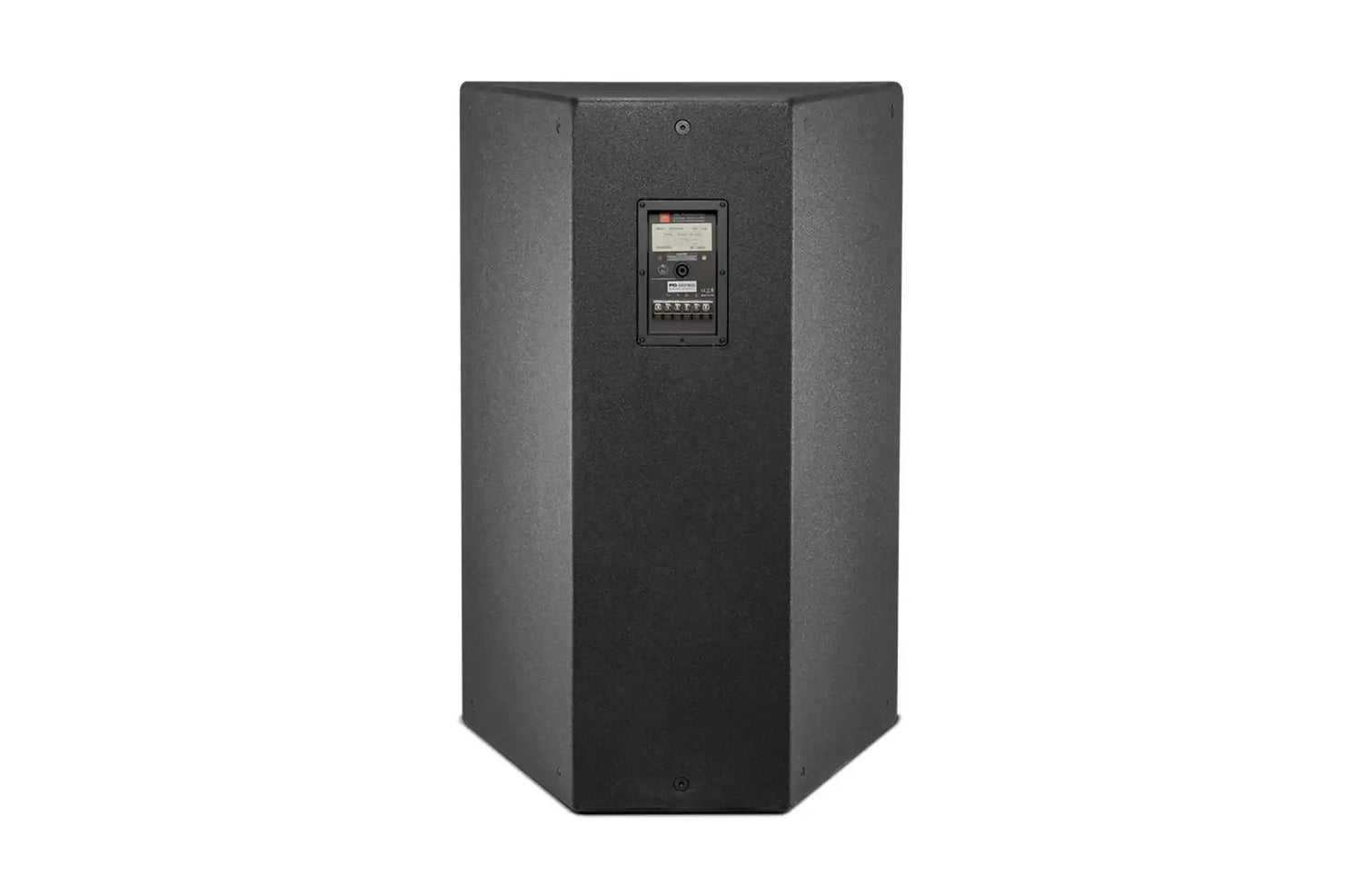

NL4 Speakon® and barrier strip input connectors with parallel loop-through
-
20 M10 suspension points for flexible rigging
-
Designed for standalone use or integration with subwoofers for full-range systems
Specifications:
| Specification | Details |
|---|---|
| Frequency Range (-10 dB) | 80 Hz – 18 kHz |
| Frequency Response (±3 dB) | 90 Hz – 16 kHz |
| Coverage Pattern | 40° x 30° |
| Crossover Modes | Bi-amp / Passive switchable |
| Passive Crossover | 6th order Linkwitz-Riley, 850 Hz |
| LF Driver | M222-8A, 12 in, 3 in voice coil |
| HF Driver | 2453H, 1.5 in exit, 4 in voice coil |
| Nominal Impedance | 8Ω (LF and HF) |
| System Power Rating | LF: 400 W (1600 W Peak), HF: 75 W (300 W Peak) |
| Maximum SPL | LF: 137 dB SPL, HF: 135 dB SPL (141 dB peak); Passive mode: 134 dB SPL (140 dB peak) |
| System Sensitivity | 109 dB SPL (1 W @ 1 m, passive mid/high) |
| Enclosure | Trapezoidal, 16 mm exterior-grade plywood, 12.5° side angles |
| Suspension Attachment | 20 points, M10 threaded hardware |
| Grille | 14-gauge powder-coated perforated steel with foam backing |
| Input Connector | NL4 Speakon® plus CE-compliant barrier strip terminals |
| Dimensions (H x W x D) | 991 x 673 x 897 mm (39 x 26.5 x 35.3 in) |
| Net Weight | 79.5 kg (175 lbs) |
| Finish | Black DuraFlex™, optional white (-WH) |
| Environmental | Mil-Std 810; IP-x3 per IEC529; optional WRC |
Compare Table:
| Feature | PD6212/43 | PD6322/43 |
|---|---|---|
| LF Driver | 12 in | 12 in dual |
| HF Driver | 1.5 in exit | 1.5 in exit |
| Coverage Pattern | 40° x 30° | 40° x 30° |
| Maximum SPL | LF: 137 dB | LF: 128 dB |
| Enclosure Weight | 175 lbs | 170 lbs |
| Weather Resistant | Optional WRC | Optional WRC/WRX |
| Orientation | Horizontal/Vertical | Horizontal/Vertical |
