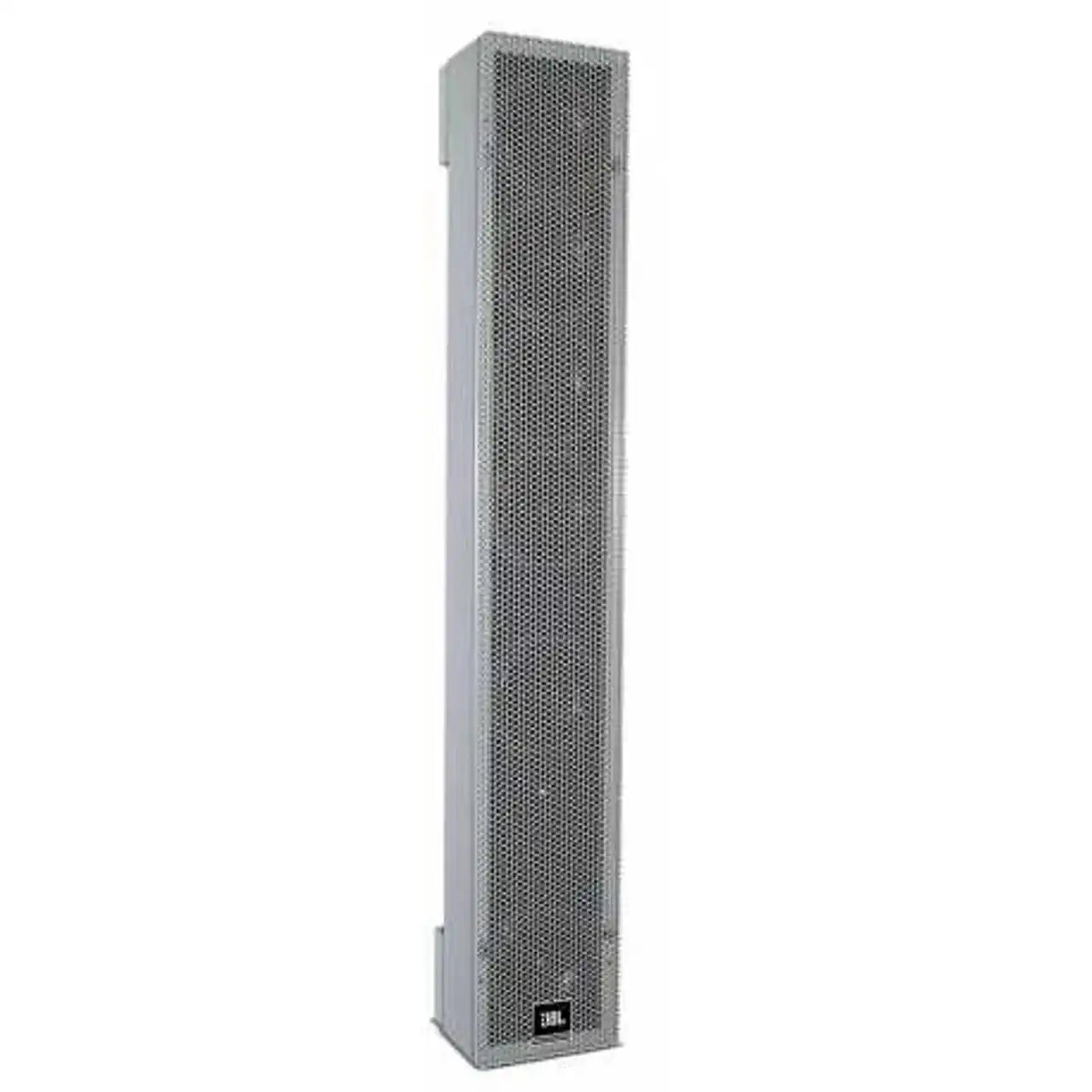

JBL Professional Intellivox-DSX380 Active Beam Shaping Self-Powered Column Loudspeaker (Amplifier at Top)
JBL Professional Intellivox-DSX380 Active Beam Shaping Self-Powered Column Loudspeaker (Amplifier at Top) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL Professional Intellivox-DSX380 Active Beam Shaping Self-Powered...
The JBL Professional Intellivox-DSX380 is a self-powered, active beam-shaping column loudspeaker designed to deliver precise, consistent sound coverage in large, acoustically challenging spaces. Featuring sixteen custom 4" full-range drivers and four discreetly controlled 1" dome tweeters, the DSX380 provides exceptional speech intelligibility and musical clarity, with coverage extending up to 45 meters. The unit’s amplifier is top-mounted, employing a sixteen-channel Class-D design powered by a sophisticated switched-mode power supply, ensuring reliable operation for years in professional installations.
With JBL’s patented Digital Directivity Synthesis™ (DDS) technology, the DSX380 allows for dynamic vertical beam shaping, enabling precise control over sound distribution to suit the unique acoustics of any space. Its wide horizontal dispersion ensures uniform audio coverage, minimizing reflections and maintaining clarity throughout the audience area. The speaker incorporates a full suite of surveillance features to meet Voice Alarm and life-safety requirements. Controlled via JBL’s WinControl software, the DSX380 allows intuitive management of beam-steering parameters, audio processing, presets, and monitoring functions.
The slim and unobtrusive design of the DSX380, available in black or white, integrates seamlessly into architectural environments. Its compact array length and 18 kHz extended frequency response make it ideal for spaces such as lecture halls, theatres, atriums, museums, places of worship, and transportation hubs. For full-range applications, low-frequency performance can be augmented with JBL subwoofer systems, delivering a high-fidelity, professional audio solution.
Features:
-
Active Beam Shaping, self-powered column loudspeaker
-
Top-mounted 16-channel Class-D amplifier
-
Sixteen 4" full-range drivers, four 1" dome tweeters
-
Digital Directivity Synthesis™ (DDS) for vertical beam shaping
-
Wide horizontal dispersion
-
Extended frequency response up to 18 kHz
-
Superb speech intelligibility
-
32-bit floating point DSP
-
Dual line inputs with volume control
-
Delay up to 20 seconds
-
Slim, unobtrusive design
-
Black or white finish
-
Surveillance-ready for Voice Alarm applications
-
WinControl software for precise beam-steering and monitoring
Specifications Table:
| Category | Details |
|---|---|
| Manufacturer | JBL Professional |
| Model | IVX-587351 (DSX380, amp at top) |
| Type | Active Beam-Shaping Column Loudspeaker |
| Drivers | 16 × 4" full-range, 4 × 1" dome tweeters |
| Amplifier | 16-channel Class-D, top-mounted |
| DSP | 32-bit floating point |
| Frequency Response | Up to 18 kHz |
| Max SPL | 45 m constant SPL coverage |
| Horizontal Dispersion | Wide |
| Vertical Dispersion | Adjustable via DDS technology |
| Inputs | Dual line inputs |
| Delay | Up to 20 seconds |
| Weight | 77 lb |
| Dimensions (H x W x D) | 147.64" × 5.28" × 3.622" |
| Color | Black or White |
| Applications | Lecture halls, theatres, atriums, museums, places of worship, transport hubs |
