JBL Control 447HC 6.5" Premium HC Ceiling Speaker – Narrow Cov...

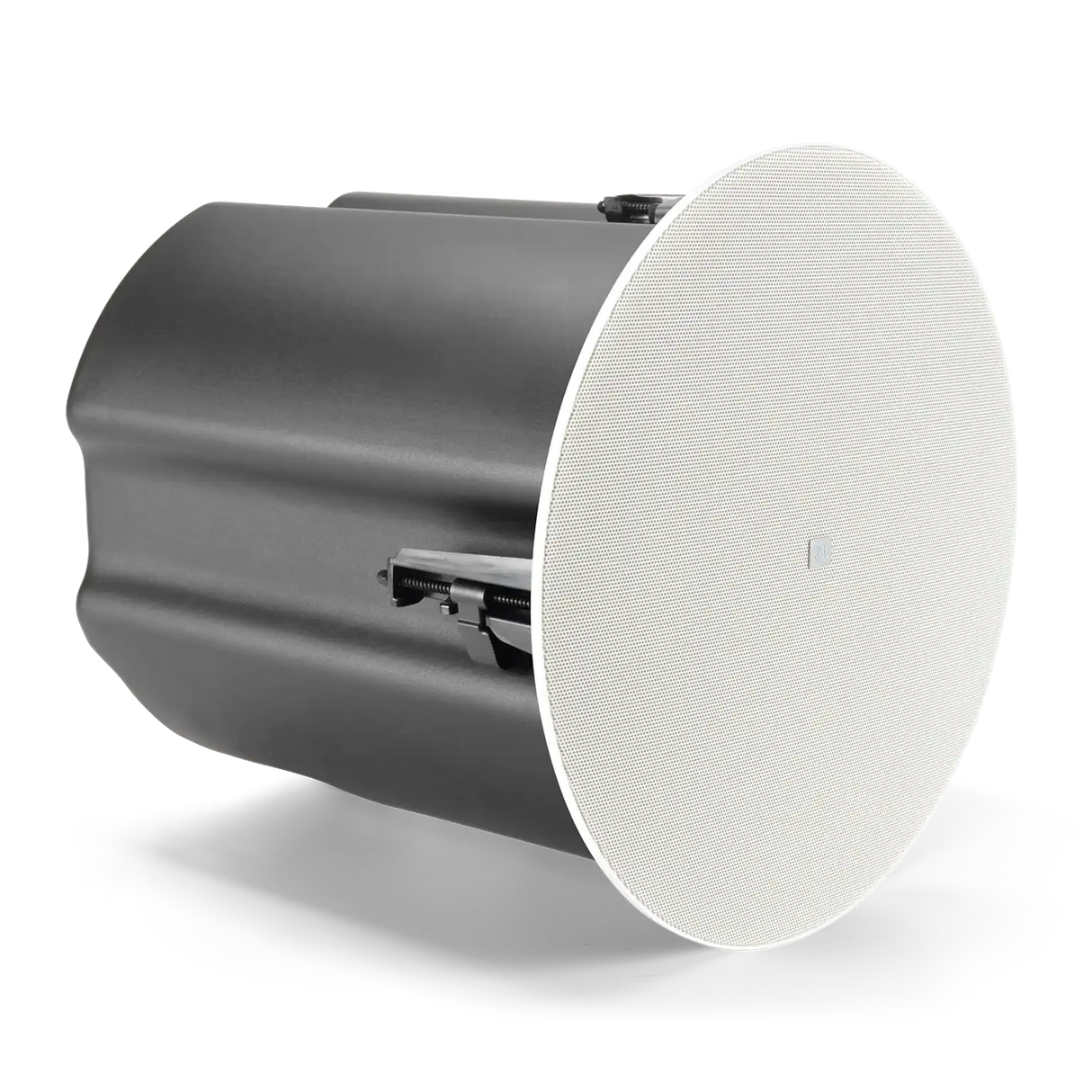

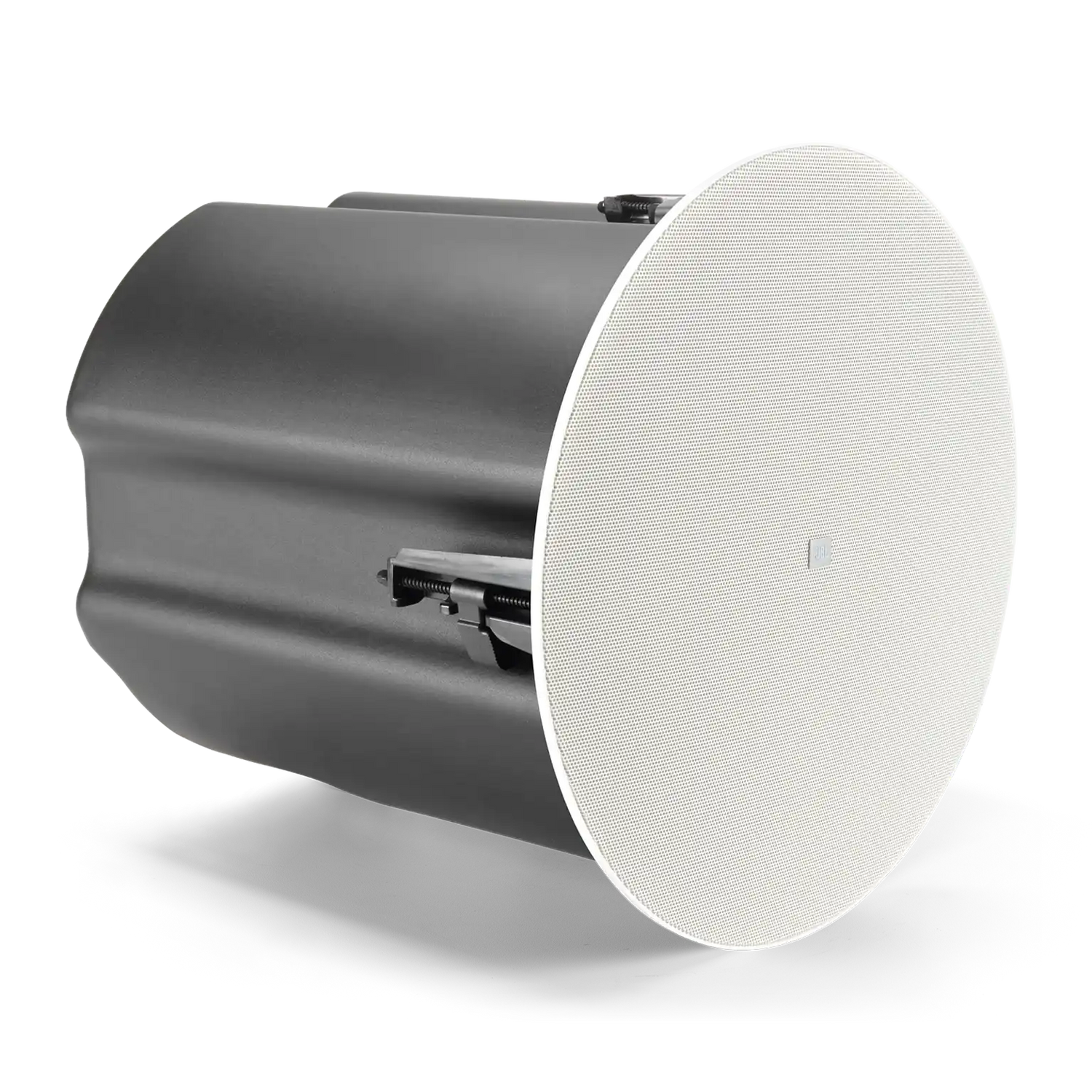

The JBL Control 447HC is a high-performance 6.5-inch coaxial ceiling speaker from JBL’s flagship Control 400 Premium Coverage Series. Designed for highly reverberant spaces and high-ceiling applications, this speaker features a narrow 85° coverage pattern for precise, focused sound delivery, making it ideal for commercial, hospitality, and professional audio installations.

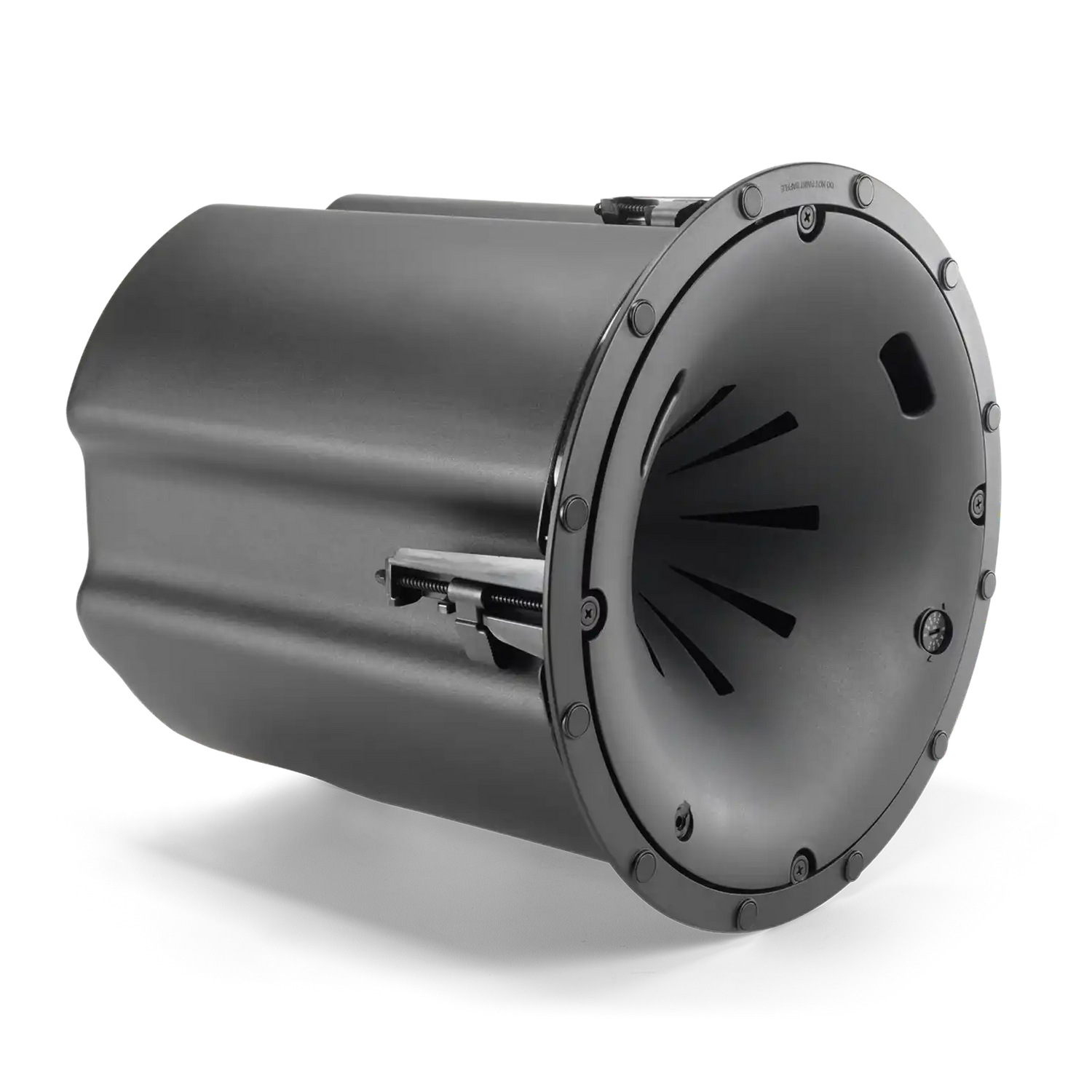

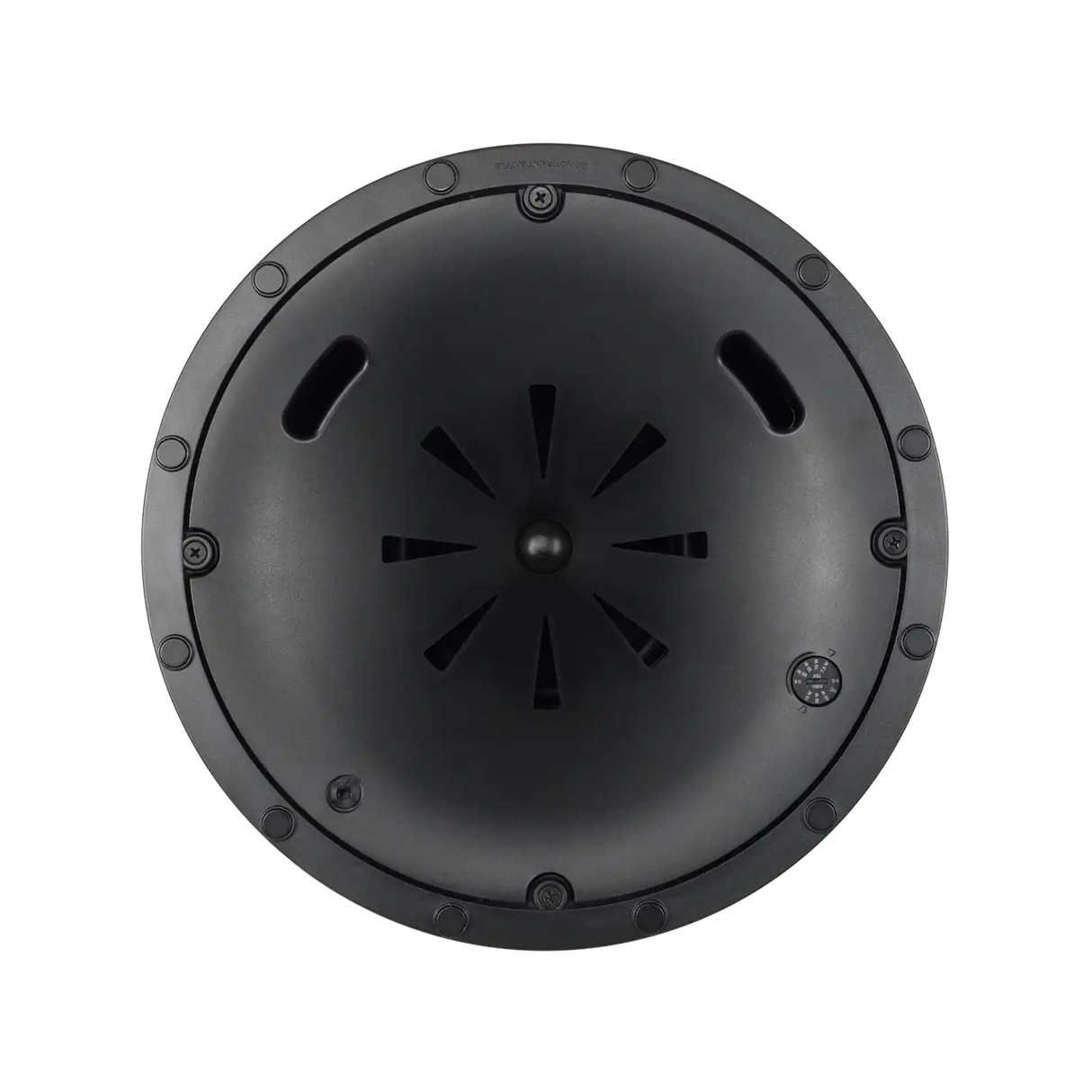

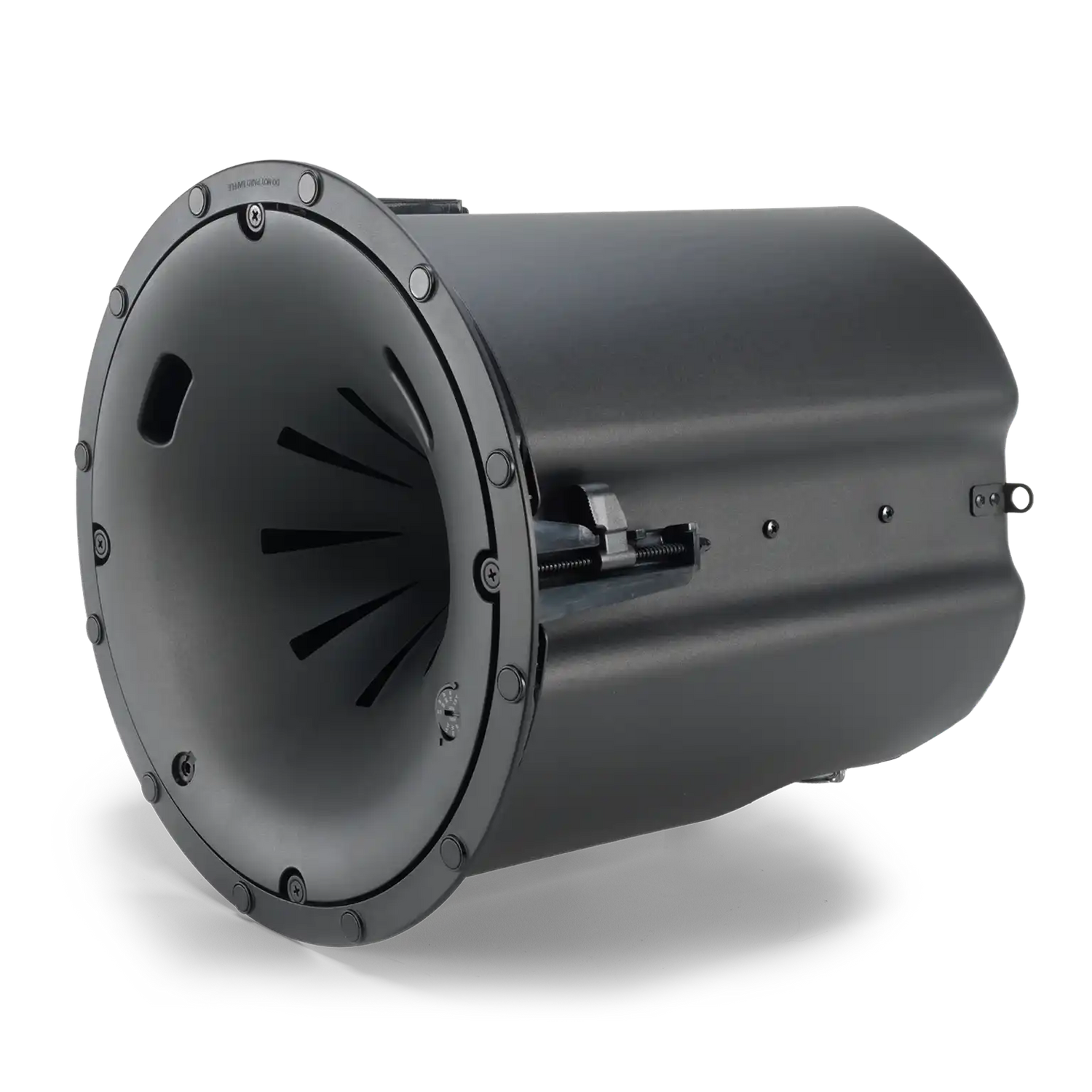

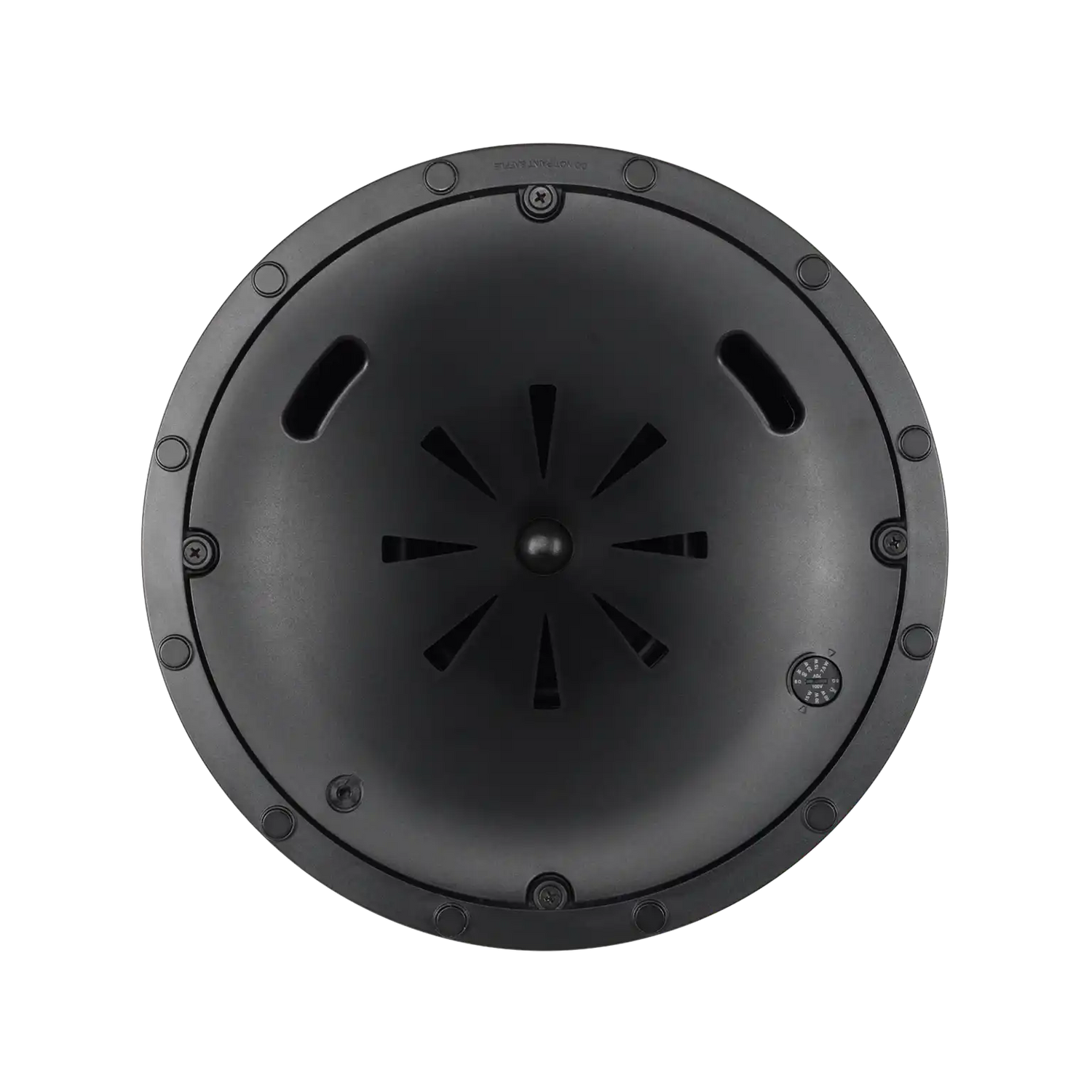

Equipped with JBL’s proprietary conical Radiation Boundary Integrator® (RBI™) technology, the Control 447HC provides constant directivity coverage, ensuring consistent, clear, and smooth audio across the listening area. The integrated enclosure is optimized for installation in most ceiling plenum spaces, while the built-in 70V/100V multi-tap transformer and 8-ohm direct input provide versatile system integration.

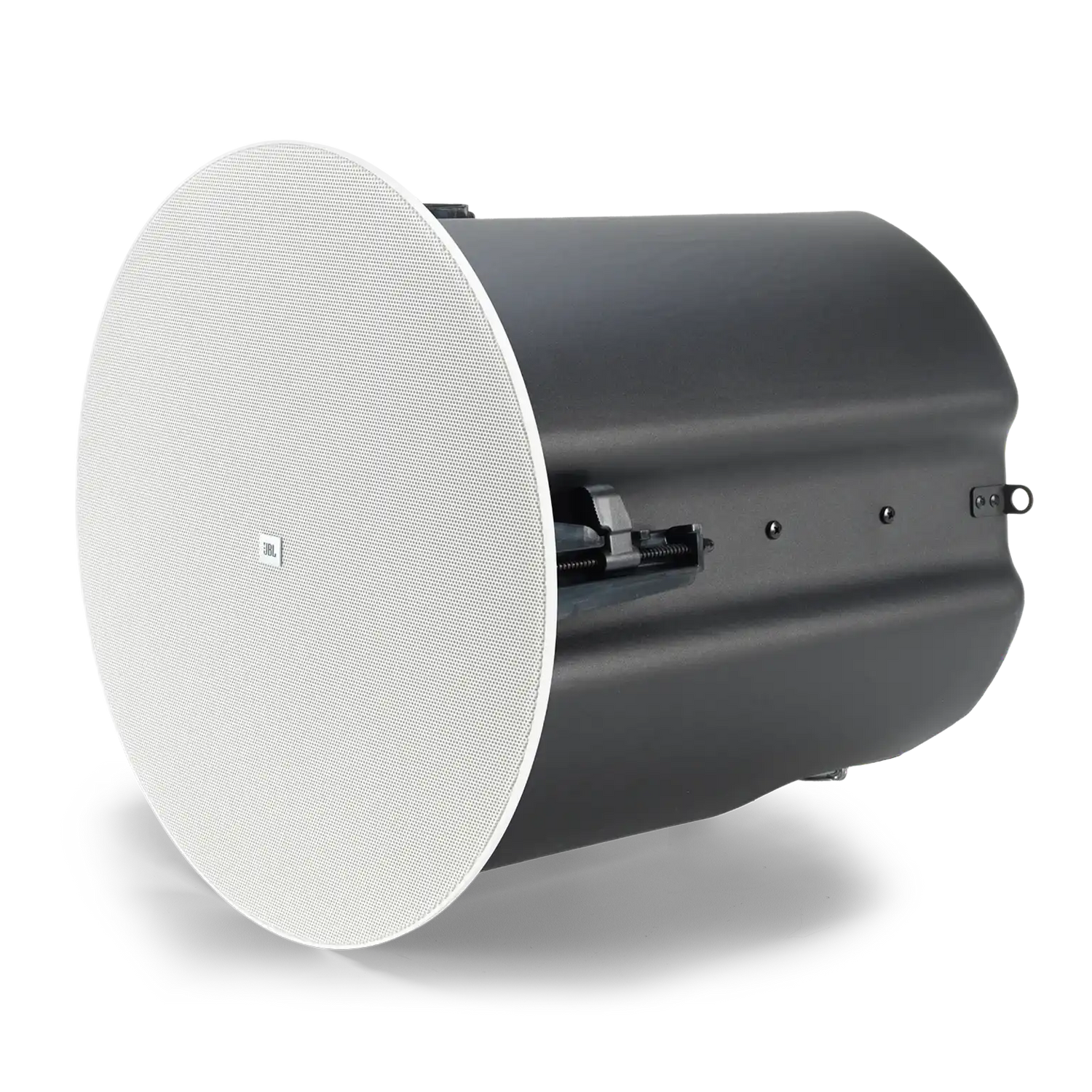

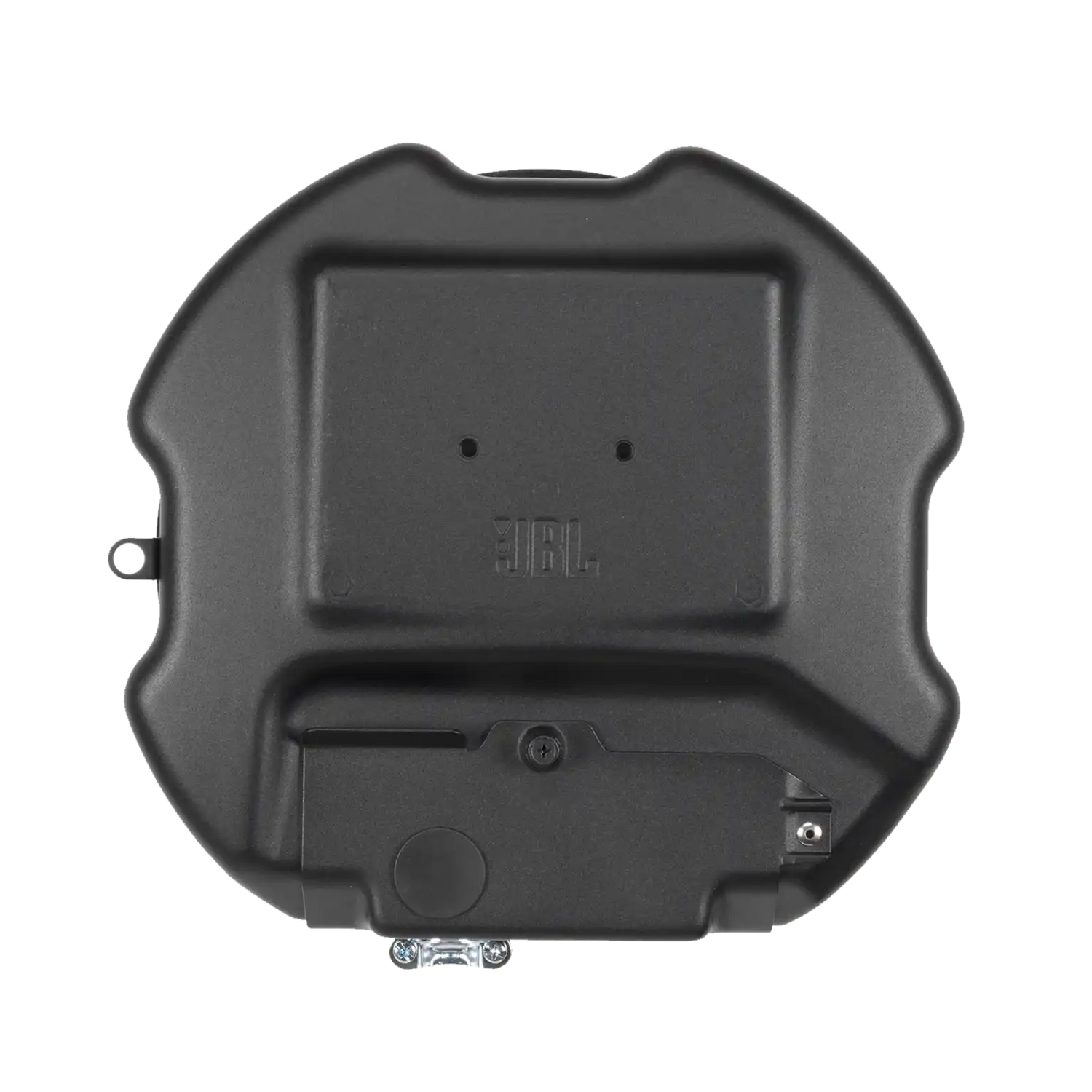

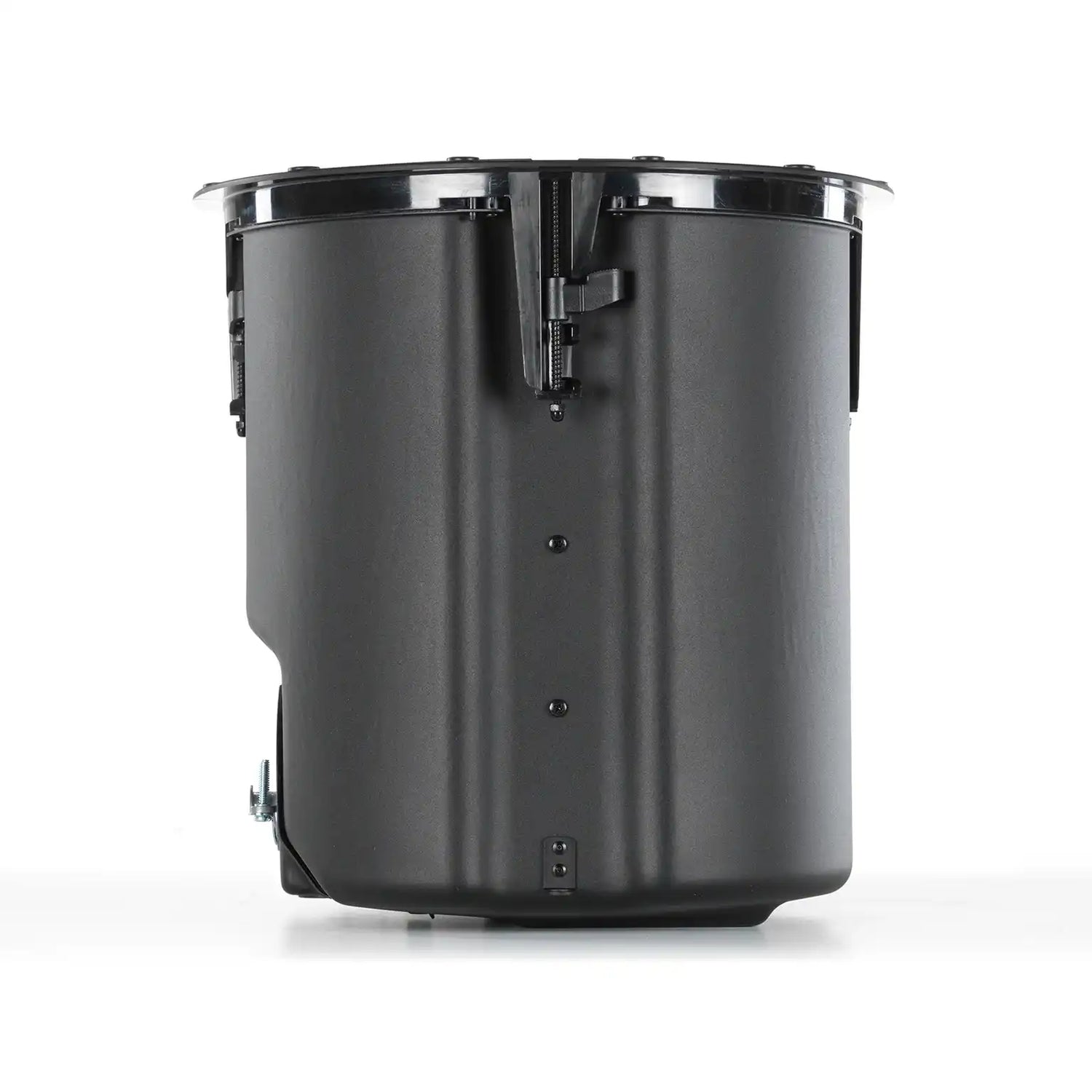

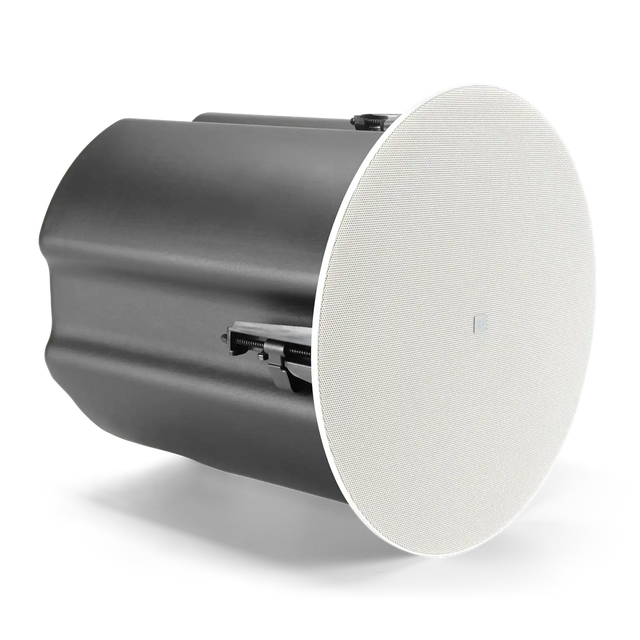

Installation is simple and efficient, with robust dogears accommodating a wide range of ceiling thicknesses, and terminal covers offering both top and side cable entry. The included full-face magnetic grille is paintable to blend seamlessly with modern interiors, with optional black and square accessory grilles available for additional customization. IP33 rating ensures reliable operation in protected ceiling environments.
The JBL Control 447HC combines refined aesthetics, professional-grade construction, and precise sound coverage to deliver exceptional performance in challenging acoustic environments, providing a reliable solution for demanding ceiling audio applications.
Features
-
Narrow 85° coverage pattern for highly reverberant spaces and high ceilings
-
165 mm (6.5 in) woofer with treated paper cone and high-performance magnet
-
25 mm (1 in) soft-dome tweeter with Neodymium magnet
-
JBL’s proprietary conical RBI™ technology for consistent directivity
-
Integrated enclosure suitable for most ceiling plenum spaces
-
Built-in 70V/100V multi-tap transformer, plus 8-ohm direct input
-
Full-face, paintable magnetic grille; optional black and square grilles
-
Top and side cable entry options
-
Robust dogears for a wide range of ceiling thicknesses
-
IP33 rated
Specifications Table
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Power Capacity | 112 W (448 W Peak, 2 hr), 75 W (300 W Peak, 100 hr) |
| Sensitivity (1m/1W) | 93 dB |
| Coverage Angle | 85° conical |
| Maximum SPL (1m) | 113.5 dB continuous, 119.5 dB peak |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70V: 60 W, 30 W, 15 W, 7.5 W; 100V: 60 W, 30 W, 15 W |
| Drivers | LF: 165 mm (6.5 in) woofer; HF: 25 mm (1 in) soft-dome tweeter |
| Ceiling Cutout Size | 307 mm (12.1 in) |
| Dimensions | 351 mm H x 342 mm dia.; 337 mm depth from ceiling tile bottom to backcan top |
| Safety Rating | UL 2043, NFPA 90A & 70, CSA C22.2 no. 205, UL 1480A |
| Environmental | IP33 per EN/IEC 60529; Operating Temp: 0° C – 45° C |
| Optional Accessories | JBL-MTC-440BG black round grille, JBL-MTC-440SG white square grille, JBL-MTC-419NC new construction bracket, JBL-MTC-419MR mud-ring bracket, JBL-MTC-48TRX4 tile rail |
| Color | White (RAL9003), paintable |
| Net Weight | 7.33 kg (16.16 lbs) |
| Shipping Weight | 22.33 kg per pair |
| SKU | JBL-C447HC |
Compare Table
| Feature | JBL Control 447HC | Other Control 400 Series Speakers |
|---|---|---|
| Driver Size | 6.5 in woofer | 2.5–6.5 in depending on model |
| Coverage | 85° narrow | 120°–180° |
| Frequency Range | 55 Hz – 20 kHz | Varies by model |
| Installation | Dogears, top/side cable entry | Dogears, backcan, optional brackets |
| Grille Options | Paintable magnetic, black, or square | Similar optional grilles |
| System Integration | 70V/100V and low impedance | Similar for other Control 400 models |
