JBL Control 419CS/T 8" Ceiling Subwoofer – Extended Bass for Commercial Installations
JBL Control 419CS/T 8" Ceiling Subwoofer – Extended Bass for Commercial Installations is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL Control 419CS/T 8" Ceiling Subwoofer – Extended Bass for C...

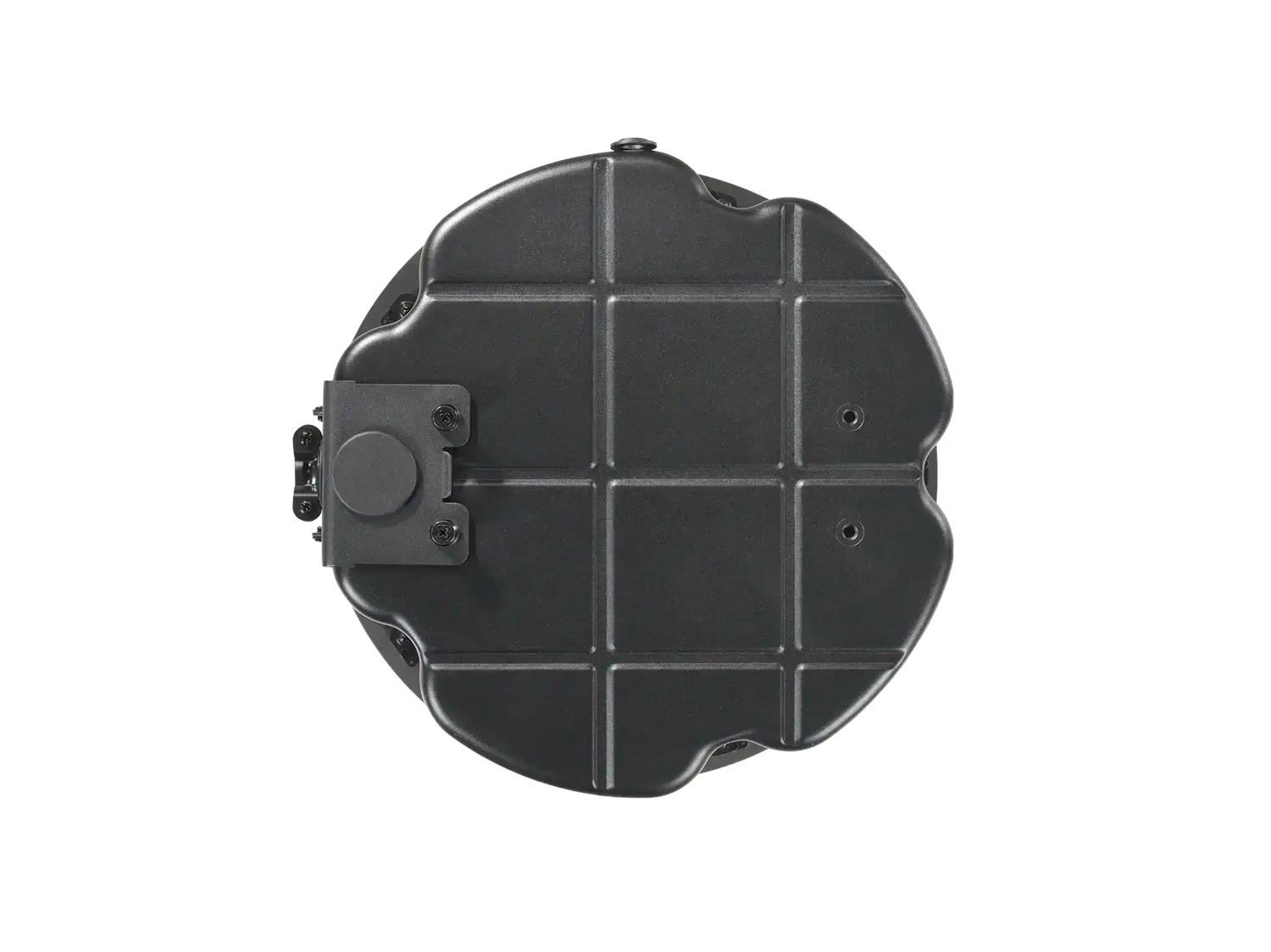

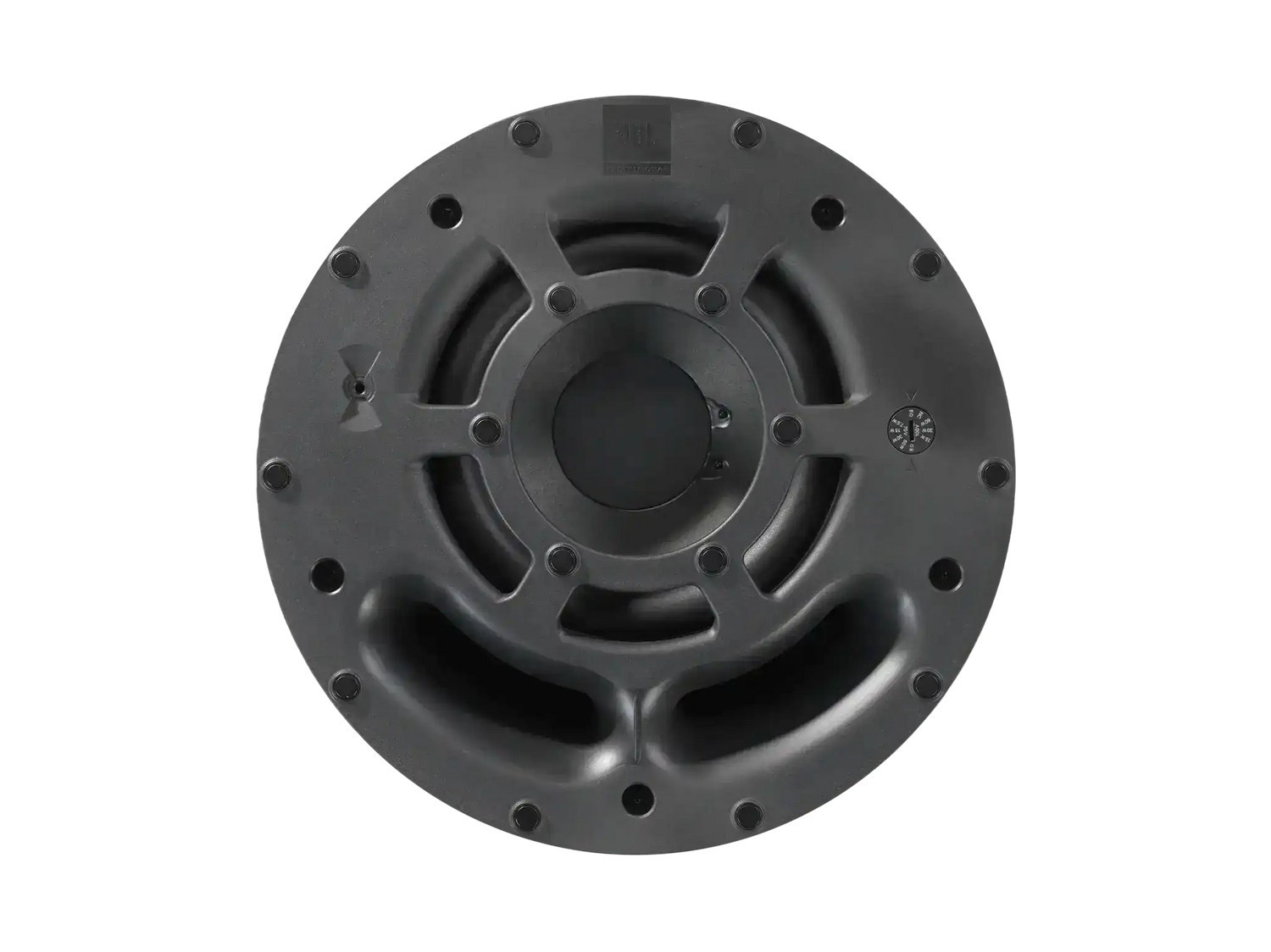

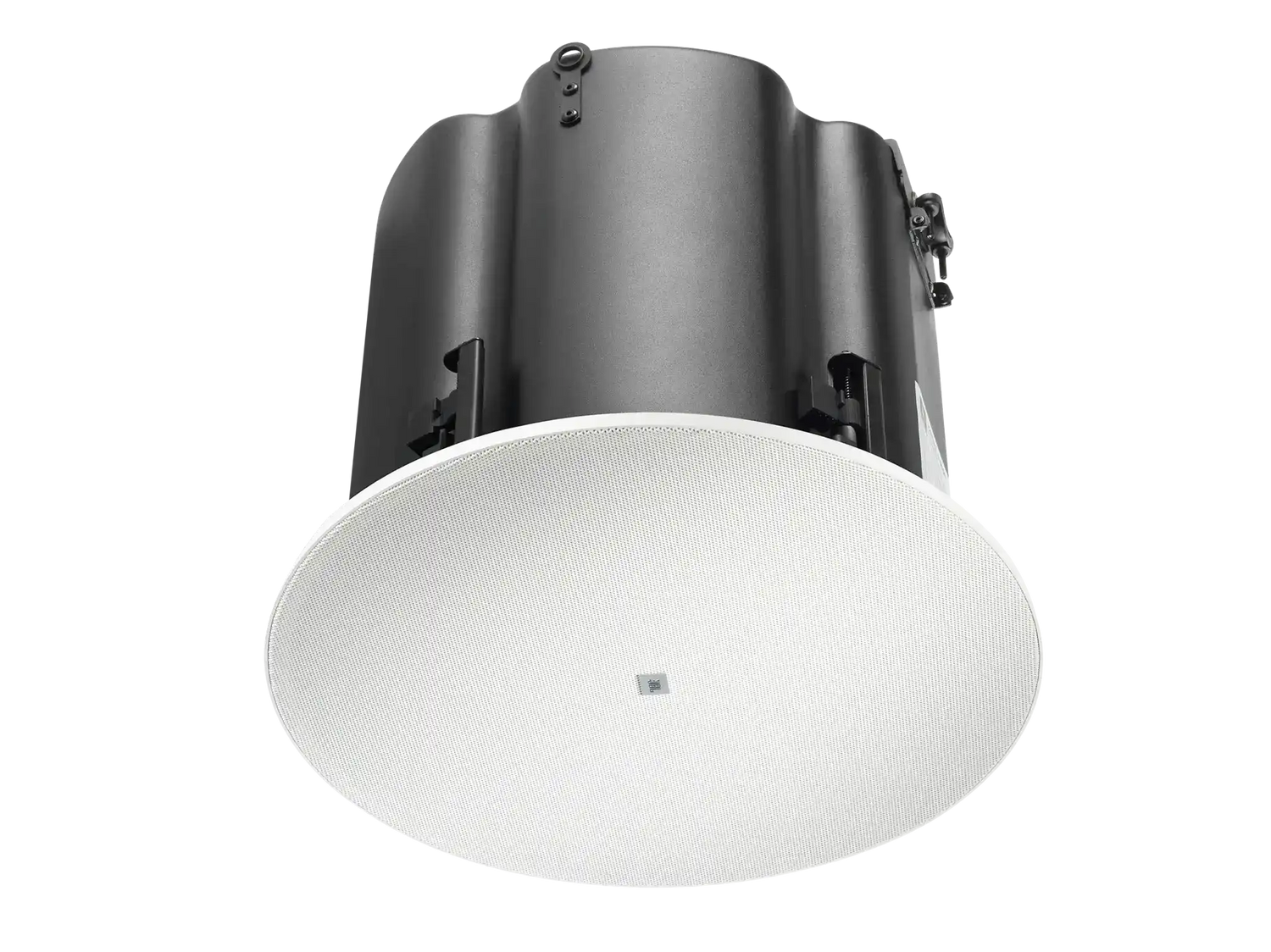

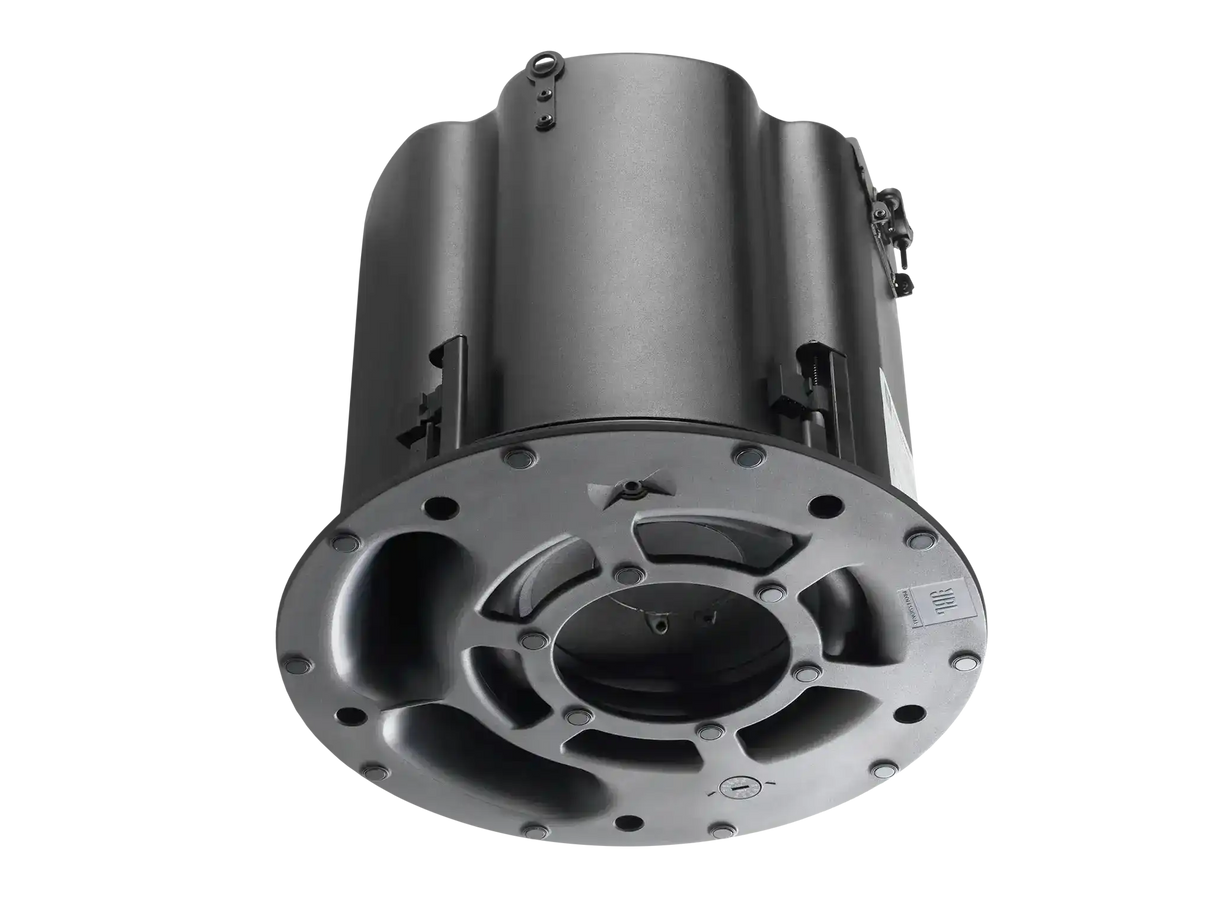

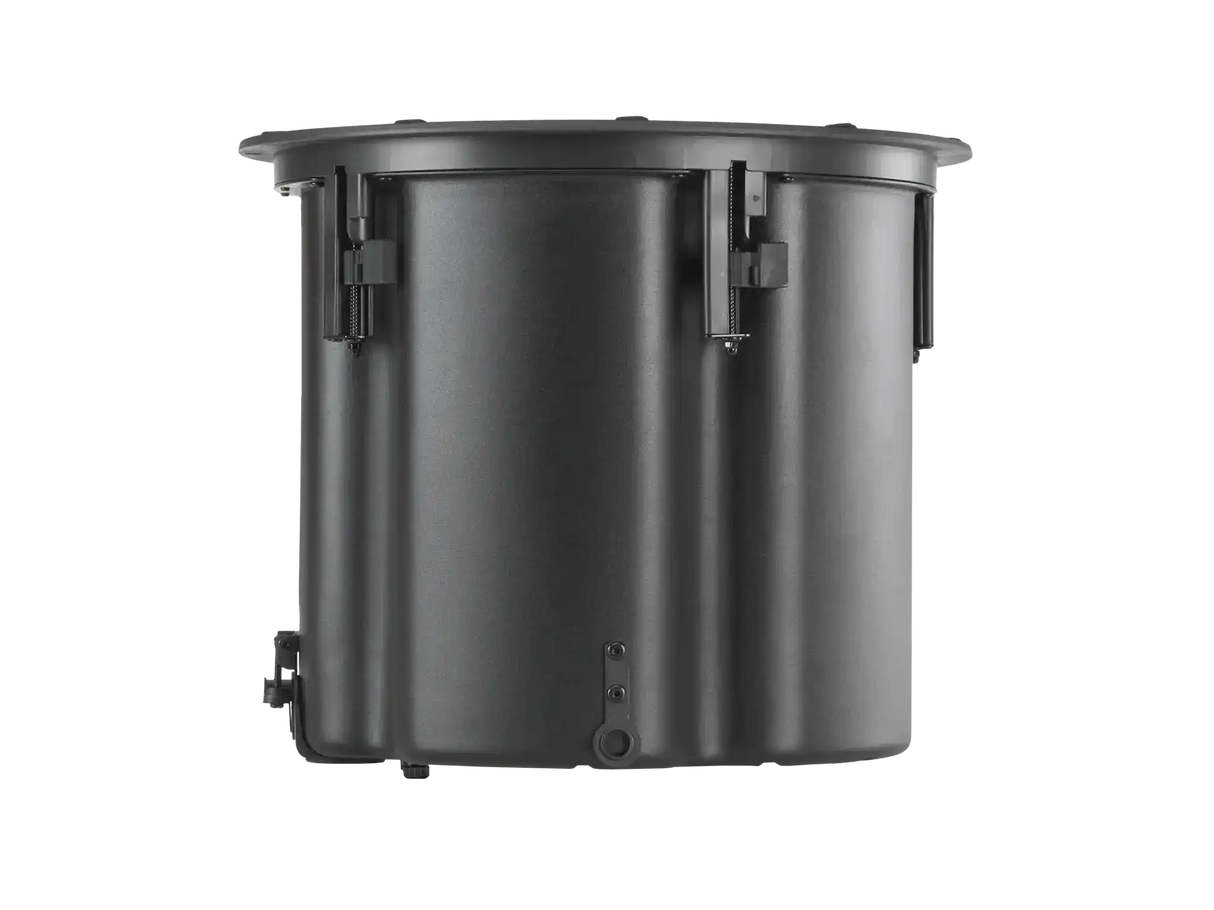

The JBL Control 419CS/T is an 8-inch ceiling subwoofer designed to deliver powerful low-frequency performance in commercial spaces, including offices, retail environments, educational facilities, and hospitality applications. Engineered to seamlessly integrate with JBL Control 400 Series full-range models, the 419CS/T significantly extends bass response while maintaining a refined, modern appearance that complements contemporary architectural designs.
Equipped with an 8-inch woofer and two large, tapered ports, the Control 419CS/T provides warm, smooth bass that enhances the overall sound system. The built-in passive low-pass filter allows easy integration with full-range speakers, while the internal transformer supports both 70V/100V systems and 8-ohm direct mode, giving installers maximum flexibility. With a power handling capacity of 160W RMS (640W peak) and extended low-frequency response down to 47 Hz, this ceiling subwoofer delivers impactful bass for a wide range of audio applications.
Installation is made efficient and reliable with redesigned terminal covers featuring top and side cable entry options and robust dogear mounting mechanisms adaptable to a wide variety of ceiling thicknesses. The unit includes a full-face magnetic grille, which is paintable to match any decor, along with optional black and square accessory grilles for added design versatility. Safety tethers mounted directly to the baffle ensure secure installation.
IP33-rated for water resistance, the Control 419CS/T is suitable for use in air handling spaces and meets rigorous UL, NFPA, and CSA standards. Optional accessories like new construction and mud-ring brackets, as well as tile rails, make installation straightforward in both retrofit and new construction applications. With its combination of powerful bass, versatile installation, and modern aesthetics, the JBL Control 419CS/T is the ideal solution for extending low-frequency sound in commercial ceiling installations.
Features:
-
8” (200 mm) woofer with treated paper cone and high-performance magnet
-
Integrated enclosure with two tapered ports for smooth bass response
-
Built-in passive low-pass filter for seamless integration with full-range speakers
-
Built-in 70V/100V multi-tap transformer plus 8-ohm direct input
-
Full-face magnetic grille, paintable, with optional black and square accessories
-
Top and side cable entry options
-
Robust dogear mounts for a wide range of ceiling thicknesses
-
IP33 rated for water resistance
-
Safety tethers for secure grille installation
-
Compatible with JBL-MTC-419NC and MTC-419MR brackets, plus tile rails
Specifications Table:
| Specification | Details |
|---|---|
| Model | JBL Control 419CS/T |
| Frequency Range (-10 dB) | 47 Hz – 320 Hz |
| Power Capacity | 160 W RMS (640 W Peak), Continuous IEC Pink Noise |
| Sensitivity (1m/1W) | 90 dB |
| Coverage Angle | 180° conical |
| Maximum SPL (1m) | 112 dB continuous, 118 dB peak |
| Nominal Impedance | 8 Ω |
| Transformer Taps | 70 V: 60, 30, 15, 7.5 W; 100 V: 60, 30, 15 W |
| Driver | 8” (200 mm) woofer |
| Ceiling Cutout Size | 308 mm (12.2 in) |
| Dimensions | 289 mm H x 346 mm dia.; 280 mm depth from ceiling tile to backcan |
| Safety Agency Rating | UL2043, NFPA 90A, NFPA 70, CSA C22.2 No.205 |
| Environmental Rating | IP33 per EN/IEC 60529 |
| Operating Temperature | 0°C – 45°C |
| Optional Accessories | JBL-MTC-419BG, JBL-MTC-419SG, JBL-MTC-419NC, JBL-MTC-419MR, JBL-MTC-48TRX4 |
| Color | White (RAL9003), paintable |
| Net Weight (each) | 8.8 kg (19.4 lbs) |
| Shipping Weight (pair) | 25.27 kg (55.7 lbs) |
Compare Table:
| Feature / Model | Control 419CS/T | Standard Ceiling Subwoofer |
|---|---|---|
| Woofer Size | 8” | 6”-8” |
| Power Handling | 160 W RMS, 640 W Peak | 100 W RMS typical |
| Transformer Support | 70/100V Multi-Tap | Optional or None |
| Passive Low-Pass Filter | Yes | No |
| IP33 Water Resistance | Yes | Varies |
| Full-Face Magnetic Grille | Yes | Optional |
| Safety Tether Included | Yes | No |
