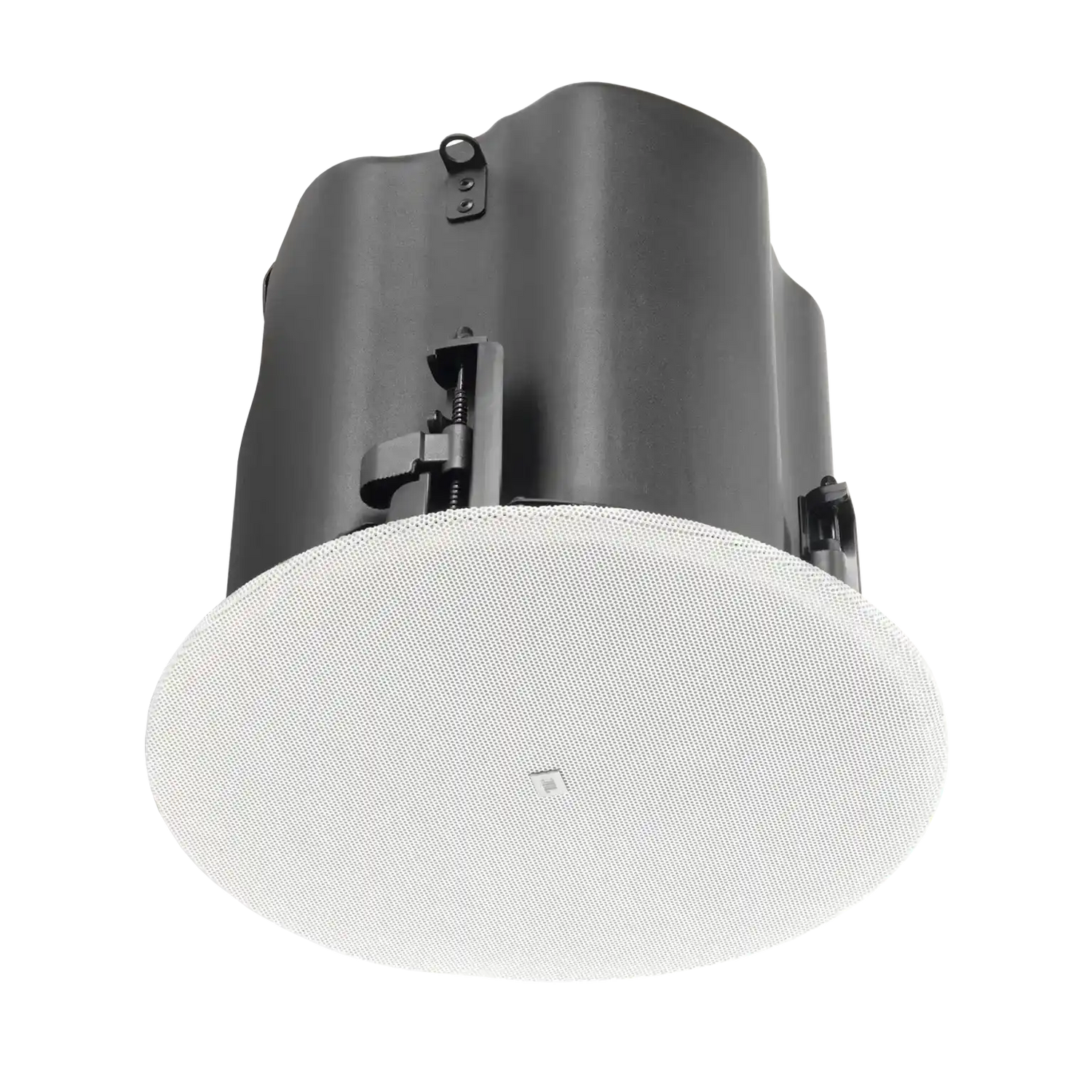

JBL Control 416C/T-VA – 6.5" Two-Way Coaxial Ceiling Loudspeaker, EN54-24 Certified

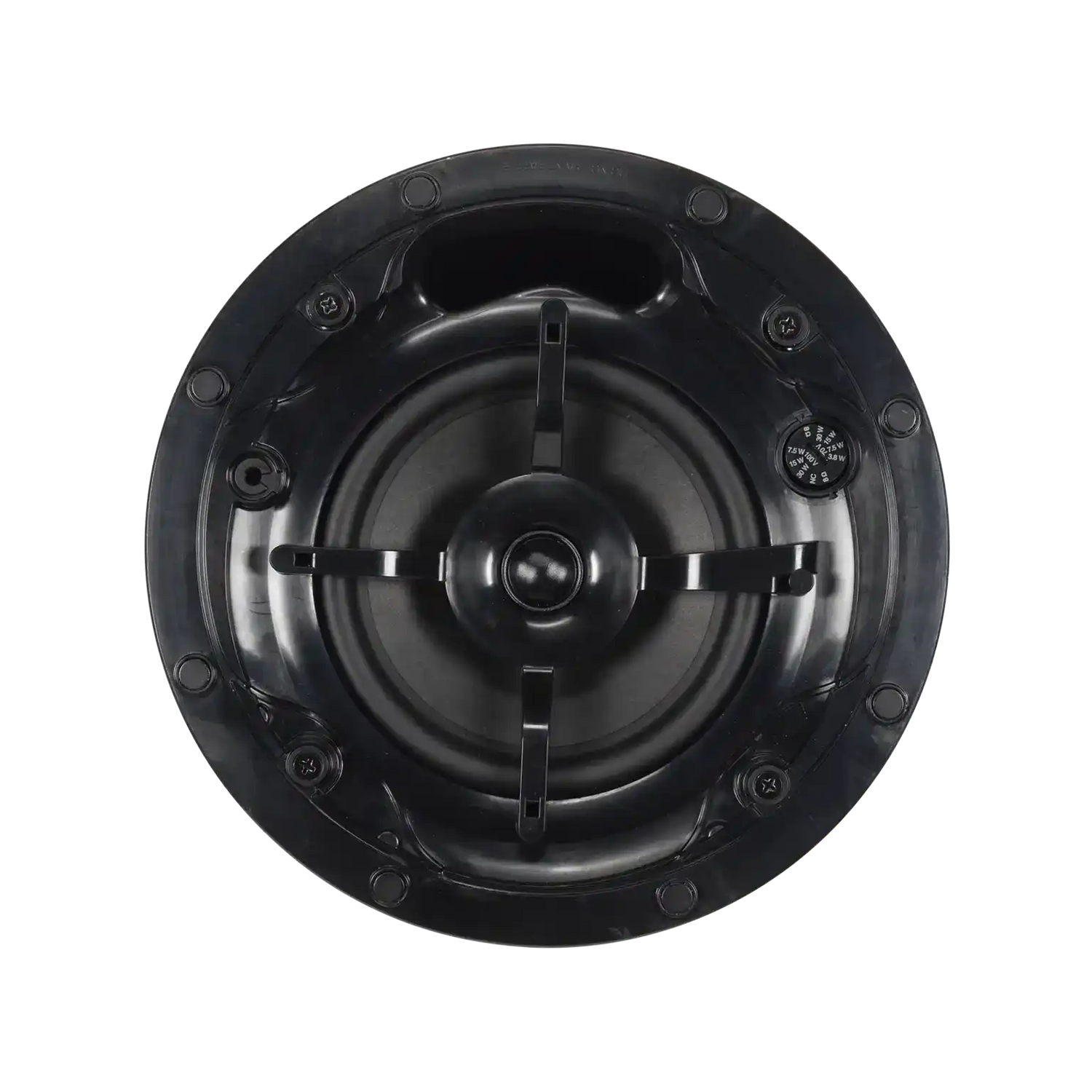

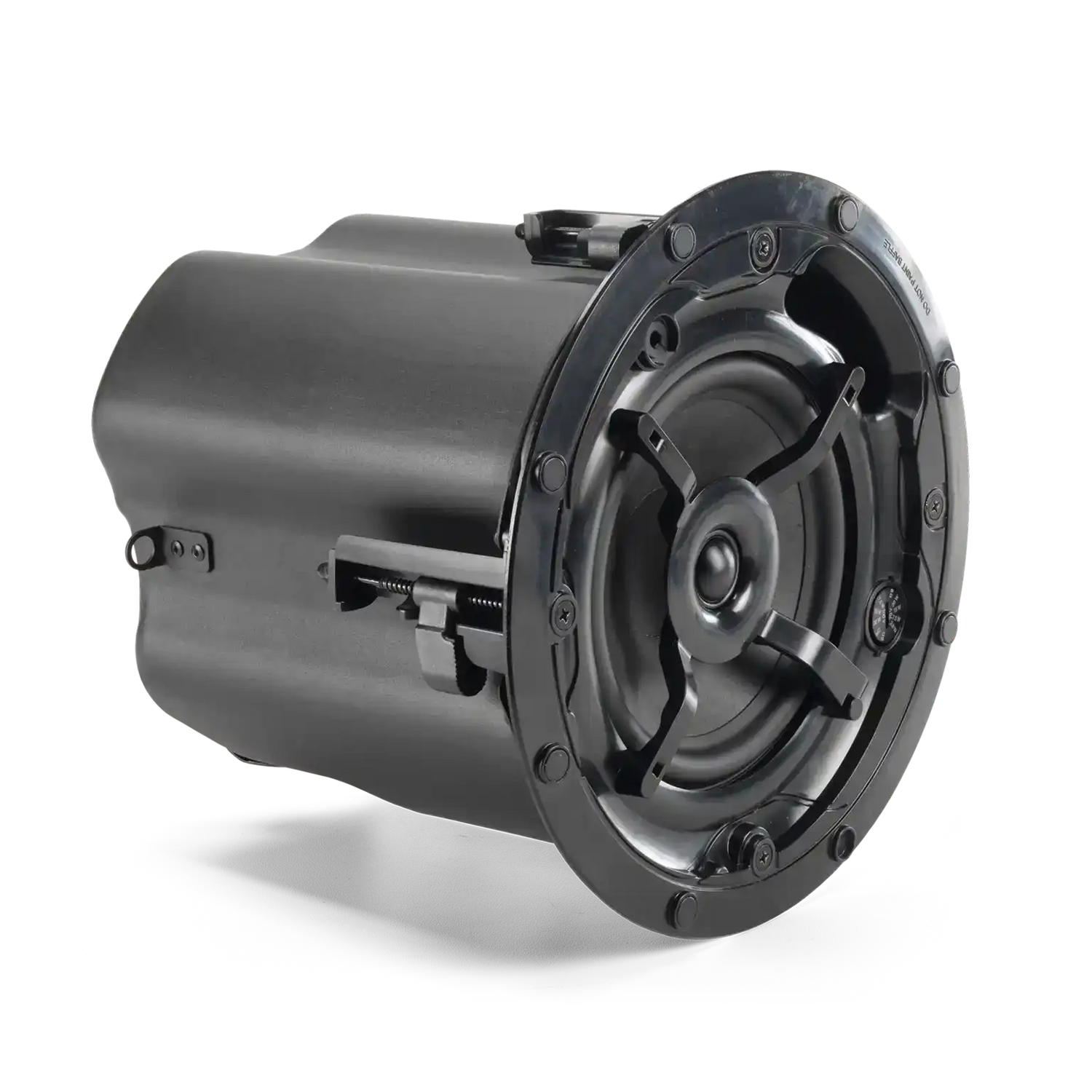

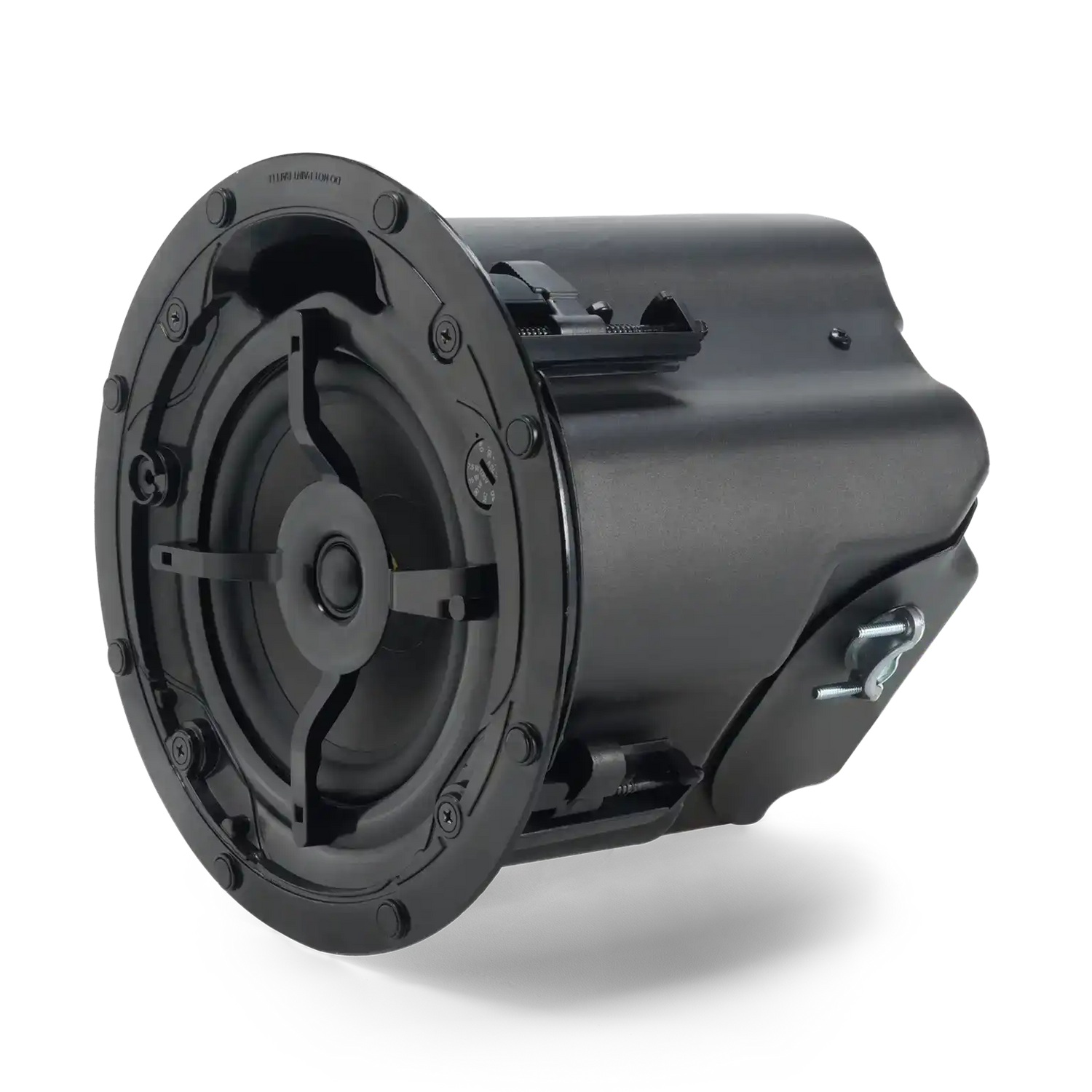

The JBL Control 416C/T-VA is a premium 6.5-inch two-way coaxial ceiling loudspeaker from the Control 400 Standard Coverage Series, designed for commercial and life safety applications. With its EN54-24 certification, this model meets the stringent requirements for fire alarm and emergency communication systems, making it ideal for public buildings, educational facilities, and other safety-critical environments. Its coaxial design combines a 6.5-inch woofer with a 0.75-inch soft-dome tweeter to deliver clear, balanced audio across the frequency spectrum, ensuring speech intelligibility and reliable sound reinforcement.

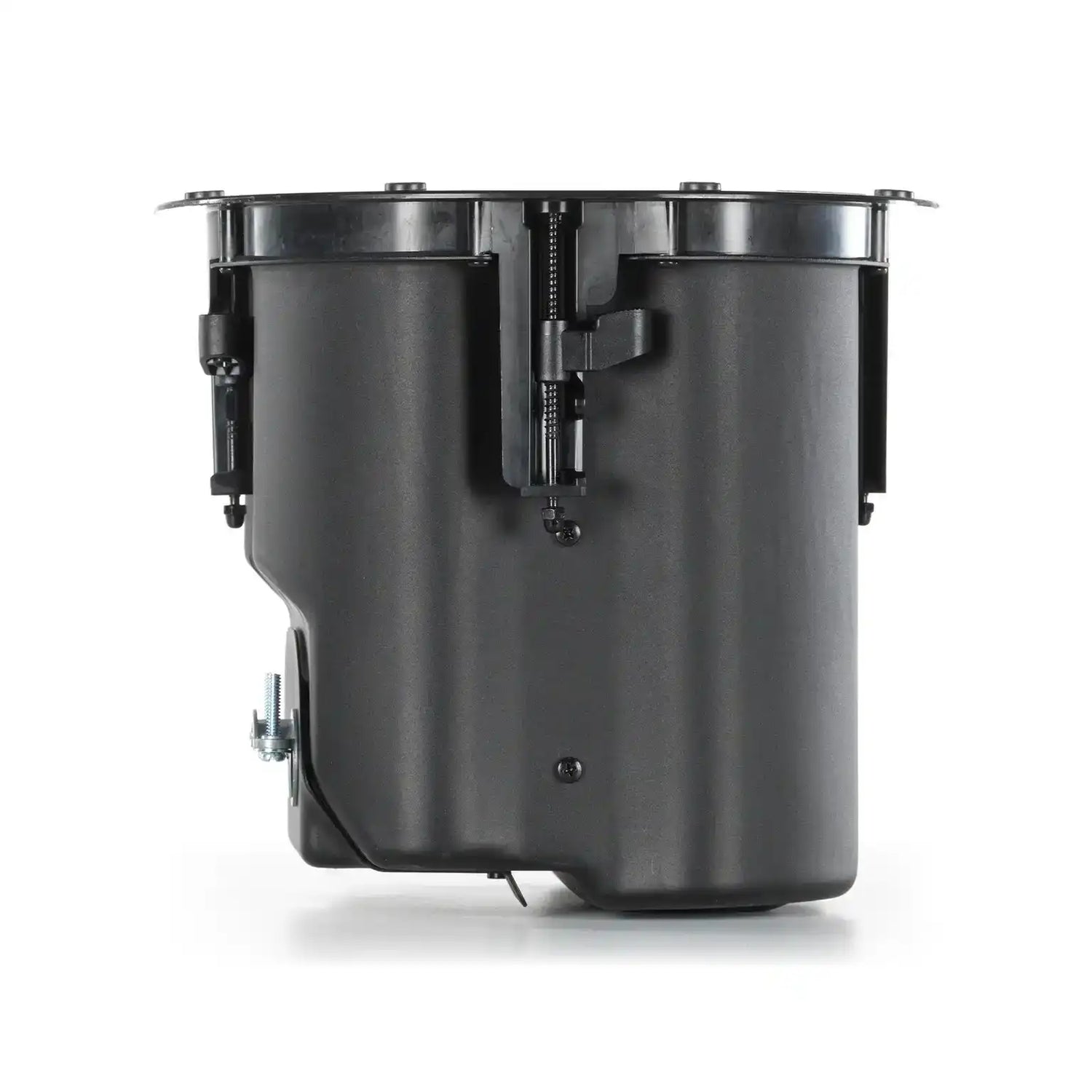

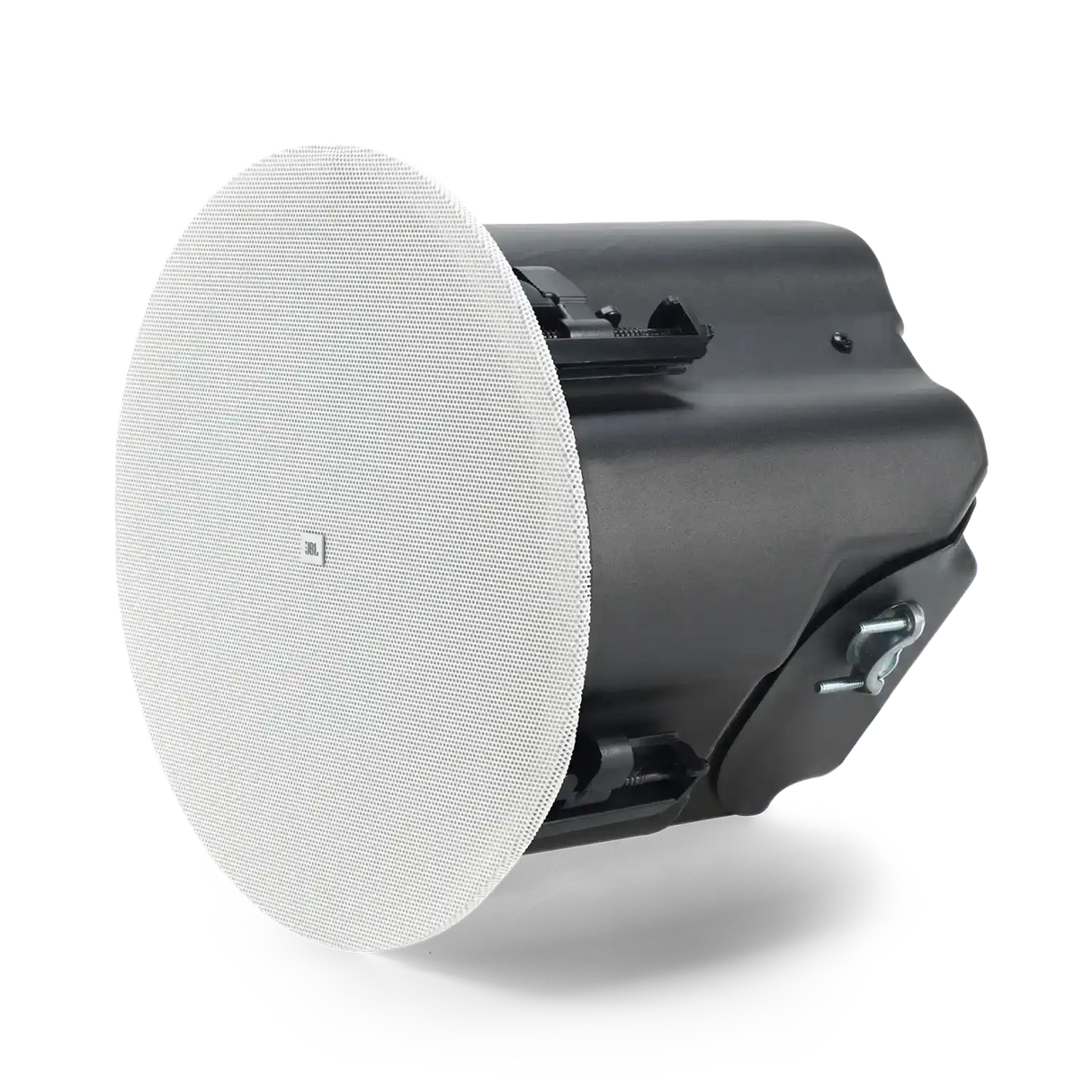

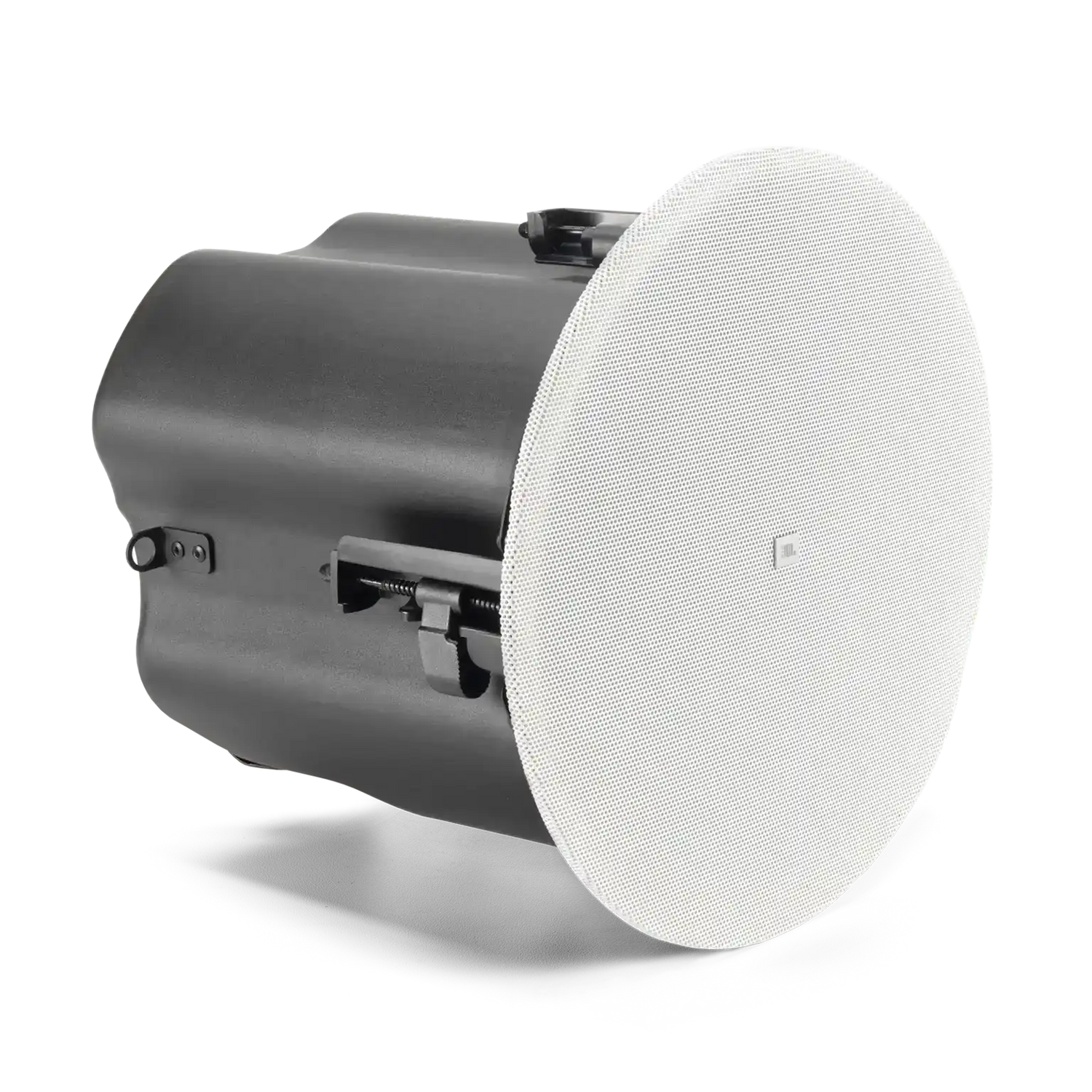

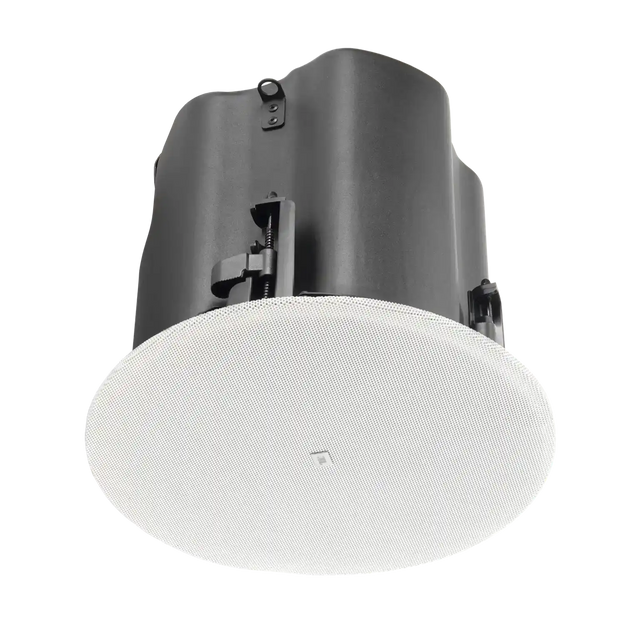

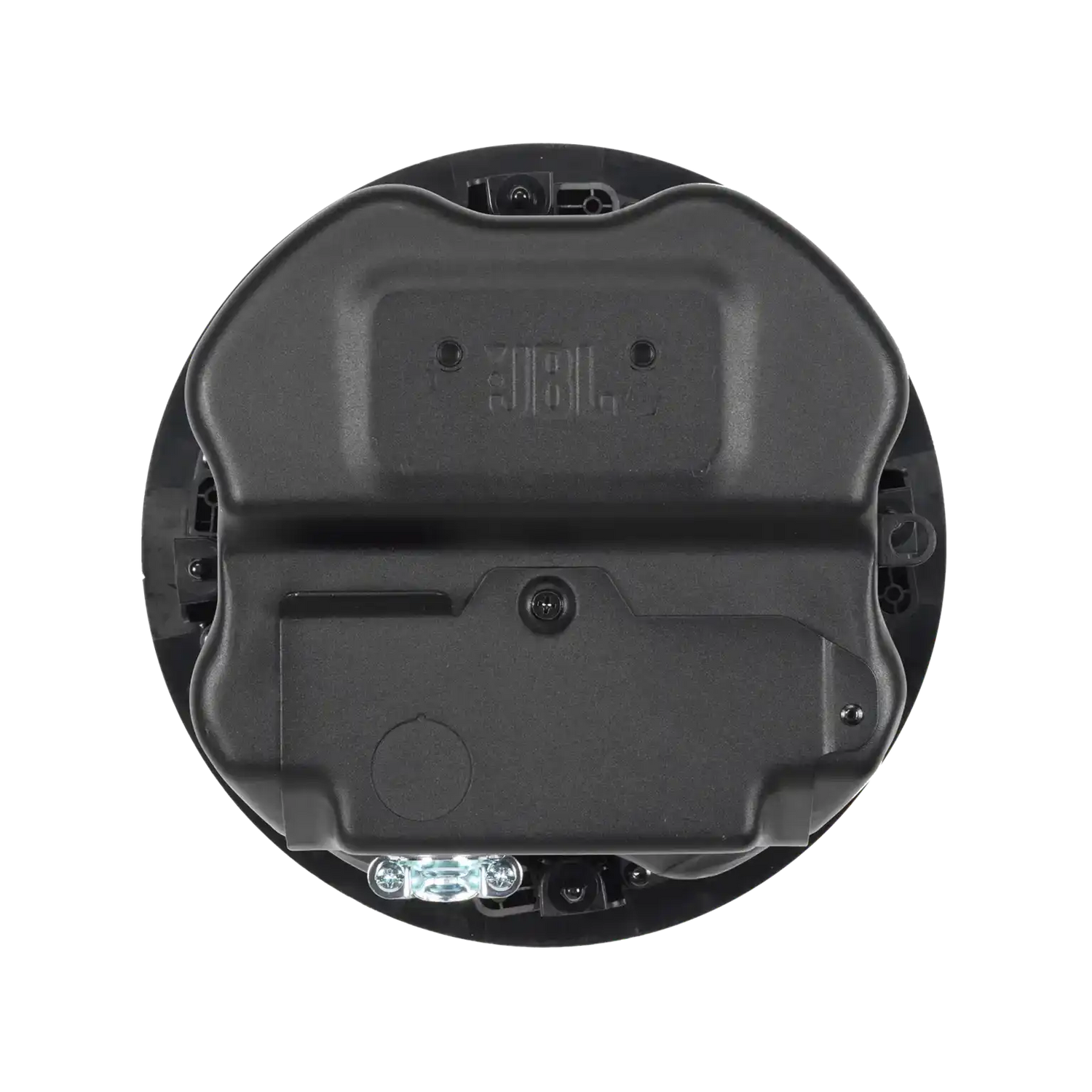

Engineered for environments with restricted ceiling plenum space, the Control 416C/T-VA features a low-profile integrated enclosure that allows installation in most ceiling types. The included full-face magnetic grille is paintable, blending seamlessly with modern architectural designs, while optional black round, white square, or weatherized grilles provide additional design flexibility. The speaker’s installation features are thoughtfully engineered to maximize safety, efficiency, and repeatability. The terminal cover offers both top and side cable entry options, and the captive dogear mounting system accommodates a wide range of ceiling thicknesses, reducing installation time and effort.

The Control 416C/T-VA supports both 70V/100V distributed systems with a multi-tap transformer and low-impedance 8-ohm operation for flexible deployment. Acoustically, it provides 120° conical coverage, a frequency response of 61 Hz to 20 kHz, and a continuous power rating of 75 W (300 W peak). Its IP33 environmental rating, along with compliance to UL2043, NFPA, CSA, and EN54-24 standards, ensures reliable performance in challenging commercial environments. Optional accessories such as construction brackets, mud-ring brackets, and tile rails allow further customization and protection. The JBL Control 416C/T-VA combines high-output sound, sleek aesthetics, and certified life safety compliance in a versatile ceiling loudspeaker.

Features:

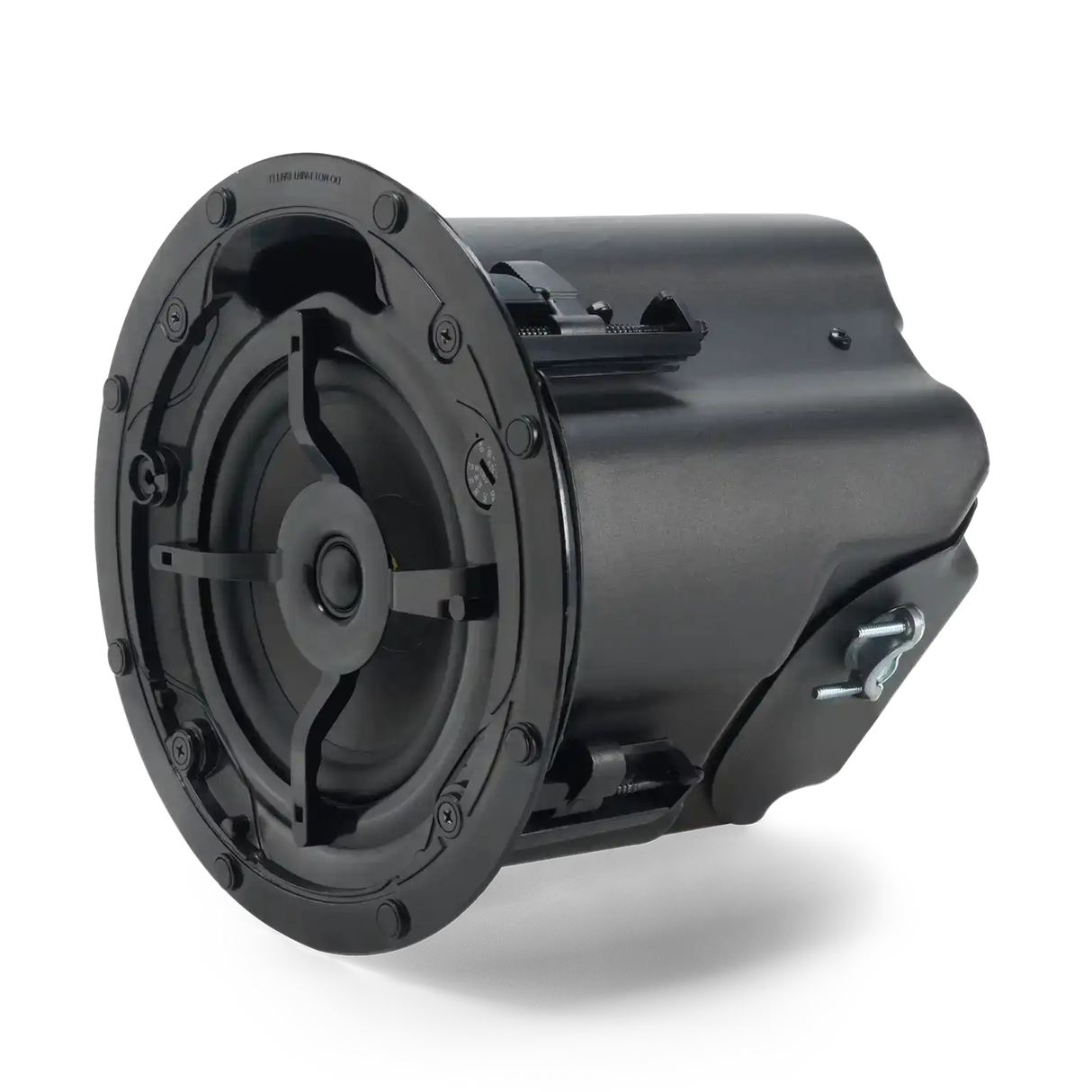

• 6.5” woofer with 0.75” soft-dome coaxial tweeter for two-way performance

• Integrated enclosure suitable for restricted ceiling plenum spaces

• Built-in 70V/100V multi-tap transformer and 8Ω direct input

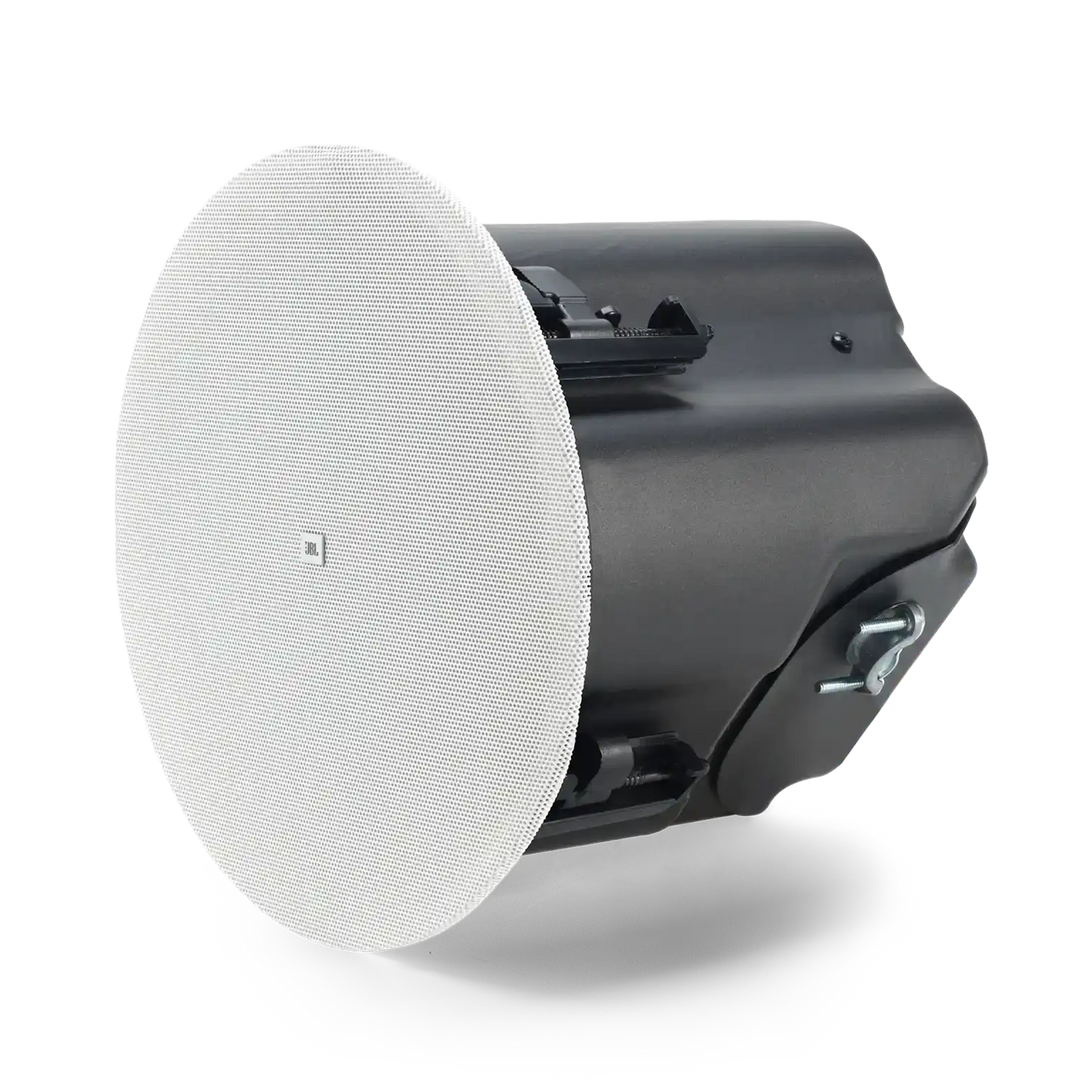

• Full-face, paintable magnetic grille; optional black, white, or weatherized grilles

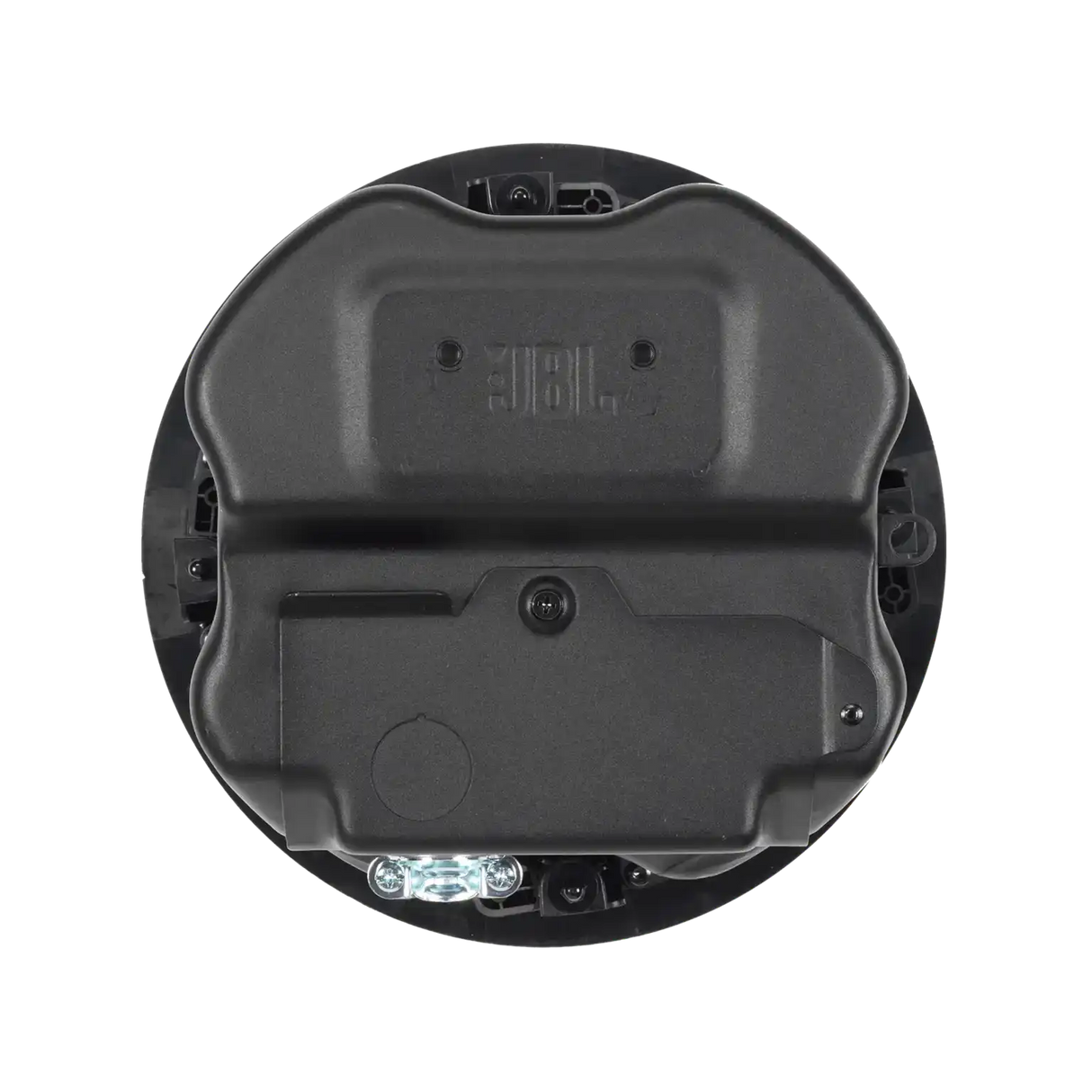

• Top and side cable entry options

• Captive dogear design for secure installation across varying ceiling thicknesses

• 120° conical coverage pattern

• IP33 environmental rating

• EN54-24 certified for life safety applications
