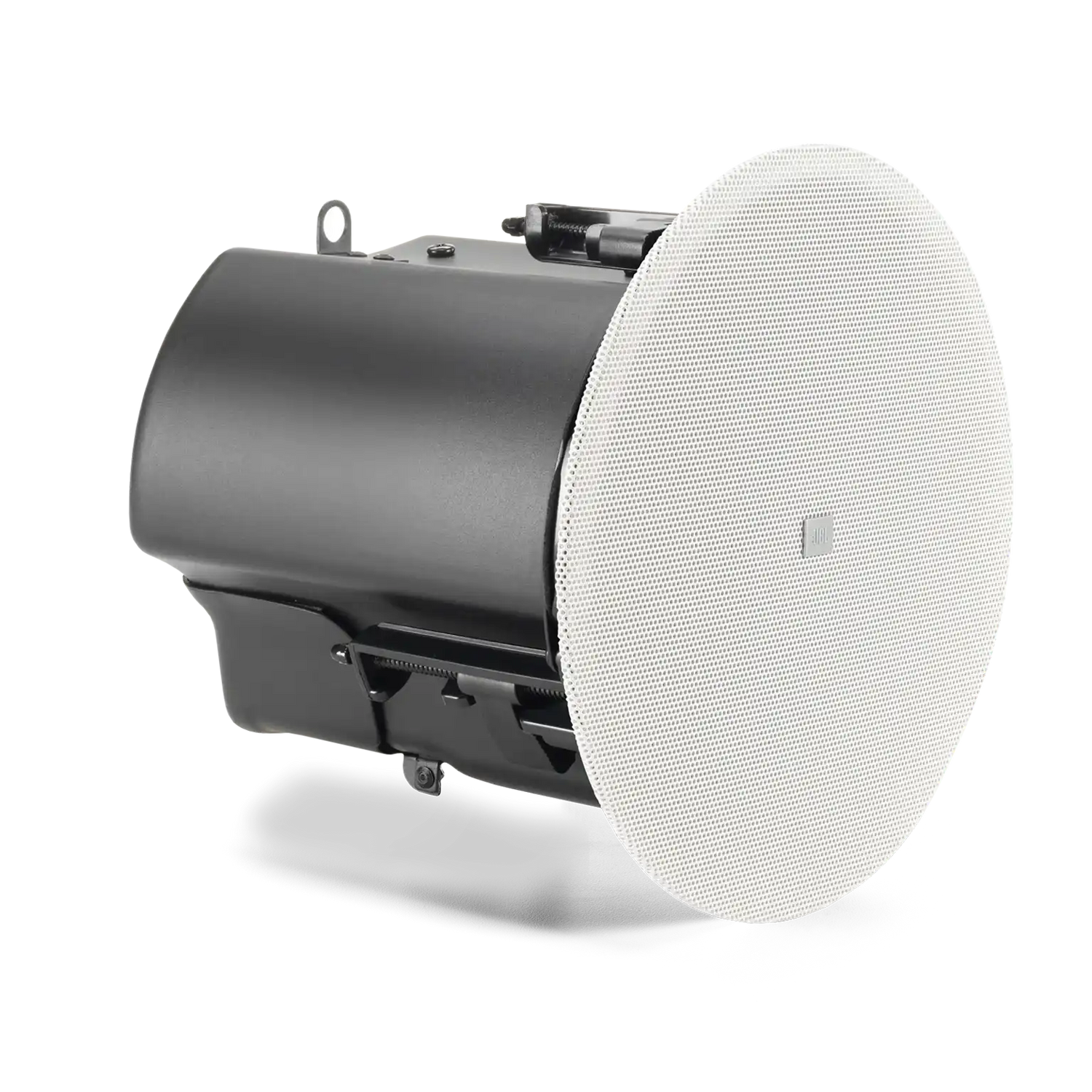

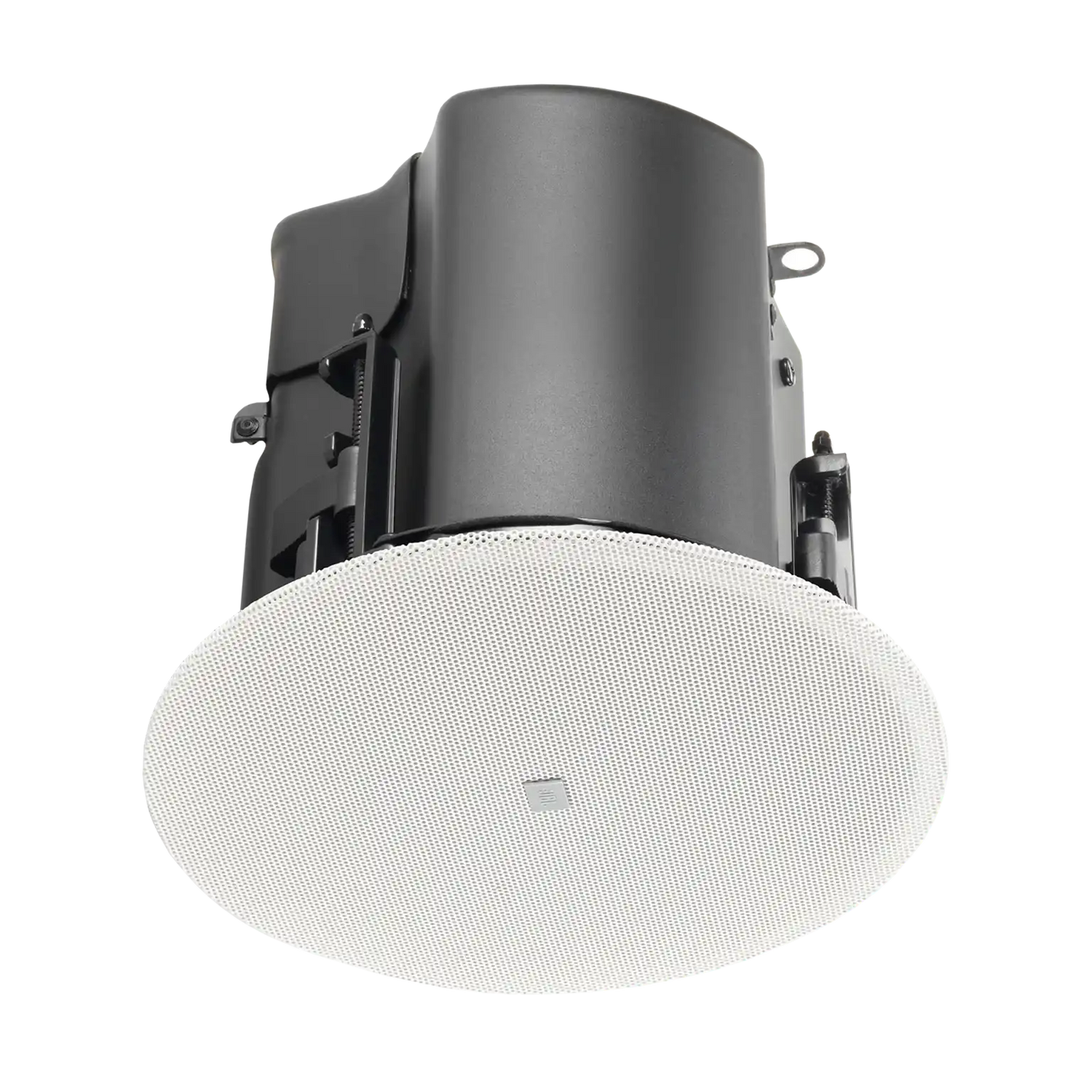

JBL Control 414C/T-VA – 4" Two-Way Coaxial Ceiling Loudspeaker, EN54-24 Certified

The JBL Control 414C/T-VA is a 4-inch two-way coaxial ceiling loudspeaker from the Control 400 Standard Coverage Series, designed for life safety and commercial applications. With its EN54-24 certification, this speaker is suitable for emergency communication and fire alarm systems, ensuring compliance with stringent safety standards. Combining a 4-inch woofer with a 0.75-inch soft-dome tweeter, the Control 414C/T-VA delivers balanced and intelligible sound across the frequency spectrum, making it ideal for voice paging, background music, and critical audio announcements.

Engineered for installation in ceilings with restricted plenum space, the speaker features a low-profile integrated enclosure that fits seamlessly into most ceiling types. The full-face magnetic grille is paintable to match interior designs, while optional black round, white square, or weatherized grilles provide additional aesthetic flexibility. Installation is simplified with top and side cable entry ports, and the reliable captive dogear system ensures secure mounting across a wide range of ceiling thicknesses. This design reduces installation time and enhances repeatability while maintaining safety during setup.

Supporting both 70V/100V distributed systems through a multi-tap transformer and low-impedance 8-ohm operation, the Control 414C/T-VA is highly versatile. It offers a 130° conical coverage pattern, a frequency range from 65 Hz to 20 kHz, and a continuous power rating of 45 W (180 W peak). Its IP33 rating ensures performance in environments prone to moisture, and the speaker complies with UL2043, NFPA, CSA, and EN54-24 standards. Optional accessories, including construction brackets, mud-ring brackets, tile rails, and accessory grilles, allow for further customization and optimal integration into commercial installations. The JBL Control 414C/T-VA combines certified life safety compliance, reliable audio performance, and modern aesthetics in a compact ceiling loudspeaker.

Features:

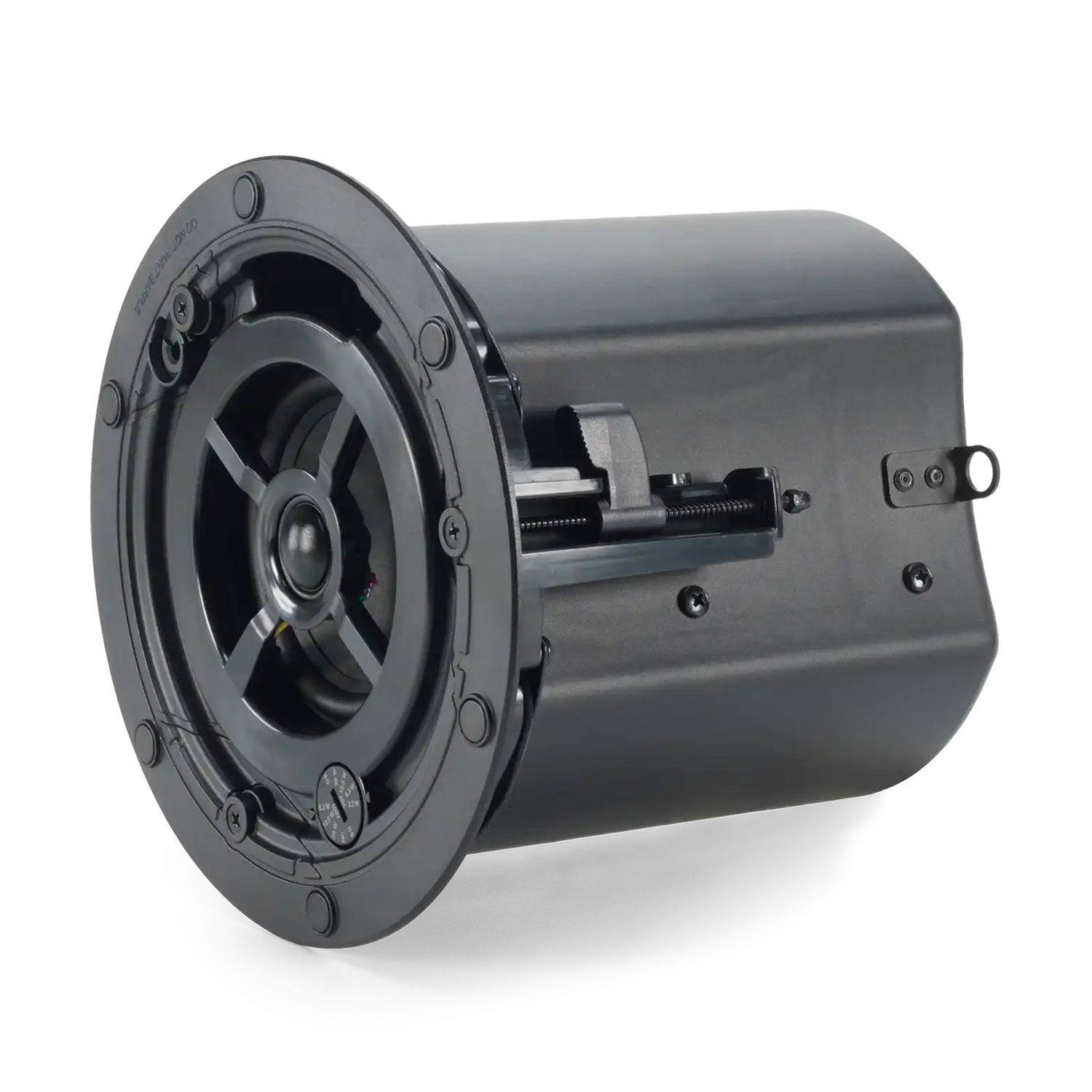

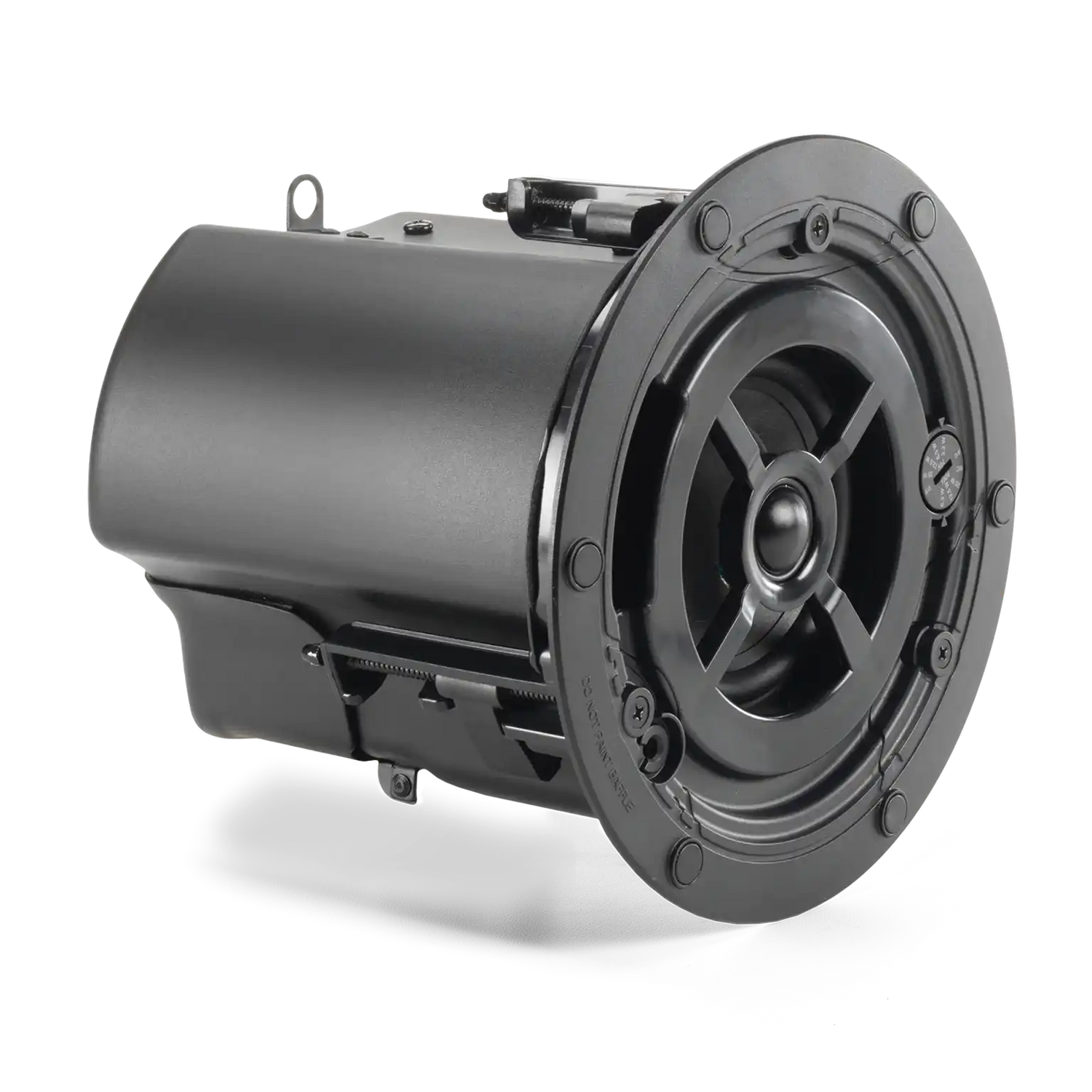

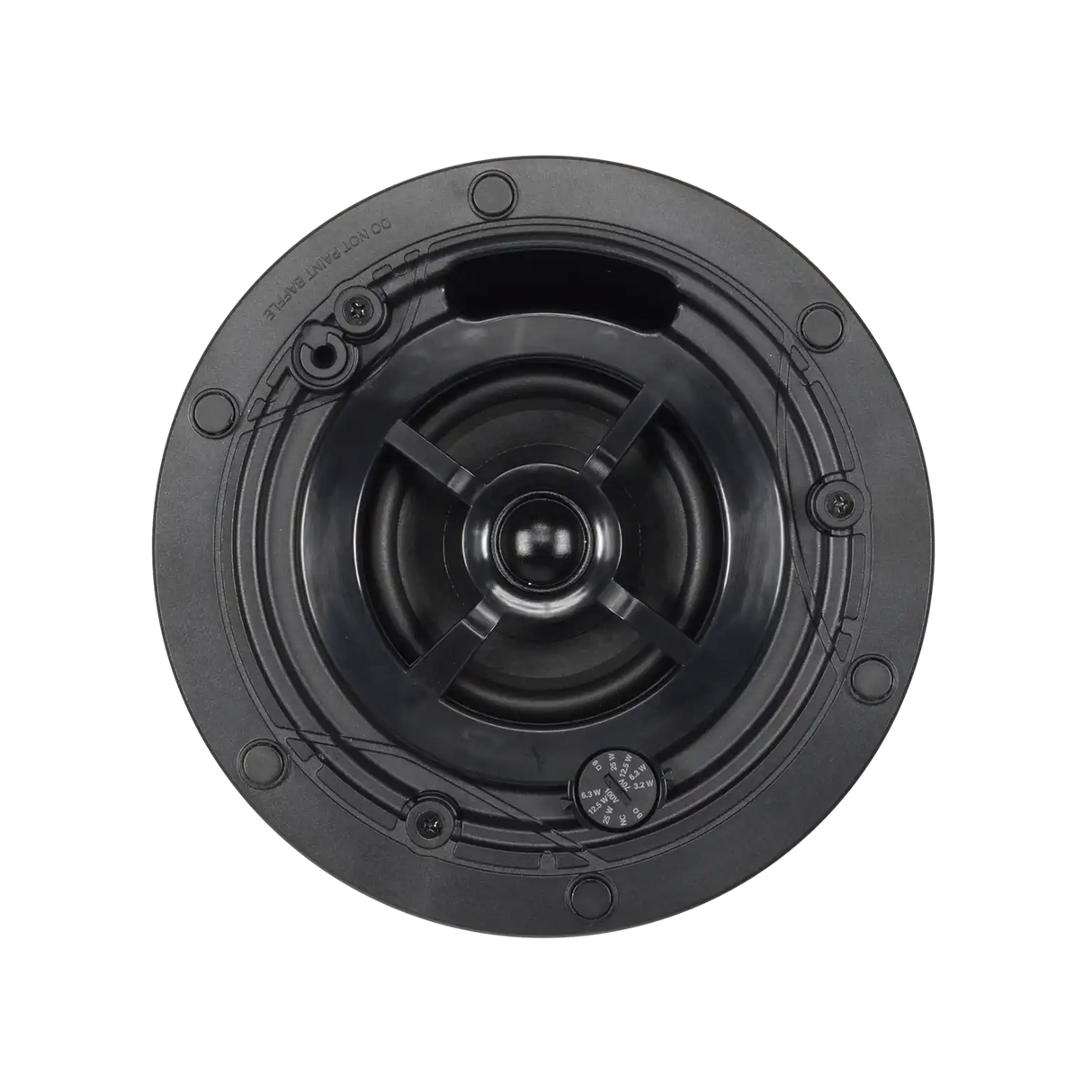

• 4” woofer with 0.75” soft-dome coaxial tweeter

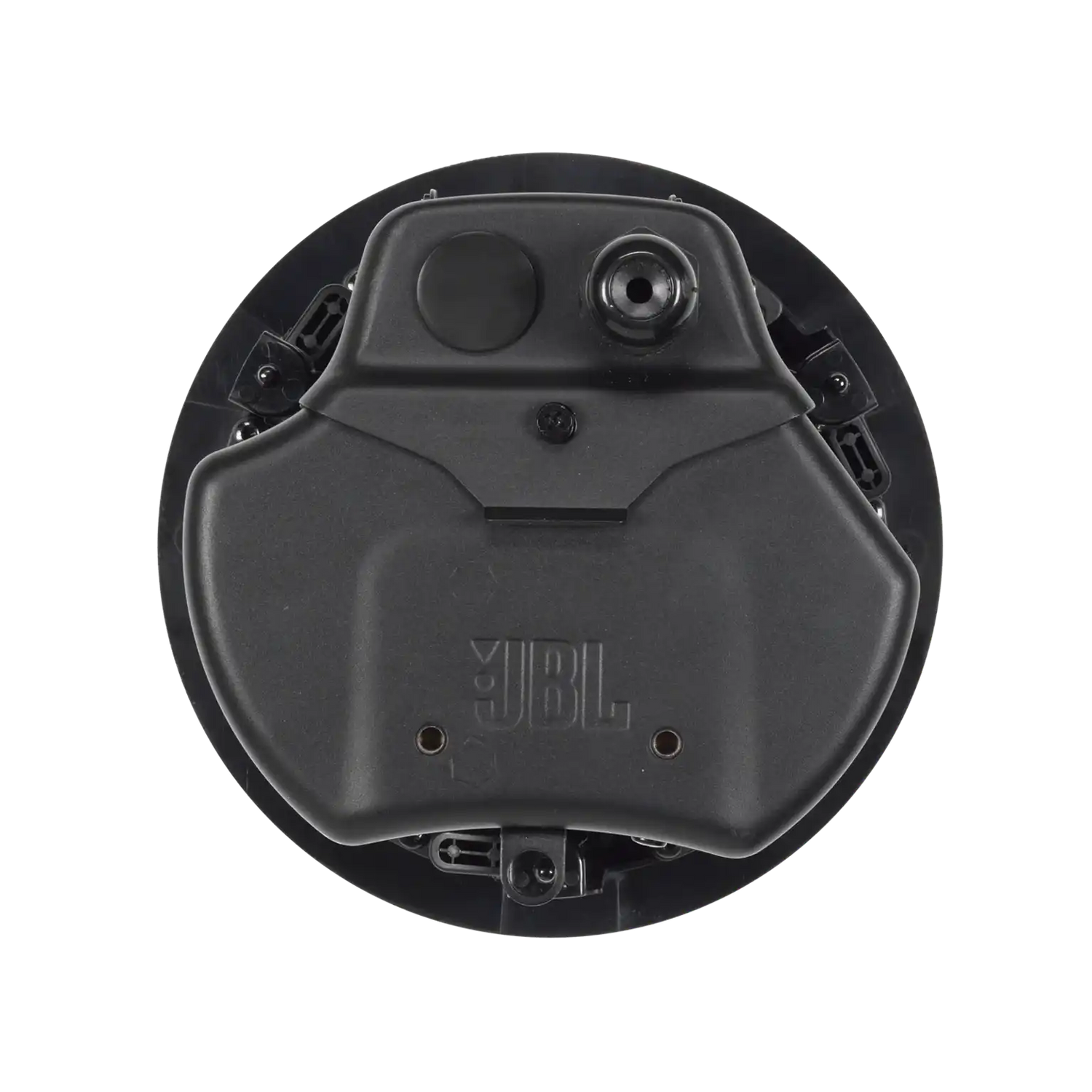

• Low-profile integrated enclosure ideal for restricted plenum spaces

• Built-in 70V/100V multi-tap transformer and 8Ω direct input

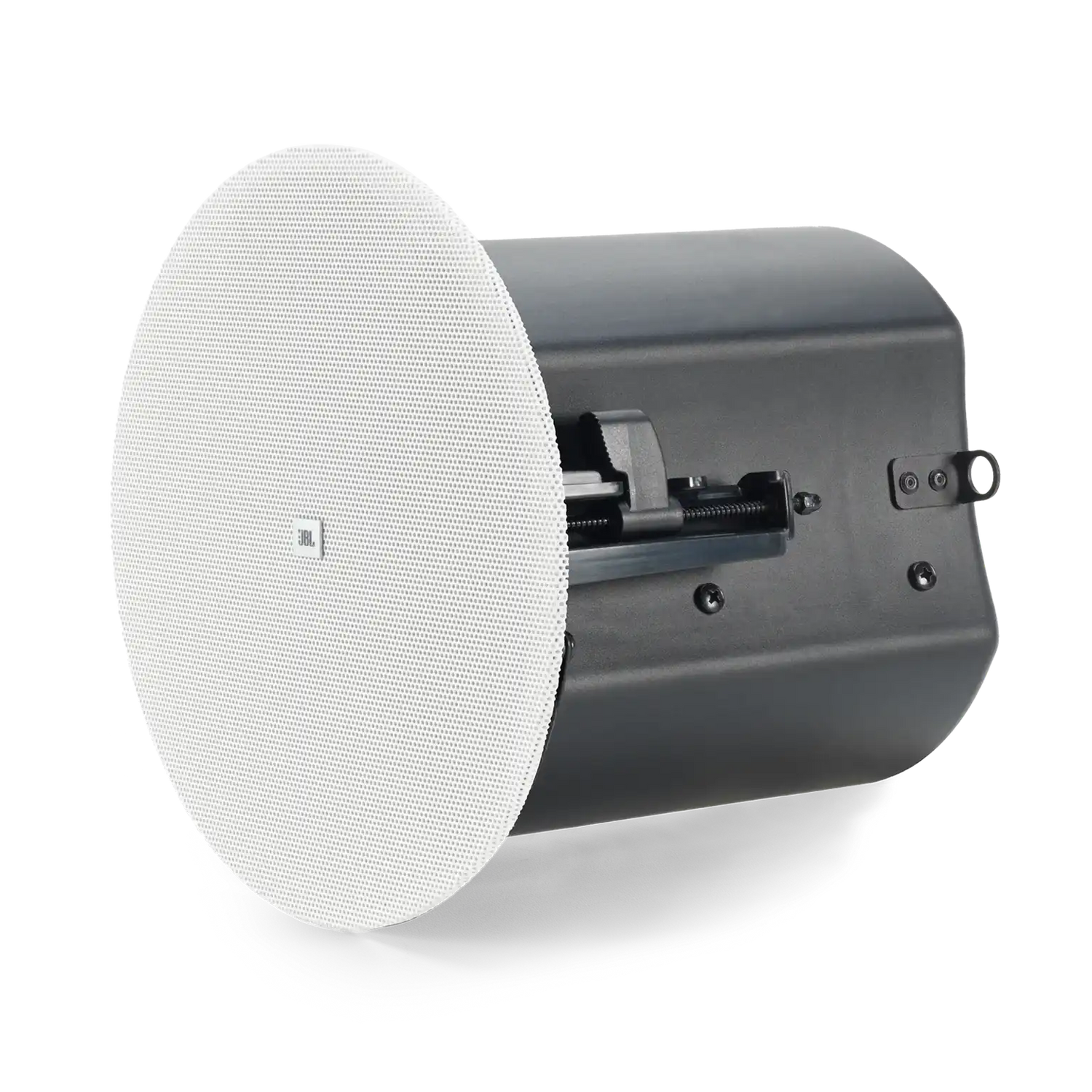

• Full-face, paintable magnetic grille; optional black, white, or weatherized grilles

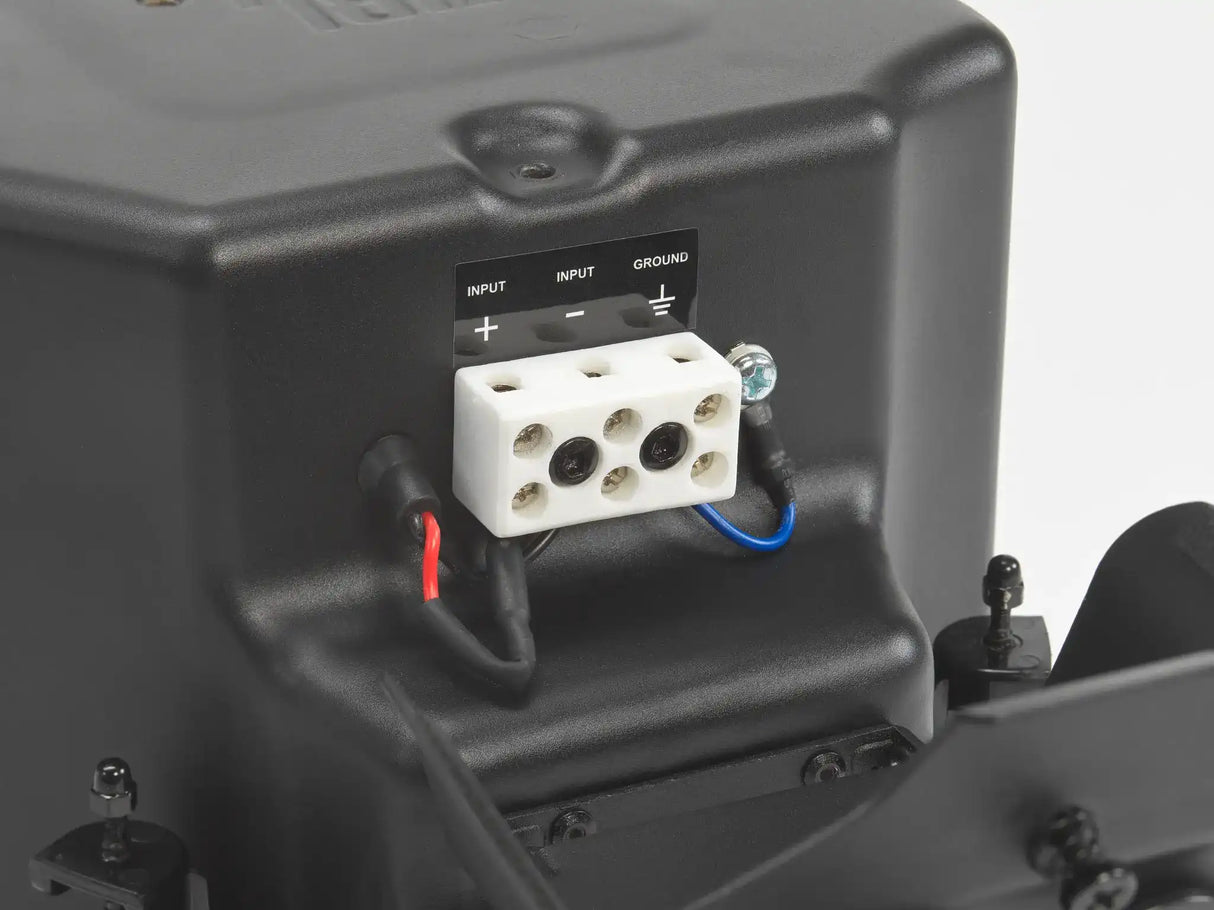

• Top and side cable entry options

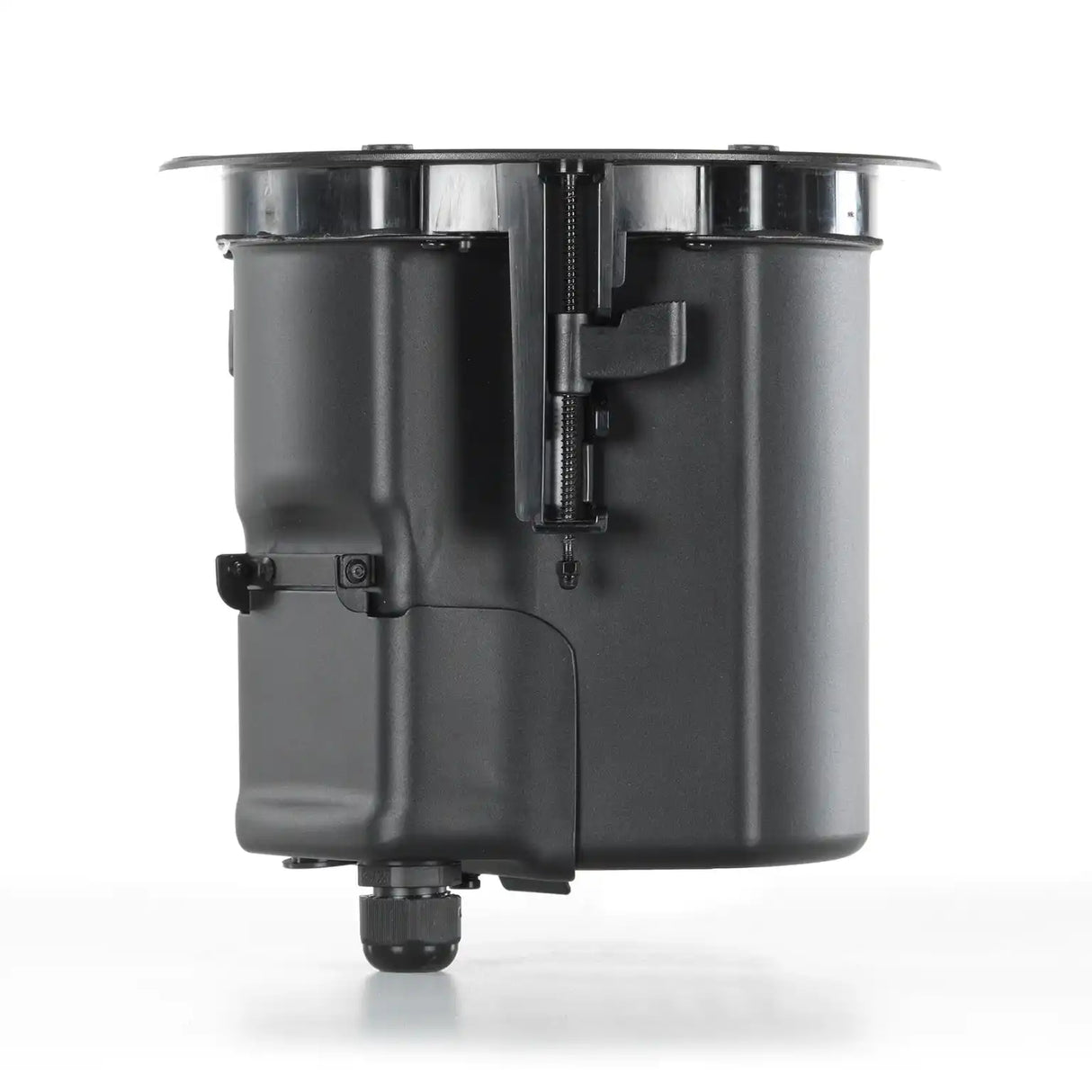

• Captive dogear design for secure installation across varying ceiling thicknesses

• 130° conical coverage pattern

• IP33 environmental rating

• EN54-24 certified for life safety applications
