JBL Control 414C/T – 4" Two-Way Coaxial Ceiling Loudspeaker

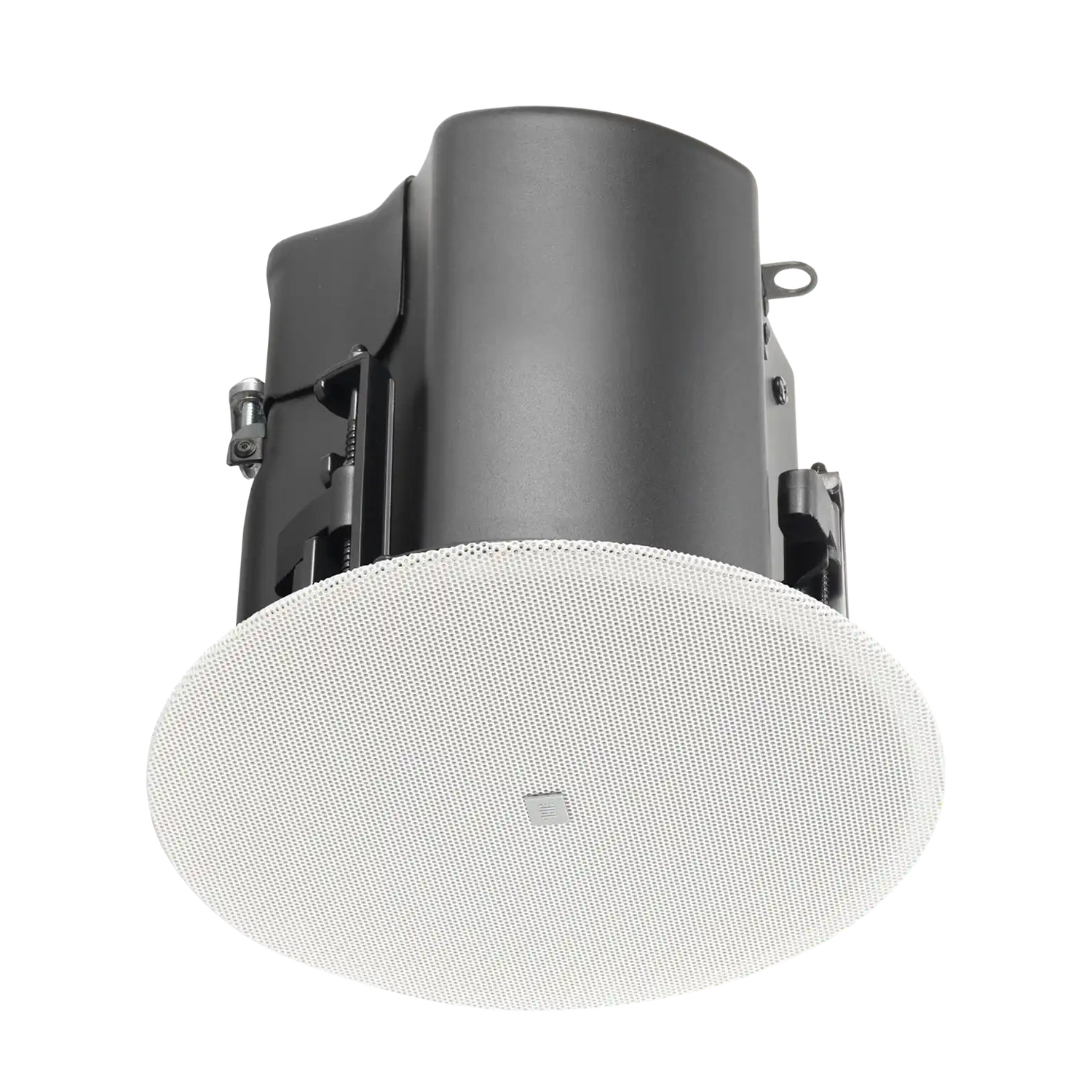

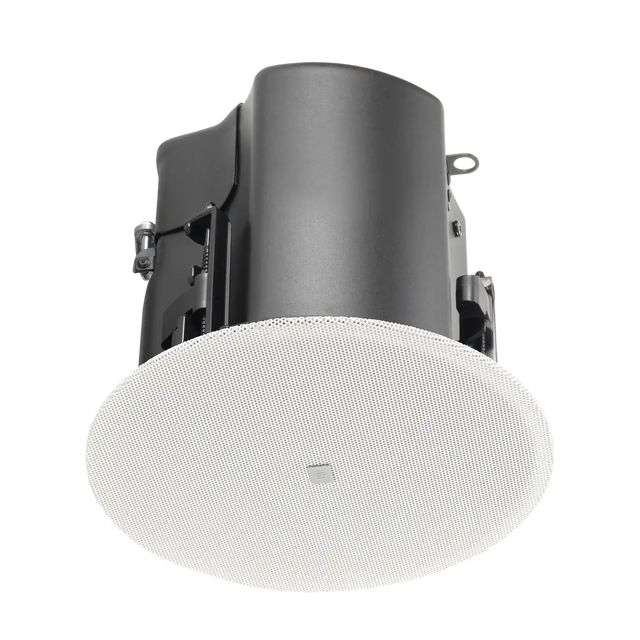

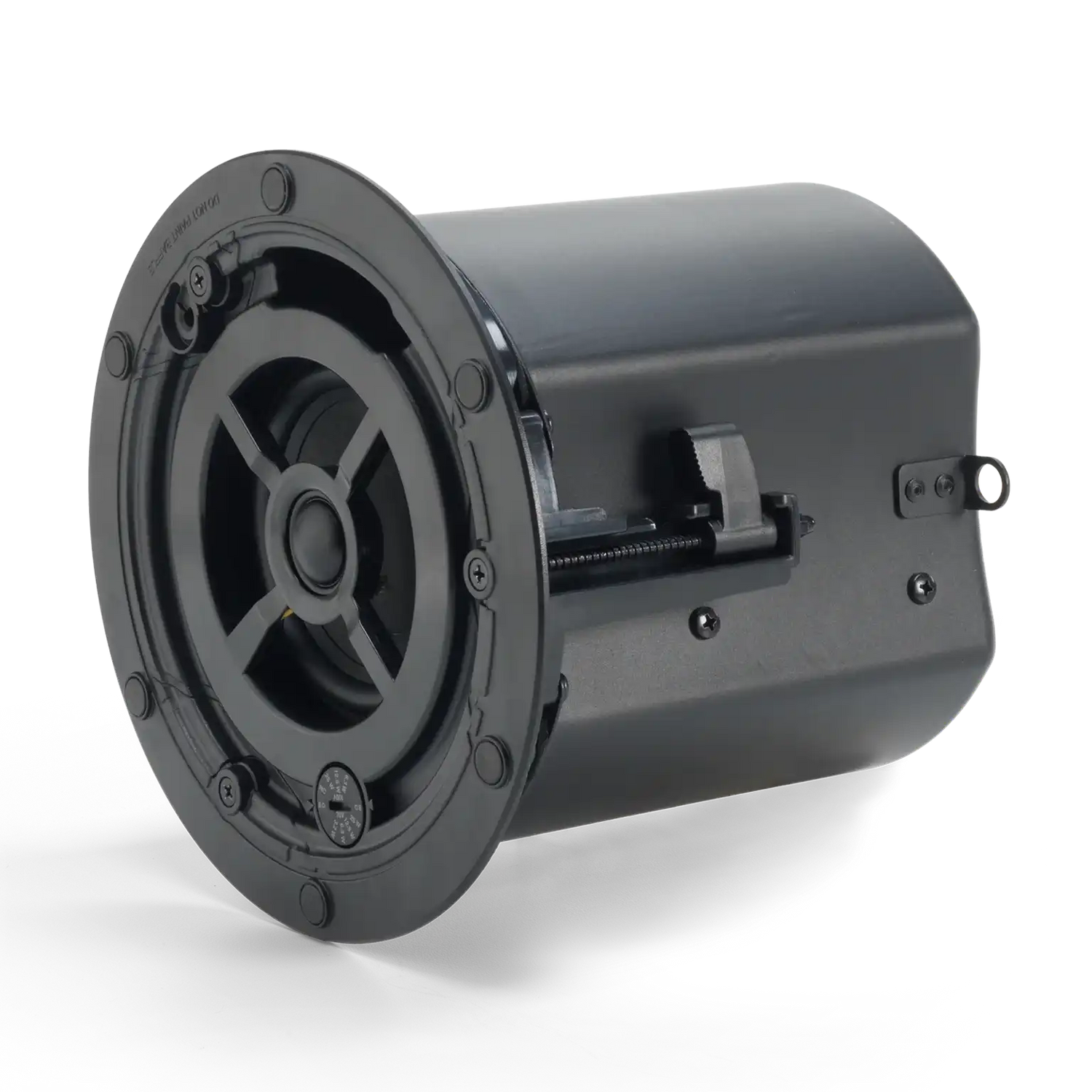

The JBL Control 414C/T is a 4-inch two-way coaxial ceiling loudspeaker from JBL’s Control 400 Standard Coverage Series, engineered for high-quality commercial audio in both low-impedance and distributed 70V/100V systems. Featuring a 4” woofer paired with a 20mm soft-dome tweeter, this speaker delivers clear, balanced sound across a wide frequency range of 65 Hz to 20 kHz. Its integrated low-profile enclosure is ideal for installation in restricted ceiling plenum spaces, ensuring exceptional performance without compromising design aesthetics.

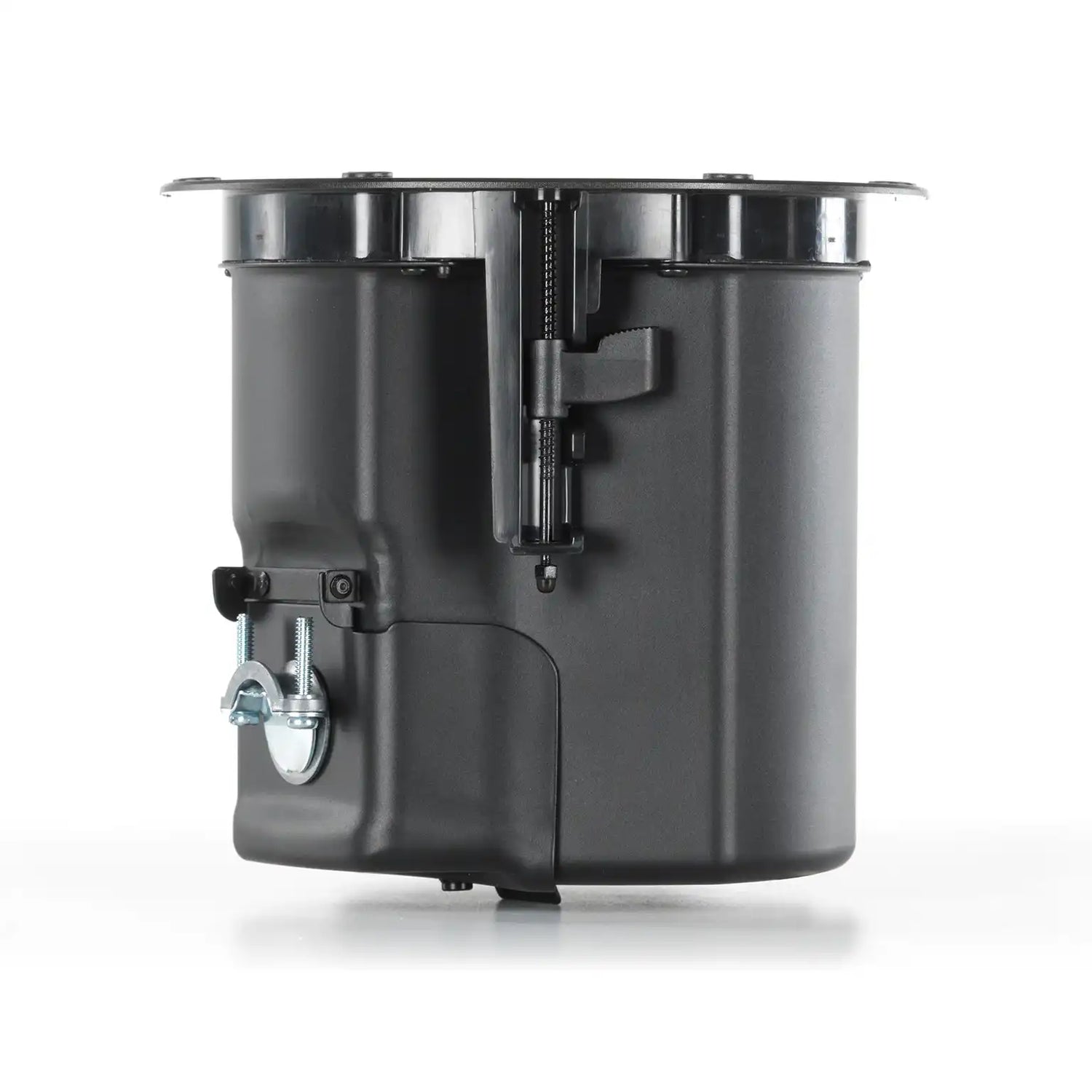

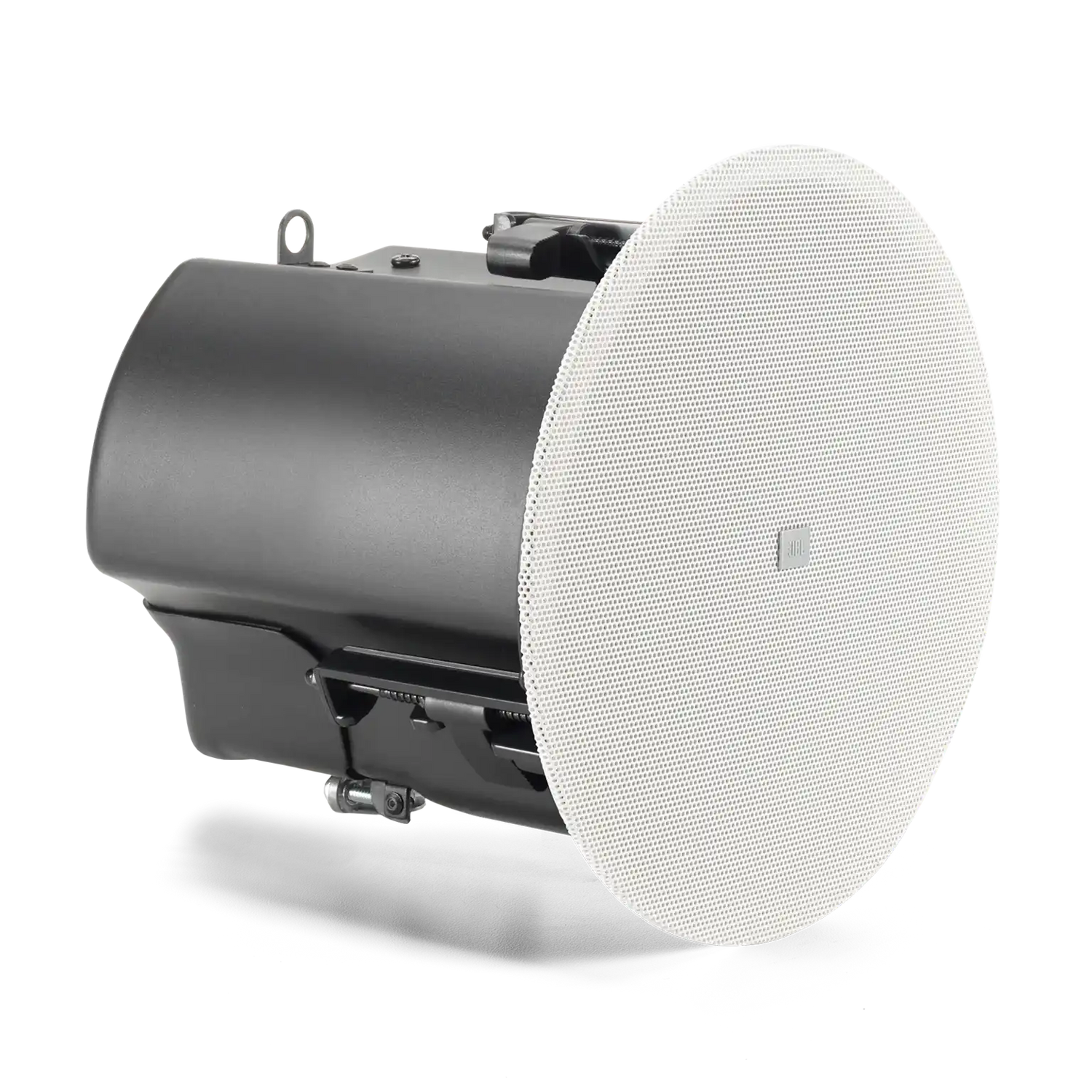

Designed for modern interiors, the Control 414C/T comes with a full-face paintable magnetic grille, allowing seamless integration into any decor. Optional black round, white square, and weatherized accessory grilles offer additional customization to meet specific design requirements. Installation is simplified and reliable thanks to top and side cable entry ports and robust captive dogears compatible with a wide range of ceiling thicknesses. These features reduce installation time while ensuring consistent results across multiple installations.
With a sensitivity of 86 dB and a maximum SPL of 103 dB continuous (109 dB peak), the Control 414C/T provides intelligible, high-output sound suitable for music, paging, and announcements. Rated IP33, it is resistant to moisture and suitable for commercial spaces that may experience high humidity. Optional accessories, including black and white grilles, weatherized grilles, new construction brackets, mud-ring construction brackets, and tile rails, provide further flexibility for professional installation. The JBL Control 414C/T combines reliable performance, modern aesthetics, and flexible installation for commercial ceiling audio applications.
Features:
-

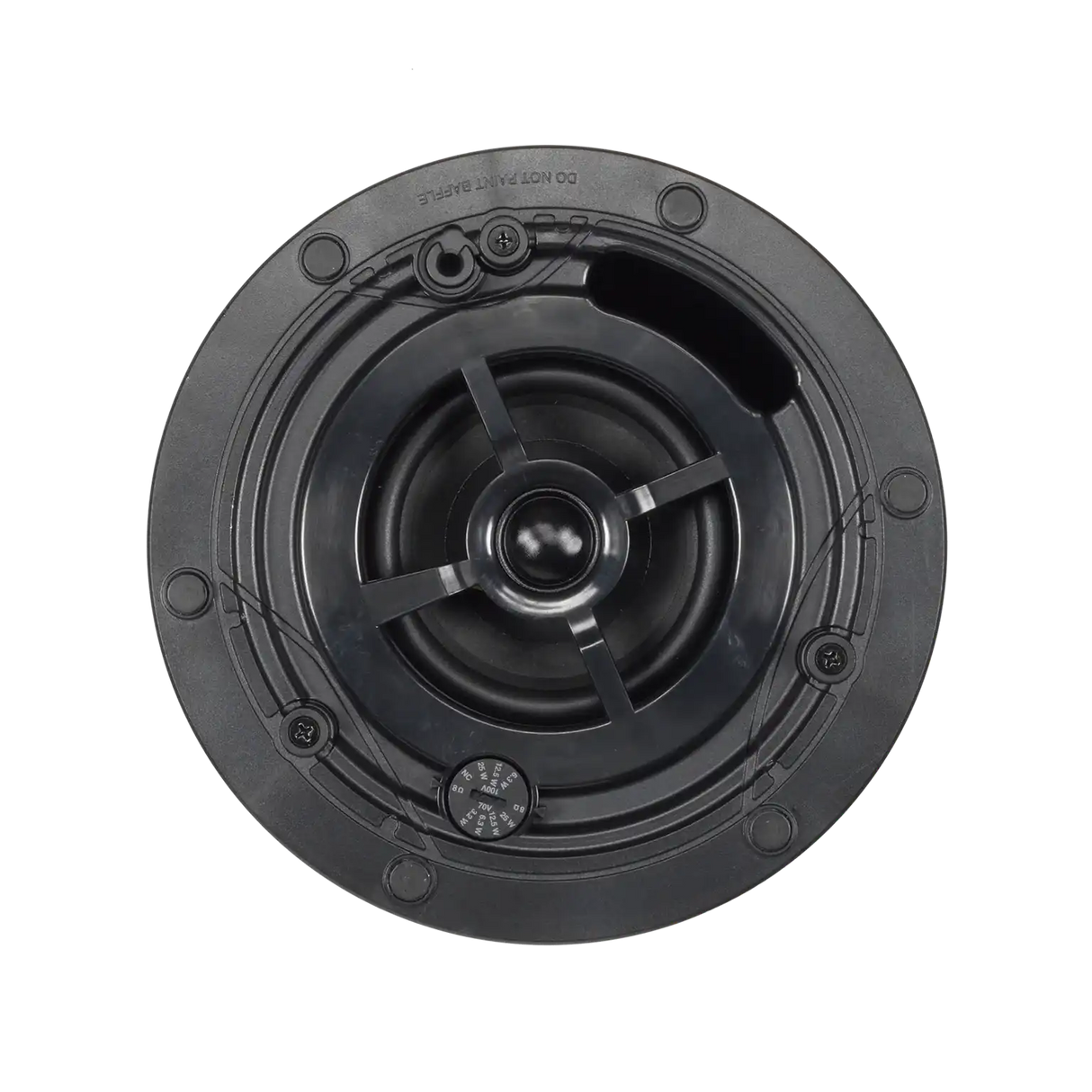

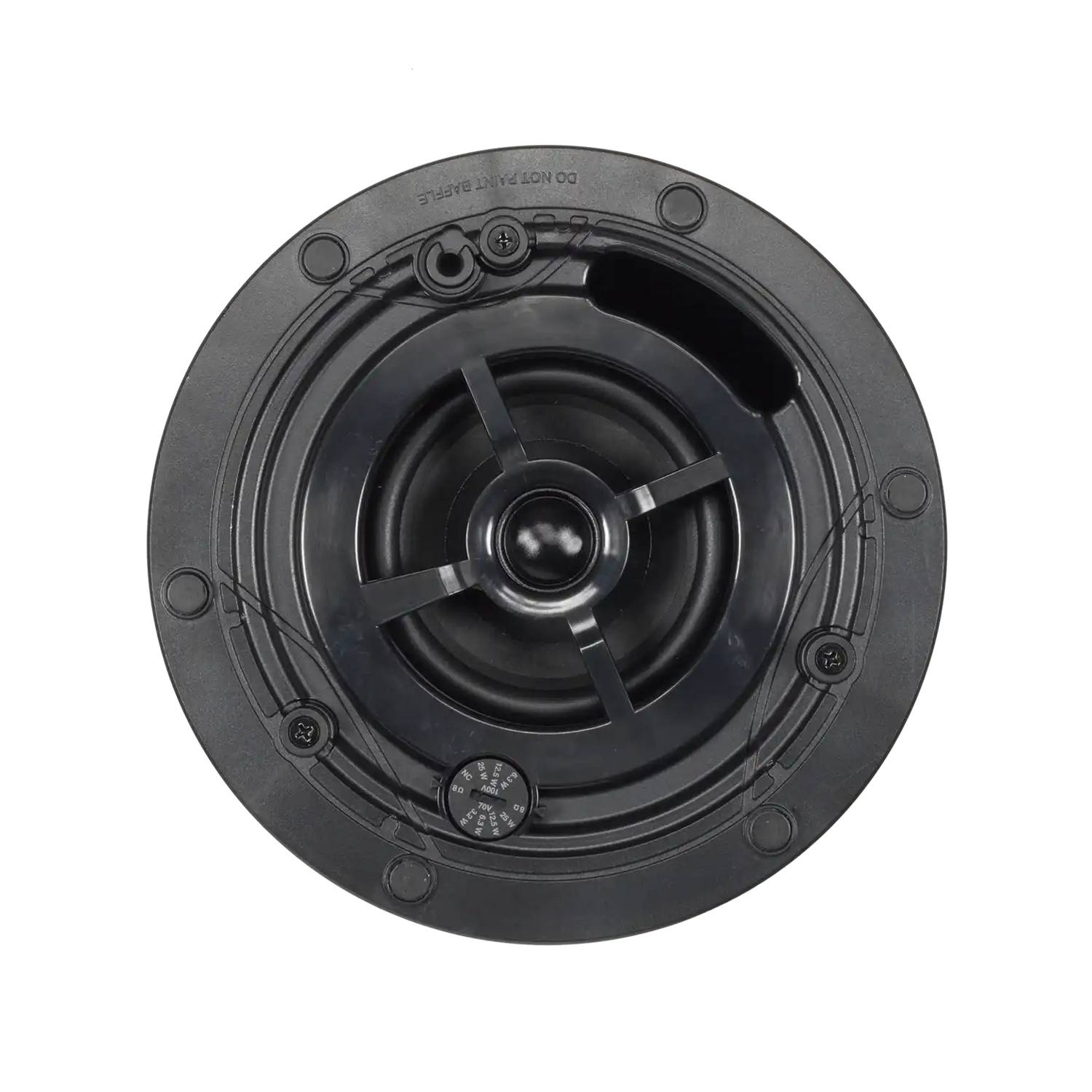

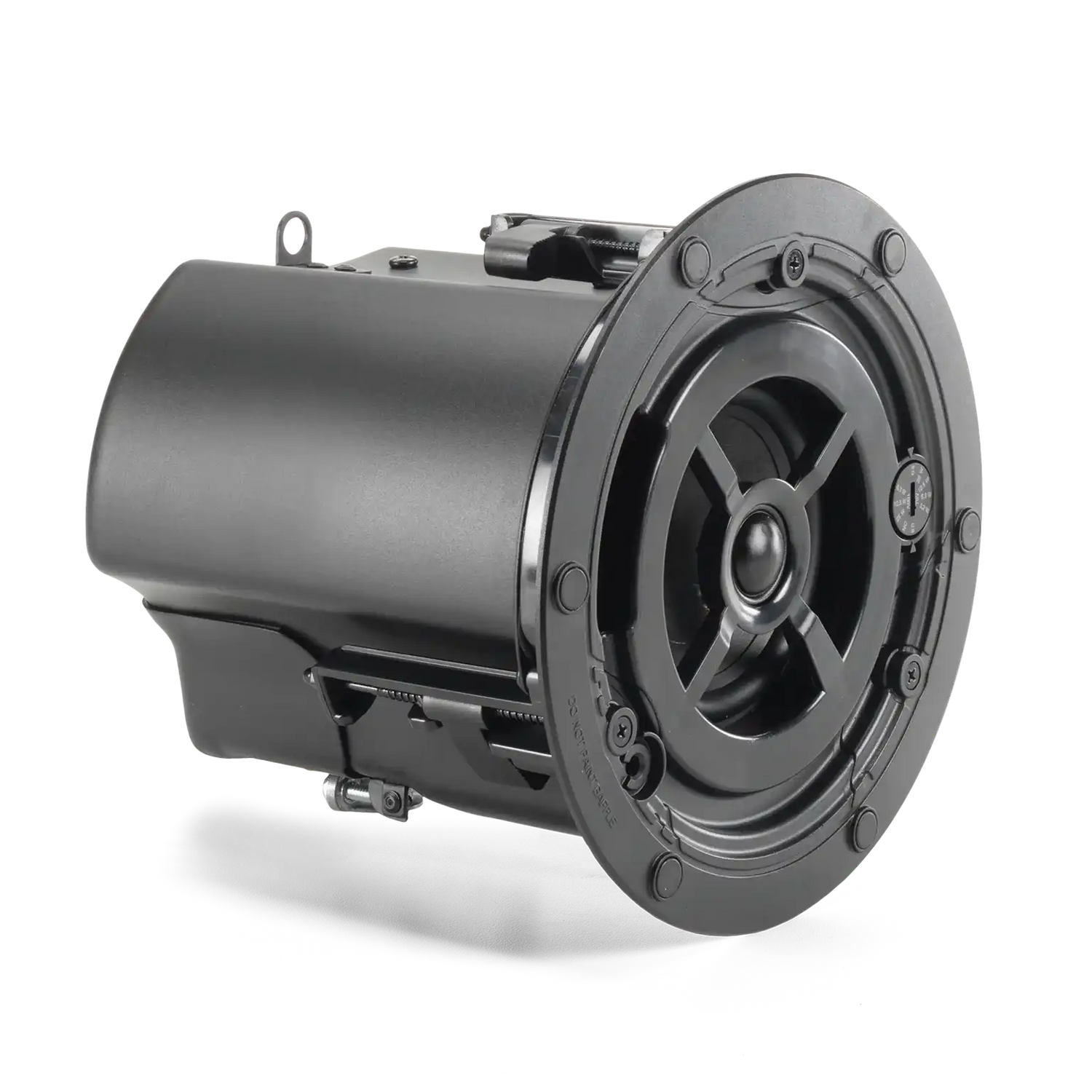

100 mm (4”) woofer with paper cone, SBR surround
-
20 mm (0.75”) soft-dome tweeter
-
Integrated enclosure for restricted ceiling plenum spaces
-
Built-in 70V/100V multi-tap transformer plus 8Ω direct input
-
Full-face, paintable magnetic grille; optional black, white, or weatherized grilles
-

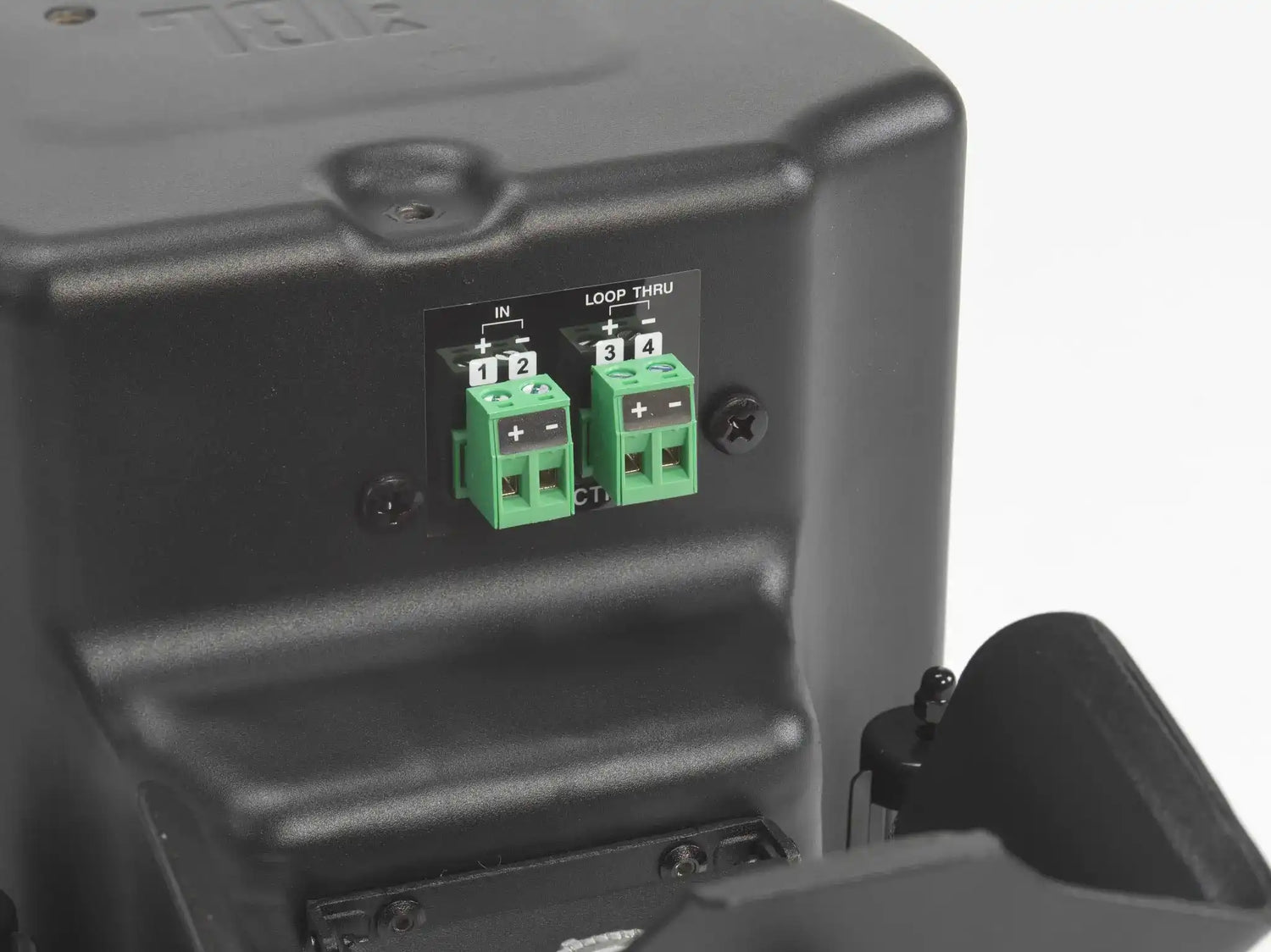

Top and side cable entry options
-
Robust captive dogears for various ceiling thicknesses
-
130° conical coverage pattern
-
IP33 environmental rating
Specifications Table:
| Specification | Details |
|---|---|
| Model | JBL Control 414C/T |
| Frequency Range (-10 dB) | 65 Hz – 20 kHz |
| Power Capacity | 45 W continuous, 180 W peak (2 hrs) |
| Sensitivity (1m/1W) | 86 dB |
| Coverage Angle | 130° conical |
| Maximum SPL | 103 dB continuous, 109 dB peak |
| Nominal Impedance | 8Ω |
| Transformer Taps | 70 V: 25 W, 12.5 W, 6.3 W, 3.2 W; 100 V: 25 W, 12.5 W, 6.3 W |
| Drivers | LF: 100 mm (4 in) paper cone, SBR surround; HF: 20 mm (0.75 in) soft dome |
| Ceiling Cutout Size | 168 mm (6.6 in) |
| Dimensions (H x Dia) | 186 mm x 203 mm (7.4 in x 8.1 in) |
| Depth from Tile | 177 mm (7.1 in) |
| Net Weight | 2.50 kg (5.51 lbs) |
| Shipping Weight (pair) | 9.52 kg (20.99 lbs) |
| Color | White (RAL9003), paintable; optional black, square, or weatherized grilles |
| Optional Accessories | JBL-MTC-414BG, JBL-MTC-414SG, JBL-MTC-414WG, JBL-MTC-424NC, JBL-MTC-424MR, JBL-MTC-48TRX4 |
Compare Table:
| Feature / Model | Control 414C/T | Control 414C/T-VA | Control 414CT Micro Plus |
|---|---|---|---|
| Driver Size | 4” | 4” | 4” |
| Tweeter Size | 20 mm soft dome | 20 mm soft dome | 13 mm PEI dome |
| Power Capacity | 45 W / 180 W Peak | 45 W / 180 W Peak | 25 W / 100 W Peak |
| Coverage Angle | 130° conical | 130° conical | 160° conical |
| Low-Profile Enclosure | Yes | Yes | Yes |
| Magnetic Grille | Yes | Yes | Yes |
| Transformer | 70V/100V multi-tap | 70V/100V multi-tap | 70V/100V multi-tap |
| IP Rating | IP33 | IP33 | IP32 |
| Life Safety Certified | No | EN54-24 | No |
