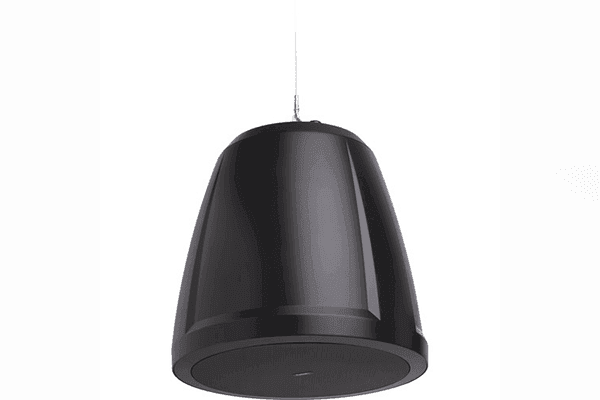

QSC AD-P4T AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker (Black) - AD-P4T-BK

Name: QSC AD-P4T AcousticDesign Series 4.5" 2-Way 30W Pendant-Mount Loudspeaker (Black) - AD-P4T-BK
Brand: QSC
SKU: AD-P4T-BK
Price: 330.00 USD
Availability: InStock

Authorized Dealer

$330.00

Shipping calculated at checkout.

QSC | SKU: AD-P4T-BK

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Description

Spec Sheet

QSC AD-P4T-BK Overview

The black AcousticDesign Series QSC AD-P4T is a transformer-equipped 4.5" pendant-mount loudspeaker voiced to deliver tonal consistency throughout the AcousticDesign range of speakers, making them suitable for 70/100V or 16-ohm operation in a variety of foreground and background music applications.

Outfitted with a 4.5" weather-treated woofer and a 0.75" aluminum dome tweeter on a DMT waveguide, the AD-P4T offers broad 150° conical coverage and improved off-axis power while providing a frequency range of 65 Hz to 20 kHz (-10 dB). The speaker is capable of handling 30W RMS and producing a peak maximum SPL of 108 dB.

The AD-P4T utilizes a 4-pole Euroblock connector under a sealable input cover for easy wiring and protection from moisture. It features a UV-treated ABS enclosure and a magnetic steel grille with a blemish-free removable logo. Quick-link cable assemblies and slip-lock fasteners are supplied for efficient installation.

Designed for foreground and background music sound reinforcement in restaurant, retail, audio visual, education, and large system ancillary support applications as well as in concourses, casinos, transportation terminals, and worship facilities

Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications

4.5" weather-treated paper cone woofer with a 1" voice coil and a 0.75" aluminum dome tweeter

150° of conical coverage with improved off-axis power response reduces the number of loudspeakers required for even coverage

DMT (Directivity Matched Transition) waveguide ensures smooth, uniform frequency response over the coverage area

Rugged ABS enclosure is treated with UV inhibitors that prevent discoloration

Snap-fit magnetic grille

Low-saturation, low-loss 70/100V transformer with 16-ohm bypass and a rotary selector located under the grille

4-pole Euroblock connector with loop-thru wiring located under a sealable input cover to prevent moisture at the terminals

Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms (available separately)

Includes two quick-link cable assemblies and slip-lock fasteners to speed installation

Blemish-free removable logo

Features

Consistent tonal characteristics across the entire AcousticDesign family in surface, ceiling, and pendant applications
Directivity Matched Transition® (DMT) waveguide ensures smooth, uniform frequency response over the coverage area
Snap-fit magnetic grille
2x quick-link suspension cables and slip-lock fasteners provided
Intrinsic Correction™ voicings available via Q-SYS Ecosystem and CXD amplifiers
Low-saturation and low-loss 70/100V transformers with 16Ω bypass
Blemish-free removable logo
Sealable input cover to prevent moisture from entering the input terminal block
Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, & BIM information available online
