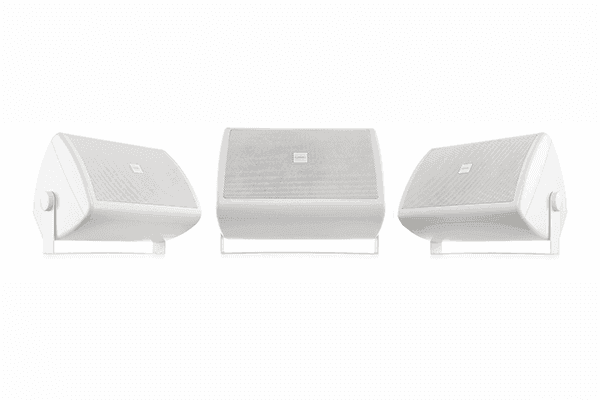

Outfitted with a 4" polypropylene woofer and a 1" aluminum dome tweeter in a UV-treated ABS enclosure with a ported baffle, the AC-S4T offers broad 130° conical coverage while providing a frequency range of 70 Hz to 20 kHz (-10 dB). The speaker is capable of handling 16W RMS and producing a peak maximum SPL of 103 dB.
The AC-S4T utilizes a 4-pole Euroblock connector on the rear panel for easy input and loop-thru wiring. A yoke bracket is included for simplified surface-mount installation.
High-quality transducers provide increased clarity through the critical voice range and improved musicality often not seen in typical BGM-class products
4" polypropylene cone transducer with butyl rubber surround and 1" aluminum dome tweeter
130° of conical coverage reduces the number of loudspeakers required for even coverage in close proximity
UV-treated, high-impact ABS enclosure and ported baffle assembly
Tuned for added musicality and low-frequency extension down to 70 Hz (-10 dB)
Low-saturation, low-loss 70/100V transformer with 8-ohm bypass and rear-panel tap selector
4-pole Euroblock connector with loop-thru wiring located the rear of the enclosure
Advanced voicing filter sets using QSC Intrinsic Correction are available through either Q-Sys processing or CXD amplifier platforms (available separately)
