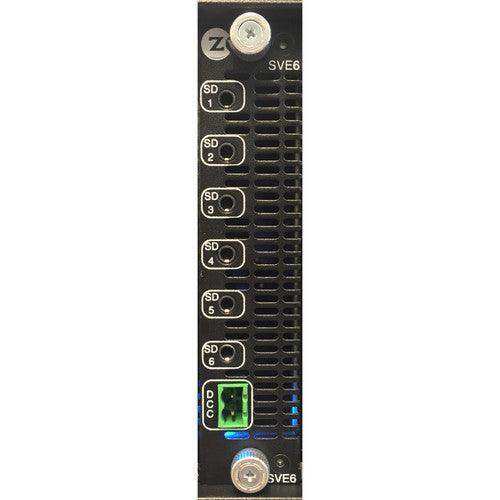

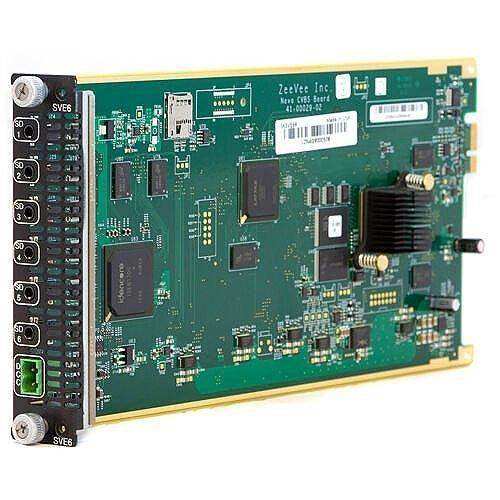

ZeeVee 3KSVE6R Composite Module for HDbridge3000
Ideal for organizations looking for an easy and affordable way to create a digital head-end for distributing large numbers of AV sources to an unlimited amount of displays, the HDbridge3000 provides a reliable way to deliver multiple channels of video simultaneously within a compact 3RU footprint. Whether you are distributing SD or HD content, over RF or IP, the ZeeVee HDbridge 3000 provides the flexibility needed. The HDbridge3000 is modular with hot-swappable cards, allowing you to mix and match cards with different interfaces and resolution as needed.
Populate the chassis with up to 72 channels of SD over RF, 24 channels of HD over RF (with the optional IP streams) or 48 channels of H.264 IP streams. Combine multiple HDbridge3000 units to increase the number of channels.
Features
- Compact 3RU form-factor
- 12 x media module slots for delivery of any type of content regardless of source inputs
- Simultaneous video output in RF over coax and IP over Ethernet (not available from Composite or H.264 cards)
- Zero downtime with fully redundant and hotswappable media modules, fans, and power supplies
- Mix and match media cards
- Emergency Alert System support (EAS)
- Web-based configuration and management
- Distribute video over RF (QAM or DVB-T/C) to an unlimited number of TVs
- Playback custom content using the ZvShow channel (not available with IP or Composite cards)
Specification
ZeeVee SVE6R Specs
| Video Interface | 6 x composite |
| Analog Audio | 6 x 3.5 mm stereo, line-level per channel |
| Average Encoding Data Rate | 10-12 Mb/s per channel |
| Encoding Latency | 200 to 400 ms, programmable |
| Supported Modulation Types | QAM 256 only (ITU-T J83 Annex B) Interleaving modes: (64,2) only |
| Dimensions | 16.9 x 8.9 x 3" (42.8 x 22.5 x 7.6 cm) |
| Weight | 8 oz (227 g) |
