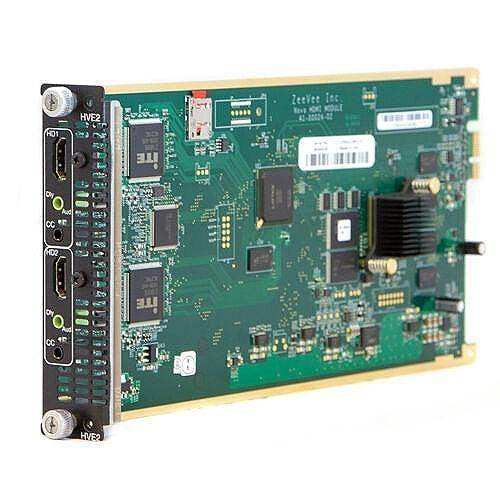

ZeeVee 3KHVE2R HDMI Module for HDbridge3000
The HDMI Module for HDbridge3000 from ZeeVee features two channels of HDMI encoding and modulation (QAM) and delivers up to 24 channels per chassis. This module includes ZvShow bonus channel with over 4GB of internal storage. It also delivers two channels of independent delay-matched audio and two channels of IP stream generation.
Ideal for organizations looking for an easy and affordable way to create a digital head-end for distributing large numbers of AV sources to an unlimited amount of displays, the HDbridge3000 provides a reliable way to deliver multiple channels of video simultaneously within a compact 3RU footprint. Whether you are distributing SD or HD content, over RF or IP, the ZeeVee HDbridge 3000 provides the flexibility needed. The HDbridge3000 is modular with hot-swappable cards, allowing you to mix and match cards with different interfaces and resolution as needed.
Populate the chassis with up to 72 channels of SD over RF, 24 channels of HD over RF (with the optional IP streams) or 48 channels of H.264 IP streams. Combine multiple HDbridge3000 units to increase the number of channels.
Features
- Compact 3RU form-factor
- 12 x media module slots for delivery of any type of content regardless of source inputs
- Simultaneous video output in RF over coax and IP over Ethernet (not available from Composite or H.264 cards)
Specifications
ZeeVee HVE2R Specs

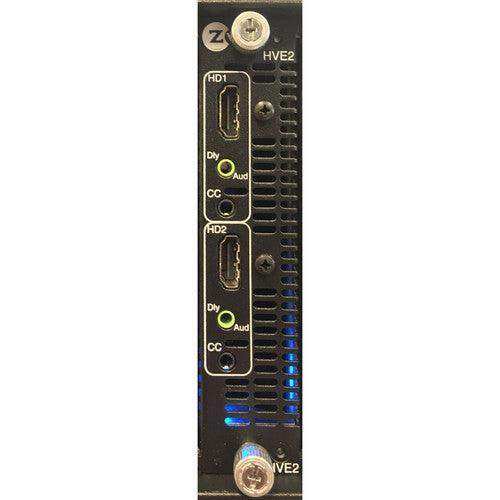

| Video Interface | 2 x HDMI v1.3 Type-A, 19-pin, female |
| Channels | ZvShow Extra Digital Channel: 4 GB video loop in MPEG2 PS format |
| Digital Audio | PCM format or Dolby Digital audio as part of HDMI 1.3 ports |
| Analog Audio | 2 x 3.5 mm female jacks |
| Average Encoding Data Rate | 18 Mb/s per channel |
| Encoding Latency | 200 to 400 ms (programmable) |
| Audio Output | Delayed Match Audio Output: 2 ports of delay-matched audio |
| Supported Modulation Types | Module generates up to 2 RF channels |
| Dimensions | 0.85 x 5.0 x 11.0" (21 x 127 x 279 mm) |
| Weight | Not specified by the manufacturer |
