TOA Electronics 60W 2 Channel Power Amplifiers - P-9060DH CU

$994.00 $804.00

Shipping calculated at checkout.

TOA | SKU: P-9060DH CU

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

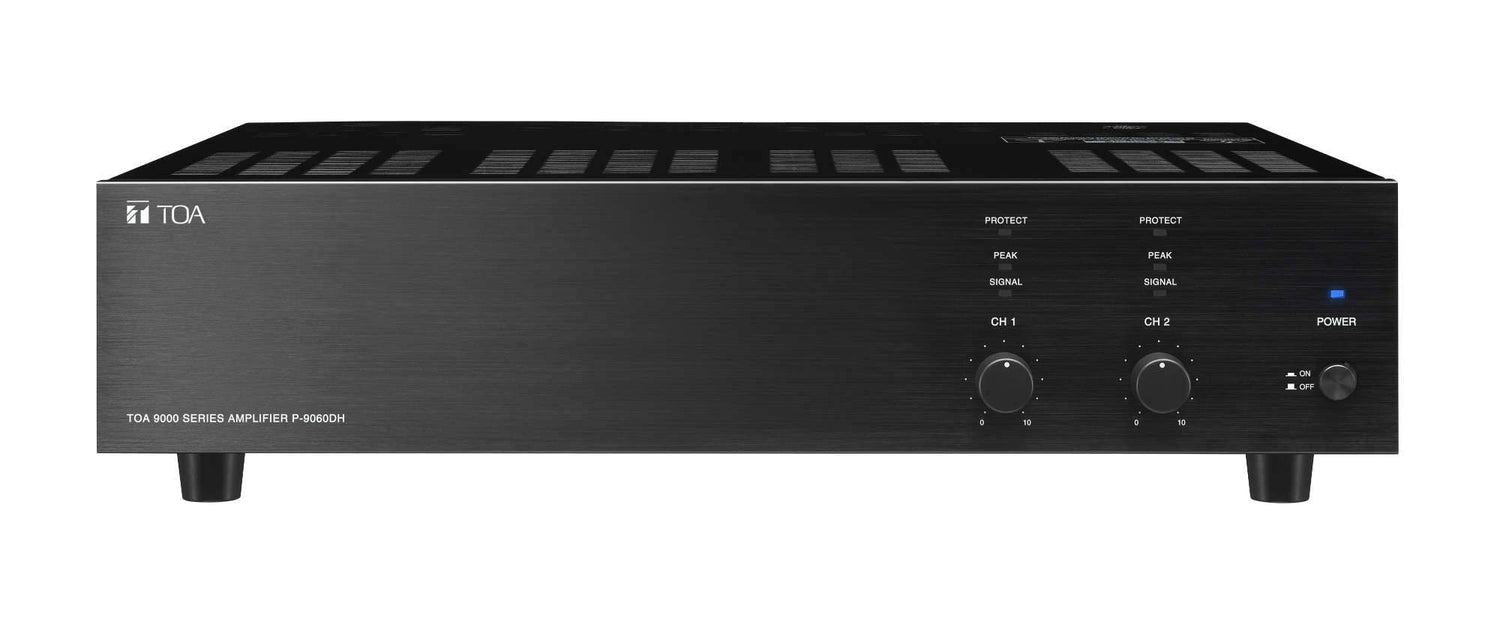

The P-9060DH Power Amplifier is a 2-channel amplifier (60 W x 2) providing 70-volt line output. It can be used not only as TOA's 9000 series power amplifier but also as stand-alone amplifier, thus covering wide range of applications.

Features

Selectable Input Sensitity

Specs

Power Source

120 V AC, 60 Hz

Power Consumption

225 W (rated output), 106 W (UL60065)

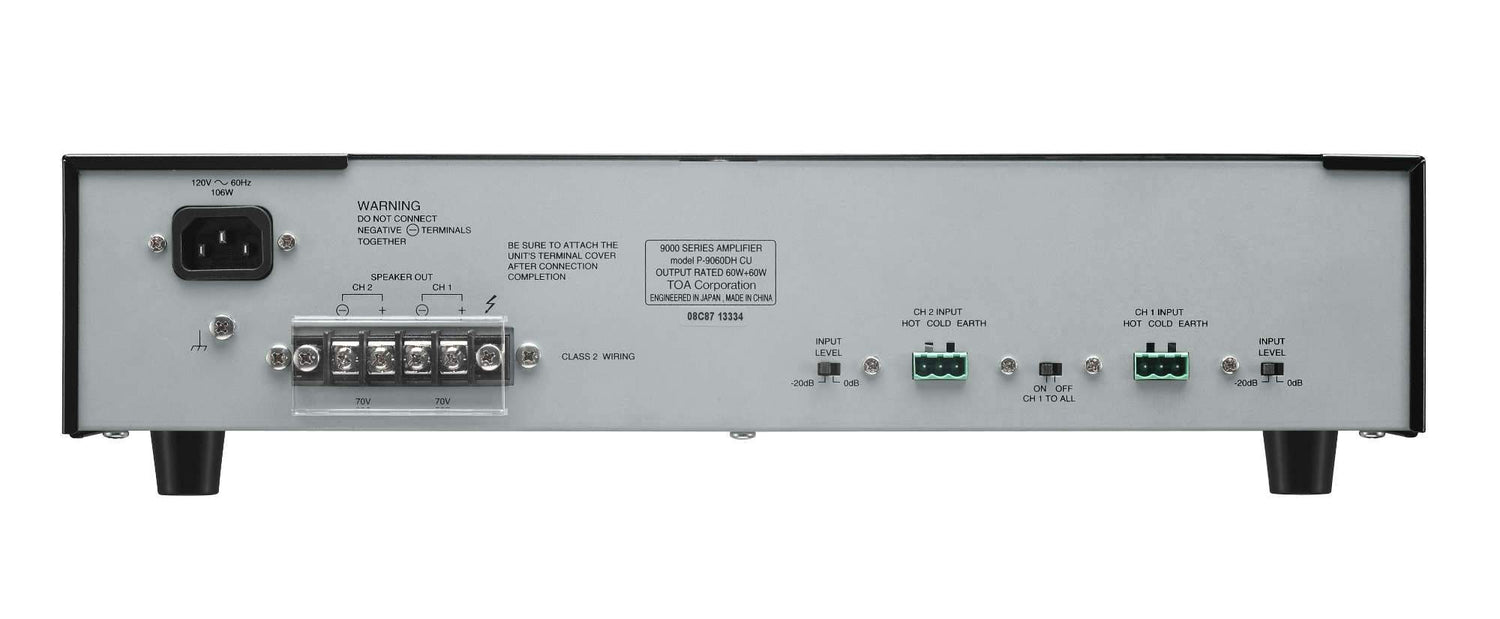

Audio Input

CH 1, CH 2 input: -20 dB* or 0 dB* (switchable), 10 kΩ, electronically-balanced,
removable terminal block
CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)

Audio Output

Speaker output CH 1, CH 2: 60 W, 83 Ω x 2, BTL output (70 V line), M4 screw terminal,
distance between barriers: 9 mm (0.35)

Power Bandwidth

20 - 20k Hz, 0.08% T.H.D.

Frequency Response

20 - 20k Hz (+1, -3 dB)

Total Harmonic Distortion

0.008% (22 kHz LPF, 1 kHz, rated output, input level switch in 0 dB* position)

Signal to Noise Ratio

At Input short, 20 - 20k Hz, Input level switch in 0 dB* position
Output volume min.: 105 dB, Output volume max.: 97 dB

Function

Output disconnected for approx. 5 s after switching power on.

Air Cooling

Forced air cooling (Fan speed: varies depending on the temperature.)

Operating Temperature

-10℃ to +40℃ (14℉ to 104℉)

Operating Humidity

35% to 80% RH (no condensation)

Finish

Front panel: Aluminum, hair-line, black
Case: SECC, black, paint

Dimensions

420 (W) x 107.6 (H) x 406 (D) mm (16.54" x 4.24" x 15.98")

Weight

8.2 kg (18.08 lb)
