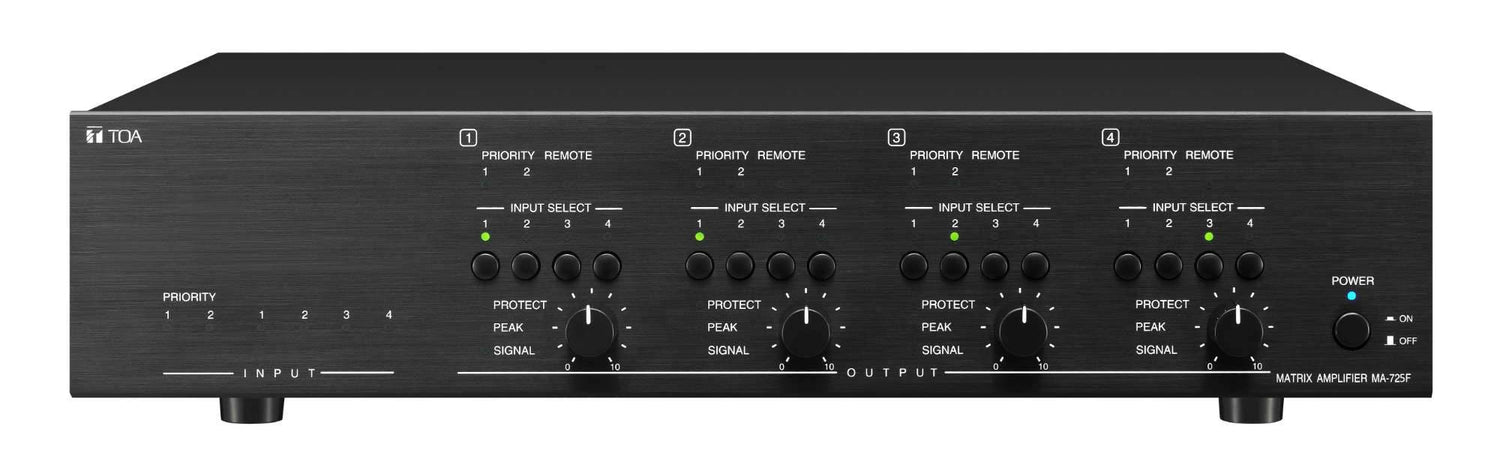

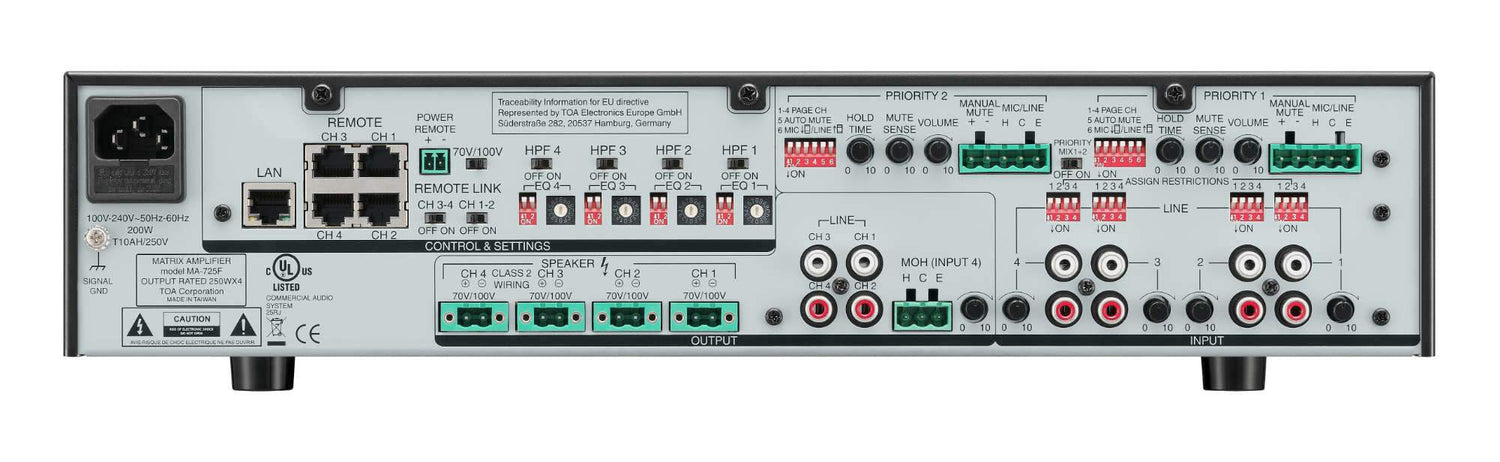

TOA Electronics Multi-Channel Matrix Amplifier - MA-725F-AM 3CU

The MA-725F matrix amplifier is an all-in-one solution for multi-channel or multi-zone applications combining a 6 x 4 audio matrix, DSP and 4ch Class-D amplifier into one chassis. It is equipped with 4 independent line inputs, and 2 MIC/LINE priority inputs. Each output has independent DSP preset adjustment with input source matrix selection. The MA-725F features high power (250 W x 4 at 70 V/100 V) and various inputs capabilities. Its wide range of applications include general or emergency announcement and background music for restaurants, pubs, retail stores, schools, offices, etc.

Features

• 4 stereo-summing line inputs with matrix routing to 4 amplifier outputs.

• Each line input has input level adjustment and the possibility to assign restriction setting for each output to prevent routing selection.

• 2 priority MIC/LINE inputs with different priority level for paging or other pre-recorded source which can override the selected line input on assigned output channels.

• Each priority input also has input level, mute sensitivity and mute hold time adjustments.

• Each output channel also has auxiliary line output to deliver audio to other systems.
• Each output channel is equipped with 250 W Class-D amplifier at 70 V/100 V output voltage selectable with independent DSP preset selection and 50 Hz HPF for the protection of connected speakers.
• Selectable DSP preset selections include general EQs, like loudness curves, TOA speaker EQs and crossover settings to be used with sub-woofers.
• Easy setup without software
• Smart Control providing browser based wireless remote control
• Zone selection for paging with optional remote microphone RM–9012C
• Optional wall mount remote control panel
• Class-D amplifier has various protection features against over current, high temperature and short circuit of speaker lines at each output channel.
