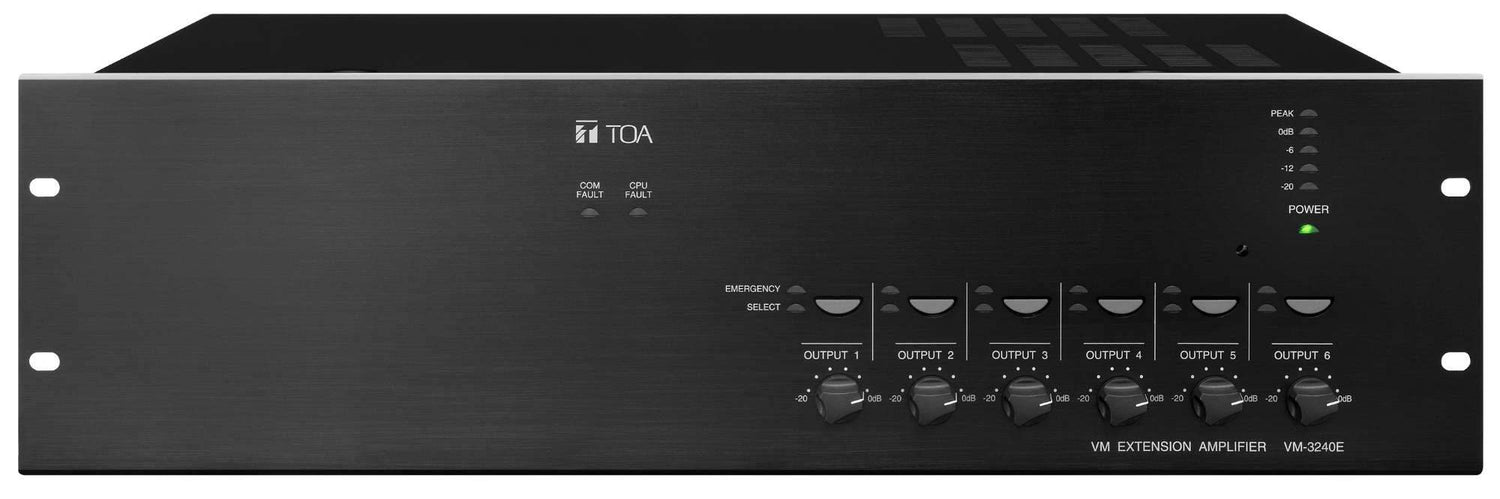

TOA Electronics Extension Amplifier - VM-3240E AMQ

$4,354.00 $3,519.00

Shipping calculated at checkout.

TOA | SKU: VM-3240E AMQ

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

The VM-3000 Series is the world's first Voice Evacuation System complying with both American and Canadian standards UL 2572 and CAN/ULC-S576 listings. It is ideal for small and medium-sized applications. It incorporates such emergency functions as continuous speaker line monitoring and a built-in voice alarm. This easy-to-install system also offers PA broadcasting, paging and BGM functions that ensure consistently high intelligibility. The VM-3000 Series is digitally audio processed and controlled, and may be set up and operated directly by using the controls and LCD display on the front panel. A dedicated PC software configuration capability is also provided for establishing settings via LAN. The incorporation of wide-ranging functional capabilities, superb reliability and versatility make the VM-3000 a highly cost-effective emergency broadcast system.

Features

Max. 13 MIC/LINE Inputs
Max. 60 assignable speaker zone outputs
Up to a combination of 4 Fireman's and remote Microphones
Continuous speaker line monitoring without interruption
Complete fault detection and indication
Built-in voice alarm message

Specs

Power Source

120 V AC, 60 Hz

Power Consumption

Power Consumption 690 VA (at rated output), 260 W (According to UL60065), 63 W (at no signal)

Rated Output

240 W

Frequency Response

50 Hz - 20 kHz, ±3 dB (at 1/3 rated output)

Distortion

0.7 % or less (at rated output, 1 kHz)

Signal-to-Noise Ratio

85 dB or more

Input

External amplifier Input: 70 V line, removable terminal block (14 pins) Local Input: –50 dB* (MIC) / –10 dB* (LINE) (changeable), 600 Ω, electronically balanced, removable terminal block (14 pins)

Output

Speaker output 1 – 2: Max. (240 W) per output Speaker output 3 – 6: Max. (100 W) per output Speaker output 2 – 6: Total within rated output, removable terminal block (14 pins) Allowable minimum load: 245 Ω (20 W) at 70 V line for speaker line failure detection Direct output: Direct output from internal or external amplifier, removable terminal block (16 pins)
