ASHLY SRA-2150 Convection-Cooled 1U Power Amplifier 2 x 150W at 4 Ohms/ 80W at 8 Ohms
ASHLY SRA-2150 Convection-Cooled 1U Power Amplifier 2 x 150W at 4 Ohms/ 80W at 8 Ohms is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
ASHLY SRA-2150 Convection-Cooled 1U Power Amplifier 2 x 150W at 4 O...
The SRA-2150 incorporates a switch-mode power supply and Class-D amplifier circuitry, providing a power-efficient solution. The low-noise unit features a switchable high-pass filter and selectable gain sensitivity, turn-on delay DIP switches with up to 8 seconds of delay available, and dual or bridged modes of operation.

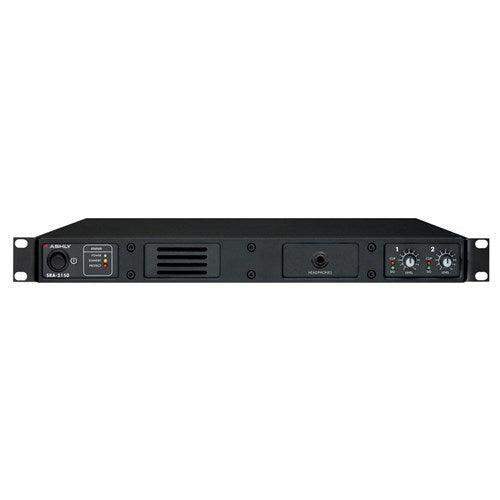

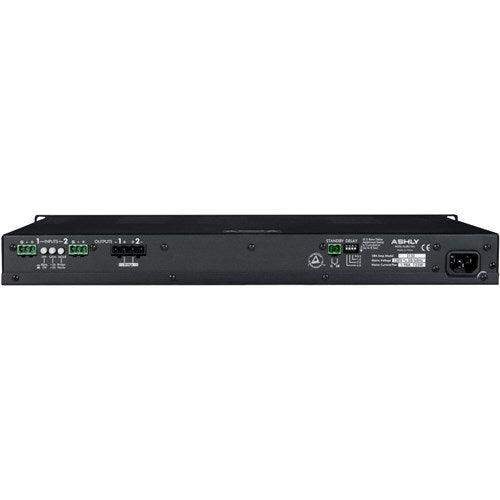

The SRA-2150 is equipped with a front-panel headphone monitoring output, an internally switchable 120V/240V power supply, extensive protection circuitry, and standard Euroblock inputs along with screw terminal outputs.
Features
- Extremely low noise, convection cooled
- Extensive protection circuitry including output overcurrent protection, DC output protection, main supply rail overvoltage protection, internal chassis temperature monitoring, in-rush limiting and mains fuse
- Level attenuators with level control
- Signal present and clip alert status LEDs
- 2-channel versions have a stereo headphone jack
- Selectable input sensitivity
- 80 Hz/ Off High Pass Filter
- Rear panel Gain Switch: +36 dB or +26dB input sensitivity
- Euroblock inputs/outputs
- Normal or bridged mode switch on each channel
- Remote power turn ON/OFF
- Adjustable turn-on delay up to 7.5 seconds
- Safety/Compliance: TUV, CE, FCC, RoHS
- 5-Year Warranty
Specs
| General Information | |
| Manufacturer | Ashly Audio, Inc |
| Manufacturer Part Number | SRA-2150 |
| Manufacturer Website Address | http://www.ashly.com |
| Brand Name | Ashly |
| Product Series | SRA |
| Product Model | SRA-2150 |
| Product Name | SRA-2150 Amplifier |
| Product Type | Amplifier |
| Technical Information | |
| Minimum Frequency Response | 20 Hz |
| Maximum Frequency Response | 20 kHz |
| Total Harmonic Distortion (THD) | 1% |
| Impedance | 4 Ohm |
| Classification | D |
| Features | Overload Protection |
| Audio | |
| Audio Channels | 2 |
| RMS Output Power | 300 W |
| Power Description | |
| Input Voltage | 120 V AC |
| Operating Power Consumption | 125 W |
| Miscellaneous | |
| Form Factor | Rack Mount |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
