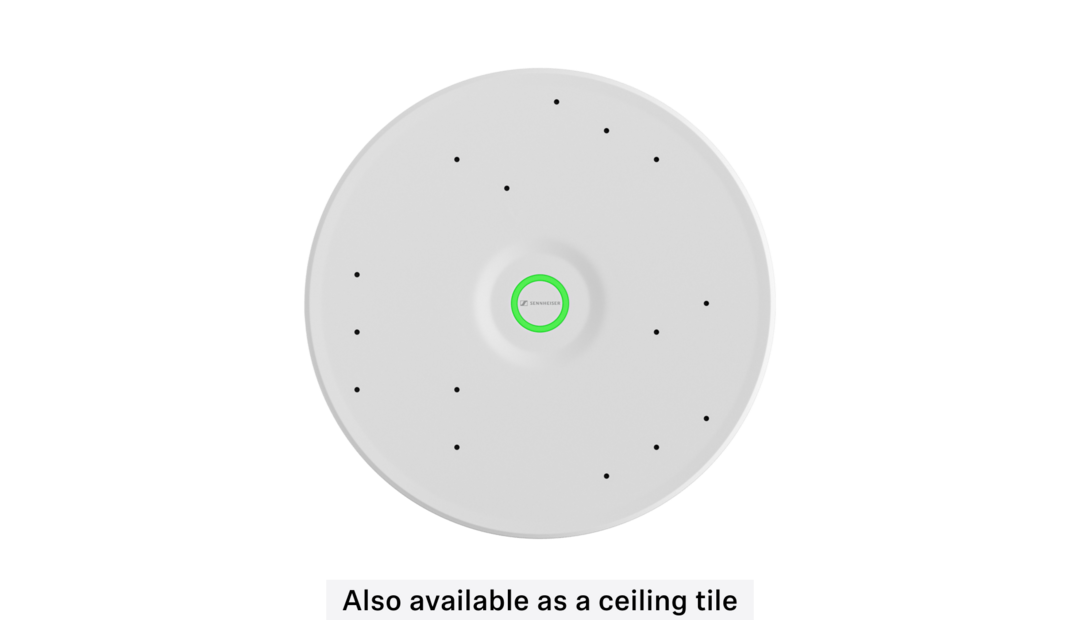

Sennheiser TeamConnect Ceiling M Plus F-W – Flush-Mount Microphone (White)

Product Overview

The Sennheiser TeamConnect Ceiling M Plus is a beamforming ceiling microphone array engineered for conference rooms, boardrooms, and collaboration spaces that demand consistent, hands-free voice capture. This F-W configuration is the flush-mount ceiling microphone (white) variant, recessing into drywall and hard ceilings for a clean, architectural finish that disappears into the room. As a conference room ceiling microphone, it combines 15 German-engineered capsules with patented automatic dynamic beamforming to track talkers across the space. Direct configuration in Q-SYS Designer Software via PartnerLink and cloud management through DeviceHub make it a practical choice for both single-room deployments and managed fleets.

Product Description

The TeamConnect Ceiling M Plus F-W is designed for integrators who want the microphone to sit flush with the ceiling plane rather than suspend below it. The white flush-mount finish is achieved using the included front plate and flush mount kit, which recess the unit into drywall and hard ceilings, while the Chicago plenum connection box cover plate and drilling templates streamline a code-compliant installation. Patented automatic dynamic beamforming continuously steers pickup toward active talkers, and enhanced exclusion zones let you suppress predictable noise sources such as HVAC vents, projectors, or hallway doors. Configuration is handled directly in Q-SYS Designer Software through PartnerLink, with additional platform support planned, so the array drops into an existing DSP workflow without a separate control application. DeviceHub provides cloud-based management for monitoring and updating units across multiple rooms or sites from a single dashboard. Audio leaves the unit over a single 3-pin terminal as an analog signal, and the wired connection supports single-cable, split-mode, and daisy-chain topologies to suit a range of room layouts and cable runs. TruVoiceLift supports clear, natural in-room reinforcement, and automatic speaker-position detection feeds talker location data to compatible camera systems for accurate camera tracking during video calls. For a suspended pendant alternative in the same family, see the Sennheiser TeamConnect Ceiling Medium. Browser-based setup through the local user interface (LUI) and an energy-saving standby mode round out a deployment-friendly package for commercial AV environments.

Key Features

• PartnerLink configuration — The array is configured directly inside Q-SYS Designer Software, with support for additional platforms planned, keeping setup within the integrator's existing DSP environment.
• DeviceHub cloud management — Monitor, update, and manage deployed units across rooms and sites from a centralized cloud dashboard.
• Patented automatic dynamic beamforming — Pickup steers automatically toward active talkers for consistent intelligibility without manual zone tuning.
• Enhanced exclusion zones — Define areas the microphone ignores to suppress predictable noise sources such as HVAC vents, doors, and displays.
• 15 German-engineered capsules — Deliver reliable voice pickup up to 4.3 m and coverage of rooms up to 60 m squared from a single ceiling unit.

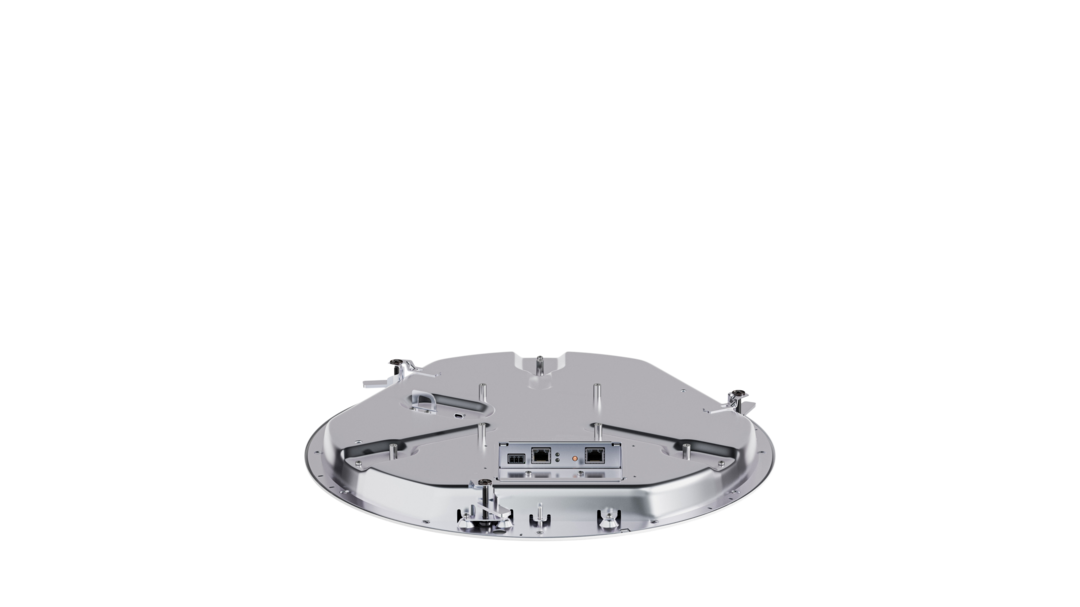

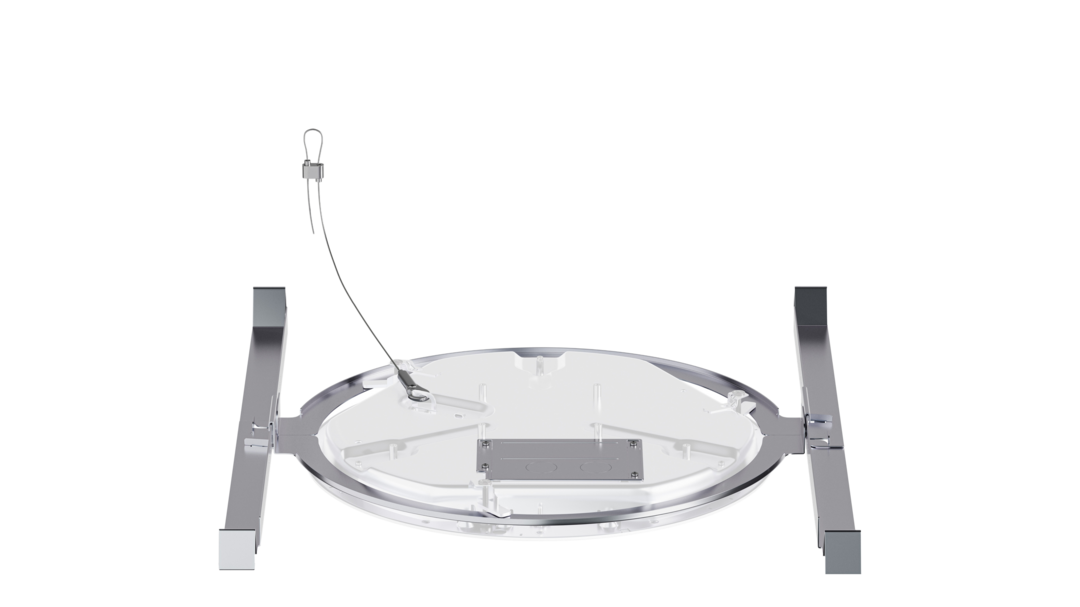

• White flush-mount integration — Recesses into drywall and hard ceilings using the included front plate and flush mount kit for a clean architectural finish.
• TruVoiceLift — Supports clear, natural in-room voice reinforcement for larger or more demanding meeting spaces.
• Automatic speaker-position detection — Talker location data feeds compatible camera systems to drive accurate camera tracking during video calls.
• Flexible connectivity — A wired 3-pin terminal output supports single-cable, split-mode, and daisy-chain topologies for varied room layouts.
• Browser-based setup (LUI) — Commission and adjust the unit through a local browser interface, with an energy-saving standby mode for off hours.

Typical Applications

• Conference rooms
• Boardrooms
• Training rooms
• Multi-purpose and divisible rooms
• All-hands rooms
• Commercial meeting spaces

Technical Specifications

Specifications sourced from Sennheiser (TeamConnect Ceiling M Plus F-W, Art. No. 700507).

Frequently Asked Questions

Which platforms does the TeamConnect Ceiling M Plus integrate with?
It configures directly in Q-SYS Designer Software through PartnerLink, with support for additional platforms planned. Audio is delivered as an analog signal over a single 3-pin terminal output.

How does the white flush-mount version install?
The F-W configuration recesses into drywall and hard ceilings using the included front plate and flush mount kit, sitting flush with the ceiling plane. The Chicago plenum connection box cover plate and drilling templates support a clean, code-aware installation.

How much area does one unit cover?
A single array provides voice pickup up to 4.3 m and covers rooms up to 60 m squared, drawing on 15 German-engineered capsules and automatic dynamic beamforming.

Can I manage multiple units across several rooms?
Yes. DeviceHub provides cloud-based management so you can monitor, update, and administer deployed units across multiple rooms or sites from a single dashboard.

Does it support camera tracking?
Automatic speaker-position detection identifies the active talker's location and feeds that data to compatible camera systems for accurate camera tracking during video calls.

What warranty and support are included?
The unit carries a 5-year warranty (2 years in the AMER region). For procurement and deployment support, order through Creation Networks.
