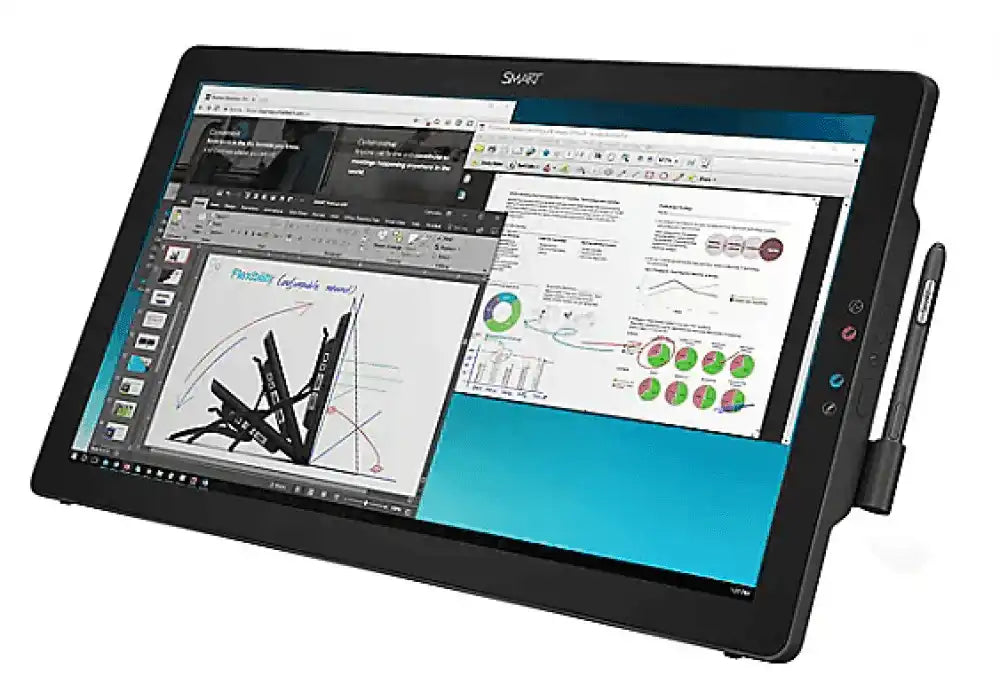

The SMART Podium 624 Pro interactive pen display enables a presenter to face an audience while mirroring a connected computer’s display to a large format display. The podium includes SMART Meeting Pro software and facilitates interactivity in business boardrooms and auditoriums.
The SMART Podium 624 Pro works with your computer and SMART Product Drivers to provide a reliable interactive experience. You can do everything you do at your computer—use SMART Ink, open and close applications, create and edit documents, visit websites, play and manipulate videos and more—just by touching the podium’s surface with your finger. Use the pen for precise annotation over presented materials, and you can save your notes in many applications. In addition to the familiar features of other SMART podiums, the HDCP-compliant SMART Podium 624 Pro includes easily accessible buttons, a pen rest, and a stand.
Features
- Full HD (1920 x 1080) Native Resolution
- TFT Panel with Capacitive Touch and Pen
- HDCP 1.4 Compliant DVI-I In and Out
- DVI to HDMI & VGA Adapters Included
Specs
Display
| Screen Size (Diagonal) |
24"
|
| Resolution |
1920 x 1080
|
| Supported Display Resolutions |
Maximum: 1920 x 1080 / 60 Hz
|
| Panel Type |
TFT LCD
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|
| Color Gamut |
72% Adobe RGB
|
| Maximum Brightness |
210 nits / cd/m2
|
| Viewing Angle (H x V) |
178 x 150°
|
| Screen Area |
20.8 x 11.7" / 52.8 x 29.7 cm
|
| Aspect Ratio |
16:9
|
| Contrast Ratio |
1000:1
|
| Response Time |
32 ms
|
| Refresh Rate |
60 Hz
|
| Pixels Per Inch (ppi) |
92 ppi
|
Connectivity
| Primary Connectivity Location |
Display
|
| Inputs |
1x DVI-I – Video (Side)
|
| Outputs |
1x DVI-I – Video (Side)
|
| USB I/O |
Side: 1x USB-A Unspecified Version (Audio/Photo/Video/Control) Side: 1x USB-B Unspecified Version (Video/Control/Touchscreen Control)
|
| Ethernet I/O |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Digital Media Slot |
No
|
General
| TV Tuner |
No
|
| Display Orientation |
Landscape
|
| HDCP Support |
Yes, Version 1.4
|
| 3D |
No
|
| Ambient Light Sensor |
No
|
Surface
| Touchscreen Technology |
Capacitive
|
| Multi-Touch Points |
10
|
| Built-In Speakers |
No
|
Hardware
| OS Compatibility |
Windows 7 to 10 macOS 10.10 to 10.13
|
| Mobile App Compatible |
No
|
Convenience
| Built-In Mic |
No
|
| NFC |
No
|
| Tilt Adjustment |
60° (0 to 60°)
|
Electrical
| Power Consumption |
Maximum: 40.0 W Standby: < 0.5 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
12 VDC at 5.4 A
|
| Power Adapter Type |
External
|
Environmental
| Operating Temperature |
41 to 95°F / 5 to 35°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
30 to 80% ()
|
| Storage Humidity |
30 to 95% (Non-Condensing)
|
| Certifications |
CE Mark, FCC, RCM, RoHS, REACH, WEEE
|
Physical
| Wall Mounting |
100 x 200 mm
|
| Audible Noise |
40 dBA
|
| Environmental Protection |
No
|
| Lock Slot |
Yes, Kensington
|
| Dimensions |
23.6 x 14 x 1.8" / 60 x 35.6 x 4.6 cm
|
| Weight |
15.9 lb / 7.2 kg (with Stand)
|
