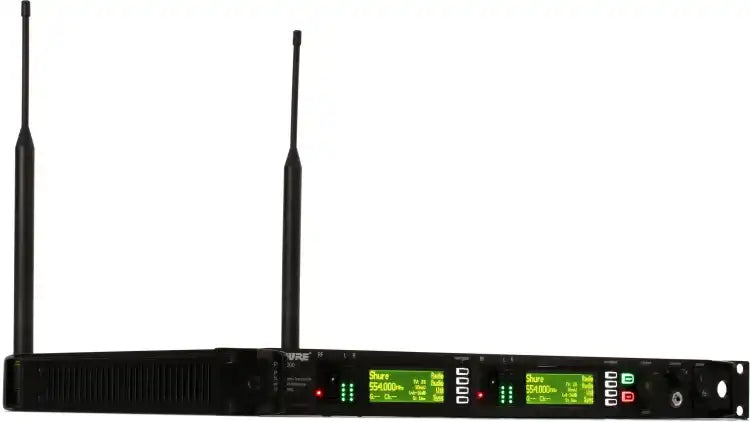

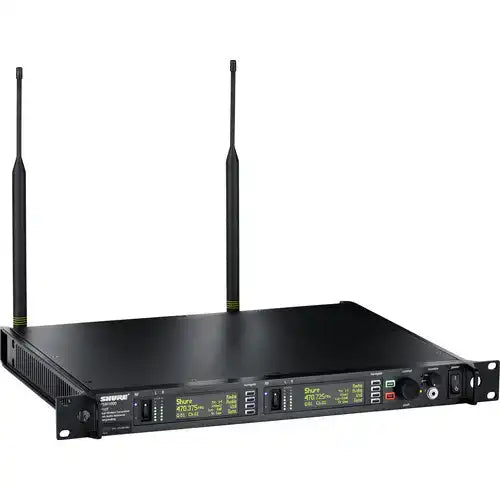

Shure P10T-J8A – Dual-Channel Rack Transmitter for PSM1000

Product Overview

The Shure P10T-J8A dual-channel wireless transmitter is the rack-mount heart of a PSM1000 personal monitor system installation, purpose-built for touring productions, theater installations, and broadcast studios that need two independent in-ear monitor mixes from a single full-rack unit. Operating in the J8A band (554–608 & 614–616 MHz), this PSM1000 transmitter for touring and theater use pairs with Shure P10R or P10R+ diversity bodypack receivers to deliver a reliable in-ear monitoring signal path for performers, presenters, and production staff. For integrators specifying a dual-channel wireless in-ear monitor transmitter for a permanent theater install, the P10T-J8A's 72 MHz tuning bandwidth provides the frequency flexibility needed in RF-congested venues.

Product Description

Built for professional touring and fixed installation applications, the P10T-J8A transmits two independent audio channels simultaneously, letting a single rack unit serve two performers or presenter positions with fully separate monitor mixes. This makes it a practical choice for auditoriums and broadcast studios running multiple in-ear monitor feeds off one transmitter footprint rather than stacking multiple single-channel units. Switchable output power (10/50/100 mW) lets AV engineers dial in RF strength to match venue size, from a modest training room to a full auditorium deployment.

Networked remote control via Wireless Workbench software gives system designers centralized visibility into RF status, frequency assignments, and audio levels across every P10T-J8A in a larger commercial meeting space or multi-purpose room deployment. The transmitter accepts both +4 dBu and -10 dBV audio input levels through balanced 1/4" and XLR connectors, simplifying integration with existing house mixing consoles. A 3.5mm headphone monitoring output lets techs confirm signal at the rack without borrowing a bodypack receiver off the stage.

Backward compatibility with PSM900 receivers protects the investment of facilities transitioning their in-ear monitoring system in phases rather than replacing bodypacks and transmitters in a single budget cycle. Front or rear antenna mounting accommodates different rack elevations and cable-routing constraints common in permanent installations. A spectrum display and high-contrast LCD give techs a visual read on channel occupancy before assigning a new frequency, reducing setup time during a live event changeover.

Key Features

• Dual-Channel Operation — Transmits two independent in-ear monitor audio channels from a single rack unit.
• 72 MHz Wide Tuning Bandwidth — Provides frequency flexibility in crowded, unpredictable RF environments.
• Networked Remote Control — Manage frequency, level, and RF status via Wireless Workbench software.
• Switchable Output Power — 10/50/100 mW options match RF strength to venue size and distance.
• PSM900 Backward Compatibility — Protects existing bodypack receiver investments during phased upgrades.
• Dual Audio Input Levels — Accepts +4 dBu and -10 dBV inputs via balanced 1/4" and XLR connectors.
• Front/Rear Antenna Mounting — Flexible placement options for varied rack configurations.
• Spectrum Display — Visual frequency spectrum simplifies clean channel selection before a show.

Typical Applications

• Commercial meeting space
• Multi-purpose room
• All-hands room
• Training room
• Broadcast studio
• Auditorium

Technical Specifications

Frequently Asked Questions

• What bodypack receivers work with the P10T-J8A? The P10T-J8A pairs with Shure P10R and P10R+ diversity bodypack receivers in the matching J8A frequency band.
• Can the P10T-J8A drive both channels to the same stage position? Yes, both channels can be routed independently or combined, depending on how the monitor mix is configured at the console.
• Is this transmitter rack-mountable in a standard AV rack? Yes, it is a full-rack unit designed for standard 19" rack installation alongside other PSM1000 system components.
• Does the P10T-J8A work with older PSM900 bodypacks? Yes, it maintains backward compatibility with PSM900 receivers for phased system upgrades.
• How is the transmitter controlled and monitored remotely? Via networked Ethernet ports and Shure Wireless Workbench software for centralized frequency and level management.
• What warranty and support does Shure provide? The P10T-J8A carries Shure's standard manufacturer warranty; contact Creation Networks for AV system design and integration support.
• Is the J8A frequency band suitable for every region? Frequency band availability is region-dependent; confirm the J8A band is authorized for use at your installation location before purchase.
