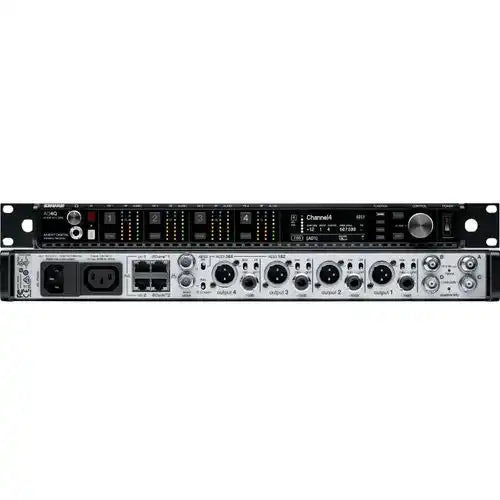

Shure AD4QNP Quad-Channel Digital Wireless Receiver
The Shure AD4QNP is a quad-channel digital wireless receiver from the Axient Digital series, designed for high-performance professional audio applications. It delivers exceptional RF stability, 24-bit digital audio quality, and advanced signal processing in a compact 1RU chassis with an internal power supply. The NP variant is a network-only model without analog XLR outputs, making it ideal for fully digital Dante-based workflows in broadcast, live sound, theater, and installed AV systems.
The receiver features four independent channels with digital predictive switching diversity, High Density mode for maximum channel count, and AES 256-bit encryption for secure transmission. Dante digital audio networking provides flexible routing and redundancy, while the intuitive front-panel interface and full integration with Wireless Workbench software simplify setup and monitoring.
| Feature | Benefit |
|---|---|
| Quad-Channel Design in 1RU Chassis | Four independent receivers in a compact, space-efficient rack unit |
| Digital Predictive Switching Diversity | Ensures reliable RF signal stability and uninterrupted audio |
| High Density Mode | Maximizes the number of simultaneous channels in crowded RF environments |
| AES 256-Bit Encryption | Provides secure transmission for sensitive applications |
| Dante Networked Audio | Enables fully digital audio routing with redundancy over Ethernet |
| Network-Only Configuration | Optimized for modern Dante-based AV systems without analog outputs |
| Internal Power Supply | Simplifies rack installation with no external power brick |
| Wireless Workbench Integration | Streamlines frequency coordination and real-time monitoring |
| Specification | Details |
|---|---|
| Receiver Type | Quad-Channel Digital Wireless Receiver |
| Frequency Band | A (470-616 MHz, region dependent) |
| Audio Quality | 24-bit / 48 kHz digital audio |
| Diversity | Digital predictive switching diversity |
| Encryption | AES 256-bit |
| Networking | Dante digital audio over Ethernet |
| Outputs | Dante only (no analog XLR outputs) |
| Gain Adjustment | Per channel via software |
| Power Requirement | 100 to 240 V AC, 50-60 Hz (internal supply) |
| Dimensions | 44 x 482 x 333 mm (H x W x D) |
| Weight | 4.8 kg (10.6 lbs) |
| Housing | Steel with extruded aluminum |
| Aspect | Shure AD4QNP | Shure ULXD4Q | Typical Analog Quad Receiver |
|---|---|---|---|
| Channels | 4 | 4 | 4 |
| Audio Format | 24-bit/48 kHz digital | 24-bit/48 kHz digital | Analog |
| Encryption | AES 256-bit | AES 256-bit | None or limited |
| Networking | Dante only | Dante + optional analog | Limited or none |
| Outputs | Dante network only | Dante + XLR analog | Analog XLR |
| High Density Mode | Yes | Yes | No |
| Primary Use | Fully networked Dante systems | Mixed analog/digital | Traditional analog setups |
FAQ
- What applications is the AD4QNP best suited for? It is ideal for modern Dante-based broadcast, live sound, theater, and installed AV systems requiring four channels of high-quality wireless audio.
- Does it have analog outputs? No, this NP variant is network-only with Dante audio outputs only.
- What frequency band is this variant? The A band (470-616 MHz, region dependent) offers wide tuning flexibility.
- Is encryption included? Yes, AES 256-bit encryption is always-on for secure transmission.
- How many channels does it support? It provides four independent digital wireless channels in a single 1RU chassis.
- Is it compatible with Axient Digital transmitters? Yes, it works seamlessly with all Axient Digital transmitters in the same frequency band.
