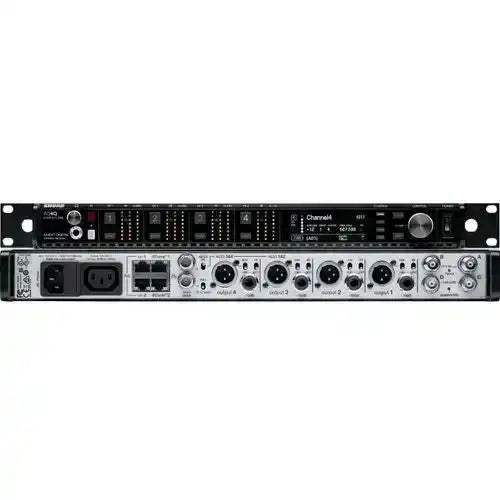

Shure AD4Q-DC Axient Digital Four-Channel Wireless Receiver

The Shure AD4Q-DC is a four-channel digital wireless receiver designed for professional audio applications requiring exceptional reliability and sound clarity. Part of the Axient Digital series, it offers advanced features to meet the demands of live events, broadcast, and high-end installations. This model includes a built-in DC power module, complete with cable and mounting accessories, providing flexibility for mobile setups and ensuring uninterrupted operation even in remote locations.

Operating within a 166 MHz ultrawide tuning bandwidth (470–636 MHz), the AD4Q-DC accommodates a broad range of frequencies, making it suitable for various professional environments. Its true digital diversity reception per channel ensures drop-out resistance, delivering clear and transparent sound even in challenging RF environments. The receiver supports up to 120+ simultaneous channels, ideal for large-scale productions such as live events, corporate conferences, and theatrical performances.

The AD4Q-DC features Quadversity mode, enhancing antenna coverage and improving RF signal-to-noise ratio by allowing placement of two pairs of antennas in different zones or doubling antennas in one zone. For monitoring and control, it includes a front-panel headphone jack enabling Dante™ Cue and Dante™ Browse monitoring. The receiver offers switchable XLR and AES3 outputs, compatible with various audio systems, and supports networked control via Wireless Workbench® software and the ShurePlus™ Channels iOS app.

Designed for seamless integration, the AD4Q-DC provides redundant digital output options, including configurable Ethernet switch for Dante or AES67, ensuring flexibility in audio routing. With its comprehensive features and robust performance, the Shure AD4Q-DC is a reliable choice for demanding audio environments.

Features

• Four Digital Audio Channels: Provides four independent channels in a single rack unit, optimizing space in equipment racks.

• Ultrawide Tuning Range: Offers a 166 MHz tuning bandwidth (470–636 MHz), accommodating a broad spectrum of frequencies.

• True Digital Diversity Reception: Ensures drop-out resistance and clear audio by utilizing true diversity reception per channel.

• Quadversity Mode: Enhances antenna coverage and improves RF signal-to-noise ratio by allowing placement of two pairs of antennas in different zones or doubling antennas in one zone.

• High Channel Count: Supports up to 120+ simultaneous channels, suitable for large-scale productions.

• Flexible Audio Outputs: Includes switchable XLR and AES3 outputs, compatible with various audio systems.

• Networked Control: Supports remote management via Wireless Workbench® software and ShurePlus™ Channels iOS app.

• Monitoring Capabilities: Front-panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring.

• Redundant Digital Output: Configurable Ethernet switch for redundant Dante or AES67 digital output.

• Built-in DC Power Module: Includes a DC power module with cable and mounting accessories, suitable for mobile setups.

Specifications
