Sharp LED-FA019i2-110 – 110" HD dvLED Video Wall Kit

Product Overview

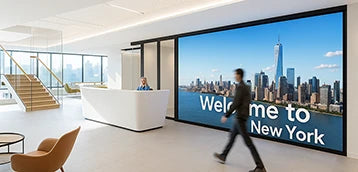

The Sharp LED-FA019i2-110 is a 110-inch HD direct-view LED video wall kit built on the FA-Series 1.9mm platform. It delivers a bright, bezel-free 1280 × 720 image with the FA-Series' failsafe engineering, making it a dependable choice for a boardroom video wall or always-on corporate signage. As a complete fine-pitch LED video wall kit, it includes the LED modules, controller, mounting structure, and spare parts for a turnkey deployment.

Product Description

The LED-FA019i2-110 brings premium reliability to a 110-inch HD footprint at a 1.9mm pixel pitch suited to mid-range viewing distances. High-quality Multi-Color 3-in-1 SMD LEDs provide strong brightness near 800 cd/m² and a wide 140° horizontal and vertical viewing angle, keeping content readable across large rooms and bright lobbies. The FA-Series' signature failsafe architecture, including a redundant power supply, redundant receiver card, and dual-controller operation, supports continuous high-visibility installations. A front-serviceable, cable-free module design simplifies both installation and ongoing maintenance, since modules can be accessed without rear clearance and no external cabling is required between them. With a rated lifetime of approximately 100,000 hours, the wall is built for long-term operation in demanding environments. Typical deployments include boardrooms, corporate signage, broadcast, retail, and control-room applications that need dependable performance at a 110-inch size. Sharp backs the kit with full planning, design, installation, and maintenance support. For other display formats, browse the Sharp collection at Creation Networks.

Key Features

• 1.9mm Pixel Pitch — The 1.9mm pitch is matched to mid-range viewing distances common in boardrooms and lobbies.
• HD Resolution — A native 1280 × 720 image presents clean HD content at the 110-inch size.
• 3-in-1 SMD Multi-Color LEDs — High-quality SMD LEDs deliver strong brightness near 800 cd/m² and consistent color.
• Power and Data Redundancy — Redundant power supply, receiver card, and dual controllers support always-on reliability.
• Front-Serviceable Design — Modules are serviced from the front, removing the need for rear access behind the wall.
• Cable-Free Module Installation — No external cables between modules simplify installation and keep the structure shallow.
• Wide 140° Viewing Angles — Content stays readable for audiences positioned off to the sides.
• Turnkey Kit — Includes LED modules, controller, mounting structure, overframe, and spare parts.

Technical Specifications
