Sennheiser SL HANDHELD 865 DW-4-US Wireless Handheld Microphone - 505901

Product Overview

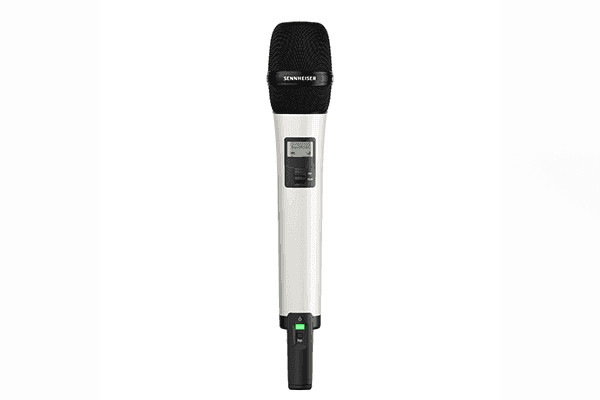

The Sennheiser SL HANDHELD 865 DW-4-US is a professional wireless handheld microphone from the SpeechLine Digital Wireless series, purpose-built for speech-critical applications including lecture halls, corporate presentations, houses of worship, and broadcast. It features the 865-S supercardioid condenser capsule with shock-mounting and operates on the license-free 1.9 GHz DECT frequency band (1,920–1,930 MHz), eliminating the need for frequency coordination or RF licensing in the United States. Bidirectional data communication between the handheld and the compatible SL receiver enables automatic frequency management and remote control without touching the transmitter. With up to 15 hours of operating time, 256-bit AES encryption, and a signal-to-noise ratio exceeding 90 dB(A), the SL HANDHELD 865 delivers studio-grade vocal intelligibility in demanding professional environments.

Product Description

The SpeechLine Digital Wireless series is Sennheiser's dedicated platform for spoken-word applications where clarity, reliability, and ease of operation are the primary requirements. The 865-S supercardioid condenser capsule provides tight polar control that rejects ambient room noise and off-axis sound sources — critical in reverberant lecture halls and large conference rooms. Shock-mounting of the capsule reduces handling noise, allowing presenters and speakers to use natural hand positions without unwanted low-frequency rumble in the signal. The 1.9 GHz DECT band is reserved for wireless communications and is largely free of the interference that plagues crowded UHF wireless environments. Automatic frequency and interference management means the system selects and maintains its operating frequency without operator intervention, reducing setup time to near zero. Bidirectional communication between the handheld and the SL receiver allows the receiver operator to remotely monitor battery status, RF reception quality, and audio levels — and to remotely mute the microphone when required. The ergonomic mute slider is positioned for intuitive in-hand use, giving speakers direct control during Q&A and panel discussions. 256-bit AES encryption protects audio from interception in corporate, government, and confidential production environments. Audio quality is 24-bit/48 kHz digital with a dynamic range exceeding 120 dB(A), matching the performance of wired studio microphones. A rechargeable Li-Ion battery with external charging contacts supports charging via the optional CHG 2 charger, while a USB socket provides an alternative charging path. The LC display on the handheld body shows link name, battery status, and reception quality at a glance without requiring the operator to consult the receiver.

Key Features

• 865-S Supercardioid Condenser Capsule — Shock-mounted, studio-quality speech capsule with tight polar pattern for superior ambient noise rejection.
• 1.9 GHz License-Free DECT Band — Operates on 1,920–1,930 MHz, requiring no RF license or frequency coordination in the United States.
• Automatic Frequency and Interference Management — The system continuously selects the optimal operating frequency without operator input.
• Bidirectional Data Link — Full two-way communication with the compatible SL receiver enables remote monitoring, control, and mute from the receiver position.
• 256-Bit AES Encryption — Secures audio transmission against interception for corporate, government, and confidential applications.
• Up to 15 Hours Operating Time — Li-Ion Accupack provides up to 15 hours runtime; AA batteries provide up to 10 hours as backup.
• 24-bit / 48 kHz Digital Audio — Full digital signal chain with over 120 dB(A) dynamic range and less than 0.1% THD.
• Signal-to-Noise Ratio >90 dB(A) — Exceeds broadcast and installed-sound requirements for speech intelligibility.
• Ergonomic Mute Slider — Conveniently positioned mute control allows speakers to self-mute without interrupting the presentation flow.
• LC Display — On-body display shows link name, battery status, and RF reception quality for speaker confidence monitoring.
• Adaptive RF Output Up to 250 mW — Power level adapts to maintain reliable range while managing battery consumption (country-specific).
• External Charging Contacts + USB Socket — Supports CHG 2 charger bay charging and USB charging for flexible power management.

Typical Applications

• University lecture halls and auditoriums requiring high speech intelligibility wireless audio
• Corporate conference rooms and boardrooms where audio security and reliability are critical
• Houses of worship with pastors, priests, or speakers addressing large congregations
• Government and municipal meeting chambers requiring encrypted wireless audio
• Hotel ballrooms and convention center breakout rooms for keynote presentations
• Broadcast panel discussions and press conference setups
• Installed AV systems in performing arts centers and multipurpose event spaces

Technical Specifications

Frequently Asked Questions

Q: Does the SL HANDHELD 865 DW-4-US require an RF license in the United States?

No. The SL HANDHELD 865 operates on the 1.9 GHz DECT band (1,920–1,930 MHz), which is license-free for wireless audio applications in the United States, simplifying deployment in permanent installations and rental applications.

Q: What receiver is compatible with the SL HANDHELD 865 DW-4-US?

The SL HANDHELD 865 DW is designed to work with Sennheiser's SL MCR series receivers (SpeechLine Multi-Channel Receiver), which support bidirectional data communication and remote management of connected transmitters.

Q: What is the difference between the 865-S capsule and a standard cardioid capsule?

The 865-S is a supercardioid condenser capsule, meaning it has a tighter polar pattern than a standard cardioid. This provides greater rejection of sound arriving from the sides and rear, which reduces room reverberation and ambient noise pickup — a significant advantage in large, reverberant spaces like lecture halls and houses of worship.

Q: How is the microphone charged?

The SL HANDHELD 865 uses a rechargeable Li-Ion Accupack with external charging contacts compatible with the optional CHG 2 charger bay. It also has a USB socket for direct USB charging.

Q: What does the bidirectional data link provide beyond standard wireless monitoring?

Beyond battery and RF level monitoring, the bidirectional link allows the system operator at the receiver to remotely mute the microphone, retrieve detailed status information, and in compatible system configurations, manage the transmitter settings without accessing the handheld directly.

Q: Is the audio transmission encrypted?

Yes. The SL HANDHELD 865 uses 256-bit AES encryption to protect the audio signal from interception, meeting the security requirements of corporate, government, and confidential broadcast applications.

Q: How does automatic frequency management work in the 1.9 GHz DECT band?

The DECT protocol includes built-in dynamic frequency and channel allocation. The system continuously scans the band and selects interference-free channels, adapting in real time to changes in the RF environment without requiring operator intervention.

Q: What is the operating range of the SL HANDHELD 865?

Operating range depends on the installation environment and the connected SL MCR receiver configuration. The adaptive RF output power (up to 250 mW country-specific) is designed to maintain reliable coverage in typical installed-sound environments including lecture halls, conference rooms, and houses of worship.
