RGB Spectrum QuadView UHD – 4K Multiviewer 7x1 Switcher

Product Overview

The RGB Spectrum QuadView UHD is a 4K multiviewer switcher and scaler that combines a 7x1 multi-format presentation switcher with multi-image processing in a single rack unit. This multi-image processor displays up to four sources on one screen across 16 layout configurations, with 16 presets for fast recall. Built for conference rooms, boardrooms, control rooms, and command centers, it adds an integrated auto-scaler so any input can be scaled to UHD and routed to any window. It is an affordable 4K UHD multiviewer for integrators who need digital and analog source switching with multi-window display.

Product Description

The QuadView UHD is a 7x1 multi-format switcher and scaler that doubles as a multiviewer, showing up to four sources on a single display in 16 different configurations. Video inputs include four HDMI, two DisplayPort, and one VGA, with a single HDMI output; an integrated auto-scaler scales each input up to UHD before sending it to any window. The fast onboard image processor handles windowing, scaling, and switching quickly, and EDID management ensures each connected display receives the correct resolution.

Audio is fully covered: the unit embeds audio on the HDMI output or breaks audio away so an operator can select audio from any source, even one not currently displayed. Control options include a simple web page, IR remote, front panel, and RS-232, making it easy to operate and integrate into existing AV systems. The unit ships with an IR remote and rack ears for standard rack installation. For teams comparing models, the QuadView UHD complements our broader RGB Spectrum multiviewers and video distribution products and our command and control AV solutions at Creation Networks.

Key Features

• 7x1 Multi-Format Switcher/Scaler — Switches and scales seven inputs to one output, doubling as a four-source multiviewer.
• Four-Source Multiviewer — Shows up to four sources on a single display across 16 configuration layouts with 16 presets.

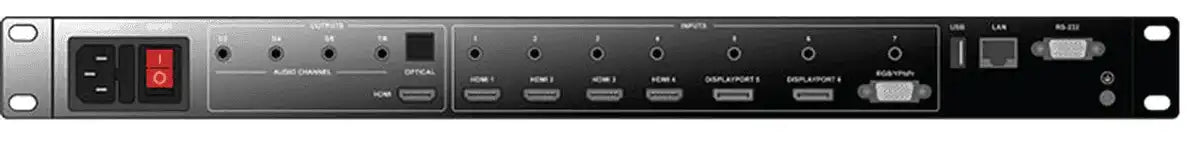

• Multi-Format Inputs — Four HDMI, two DisplayPort, and one VGA input cover digital and analog sources.
• Integrated Auto-Scaler — Scales any input up to 4K UHD and routes it to any window.
• EDID Management — Ensures connected displays receive the correct resolution for reliable plug-and-play.
• Breakaway Audio — Embeds audio on the HDMI output or selects audio from any source, even one not currently shown.

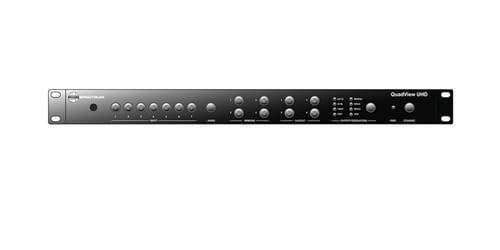

• Flexible Control — Operated via web page, IR remote, front panel, or RS-232 for easy integration.
• HDCP 1.4 Compliant — Supports protected content over HDMI 1.4b.

Typical Applications

• Conference rooms and boardrooms — Multi-source presentation and switching from a single switcher/scaler.
• Control rooms and command centers — Consolidating several feeds onto one 4K display for monitoring.
• Training rooms and auditoriums — Presenting multiple sources side by side for instruction and briefings.
• Multi-purpose and all-hands rooms — Flexible layouts for varied presentation and collaboration needs.

Technical Specifications

Source: RGB Spectrum.

Frequently Asked Questions

What sources and displays is the QuadView UHD compatible with?
It accepts seven inputs — four HDMI, two DisplayPort, and one VGA — and drives a single HDMI 1.4b output. The integrated auto-scaler scales any input up to 4K UHD, and EDID management ensures the connected display receives the correct resolution.

How is it installed and mounted?
The unit ships with rack ears for standard rack installation and includes an IR remote. It is a single-chassis switcher/scaler and multiviewer, simplifying installation compared to separate devices.

How does it integrate into an existing AV or control system?
Control is available via a built-in web page, IR remote, front panel, and RS-232 for third-party control systems, so it fits cleanly into conference-room and control-room workflows.

Does it support HDCP and breakaway audio?
Yes. The QuadView UHD is HDCP 1.4 compliant over HDMI 1.4b, and supports breakaway audio so you can select audio from any source, even one not currently displayed.

What warranty and support are available?
The QuadView UHD carries a 1-year warranty and is backed by RGB Spectrum manufacturer support. For warranty details, configuration help, or a project quote, contact Creation Networks at 888-230-3661 or via our contact page.
