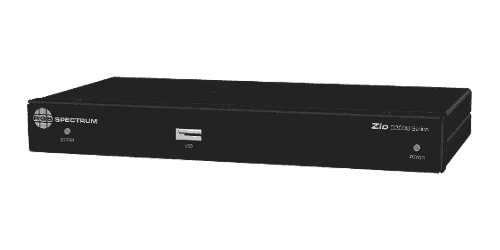

RGB Spectrum D2022 – Zio Multiviewer IP Decoder

Product Overview

The RGB Spectrum D2022 is a compact Zio multiviewer endpoint decoder that decodes and displays up to four 2K IP streams on a single screen, making it well suited to control rooms, video walls, and multi-source monitoring positions. This AV-over-IP multiviewer attaches to a standard 1 Gigabit Ethernet switch and places up to four 1080p streams (or equivalents) anywhere on a display of any size. With Power over Ethernet support to simplify installation, it gives integrators a flexible multi-stream decode endpoint for enterprise, government, and security deployments. It is a practical choice for operators who need several live IP sources visible at once on one monitor.

Product Description

The D2022 belongs to RGB Spectrum's Zio D2000 Series of multiviewers, part of the broader Zio AV-over-IP platform that distributes video, audio, and control over commodity IP networking. Where a standard Zio decoder feeds one display from one stream, the D2022 decodes up to four 1080p streams (or equivalents) and composes them onto a single HDMI output, with each window placeable anywhere on the screen at any size. It connects over a single RJ-45 GigE link and supports both H.264 and H.265 compression with RTSP and multicast streaming.

Because the D2022 is a Zio endpoint, it scales naturally across rooms, buildings, campuses, or cities, and operates over dedicated or shared networks. For larger walls that need more simultaneous streams, the D3000 Series multiviewer systems build on this functionality. A browser-based HTML5 control interface lets operators arrange windows and manage endpoints from a PC, tablet, or phone. To compare multi-stream options, browse our video processing and distribution collection, the full RGB Spectrum line, or our command and control solutions.

Key Features

• Four-Stream Multiview — Decodes and displays up to four 1080p IP streams (or equivalents) on a single screen, each window freely positioned and sized.
• 2K Decoding over IP — Handles streams up to 1920 x 1080 @ 60 Hz with an HDMI output at the same resolution.
• H.264 and H.265 Support — Decodes both industry-standard formats with RTSP and multicast streaming for efficient network use.
• Power over Ethernet — PoE delivers power and data over one cable to simplify installation at the display.
• Single-Cable Connectivity — Connects to the network over one RJ-45 GigE link for clean, low-overhead deployment.
• Browser-Based Control — An HTML5 interface manages windows and endpoints from Windows, macOS, iOS, and Android devices.
• Flexible Audio Support — Outputs digital embedded HDMI audio or analog mono with the decoded video.

Typical Applications

• Control rooms and command centers — Places multiple live IP sources on one operator monitor for at-a-glance situational awareness.
• Security operations centers — Combines several camera or system feeds on a single display for monitoring positions.
• Conference rooms and boardrooms — Shows multiple sources side by side on a shared meeting-room display.
• Broadcast studios — Provides a compact multi-source monitor fed entirely over IP.
• Training rooms and multi-purpose rooms — Displays several streams at once for instruction or collaboration.

Technical Specifications

Source: RGB Spectrum.

Frequently Asked Questions

How many streams can the D2022 display at once?
It decodes and displays up to four 1080p IP streams (or equivalents) on a single screen, with each window freely positioned and sized.

What sources is it compatible with?
It accepts H.264 and H.265 IP streams over the network, including those from compatible Zio encoders on the same 1 Gigabit infrastructure.

How is it installed and mounted?
The compact endpoint connects to a standard 1 Gigabit Ethernet switch over a single RJ-45 GigE link, and Power over Ethernet supplies power over the same cable to simplify installation at the display.

How does it fit into a larger video wall system?
For walls that need more simultaneous streams, the Zio D3000 Series multiviewer systems build on the D2000 Series functionality; all are managed from the same browser-based control interface.

What is the warranty and how do I get support?
For warranty details, application help, quotes, or support, contact Creation Networks at 888-230-3661 or our contact page.
