RGB Spectrum D2002 – Zio 2K Video-over-IP Decoder

Product Overview

The RGB Spectrum D2002 is a Zio AV-over-IP decoder that receives 2K HD streams over an IP network and drives a 1080p/60 display, making it a cost-effective endpoint for video walls, control rooms, and distributed digital signage. This H.264 video over IP decoder attaches to a standard 1 Gigabit Ethernet switch and feeds a connected display with content from any compatible Zio encoder. With Power over Ethernet support and a compact half-rack footprint, it streamlines installation in commercial AV systems that replace dedicated matrix switching with IP distribution. Integrators specifying scalable AV-over-IP endpoints will find the D2002 an efficient HD decoder for enterprise and government deployments.

Product Description

The D2002 is the 2K decode endpoint in RGB Spectrum's Zio AV-over-IP platform, a family of encoders and decoders that distribute video, audio, and control over commodity IP networking instead of dedicated switchers. Zio endpoints attach to a 1 Gigabit Ethernet switch, with encoders accepting computer and video sources up to 2K and decoders such as the D2002 on the far side feeding displays at up to 1920 x 1080 @ 60 Hz. The decoder is designed to work with compatible Zio encoders and other H.264/H.265 compliant devices, and it sits in the same family as the 4K-capable D2004 decoder.

Zio's peer-to-peer architecture avoids a single point of failure and scales across rooms, buildings, campuses, or cities as endpoints are added. The platform suits a local building LAN as well as lower-bandwidth links to remote sites, and it can bridge traditional baseband AV through RGB Spectrum's Linx matrix switchers so analog and digital sources coexist with IP traffic. A browser-based HTML5 control interface provides live stream thumbnails and lets operators manage endpoints from a PC, tablet, or phone. To build out a full system, browse our video processing and distribution collection or the complete RGB Spectrum line.

Key Features

• 2K HD Decoding — Drives displays at up to 1920 x 1080 @ 60 Hz for crisp full-HD playback over IP.
• H.264 Compression — Decodes industry-standard H.264 streams for efficient, low-bandwidth transport across LAN and WAN links.
• Power over Ethernet — PoE+ support delivers power and data over one cable to simplify display-side installation.
• Peer-to-Peer Scalability — Adds to a standard 1 Gigabit switch with no central matrix, growing from a single display to an entire campus.

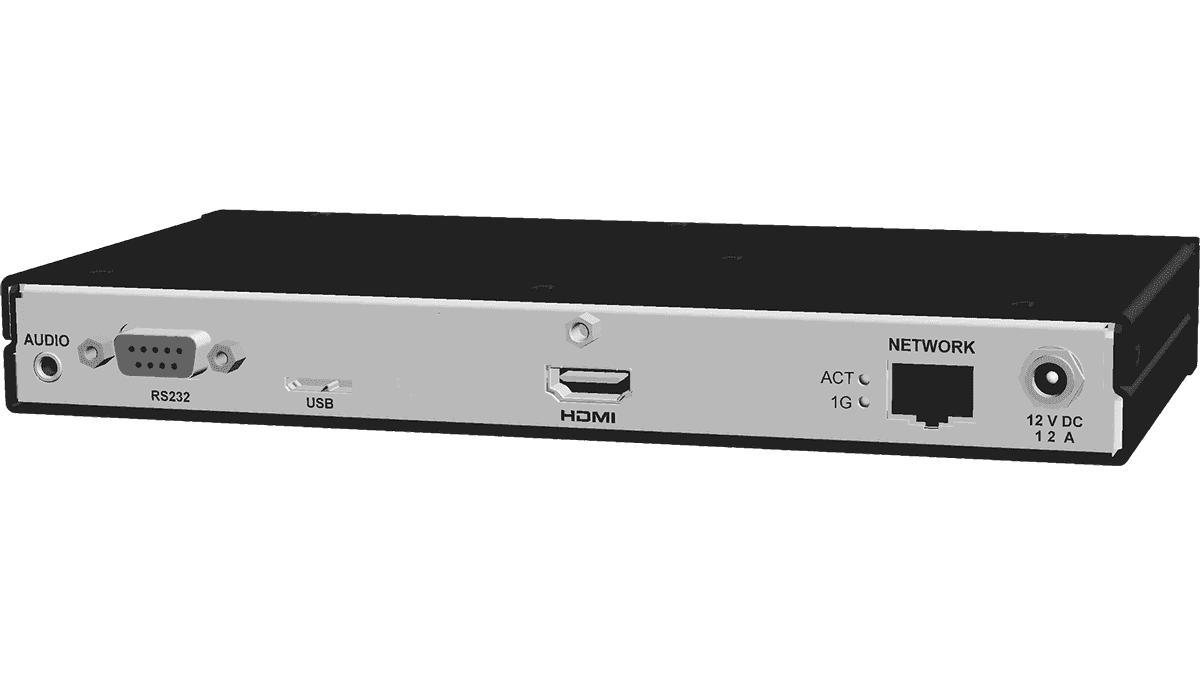

• USB and Serial Control — Includes a USB-3 port and RS-232 serial control alongside network management.
• Browser-Based Control — An HTML5 interface manages streams and endpoints from Windows, macOS, iOS, and Android devices.
• Flexible Audio Support — Outputs digital embedded HDMI audio or analog mono with the decoded video.

Typical Applications

• Control rooms and command centers — Feeds operator displays and shared video walls with live HD IP streams.
• Conference rooms and boardrooms — Drives meeting-room displays with sources distributed over the building network.
• Government and security spaces — Supports scalable HD display distribution for facilities standardized on IP infrastructure.
• Training rooms and multi-purpose rooms — Delivers shared 1080p content to multiple displays without point-to-point cabling.
• Commercial digital signage — Receives source streams to drive HD displays distributed across rooms or buildings.

Technical Specifications

Source: RGB Spectrum.

Frequently Asked Questions

What encoders is the D2002 compatible with?
It is designed to work with compatible Zio encoders and other H.264/H.265 compliant encode endpoints on the same network.

How is the decoder installed?
The unit has a compact 1" x 8" x 4" half-rack footprint, mounts near the display, and connects to a standard 1 Gigabit Ethernet switch; PoE+ lets a single cable carry both power and data.

How does it integrate with an existing AV system?
It attaches to a standard IP network and can bridge to traditional baseband AV through RGB Spectrum's Linx matrix switchers, with browser-based HTML5 control for stream and endpoint management.

What resolution does it output?
The D2002 decodes 2K streams and drives displays at up to 1920 x 1080 @ 60 Hz, with display support up to 4096 x 2160 @ 24 Hz.

What is the warranty and how do I get support?
The D2002 carries a 1-year warranty. For application help, quotes, or support, contact Creation Networks at 888-230-3661 or our contact page.
