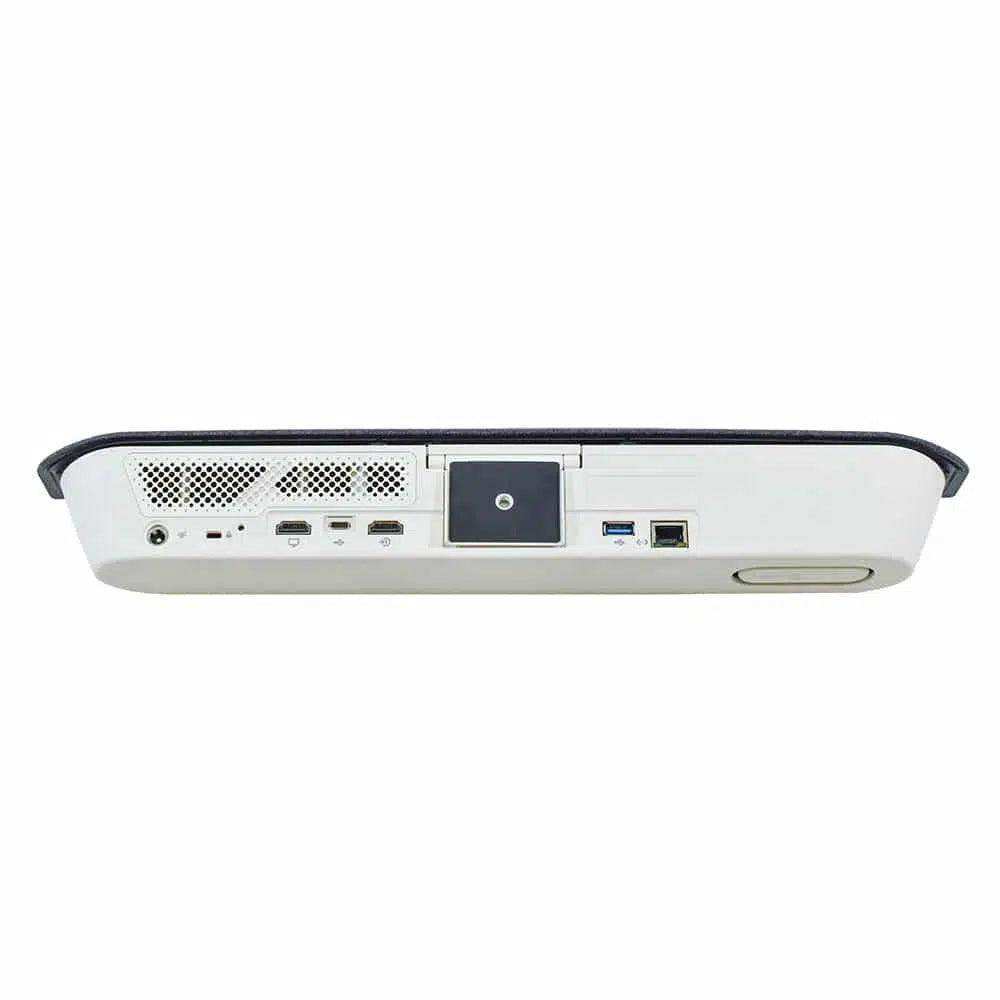

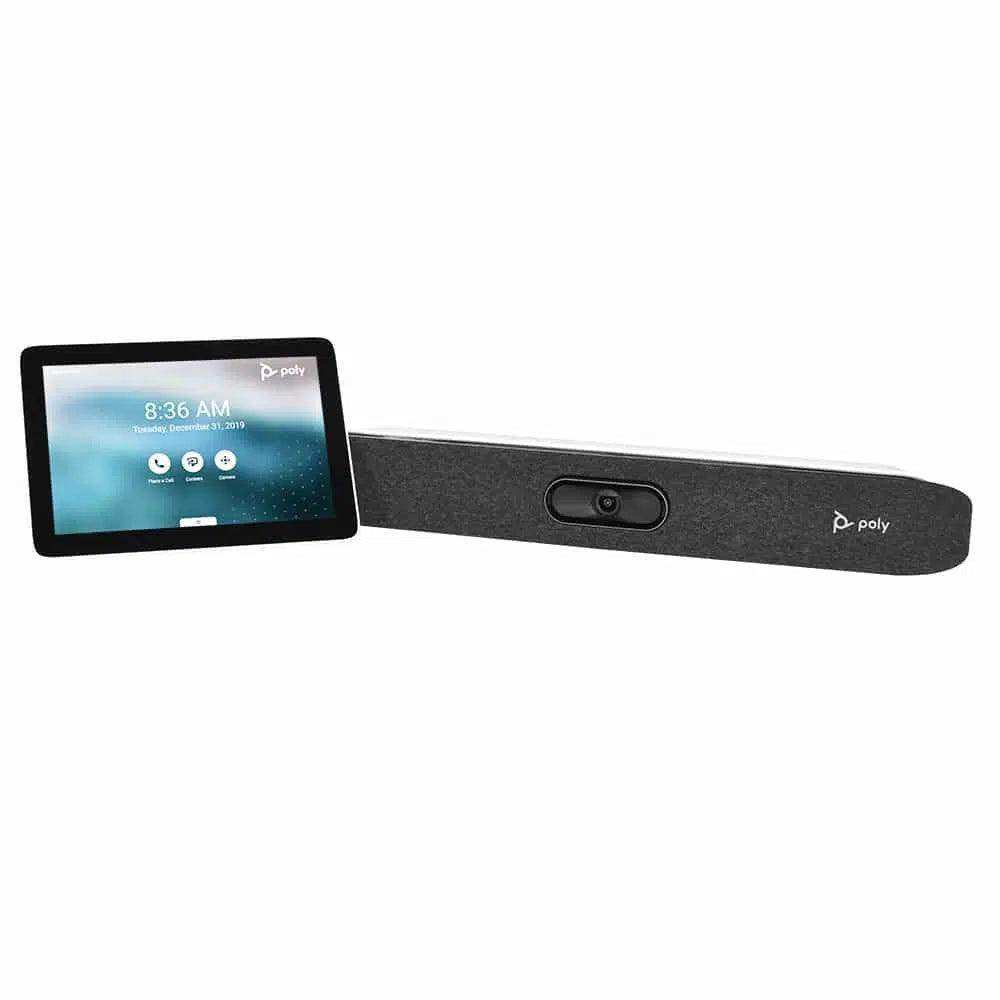

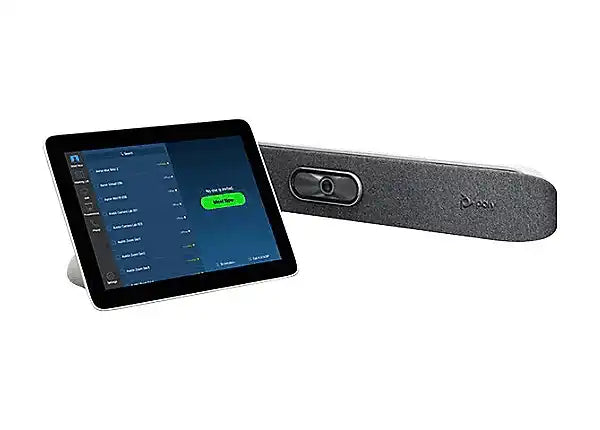

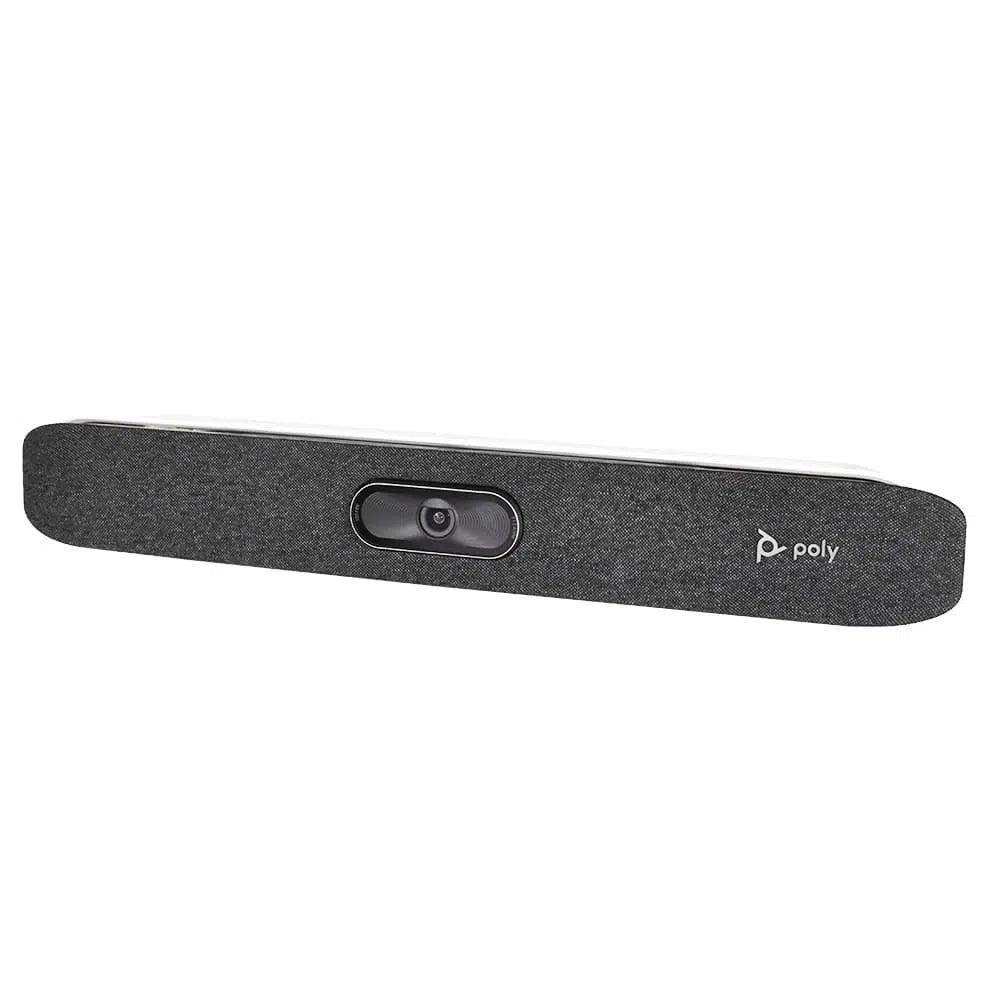

Poly Studio X30 - video conferencing kit - no radio, JTIC Compliant - with Poly TC8 - J2200-86780-001

PolySKU: J2200-86780-001
No reviews

Sale price$2,100.00


Spec Sheet

Main Features

  • JITC, No radio
  • Video conferencing kit (touchscreen console
  • video bar)
  • with Poly TC8

If you are using Poly Studio X30 and Poly TC8 with Zoom, Poly recommends you purchase part number 6230-86490-001. If you are using this with Microsoft Teams, Poly recommends you purchase part number 6230-86750-001.


Just because your meetings are in small spaces doesn't mean those meetings aren't important. Meet the Poly Studio X30, an all-in-one video bar for huddle and small rooms. It's radically simple to use with the standards based (SIP/H.323) Poly video app built right in-no PC or Mac required. Voices are crisp and clear, thanks to a beamforming microphone array and acoustic chamber design. Setup, management, and maintenance are all streamlined, too. Say hello to lower IT costs.


  • Header
    • Manufacturer :Polycom
    • Brand :Poly
    • Product Line :Poly Studio X series
    • Model :X30
    • Country Kits :North America
    • Packaged Quantity :1
  • System
    • Conferencing System Type :Video conferencing kit
    • Kit Content :Video bar, Touchscreen console
  • Chassis
    • Built-in Devices :3 microphones, Camera, Speaker
  • Video Output
    • Supported Display Graphics :1280x720, 1680x1050, XGA (1024x768), 176x144, 352x240, SXGA (1280x1024), HDTV (1920x1080), 1920x1200, SXGA+ (1400x1050), 3840x2160
    • Max External Resolution :3840 x 2160
    • Digital Video Standard :High-Definition Multimedia Interface (HDMI)
  • Video Input
    • Type :Digital camera
    • Form Factor :Integrated
    • Optical Zoom :4
    • Video Modes :2160p
    • Features :Auto tracking, Miracast connectivity, 120° field of view, Auto-framing
  • Audio Output
    • Type :Speaker(s)
    • Sound Output Mode :Mono
  • Audio Input
    • Type :Three microphones
    • Form Factor :Integrated
  • Input Device
    • Type :8" touchscreen
    • Connectivity Technology :Wired
  • Networking
    • Type :Network adapter
    • Connectivity Technology :Wired, Wireless
    • Data Link Protocol :Ethernet, IEEE 802.11ac, IEEE 802.11g, Fast Ethernet, Bluetooth 5.0, IEEE 802.11a, IEEE 802.11b, Gigabit Ethernet, IEEE 802.11n
    • Features :Auto-uplink (auto MDI/MDI-X), Polycom Lost Packet Recovery (LPR) technology, IPv4 support, IPv6 support, Apple AirPlay, MIMO technology, Simple Certificate Enrollment Protocol (SCEP), OCSP support
    • Compliant Standards :IEEE 802.11b, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11g, Bluetooth 5.0, IEEE 802.11a
  • IP Telephony
    • VoIP Protocols :H.323, SIP
    • Voice Codecs :G.728, G.711, G.722.1, G.722.1c, G.719, AAC-LD, G.729a, G.722
    • Video Codecs :H.264, H.239, H.265, H.264 High Profile
    • Security :H.235.6, 256-bit AES, TLS 1.0, 128-bit AES, TLS 1.2, FIPS 140-2, TLS 1.1
  • Interface Provided
    • Interfaces :1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45, 1 x USB-C - 24 pin USB-C, 1 x audio / video - HDMI output - 19 pin HDMI Type A, 1 x SuperSpeed USB 3.0, 1 x audio / video - HDMI input - 19 pin HDMI Type A
  • Power Device
    • Type :Power adapter
    • Form Factor :External
    • Nominal Voltage :AC 120/230 V
    • Frequency Required :50/60 hertz
  • Miscellaneous
    • Included Accessories :Cables, Clamp, Wall mount
    • Compliant Standards :FIPS 140-2
  • Dimensions & Weight Details
    • Dimensions & Weight Details :Video bar - Width 17.4 in Depth 2.4 in Height 2.5 in Weight 25.7 oz, Touch screen - Width 8.1 in Depth 3.1 in Height 4.8 in Weight 28.6 oz
  • Service & Support
    • Type :1-year warranty
  • Service & Support Details
    • Service & Support :Limited warranty - parts and labor - 1 year
  • Environmental Parameters
    • Min Operating Temperature :32 degree Fahrenheit
    • Max Operating Temperature :104 degree Fahrenheit
    • Humidity Range Operating :15 - 80% (non-condensing)

The intuitive touch interface of TC8 provides easy access to Poly video conferencing solutions. The sleek design features an 8" high-resolution touch display to ensure that the control options are clear and accessible. A single cable carries both power and data to reduce clutter. After using the Poly TC8, you'll never stress about getting your meeting going again. Having confidence that you can easily initiate, join, or share content lets you focus on better collaboration.
