Lightware VINX-110AP-HDMI-DEC AV Over IP Scaling Multimedia Extender with USB K+M, RS-232 and IR - 91810010

Product Overview

The Lightware VINX-110AP-HDMI-DEC is an AV-over-IP decoder that receives compressed 4K video streams over a standard Gigabit Ethernet network and outputs HDMI to a connected display, projector, or video wall tile. It is part of the Lightware VINX-110AP series, designed for large-scale AV distribution projects in corporate campuses, education facilities, digital signage networks, and command and control centres where centralised video sources need to be distributed to multiple displays without dedicated point-to-point cabling. The decoder includes USB keyboard and mouse extension (K+M), RS-232, and IR, making it a full-featured endpoint for remote room control as well as AV delivery.

Product Description

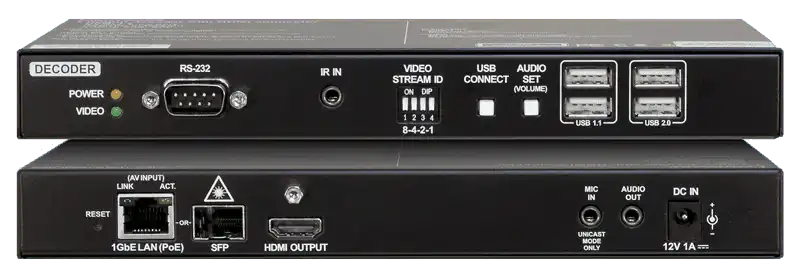

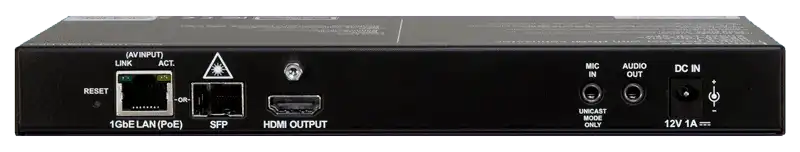

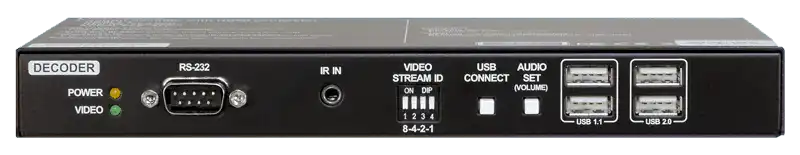

The VINX-110AP-HDMI-DEC connects to the network via a standard RJ45 Gigabit Ethernet port and decodes video streams transmitted by compatible Lightware VINX encoders. Video is output at resolutions up to 4K UHD (3840x2160) at 60 Hz over HDMI, with scaling capability to match the native resolution of the connected display. The unit supports HDCP 2.2 for protected content distribution from professional broadcast and streaming sources. USB keyboard and mouse (K+M) extension is built in, enabling a presenter or operator at the display location to control a remote PC connected at the encoder end — a function critical for meeting rooms with rack-mounted PCs, control room workstations, and digital signage players. RS-232 and IR outputs allow local display control from the decoder location, closing the control loop without separate RS-232 extenders. The device is compact and designed for discreet installation behind a display, in a ceiling void, or within a surface-mount box. PoE powering from the network switch simplifies installation by removing the need for a local power supply. Management is handled via Lightware's LDC (Lightware Device Controller) software over IP, providing centralised routing control, monitoring, and configuration for all encoders and decoders on the network. The VINX series uses a managed network architecture, typically requiring a dedicated VLAN and a managed Gigabit switch with IGMP snooping for stable multicast video distribution.

Key Features

• AV-over-IP Decoding — receives compressed video streams over Gigabit Ethernet and outputs HDMI, enabling large-scale distributed AV without dedicated cabling infrastructure
• 4K UHD 60 Hz HDMI Output — drives displays at up to 3840×2160 at 60 Hz with integrated scaling to match display native resolution
• USB K+M Extension — keyboard and mouse signals are extended over IP between decoder and encoder, enabling remote PC control at the source location
• RS-232 and IR Output — local display control at the decoder location without separate serial extenders
• HDCP 2.2 Support — handles protected content from professional streaming and broadcast sources end-to-end
• PoE Powered — powered from the network switch, no local power supply required at the display location
• Multicast Distribution — one encoder source can be received by unlimited decoder endpoints simultaneously, scaling efficiently across large deployments
• Lightware LDC Management — centralised IP-based routing, monitoring, and configuration via Lightware Device Controller software
• Compact Chassis — designed for behind-display or ceiling void installation in space-constrained endpoints
• Gigabit Ethernet Interface — standard RJ45 connection integrates with existing managed network infrastructure

Typical Applications

• Corporate campuses distributing video from centralised source racks to multiple meeting rooms and public areas
• University lecture theatres and tiered classrooms receiving lecture capture feeds
• Digital signage networks with centralised media player distribution to displays throughout a building
• Command and control centres with remote PC workstation display at operator positions
• Hotel and hospitality IPTV and AV distribution across guest rooms and public spaces
• Healthcare facility patient information and staff communication display networks

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What encoder does the VINX-110AP-HDMI-DEC pair with?

The VINX-110AP-HDMI-DEC is designed to work with the Lightware VINX-110AP-HDMI-ENC encoder (and other compatible VINX encoders). Encoders connect to the video source and transmit the stream over Gigabit Ethernet to the decoder. Both units must be on the same managed network segment, typically a dedicated AV VLAN.

What network switch is required for a VINX-110AP deployment?

A managed Gigabit Ethernet switch with IGMP snooping enabled is required for multicast video distribution. Switches should support at least 1Gbps per port with sufficient backplane capacity for the total number of streams. Lightware publishes network design guidelines covering VLAN configuration, IGMP settings, and switch recommendations for VINX deployments.

Does the VINX-110AP-HDMI-DEC support video wall configurations?

Yes. Multiple VINX decoders can be configured to display a single source tiled across a video wall, with each decoder driving one display or tile. Bezel correction and layout configuration are managed via Lightware LDC software. The number of decoders required equals the number of tiles in the video wall.

Can I use USB K+M extension to control a remote PC through the network?

Yes. The USB K+M (keyboard and mouse) extension allows a user at the decoder location to control a PC connected at the encoder end. This is commonly used in control rooms, meeting rooms with rack-mounted PCs, and digital signage management stations where the PC is located in a remote equipment room.

Is HDCP 2.2 supported for protected content distribution?

Yes. The VINX-110AP-HDMI-DEC supports HDCP 2.2 end-to-end, enabling distribution of 4K UHD protected content from professional streaming devices, Blu-ray players, and broadcast sources, provided all components in the signal chain are HDCP 2.2 compliant.

What is the latency of the VINX-110AP system?

The VINX-110AP series is designed for low-latency AV-over-IP distribution, with typical end-to-end latency in the range of one to two video frames at 60 Hz. Exact latency depends on network conditions, switch configuration, and the number of hops between encoder and decoder. Consult the Lightware technical datasheet for tested latency figures.

Where can I purchase the Lightware VINX-110AP-HDMI-DEC?

The VINX-110AP-HDMI-DEC is available from Creation Networks at creationnetworks.net, an authorised Lightware reseller for commercial AV integrators and direct procurement teams. Contact Creation Networks for project pricing, system design support, and volume orders.
