Draper Ultimate Access XL V – 250", NTSC – 145020U

Product Overview

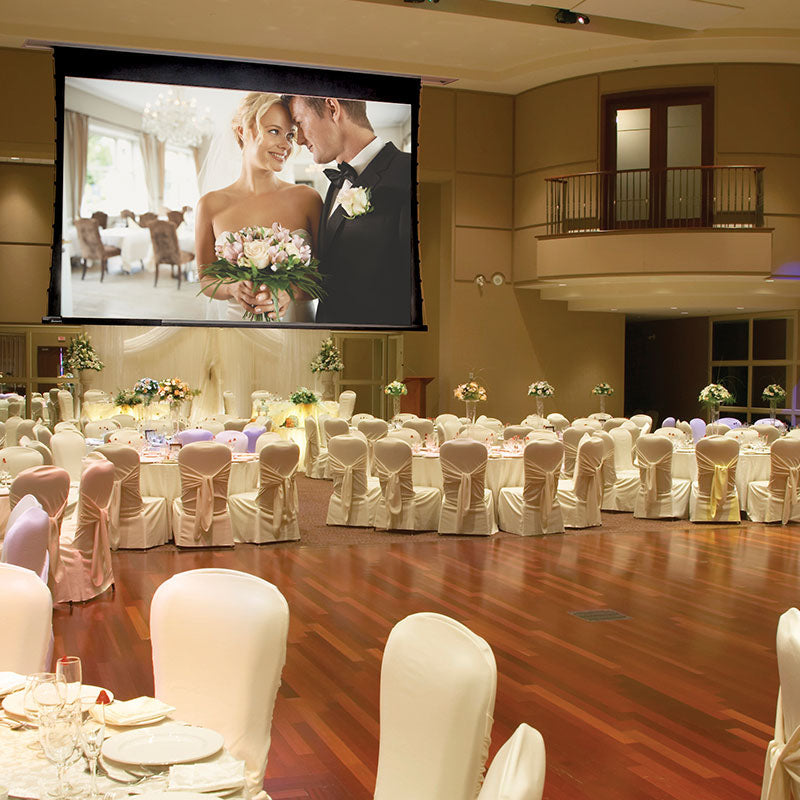

The Draper Ultimate Access XL V is a large-format, ceiling-recessed, tab-tensioned projection screen with a motorized closure panel that fully conceals a big image behind a finished ceiling line with no visible fasteners. This 250" NTSC (4:3) model is built for major venues such as conference centers, ballrooms, and auditoriums that need an expansive screen and a clean architectural ceiling. As a motorized, tab-tensioned projection screen, it holds a flat viewing surface across a wide image for accurate, distortion-free projection in high-attendance rooms. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access XL V large-venue projection screen combines expansive image sizes with fully concealed, fastener-free integration. The case measures 14-1/16" high x 11" deep (36 cm x 28 cm) including the trim flange and supports image widths up to 22' (671 cm) depending on surface selection, with this unit configured at a 250" NTSC diagonal. An independently motorized ceiling closure panel opens into the case for deployment and closes flush when the screen retracts; the panel can be finished by a contractor to match the surrounding ceiling. The tab-tensioned design uses RF-welded tabs that eliminate stickiness and tab separation to hold the large surface flat and wrinkle-free, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top. The case installs during early construction with the screen added later to reduce the risk of job-site damage, and a junction box with a 110V three-position wall switch is included for recessed wall mounting. This configuration ships with a low-voltage LVC-IV motor for simple low-voltage triggering, with 220V and additional control options available for integration with third-party control systems such as Crestron and Control4. Pair it with a unit from our commercial projectors collection and a bracket or lift from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Large-format image sizes — Supports image widths up to 22' (671 cm) for conference centers, ballrooms, and auditoriums.
• Motorized closure panel — An independently motorized ceiling closure panel opens into the case and closes flush to fully conceal the screen with no visible fasteners.
• Contractor-finishable ceiling panel — The closure panel can be finished to match the surrounding ceiling for a clean architectural appearance.
• RF-welded tab-tensioning — RF-welded tabs eliminate stickiness and tab separation, keeping the large surface flat and wrinkle-free.
• Early case installation — The case installs during early construction with the screen added later to reduce the risk of job-site damage.
• Integrated wall switch — A junction box and 110V three-position wall switch are included for recessed wall mounting.
• Low-voltage LVC-IV motor — This unit ships with an LVC-IV low-voltage motor; a standard 110V motor and 220V options are also available.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference centers and hotel ballrooms requiring a large concealed screen

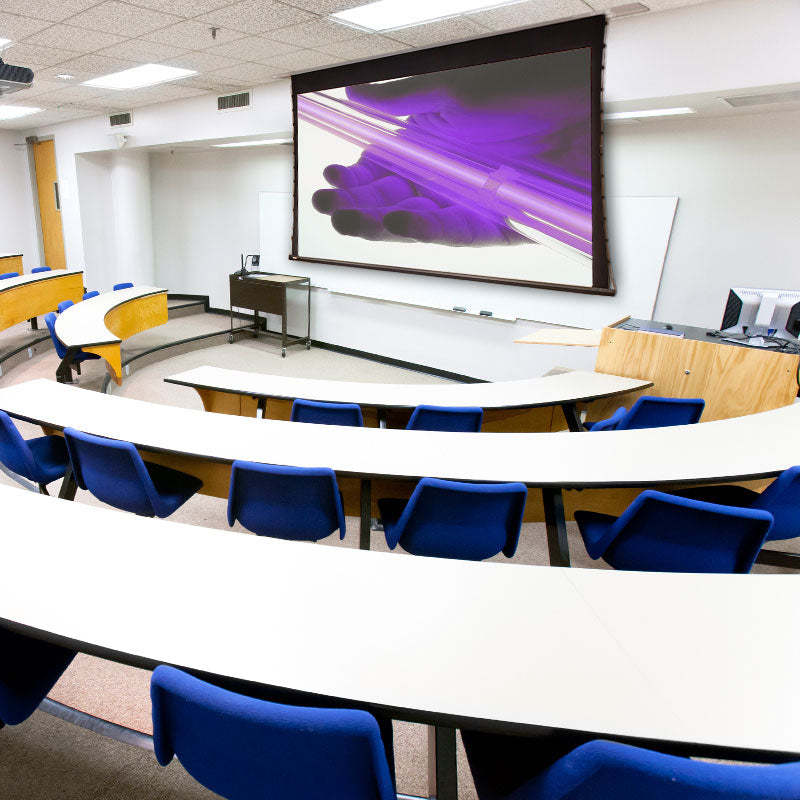

• Auditoriums and large lecture halls
• Corporate all-hands and general-session rooms
• Higher-education and multi-purpose rooms in large venues
• Government and commercial assembly spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, viewing surface, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How large an image does the Ultimate Access XL V support?

The Ultimate Access XL V supports image widths up to 22' (671 cm), which is why it is used in conference centers, ballrooms, and auditoriums. This unit is configured at a 250" NTSC (4:3) diagonal; custom sizes within the model maximum are available.

How is the screen concealed when not in use?

An independently motorized ceiling closure panel opens into the case for deployment and closes flush when the screen retracts, fully concealing the screen with no visible fasteners. The panel can be finished by a contractor to match the ceiling.

What does the "U" motor suffix mean on this unit?

The "U" indicates an LVC-IV low-voltage motor, which simplifies integration with low-voltage control triggers. A standard 110V motor and 220V options are also available, and a junction box with a 110V three-position wall switch is included for recessed wall mounting.

Can the case be installed during construction?

Yes. The case can be installed during early construction and the screen added later, reducing the risk of job-site damage to the viewing surface.

What projectors and mounts are compatible?

It works with commercial front projectors and large-venue lifts matched to a 250" NTSC image and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Ultimate Access XL V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
