Draper Ultimate Access XL V – 250", NTSC – 145020

Product Overview

The Draper Ultimate Access XL V is a large-format, ceiling-recessed, tab-tensioned electric projection screen with a motorized closure door, built for major venues such as conference centers, ballrooms, and large auditoriums. This 250" diagonal NTSC (4:3) model deploys a flat, tab-tensioned image through a motorized trap door, then closes behind a ceiling panel that fully conceals the screen with no visible fasteners. As a large-format ceiling-recessed projection screen, it supports image widths up to 22' for wide-audience presentation spaces. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access XL V ceiling-recessed projection screen extends the fully concealed Ultimate Access platform to large-venue image sizes. Its steel case measures 14-1/16" high by 11" deep (36 cm x 28 cm) including the trim flange, with sliding brackets on top for mounting adjustment and internal brackets that accommodate the screen assembly. An independently motorized ceiling closure panel opens into the case for deployment and seals shut afterward; the panel can be finished by a contractor to match the surrounding ceiling for a clean, fastener-free appearance. Maximum image width for the model is 22' (671 cm); this 250" 4:3 unit is a true large-format screen for major venues. The tab-tensioned design holds the surface flat across the full width for a wrinkle-free image, and Draper's RF-welded tabs eliminate stickiness and tab separation. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top for correct projector alignment. Adjustable or removable hoisting brackets ease lifting the large case into place, and installing the case early in construction protects the screen and allows it to be added later. A junction box and 110V three-position wall switch are included for recessed wall mounting, and a low-voltage video interface or other controls can be built into the housing for below-ceiling access. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the large-venue system. Browse the full Draper projection screen lineup, or the wider projection screens range. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Large-format image size — Supports image widths up to 22' (671 cm); this 250" 4:3 unit suits conference centers, ballrooms, and large auditoriums.
• Ceiling-recessed with motorized closure door — An independently motorized ceiling closure panel opens into the case for deployment and seals shut, fully concealing the screen with no visible fasteners.
• Tab-tensioned viewing surface — Holds the surface flat across the full width for a wrinkle-free image at large sizes.
• RF-welded tabs — Eliminate stickiness and tab separation over the life of the screen.
• Contractor-finishable ceiling panel — The closure panel can be finished to match the surrounding ceiling for a seamless-looking install.
• Adjustable and removable hoisting brackets — Simplify lifting the large case into position during installation.
• Integrated controls — A junction box and 110V three-position wall switch are included, and low-voltage control interfaces can be built into the housing for below-ceiling access.
• Standard 12" black drop — The image area is fully framed in black with a 12" (30 cm) top drop for correct projector alignment.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Convention and conference centers requiring a large concealed screen

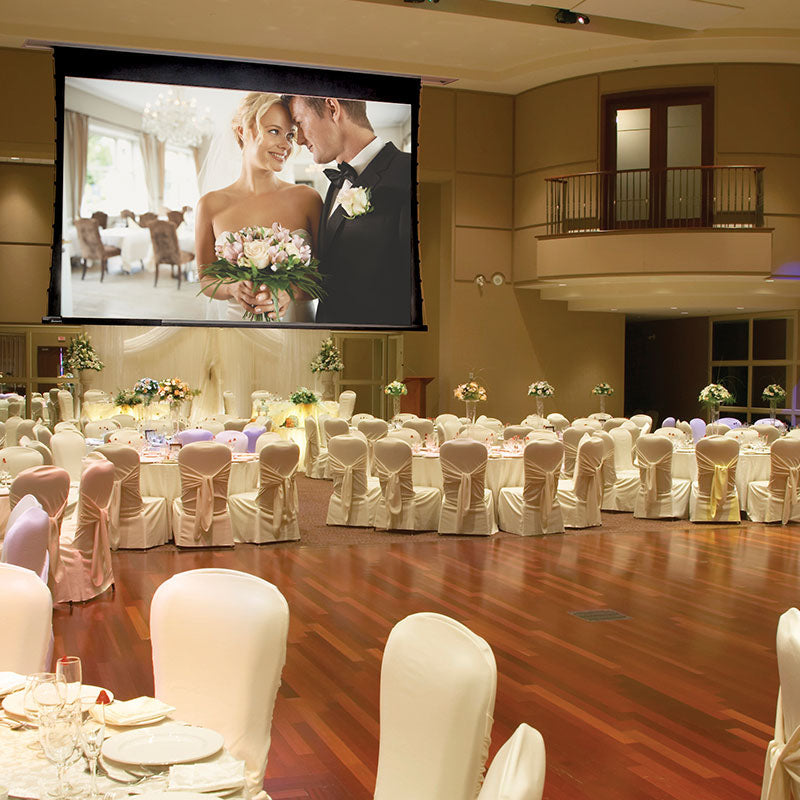

• Hotel ballrooms and multi-purpose event spaces

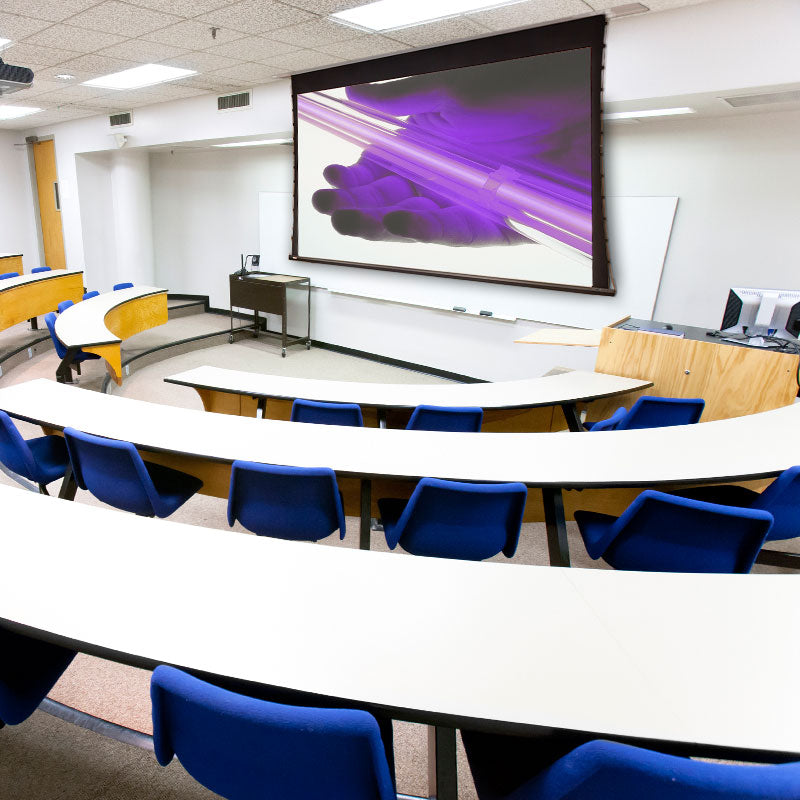

• Large auditoriums and performing arts venues
• Corporate all-hands rooms seating large audiences
• Houses of worship using large-format front projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What is the maximum image size for the Ultimate Access XL V?

The model supports image widths up to 22' (671 cm), depending on surface selection. This 250" 4:3 unit is a large-format configuration intended for major venues such as conference centers, ballrooms, and large auditoriums.

How does the screen stay concealed when not in use?

An independently motorized ceiling closure panel opens into the case for screen deployment and seals shut afterward, fully concealing the screen with no visible fasteners. The panel can be finished by a contractor to match the surrounding ceiling.

How durable is the tab-tensioning at this size?

The tabs are RF-welded to eliminate stickiness and separation, keeping the surface flat across the full width — important for a large screen where flatness directly affects image quality.

What controls and wiring are included?

A junction box and a 110V three-position wall switch are included for recessed wall mounting. A low-voltage video interface or other controls can be built into the housing for below-ceiling access and AV system integration. LVC-IV and 220V motor options are also available.

What projectors and mounts are compatible with this screen?

Use a commercial front projector matched to the 250" 4:3 format and the room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Ultimate Access XL V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
