Draper Ultimate Access XL V – 240", NTSC – 145019U

Product Overview

The Draper Ultimate Access XL V is a large-format, ceiling-recessed, tab-tensioned motorized projection screen with an independently motorized ceiling closure door, built for major venues. This 240" diagonal NTSC (4:3) model delivers a large, dead-flat image for auditoriums, conference centers, and ballrooms while concealing the entire screen inside the ceiling when not in use. As a large-format tab-tensioned projection screen, it combines Series V tab-tensioning with full concealment for permanent, high-visibility installations. This unit is configured with Draper's LVC-IV low-voltage control for AV control-system integration. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access XL V ceiling-recessed projection screen is a Series V, tab-tensioned electric screen engineered for the demands of large rooms, supporting image widths up to 22' (671 cm). The tab-tensioned surface uses RF-welded tabs to hold a large image plane taut and flat, eliminating curl and edge separation so geometry stays accurate even at this scale. The case includes a motorized trap door and an independently motorized ceiling closure panel that opens into the case, fully concealing the screen behind a finished ceiling line with no visible fasteners; the closure panel can be finished by the contractor to match the ceiling. This unit is configured with the LVC-IV low-voltage control option, letting the screen tie into a Crestron, Extron, or similar control system for automated operation, and a junction box and 110V three-position wall switch are included for recessed wall-mounted control. Adjustable, removable hoisting brackets and sliding top brackets help crews position and lift this large assembly during installation. This makes the Ultimate Access XL V well suited to auditoriums, conference centers, ballrooms, and large multi-purpose rooms that require a very large, flat image and a concealed screen. Pair it with a compatible unit from our commercial projectors collection and a bracket or lift from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats. Contact Creation Networks at creationnetworks.net for throw-distance planning, structural coordination, and lead times.

Key Features

• Large-format tab-tensioned surface — Series V tab-tensioning holds a large image flat and wrinkle-free, supporting image widths up to 22' (671 cm).
• RF-welded tabs — The welded tab seal resists separation and stickiness for long-term flatness across a very large surface.
• Independently motorized closure door — A separately motorized ceiling closure panel and motorized trap door fully conceal the screen behind a finished ceiling line.
• Low-voltage control (LVC-IV, U) — This unit ships with Draper's LVC-IV low-voltage control for integration with third-party AV control systems.
• Recessed wall control — A junction box and 110V three-position wall switch are included for recessed wall-mounted operation.
• Contractor-finishable closure panel — The closure panel can be finished on site to match the surrounding ceiling material.
• Installation hardware — Adjustable, removable hoisting brackets and sliding top brackets assist lifting and alignment of the large case.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

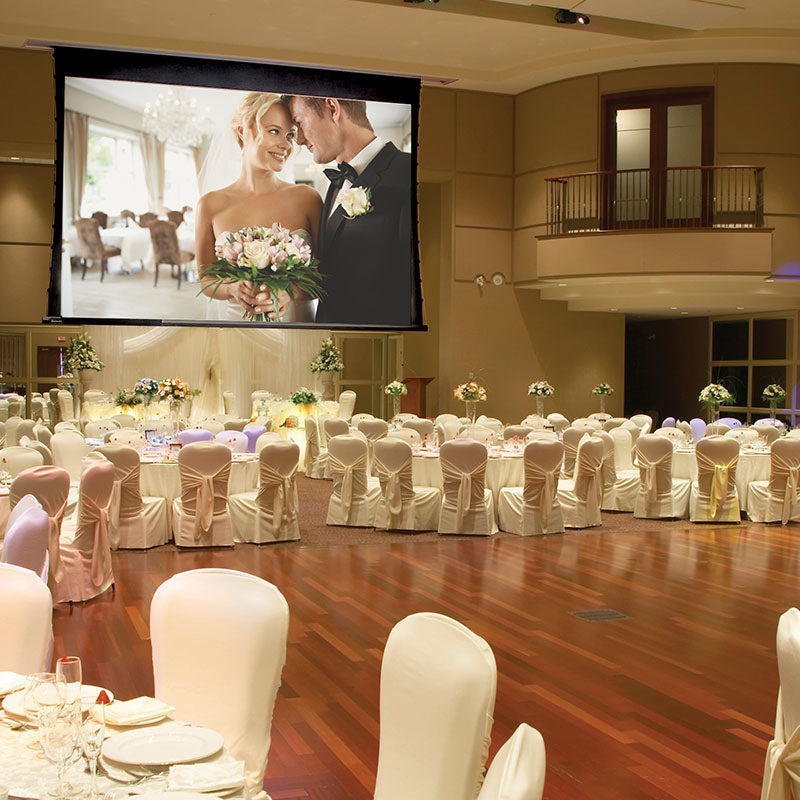

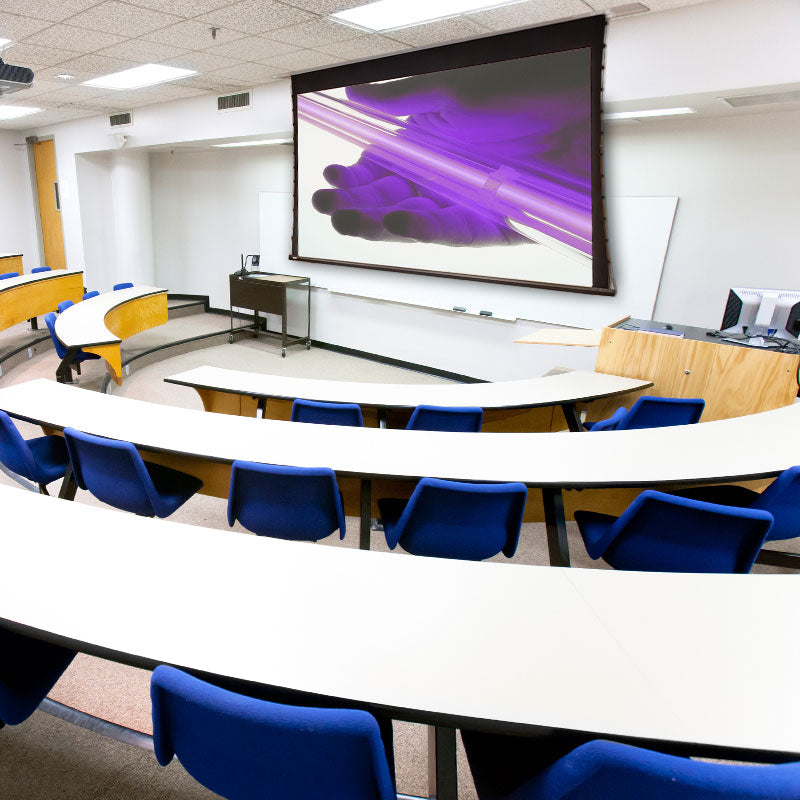

• Auditoriums and performing arts spaces requiring a very large projected image
• Conference centers and ballrooms with large-format front projection
• Houses of worship using large front-projected image on a concealed screen
• Large multi-purpose rooms and all-hands spaces needing full ceiling concealment
• Government and commercial assembly spaces integrated with an AV control system

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, structural requirements, and case size limits with Creation Networks before ordering.

Frequently Asked Questions

How large an image does the Ultimate Access XL V support?

The XL V is Draper's large-format Series V ceiling-recessed screen and supports image widths up to 22' (671 cm), depending on the selected surface. This 240" NTSC configuration is sized for auditoriums, conference centers, and ballrooms.

Is the XL V tab-tensioned?

Yes. It is a Series V, tab-tensioned screen with RF-welded tabs that keep even a very large surface taut and flat for accurate image geometry.

What does the "U" in the model number mean?

The U designates Draper's LVC-IV low-voltage control option. It lets the screen integrate with third-party AV control systems such as Crestron or Extron for automated operation.

What is the motorized closure door?

The case includes a motorized trap door and an independently motorized ceiling closure panel that opens into the case, fully concealing the screen behind a finished ceiling line. The panel can be finished by the contractor to match the ceiling.

What should we plan for during installation?

Because of its size and weight, plan for structural coordination and lifting. Adjustable, removable hoisting brackets and sliding top brackets are provided. Contact us for structural and rigging guidance before ordering.

What projectors and mounts pair with the XL V?

It works with commercial front projectors matched to its large 4:3 format and the room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Ultimate Access XL V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
