Draper Ultimate Access V – 7', NTSC – 143012CB

Product Overview

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned electric projection screen with a motorized closure door that fully conceals the screen and leaves a clean ceiling line when idle. This 7' (84") diagonal NTSC (4:3) model uses the neutral-grey CineFlex CH1200V surface and is sized for mid-sized boardrooms, conference rooms, and training rooms rather than large-format venues. Tab-tensioning with RF-welded tabs holds the image flat and wave-free, and there are no exposed fasteners for a finished architectural look. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Ultimate Access V 7' ceiling-recessed projection screen (Part # 143012CB) is specified where a concealed, tab-tensioned image and a fully finished ceiling both matter. Its case includes a motorized trap door and ceiling closure panel that a contractor can finish to match the surrounding ceiling, so the screen disappears when retracted. As a Series V tab-tensioned projection screen, the surface is held flat by side tensioning tabs with RF-welded seals that prevent separation and sticking. This unit uses the CineFlex CH1200V neutral-grey surface, rated at 1.2 gain with a controlled viewing cone (half-gain angle 30°) and high contrast that holds up in well-lit rooms. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top, and a bottom access panel detaches or hangs on a T-bracket for easy maintenance. Quick-connect wiring allows the case to be installed early during construction with the screen added later. This is a standard-size configuration with a maximum model image width of 12' (366 cm); it is not a large-format screen. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the wider projection screens range. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Motorized closure door — A motorized trap door and ceiling closure panel fully conceal the screen and can be finished to match the ceiling.

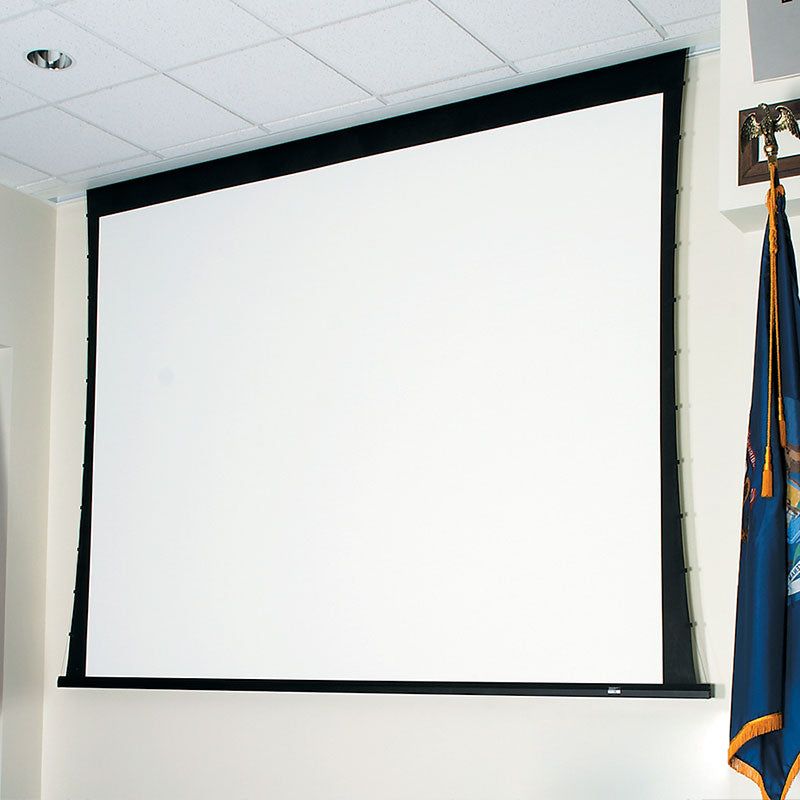

• Tab-tensioned Series V surface — Side tensioning tabs hold the viewing surface flat and wave-free across the full screen width.
• RF-welded tabs — The welded tabs create a durable seal that eliminates separation and stickiness over the screen's life.
• Neutral-grey CineFlex CH1200V surface — A 1.2-gain grey surface with high contrast that maintains resolution in well-lit rooms, with a controlled 30° half-gain viewing cone.
• No exposed fasteners — The concealed design leaves a clean, professional finish with no visible hardware when retracted.
• Black-framed image with top drop — The image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area.
• Serviceable bottom access panel — The bottom panel detaches or hangs on a T-bracket for straightforward maintenance.
• Quick-connect wiring — The case can be installed early during construction and the screen added later to protect it during the build.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

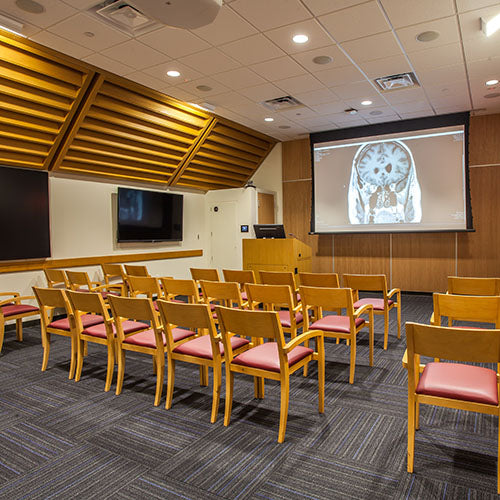

• Mid-sized corporate boardrooms requiring a concealed screen and finished ceiling
• Conference rooms and commercial meeting spaces with front projection
• Training rooms and all-hands rooms needing enhanced contrast in ambient light
• Government spaces and briefing rooms with a discreet, no-fastener finish
• Houses of worship using front projection with a concealed ceiling line

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, ceiling-pocket requirements, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Ultimate Access V a large-format screen?

No. The Ultimate Access V is a standard-size model with a maximum image width of 12' (366 cm). This unit is a 7' (84") diagonal screen, which suits mid-sized rooms rather than large-format venues.

What does the motorized closure door do?

The case includes a motorized trap door and ceiling closure panel. When the screen retracts, the panel closes to fully conceal it, and a contractor can finish the panel to match the surrounding ceiling for a seamless look.

Is the screen tab-tensioned?

Yes. It is a Series V tab-tensioned screen. Side tensioning tabs with RF-welded seals hold the surface flat and wave-free, and the RF-welded tabs resist separation and stickiness.

Why the CineFlex CH1200V surface?

CineFlex CH1200V is a neutral-grey 1.2-gain surface with high contrast and a controlled viewing cone (30° half-gain). It holds resolution and contrast in well-lit rooms; confirm the surface for your configuration with Creation Networks.

What projectors and mounts are compatible?

It works with any commercial front projector matched to its 7' NTSC (4:3) format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Does the screen integrate with Crestron or Control4 systems?

Yes. This configuration ships with a 110V 3-position switch, and low-voltage control (including the LVC-IV controller) can be specified so the screen and closure door integrate with third-party systems such as Crestron or Control4.

What warranty and support are included?

The Ultimate Access V carries Draper's standard 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
