Draper Ultimate Access V – 150", NTSC – 143016CBU

Product Overview

The Draper Ultimate Access V is a tab-tensioned, ceiling-recessed electric projection screen engineered for permanent commercial AV installations that require a fully concealed screen. This 150" diagonal NTSC (4:3) model drops from a steel case fitted with a motorized closure door, so both the screen and its housing recess into the ceiling when the room is not in presentation mode. As a ceiling-recessed projection screen with RF-welded tab-tensioning, it holds a flat, wrinkle-free viewing surface for accurate front projection in boardrooms, training rooms, and higher-education spaces. This unit is configured with Draper's LVC-IV low-voltage control motor and is supplied by Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access V tab-tensioned electric screen is specified by integrators who need a clean ceiling line and a screen that is invisible when retracted. The steel case houses a motorized trap door and an independent ceiling closure panel that a contractor can finish to match the surrounding ceiling, leaving no visible fasteners. When activated, the closure door opens and the tab-tensioned surface lowers on RF-welded tabs that keep the fabric flat edge to edge and eliminate the separation and stickiness common to older tensioning methods. This configuration uses the LVC-IV low-voltage control motor, which is intended for direct integration with low-voltage AV control systems and presentation automation. The screen supports a maximum image width up to 12' (366 cm) depending on surface selection, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area for correct image placement below the ceiling. Quick-connect wiring lets the case be installed during early construction and the screen added later, protecting the surface from job-site damage, while a detachable bottom access panel simplifies long-term service without pulling the case. This 150" model is well suited to corporate boardrooms, university lecture halls, and training rooms running scheduled AV automation. Pair it with a compatible unit from our commercial projectors collection and a bracket or lift from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — RF-welded tabs hold the surface flat for a wrinkle-free image across the full 150" diagonal.
• LVC-IV low-voltage motor — This unit ships with the LVC-IV control motor for direct integration with low-voltage AV control systems.
• Ceiling-recessed concealment — The screen and steel case mount above the finished ceiling for a clean architectural appearance when retracted.
• Motorized closure door — A motorized trap door and contractor-finishable ceiling closure panel fully hide the screen with no visible fasteners.
• Quick-connect wiring — The case can be installed during early construction and the screen added later to prevent job-site damage.
• Bottom access panel — A detachable bottom panel allows service and maintenance without removing the case from the ceiling.
• Steel case construction — A durable steel housing is white as standard, with a black finish available on request.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

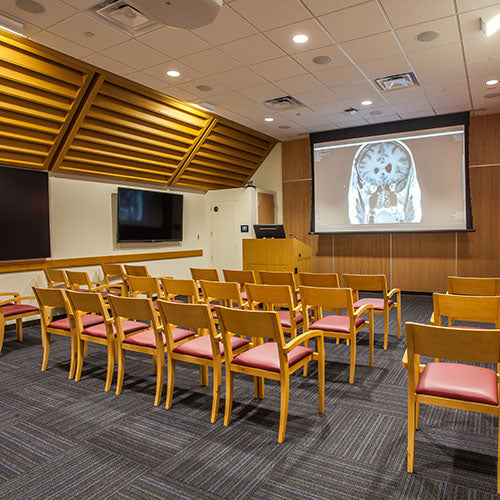

• Corporate boardrooms requiring a concealed screen and a clean ceiling line
• Training rooms and university lecture halls with fixed front projection
• Commercial meeting spaces integrated with low-voltage control
• Multi-purpose rooms where the screen must disappear when not in use
• Government and higher-education presentation spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What does the LVC-IV motor option provide?

LVC-IV is Draper's low-voltage control motor. It is designed for direct integration with low-voltage AV control systems, allowing the screen to be raised and lowered from a control processor, keypad, or presentation automation rather than only a line-voltage switch.

Is the Ultimate Access V a tensioned screen?

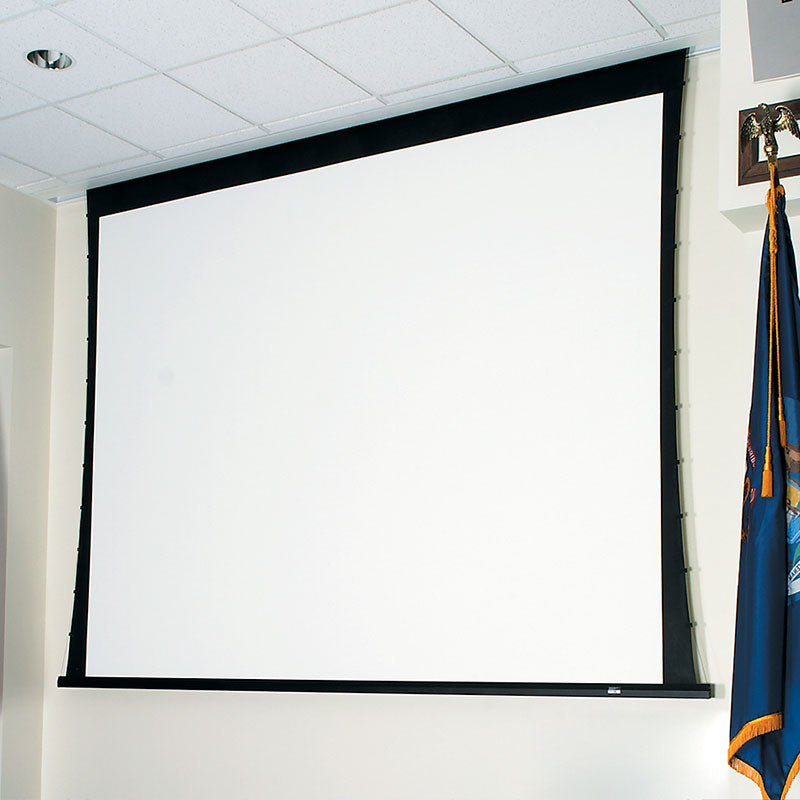

Yes. The Ultimate Access V is a tab-tensioned electric screen. RF-welded tabs along both edges hold the viewing surface flat and wrinkle-free, which is important for image geometry on a large 150" diagonal in a permanent installation.

How does the ceiling closure door work?

The steel case includes a motorized trap door and a ceiling closure panel. When the screen is retracted, the panel closes flush with the ceiling to conceal the case, and a contractor can finish it to match the surrounding ceiling for a fastener-free appearance.

What projectors and mounts are compatible?

The screen works with any commercial front projector matched to its 150" 4:3 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Can the case be installed before the screen during construction?

Yes. Quick-connect wiring allows the case to be mounted and wired during early construction, with the screen added later, protecting the viewing surface from job-site dust and damage.

What warranty and support are included?

The Ultimate Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
