Draper Ultimate Access V – 150", NTSC – 143016CB

Product Overview

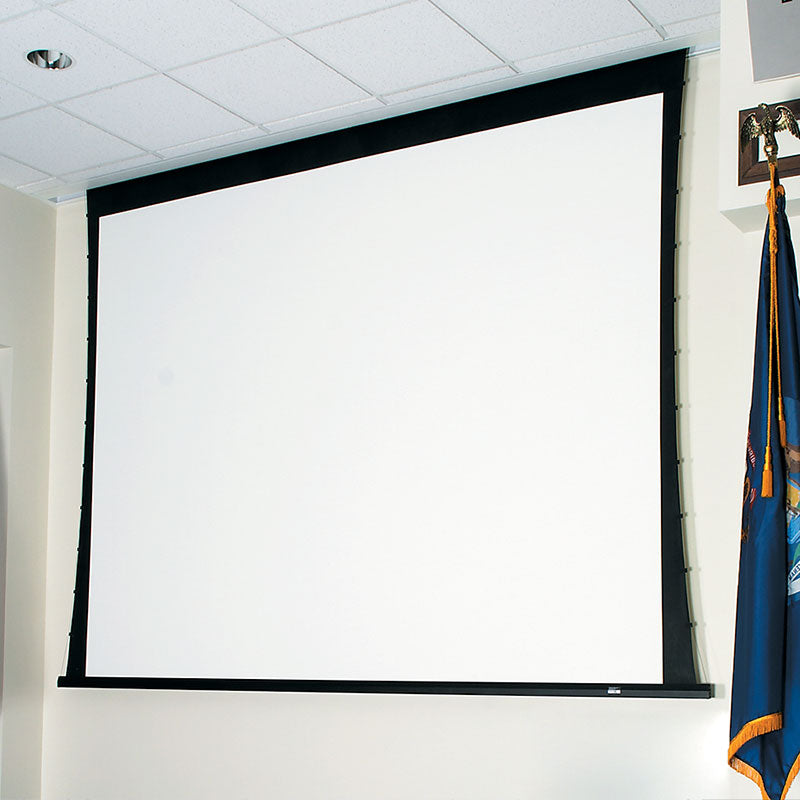

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned projection screen with a motorized closure panel that fully conceals the screen and case behind a finished ceiling line with no visible fasteners. This 150" NTSC (4:3) model is configured with a CineFlex flexible viewing surface and is engineered for boardrooms, training rooms, and higher-education spaces where a clean architectural appearance matters. As a motorized, tab-tensioned projection screen, it holds a flat viewing surface for accurate, distortion-free images across the seating area. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access V ceiling-recessed projection screen is specified when the installation must disappear into the ceiling completely. The case measures 9-7/8" high x 8" deep (25 cm x 20 cm) including the trim flange and supports image widths up to 12' (366 cm) depending on surface selection. Unlike a standard recessed screen, the Ultimate Access V uses a motorized trap door and an independently operated ceiling closure panel that opens for deployment and closes flush when the screen retracts; the closure panel can be finished by a contractor to match the surrounding ceiling for a fastener-free, architectural result. This unit is built with a CineFlex viewing surface, and the tab-tensioned design uses RF-welded tabs that eliminate stickiness and tab separation to hold the image flat and wrinkle-free. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top. A quick-connect wiring system allows the case to be installed during early construction with the screen added later, and a detachable bottom access panel (which can hang from a 'T' bracket) simplifies service. This 150" NTSC configuration ships with a standard 110V motor and 3-position switch, with Quiet, low-voltage LVC-IV, and 220V motor options available for integration with third-party control systems such as Crestron and Control4. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Motorized closure panel — An independently motorized trap door and ceiling closure panel fully conceal the screen and case with no visible fasteners when the system is not in use.
• Contractor-finishable ceiling panel — The closure panel can be finished to match the surrounding ceiling for a clean architectural appearance.
• CineFlex viewing surface — This unit is configured with a Draper CineFlex flexible projection surface; contact us to confirm the exact surface variant and its optical properties.
• RF-welded tab-tensioning — RF-welded tabs eliminate stickiness and tab separation, holding the surface flat and wrinkle-free for a distortion-free image.
• Early case installation — Quick-connect wiring lets the case be mounted during construction and the screen added later to prevent job-site damage.
• Bottom access panel — A detachable bottom panel, which can hang from a 'T' bracket, simplifies motor and fabric service from below the ceiling.
• Standard 110V motor — Ships with a 110V motor and 3-position switch; Quiet, low-voltage LVC-IV, and 220V motor options are available.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

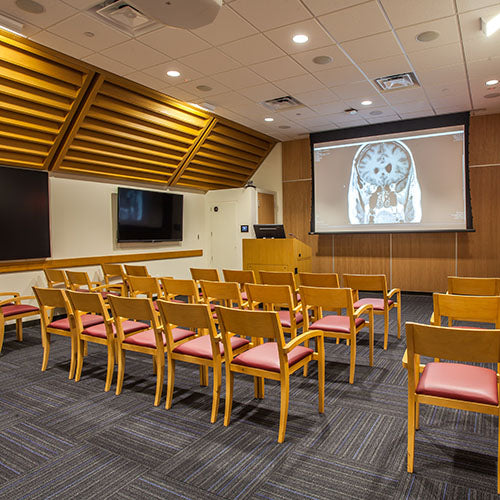

Typical Applications

• Corporate boardrooms requiring a fully concealed ceiling installation
• Training rooms and commercial meeting spaces with finished ceilings
• Higher-education classrooms and seminar rooms
• Multi-purpose rooms where a fastener-free ceiling line is required
• Executive briefing centers and general meeting spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, viewing surface, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How does the Ultimate Access V differ from a standard Access screen?

The Ultimate Access V adds an independently motorized trap door and ceiling closure panel that close flush when the screen retracts, fully concealing the case with no visible fasteners. The closure panel can be finished by a contractor to match the ceiling.

Which viewing surface does this unit use?

This configuration is built with a Draper CineFlex flexible projection surface. Contact Creation Networks to confirm the exact CineFlex variant and its gain and viewing-cone characteristics for your room before ordering.

What motor and control options does this screen support?

This unit ships with a standard 110V motor and 3-position switch. Quiet, low-voltage LVC-IV, and 220V motors are also available, and low-voltage or video-interface controls can be built in for integration with Crestron, Control4, and other third-party control systems.

What projectors and mounts are compatible with the Ultimate Access V?

It works with any commercial front projector matched to its 150" NTSC (4:3) format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the screen serviced after installation?

A detachable bottom access panel, which can hang from a 'T' bracket, allows motor and fabric service from below the ceiling without removing the case, simplifying long-term maintenance.

What warranty and support are included?

The Ultimate Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
