Draper Ultimate Access V – 15', NTSC – 143017CBQU

Product Overview

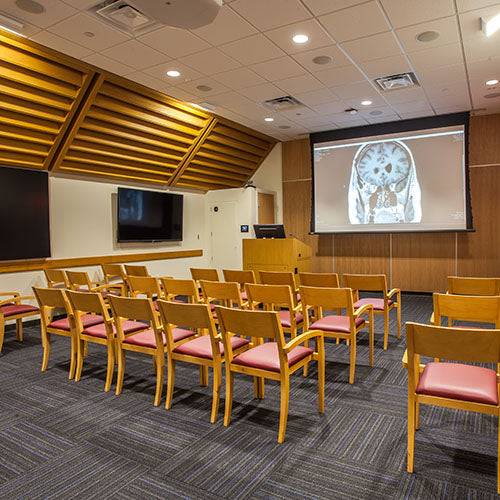

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned motorized projection screen built for permanent commercial AV installations where the screen must disappear into the ceiling between uses. This 15' (180") diagonal NTSC 4:3 model combines a motorized trap door with a contractor-finishable ceiling closure panel, keeping the case and screen fully concealed above a finished ceiling in boardrooms, training rooms, and mid-sized auditoriums. The tab-tensioned Series V design holds a flat, wrinkle-free viewing surface, and this configuration uses the CineFlex CH1200V surface rated at 1.2 gain for high-contrast reproduction. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access V ceiling-recessed projection screen (Part #143017CBQU) is specified by integrators who need a large motorized screen that is invisible when retracted. The case houses a motorized trap door that opens for screen deployment and a ceiling closure panel that a contractor can finish to match the surrounding ceiling, leaving no visible fasteners. The viewing surface is tab-tensioned with RF-welded tabs that resist separation and sticking, producing a flat image plane suited to high-resolution projection. This unit is configured with the CineFlex CH1200V surface, a high-contrast neutral-grey OptiFlex tensioned surface rated at 1.2 gain with a controlled 30° half-gain viewing cone, matched to rooms with some ambient light and low- to medium-output projectors. The tubular motor is mounted inside the roller, is instantly reversible and lifetime-lubricated, and includes a thermal overload protector and an electric brake with preset upper and lower limits. This SKU adds a Quiet motor and the LVC-IV low-voltage controller for integration with AV control systems, alongside the standard 110 V three-position switch. Quick-connect wiring lets the case be installed early during construction and the screen added later, protecting the surface during build-out. Sliding brackets on top of the case and included hoisting brackets simplify ceiling mounting and alignment, while a detachable bottom access panel keeps the motor and roller serviceable after installation. Pair it with a unit from our commercial projectors collection and a bracket or lift from our projector mounts and lifts collection to complete the system, or browse the full Draper projection screen lineup for other sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, custom sizing, and lead times.

Key Features

• Ceiling-recessed concealment — A motorized trap door and contractor-finishable ceiling closure panel hide the case and screen completely when the screen is retracted.

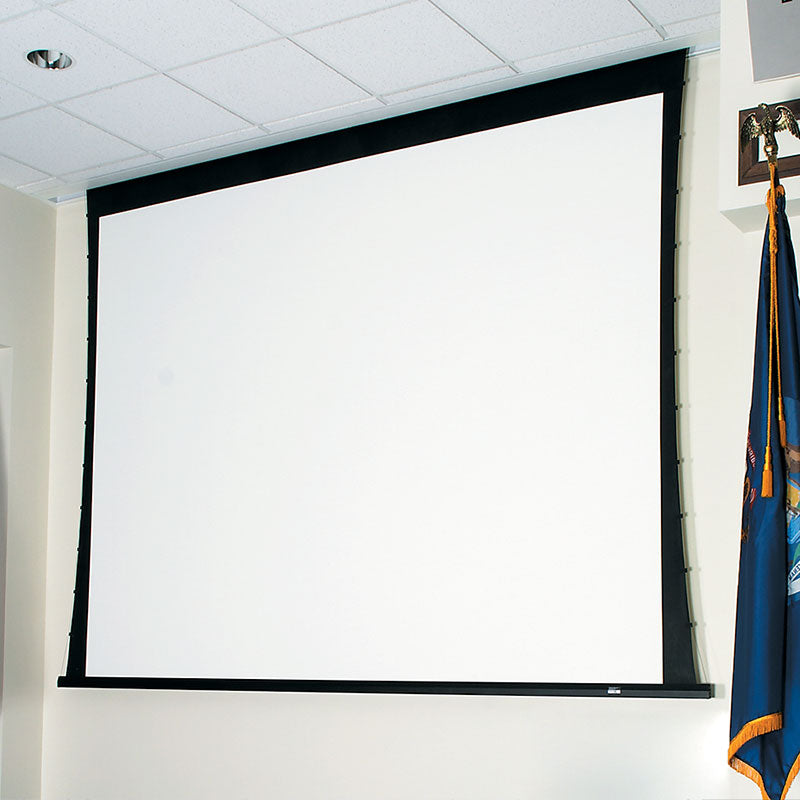

• Tab-tensioned Series V surface — RF-welded tabs hold the viewing surface flat and wrinkle-free for accurate, high-resolution projection.
• CineFlex CH1200V viewing surface — The high-contrast neutral-grey surface provides 1.2 gain and a controlled 30° half-gain viewing cone for rooms with moderate ambient light.
• Quiet motor with LVC-IV controller — This configuration includes a quiet low-voltage motor and Draper's LVC-IV low-voltage controller for AV control-system integration.
• Instantly reversible tubular motor — The lifetime-lubricated in-roller motor includes a thermal overload protector and an electric brake with preset limits.
• Quick-connect wiring — The case can be installed early in construction and the screen added later, protecting the surface during build-out.
• Serviceable design — A detachable bottom access panel and sliding top-mounted brackets simplify installation, alignment, and long-term maintenance.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms and executive briefing rooms requiring a concealed ceiling-recessed screen
• Training rooms and multi-purpose rooms with finished ceilings
• Mid-sized auditoriums and lecture halls using front projection
• Higher-education classrooms and university presentation spaces
• Commercial meeting spaces where the screen must be hidden between uses

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How is the Ultimate Access V concealed when not in use?

The screen retracts into a ceiling-recessed case, and a motorized trap door plus a ceiling closure panel close over the opening so the case and screen are hidden above the finished ceiling. The closure panel can be finished by a contractor to match the surrounding ceiling for a clean, fastener-free look.

What does the 143017CBQU SKU include for controls?

This configuration includes a Quiet motor and Draper's LVC-IV low-voltage controller for integration with AV control systems, in addition to the standard 110 V three-position switch. The in-roller motor is instantly reversible with an electric brake and preset upper and lower limits.

What projectors work best with the CineFlex CH1200V surface?

The CineFlex CH1200V is a high-contrast neutral-grey surface with 1.2 gain and a controlled 30° half-gain viewing cone, which pairs well with low- to medium-output projectors in rooms with some ambient light. Browse our commercial projectors or contact us for a throw-distance calculation matched to the 15' NTSC image.

Can the case be installed before the screen during construction?

Yes. Quick-connect wiring allows the case to be mounted early in the build, with the screen fabric added later. This protects the viewing surface during construction and simplifies coordination with the ceiling contractor.

How is the screen serviced after installation?

A detachable bottom access panel provides entry to the roller and motor for maintenance, and Draper publishes motor and fabric replacement procedures for Access Series screens. Sliding top-mounted brackets also allow the case to be repositioned to avoid building structure during installation.

What warranty and support are included?

The Ultimate Access V carries Draper's 5-year warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help, custom sizing, and post-sale support.
