Draper Ultimate Access V – 123", 16:10 – 143028Q

Product Overview

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned motorized projection screen designed for permanent commercial AV installations where a concealed screen and finished ceiling line are required. This 123" 16:10 model conceals fully behind a motorized ceiling closure panel when retracted, then deploys through a trap door for a clean, fastener-free appearance in boardrooms, training rooms, and university spaces. As a tab-tensioned ceiling-recessed projection screen, it holds the viewing surface flat and wrinkle-free for accurate, high-resolution front projection. This unit is supplied by Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Ultimate Access V (Part # 143028Q) is a Series V tab-tensioned electric screen engineered for integrators who need a fully concealed ceiling-recessed projection screen with a motorized closure door. The 123" 16:10 format provides a 65" x 104" image area, framed on all sides in black with a standard 12" (30 cm) black top drop. The case installs into a ceiling pocket and includes a trim flange for a finished look; a second motor drives the ceiling closure panel, which a contractor can finish to match the surrounding ceiling. The tab-tensioned surface uses RF-welded tabs that resist separation and sticking, maintaining a flat image plane for critical viewing. This SKU is supplied with Draper's Quiet Motor for near-silent operation, and a 110V three-position switch is included; low-voltage video interfaces and third-party controls such as Crestron and Control4 can be integrated for below-ceiling access. The 9-7/8" high by 8" deep case supports early installation via quick-connect wiring, so the housing can be set during construction and the screen added later, and adjustable hoisting brackets plus a detachable bottom access panel simplify lifting and long-term maintenance. This model is offered with a range of Draper OptiFlex and TecVision tab-tensioned surfaces; confirm the exact surface, gain, and viewing cone for this configuration with Creation Networks before ordering. Pair the Ultimate Access V with a matched unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup or the broader projection screens catalog for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, control-system integration, and lead times.

Key Features

• Ceiling-recessed concealment — The case installs into a ceiling pocket with a trim flange, hiding the screen for a finished architectural appearance.
• Motorized closure panel — A second motor drives a ceiling closure door that fully conceals the screen when retracted and can be finished to match the ceiling.
• Tab-tensioned Series V surface — RF-welded tabs hold the surface flat and wrinkle-free, resisting separation and sticking for accurate high-resolution projection.
• 123" 16:10 widescreen image — A 65" x 104" image area suited to data-heavy widescreen content in mid-sized rooms.
• Quiet Motor operation — Supplied with Draper's Quiet Motor for near-silent raising and lowering in boardrooms and worship spaces.
• Early-install case with quick-connect wiring — The housing can be set during construction and the screen added later, protecting the surface during the build.
• Serviceable design — Adjustable hoisting brackets, sliding top brackets, and a detachable bottom access panel simplify installation and maintenance.
• UL Listed with Draper warranty — Supplied by Creation Networks as an authorized dealer with full manufacturer warranty coverage.

Typical Applications

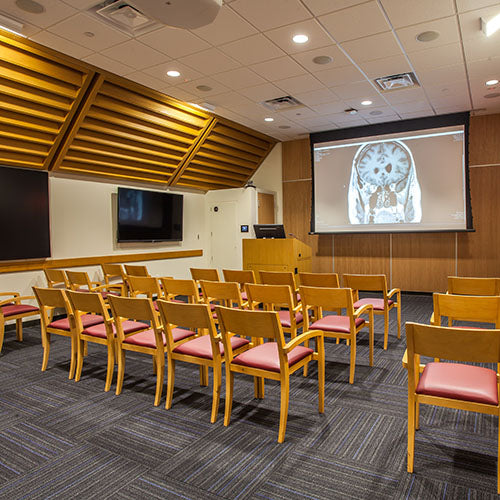

• Boardrooms and executive briefing centers requiring a concealed screen
• Conference rooms with finished ceilings
• Training rooms and corporate meeting spaces
• Higher-education classrooms and lecture halls
• Houses of worship using front projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewing surface, gain, viewable dimensions, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How does the motorized closure panel work?

The Ultimate Access V uses a second motor to operate a ceiling closure panel. When the screen is retracted, the panel closes flush with the ceiling to fully conceal the case. A contractor can finish the panel to match the surrounding ceiling for a seamless architectural look.

Is this screen tab-tensioned?

Yes. The Ultimate Access V is a Draper Series V screen with a tab-tensioned surface. RF-welded tabs hold the viewing surface flat and wrinkle-free, which supports accurate geometry for high-resolution and widescreen content.

Can the case be installed before the screen during construction?

Yes. Quick-connect wiring and adjustable hoisting brackets allow the case to be set during the build, protecting the screen. The viewing surface and closure assembly can be integrated later, which is convenient for phased construction schedules.

Which viewing surface does this 123" model use?

The Ultimate Access V is available with a range of Draper OptiFlex and TecVision tab-tensioned surfaces, each with different gain, contrast, and ambient-light performance. Contact us to confirm the exact surface for this configuration and to match it to your projector and room.

What projectors and mounts are compatible?

The screen works with any commercial front projector matched to its 123" 16:10 image area and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Ultimate Access V carries Draper's standard manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help, control-system integration, and post-sale support.
