Draper Ultimate Access V – 113", 16:10 – 143027QU

Product Overview

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned electric projection screen with a motorized closure door that fully conceals the screen and leaves a clean ceiling line when idle. This 113" diagonal 16:10 model (60" x 96" viewable) is a Series V screen sized for mid-sized boardrooms, conference rooms, and training rooms rather than large-format venues. Tab-tensioning with RF-welded tabs holds the widescreen image flat and wave-free, with no exposed fasteners for a finished architectural look. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Ultimate Access V 113" ceiling-recessed projection screen (Part # 143027QU) is specified where a concealed, tab-tensioned widescreen image and a fully finished ceiling both matter. Its case includes a motorized trap door and ceiling closure panel that a contractor can finish to match the surrounding ceiling, so the screen disappears when retracted. As a Series V tab-tensioned projection screen, the surface is held flat by side tensioning tabs with RF-welded seals that prevent separation and sticking. This configuration ships with a quiet motor and an LVC-IV low-voltage controller for low-noise operation and 3-wire integration with commercial AV control systems such as Crestron, AMX, Extron, and QSC. The image area is fully framed in black with a standard 12" (30 cm) black drop at the top, and a bottom access panel detaches or hangs on a T-bracket for maintenance. This is a standard-size configuration with a maximum model image width of 12' (366 cm); it is not a large-format screen. The Ultimate Access V accepts a range of Series V surfaces, including OptiFlex matt white and grey, CineFlex, and premium TecVision options; contact us to confirm the surface for your part number. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the wider projection screens range. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Motorized closure door — A motorized trap door and ceiling closure panel fully conceal the screen and can be finished to match the ceiling.
• Tab-tensioned Series V surface — Side tensioning tabs hold the widescreen surface flat and wave-free across the full width.
• RF-welded tabs — The welded tabs create a durable seal that eliminates separation and stickiness over the screen's life.
• Quiet motor with LVC-IV controller — Low-noise operation with a 3-wire low-voltage connection to Crestron, AMX, Extron, QSC, and similar control platforms.
• 16:10 widescreen format — A 113" diagonal, 60" x 96" viewable image suited to laptops, presentations, and mixed content.
• No exposed fasteners — The concealed design leaves a clean, professional finish with no visible hardware when retracted.
• Black-framed image with top drop — The image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area.
• Serviceable bottom access panel — The bottom panel detaches or hangs on a T-bracket for straightforward maintenance.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

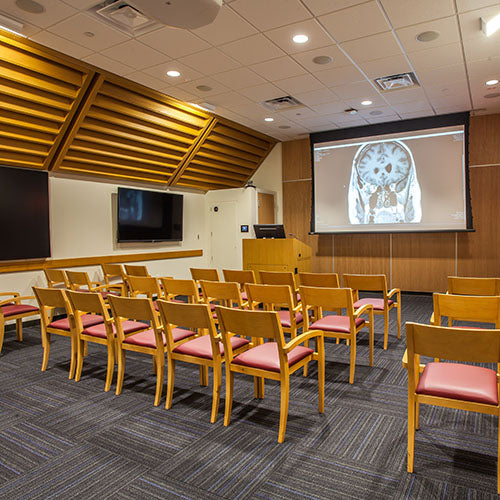

• Mid-sized corporate boardrooms requiring a concealed widescreen and finished ceiling
• Conference rooms and commercial meeting spaces integrated with room automation
• Training rooms and all-hands rooms using 16:10 content
• Government spaces and briefing rooms with a discreet, no-fastener finish
• Houses of worship using front projection with a concealed ceiling line

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Viewing surface and gain for this configuration are not shown here; confirm the exact surface, ceiling-pocket requirements, and electrical requirements with Creation Networks before ordering.

Frequently Asked Questions

Is the Ultimate Access V a large-format screen?

No. The Ultimate Access V is a standard-size model with a maximum image width of 12' (366 cm). This unit is a 113" diagonal 16:10 screen (60" x 96" viewable), which suits mid-sized rooms rather than large-format venues.

What does the motorized closure door do?

The case includes a motorized trap door and ceiling closure panel. When the screen retracts, the panel closes to fully conceal it, and a contractor can finish the panel to match the surrounding ceiling for a seamless look.

What do the quiet motor and LVC-IV controller provide?

This configuration pairs a low-noise quiet motor with the LVC-IV low-voltage controller, which offers a 3-wire input for Crestron, AMX, Extron, QSC, and similar systems, so the screen operates quietly and integrates with room automation.

Is the screen tab-tensioned?

Yes. It is a Series V tab-tensioned screen. Side tensioning tabs with RF-welded seals hold the surface flat and wave-free, and the RF-welded tabs resist separation and stickiness.

Which viewing surface does this configuration use?

The Ultimate Access V is offered with several Series V surfaces, including OptiFlex matt white and grey, CineFlex, and premium TecVision options. Contact Creation Networks and we will confirm the exact surface for this part number before you order.

What projectors and mounts are compatible?

It works with any commercial front projector matched to its 113" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Ultimate Access V carries Draper's standard 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
