Draper Ultimate Access V – 109", 16:10 – 143026QU

Product Overview

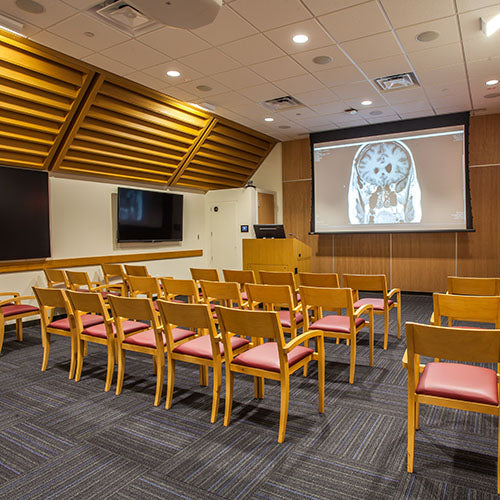

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned projection screen with a motorized closure panel that fully conceals the screen and case behind a finished ceiling line with no visible fasteners. This 109" 16:10 widescreen model is engineered for mid-sized boardrooms, training rooms, and higher-education spaces where a clean architectural appearance matters. As a motorized, tab-tensioned projection screen, it holds a flat viewing surface for accurate, distortion-free images across the seating area. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access V ceiling-recessed projection screen is specified when the installation must disappear into the ceiling completely. The case measures 9-7/8" high x 8" deep (25 cm x 20 cm) including the trim flange and supports image widths up to 12' (366 cm) depending on surface selection. Unlike a standard recessed screen, the Ultimate Access V uses a motorized trap door and an independently operated ceiling closure panel that opens for deployment and closes flush when the screen retracts; the closure panel can be finished by a contractor to match the surrounding ceiling for a fastener-free, architectural result. The tab-tensioned surface uses RF-welded tabs that eliminate stickiness and tab separation, holding the image flat and wrinkle-free, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top. A quick-connect wiring system allows the case to be installed during early construction with the screen added later, and a detachable bottom access panel (which can hang from a 'T' bracket) simplifies service. This 109" 16:10 configuration ships with a Quiet, low-voltage LVC-IV motor for quiet operation and simple low-voltage triggering, with 220V and additional control options available for integration with third-party control systems such as Crestron and Control4. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Motorized closure panel — An independently motorized trap door and ceiling closure panel fully conceal the screen and case with no visible fasteners when the system is not in use.
• Contractor-finishable ceiling panel — The closure panel can be finished to match the surrounding ceiling for a clean architectural appearance.
• RF-welded tab-tensioning — RF-welded tabs eliminate stickiness and tab separation, holding the surface flat and wrinkle-free for a distortion-free image.
• Early case installation — Quick-connect wiring lets the case be mounted during construction and the screen added later to prevent job-site damage.
• Bottom access panel — A detachable bottom panel, which can hang from a 'T' bracket, simplifies motor and fabric service from below the ceiling.
• Quiet, low-voltage LVC-IV motor — This unit ships with Draper's Quiet motor and LVC-IV low-voltage control; 220V is also available.
• Control-system ready — Low-voltage and video-interface control options integrate with Crestron, Control4, and other third-party automation.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms requiring a fully concealed ceiling installation
• Training rooms and commercial meeting spaces with finished ceilings
• Higher-education classrooms and seminar rooms
• Multi-purpose rooms where a fastener-free ceiling line is required
• Executive briefing centers and huddle rooms

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, viewing surface, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How does the Ultimate Access V differ from a standard Access screen?

The Ultimate Access V adds an independently motorized trap door and ceiling closure panel that close flush when the screen retracts, fully concealing the case with no visible fasteners. The closure panel can be finished by a contractor to match the ceiling.

What does the QU motor suffix mean on this unit?

This unit ships with Draper's Quiet motor combined with LVC-IV low-voltage control (the "QU" configuration) for quiet operation and simple low-voltage triggering. A 220V motor and additional controls are also available for Crestron, Control4, and other third-party systems.

Can the case be installed before the room is finished?

Yes. A quick-connect wiring system lets the case be installed during early construction, with the screen added later to protect the viewing surface from job-site damage.

What projectors and mounts are compatible with the Ultimate Access V?

It works with any commercial front projector matched to its 109" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

How is the screen serviced after installation?

A detachable bottom access panel, which can hang from a 'T' bracket, allows motor and fabric service from below the ceiling without removing the case, simplifying long-term maintenance.

What warranty and support are included?

The Ultimate Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
