Draper Ultimate Access V – 109", 16:10 – 143026Q

Product Overview

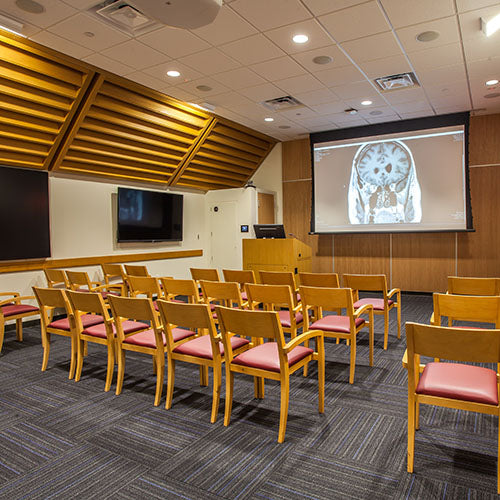

The Draper Ultimate Access V is a ceiling-recessed, tab-tensioned motorized projection screen with an independently motorized ceiling closure door for complete concealment. This 109" diagonal 16:10 model combines a Series V tab-tensioned surface with a fully hidden in-ceiling case, making it a clean fit for boardrooms, conference rooms, and higher-education classrooms projecting native 16:10 content. As a tab-tensioned ceiling-recessed projection screen, it drops a dead-flat image and then disappears behind a finished ceiling line with no visible fasteners. This unit ships with Draper's quiet motor. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access V ceiling-recessed projection screen is a Series V, tab-tensioned electric screen for permanent installations that demand both a flat image and full concealment. The tab-tensioned surface uses RF-welded tabs to hold the image plane taut and flat, eliminating curl and edge separation for accurate geometry across the 16:10 image. The case includes a motorized trap door for smooth screen deployment and an independently motorized ceiling closure panel that conceals the screen when it is retracted; the closure panel can be finished by the contractor to match the surrounding ceiling. The 16:10 format matches the native output of most laptops and presentation sources, so data content fills the screen without letterboxing. A bottom access panel—detachable or hung on a 'T' bracket—simplifies service, and a quick-connect wiring system lets the case be roughed in early during construction with the screen added later to prevent job-site damage. A 110V three-position switch is standard, with quiet low-voltage motors and 220V options available, and low-voltage or video-interface controls can be integrated for below-ceiling access. This makes the Ultimate Access V well suited to boardrooms, conference rooms, training rooms, and multi-purpose rooms that need a flat image and a concealed screen. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes, surfaces, and formats. Contact Creation Networks at creationnetworks.net for throw-distance planning, surface selection, and lead times.

Key Features

• Tab-tensioned viewing surface — Series V side-tab tensioning holds the image flat and wrinkle-free for accurate geometry across the 16:10 image.
• RF-welded tabs — The welded tab seal resists separation and stickiness for long-term flatness in permanent installations.
• Independently motorized closure door — A separately motorized ceiling closure panel and motorized trap door fully conceal the screen behind a finished ceiling line.
• Native 16:10 format — Matches typical laptop and presentation output, avoiding letterboxing for data and computer content.
• Quiet motor (Q) — This unit ships with Draper's quiet motor option for low-noise operation in boardrooms and classrooms.
• Contractor-finishable closure panel — The closure panel can be finished on site to match the surrounding ceiling material.
• Serviceable bottom access panel — Detaches or hangs on a 'T' bracket, with quick-connect wiring for early case installation.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Corporate boardrooms and conference rooms needing a flat, concealed image
• Higher-education classrooms and training rooms projecting native 16:10 content
• Multi-purpose rooms where a clean, fastener-free ceiling line matters
• Government and commercial meeting spaces requiring in-ceiling concealment
• All-hands rooms integrated with an AV control system

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface selection, and case size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Ultimate Access V tab-tensioned?

Yes. The Ultimate Access V is a Series V, tab-tensioned screen. RF-welded side tabs hold the surface taut and flat for accurate image geometry. The free-hanging equivalent is the Series E Ultimate Access E.

What is the motorized closure door?

The case includes a motorized trap door and an independently motorized ceiling closure panel that conceal the screen when retracted. The panel can be finished by the contractor to match the ceiling, leaving no visible fasteners.

Why choose the 16:10 format?

16:10 matches the native output of most laptops and presentation sources, so computer and data content fills the screen without letterboxing—a common choice for classrooms and conference rooms.

What does the "Q" in the model number mean?

The Q designates Draper's quiet motor option for lower-noise raising and lowering. A standard 110V three-position switch is included, with low-voltage and 220V options available.

Can the case be installed before the screen?

Yes. The quick-connect wiring system lets contractors mount and wire the case early during construction, then add the screen later to protect it from job-site damage.

What projectors and mounts pair with the Ultimate Access V?

It works with any commercial front projector matched to its 109" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Ultimate Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
