Draper Ultimate Access V – 109", 16:10 – 143026

Product Overview

The Draper Ultimate Access V is a tab-tensioned, ceiling-recessed electric projection screen built for permanent commercial AV installations that require a fully concealed screen. This 109" diagonal 16:10 widescreen model drops from a steel case fitted with a motorized closure door, so both the screen and its housing recess into the ceiling when the room is not in presentation mode. As a ceiling-recessed projection screen with RF-welded tab-tensioning, it holds a flat, wrinkle-free viewing surface for accurate front projection in boardrooms, conference rooms, and training rooms. It is supplied by Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Ultimate Access V tab-tensioned electric screen is specified by integrators who need a clean ceiling line and a screen that is invisible when retracted. The steel case houses a motorized trap door and an independent ceiling closure panel that a contractor can finish to match the surrounding ceiling, leaving no visible fasteners. When activated, the closure door opens and the tab-tensioned surface lowers on RF-welded tabs that keep the fabric flat edge to edge and eliminate the separation and stickiness common to older tensioning methods. The screen supports a maximum image width up to 12' (366 cm) depending on surface selection, and the image area is fully framed in black with a standard 12" (30 cm) black drop at the top of the viewing area for correct image placement below the ceiling. This 109" 16:10 widescreen format suits data and presentation content in mid-sized rooms. Quick-connect wiring lets the case be installed during early construction and the screen added later, protecting the surface from job-site damage, while a detachable bottom access panel simplifies long-term service without pulling the case. This model is well suited to corporate boardrooms, conference rooms, and university training spaces. Pair it with a compatible unit from our commercial projectors collection and a bracket or lift from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Tab-tensioned viewing surface — RF-welded tabs hold the surface flat for a wrinkle-free image across the full 109" diagonal.
• 16:10 widescreen format — Matches the native aspect of most commercial data projectors for full-resolution presentation content.
• Ceiling-recessed concealment — The screen and steel case mount above the finished ceiling for a clean architectural appearance when retracted.
• Motorized closure door — A motorized trap door and contractor-finishable ceiling closure panel fully hide the screen with no visible fasteners.
• Standard motor with control options — Ships with a 110-120V 3-position switch; quiet and low-voltage control motors and 220V operation are available.
• Quick-connect wiring — The case can be installed during early construction and the screen added later to prevent job-site damage.
• Bottom access panel — A detachable bottom panel allows service and maintenance without removing the case from the ceiling.
• Draper 5-year warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

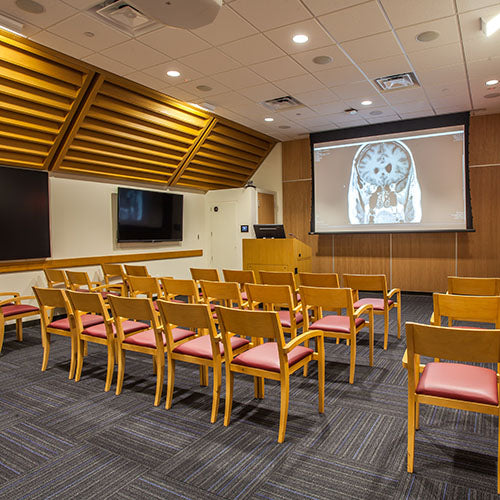

• Corporate boardrooms and conference rooms requiring a concealed screen
• Training rooms and university spaces with fixed front projection
• Commercial meeting spaces integrated with AV control systems
• Multi-purpose rooms where the screen must disappear when not in use
• Government and higher-education presentation spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Ultimate Access V a tensioned screen?

Yes. The Ultimate Access V is a tab-tensioned electric screen. RF-welded tabs along both edges hold the viewing surface flat and wrinkle-free for correct image geometry in a permanent installation.

How does the ceiling closure door work?

The steel case includes a motorized trap door and a ceiling closure panel. When the screen is retracted, the panel closes flush with the ceiling to conceal the case, and a contractor can finish it to match the surrounding ceiling for a fastener-free appearance.

Why choose a 16:10 screen?

16:10 is the native aspect ratio of many commercial data projectors and laptops, so a 16:10 screen displays presentation and data content at full resolution without letterboxing. Confirm the format matches your projector before ordering.

What projectors and mounts are compatible?

The screen works with any commercial front projector matched to its 109" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Can the screen integrate with an AV control system?

Yes. Low-voltage control, video interface, and 220V options are available so the screen can be triggered from a room control processor or presentation automation for below-ceiling access.

What warranty and support are included?

The Ultimate Access V carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
