Draper Ultimate Access E – 7', NTSC – 142014SAQ

Product Overview

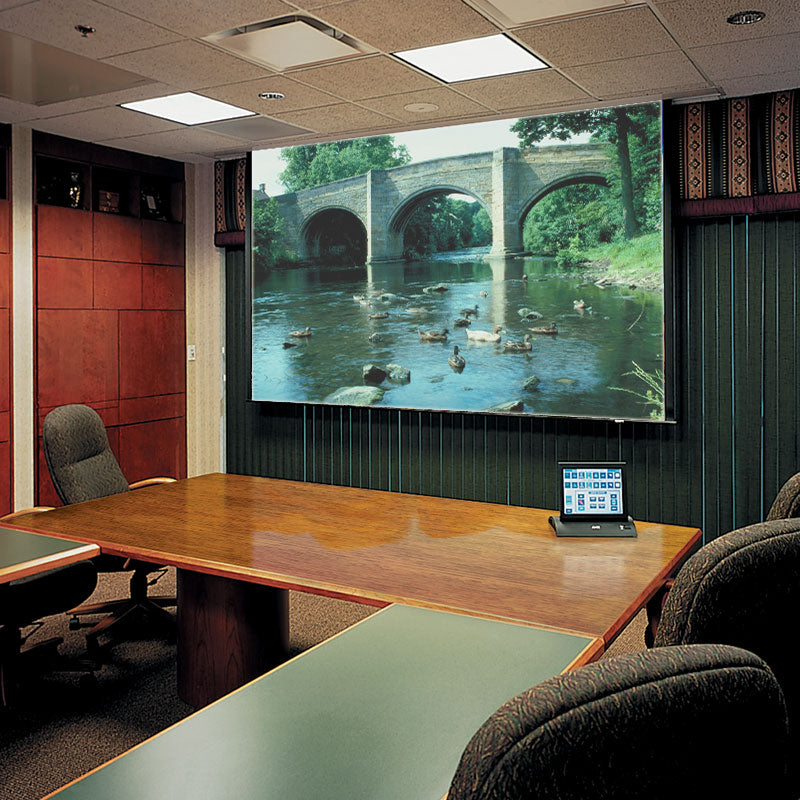

The Draper Ultimate Access E is a ceiling-recessed motorized projection screen configured here at a 7' size in NTSC (4:3) format with the quiet-motor option (SKU 142014SAQ). It is built for commercial AV installations that need front projection to disappear into a finished ceiling, using an independently motorized closure panel to conceal the screen slot with no exposed fasteners. As a 4:3 motorized projection screen with quiet operation, it fits boardrooms, conference rooms, and training rooms where a clean ceiling line and low operating noise both matter. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Ultimate Access E ceiling-recessed screen is engineered for integrators specifying concealed front projection in permanent commercial rooms. The steel case installs into a ceiling pocket with a trim flange, and an independently motorized ceiling closure panel opens into the case so the screen is completely hidden when the room is used for other purposes. This is a Series E screen, so the viewing surface is free-hanging and non-tensioned, held flat by its own weight and a bottom dowel rather than tab-tensioning. The quiet-motor option specified by this SKU lowers operating noise for boardrooms and conference rooms where a standard tubular motor would be audible during a meeting. Quick-connect wiring lets the case be set during rough-in and the screen added at the finish stage, while a bottom access panel — detachable or hung on a 'T' bracket — allows maintenance and motor service from below the ceiling. This 7' NTSC (4:3) format carries black framing on all sides and sits well within the model's 12' (366 cm) maximum image width. The Ultimate Access E is offered with several Draper viewing surfaces — Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E (acoustically transparent), and Chroma Key Green — so confirm the surface on this SKU with Creation Networks before ordering. The screen accepts an LVC-IV low-voltage controller and 220V operation for AV system integration with Control4, Crestron, and other third-party control platforms. The case is UL listed, with white standard and black available on request. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Ceiling-recessed concealment — The case installs into a ceiling pocket with a trim flange so the screen is hidden above the finished ceiling when retracted.
• Independently motorized closure panel — A second motor drives a ceiling closure panel that opens into the case, concealing the screen slot with no exposed fasteners.
• Quiet-motor option — This SKU is configured with Draper's quiet motor to reduce operating noise in boardrooms, conference rooms, and training rooms.
• Free-hanging Series E surface — The non-tensioned surface stays flat under its own weight and a bottom dowel, simplifying long-term service.
• 7' 4:3 image format — NTSC format with black framing on all sides, well within the model's 12' (366 cm) maximum image width.
• Case-now, screen-later installation — Quick-connect wiring lets the case be set during construction and the screen added at the finish stage.
• Integration-ready controls — Accepts an LVC-IV low-voltage controller and 220V operation for Crestron, Control4, and other third-party AV control.
• UL listed with 5-year warranty — The UL-listed assembly is supplied by Creation Networks as an authorized Draper dealer.

Typical Applications

• Boardrooms requiring a fully concealed ceiling-recessed screen
• Conference rooms and commercial meeting spaces needing quiet operation
• Training rooms with fixed front projection
• Multi-purpose rooms where the screen must hide when not in use
• Government spaces needing a finished, fastener-free ceiling line

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Viewing surface and exact viewable dimensions for this SKU are not published on the model page; confirm surface, dimensions, and control configuration with Creation Networks before ordering.

Frequently Asked Questions

How is the Ultimate Access E installed?

It is a ceiling-recessed screen. The case installs into a pocket in the ceiling with a trim flange, and quick-connect wiring lets the case be set during construction with the screen added at the finish stage. A bottom access panel allows maintenance and motor service from below the ceiling.

What does the quiet-motor option provide?

This SKU (142014SAQ) is built with Draper's quiet motor, which lowers operating noise compared to the standard tubular motor. It is a practical choice for boardrooms, conference rooms, and training rooms where screen movement should not be heard during a meeting.

Is the viewing surface tensioned?

No. This is a Series E screen with a free-hanging, non-tensioned surface that stays flat under its own weight and a bottom dowel. If you require a tab-tensioned surface, the Series V (Ultimate Access V) is the tensioned equivalent.

Which viewing surface ships on this screen?

The Ultimate Access E is available with Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E (acoustically transparent), and Chroma Key Green. Draper does not publish the surface for this SKU on the model page, so confirm the exact surface with Creation Networks before ordering.

Does it integrate with Crestron or Control4 control systems?

Yes. The screen ships with a 110V three-position switch, and an LVC-IV low-voltage controller and 220V operation are available so integrators can tie screen up/stop/down control into Crestron, Control4, and other third-party AV control platforms.

What projectors and mounts are compatible?

The screen works with any commercial front projector matched to its 7' 4:3 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Ultimate Access E is UL listed and carries Draper's 5-year warranty (valid in the U.S. and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
