Draper Ultimate Access E, 109", 16:10, Matt White XT1000E, 110 V - 142028

Product Overview

The Draper Ultimate Access E is a ceiling-recessed motorized projection screen built for permanent commercial AV installations where the screen must disappear into a finished ceiling when it is not in use. This 109" diagonal 16:10 configuration pairs the unity-gain Matt White XT1000E viewing surface with an independently motorized closure panel, giving integrators a fully concealed conference room projection screen for executive boardrooms and university lecture spaces. As a 16:10 motorized projection screen it delivers a 180° viewing cone and 1.0 gain for accurate color across wide seating layouts in controlled-light rooms. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

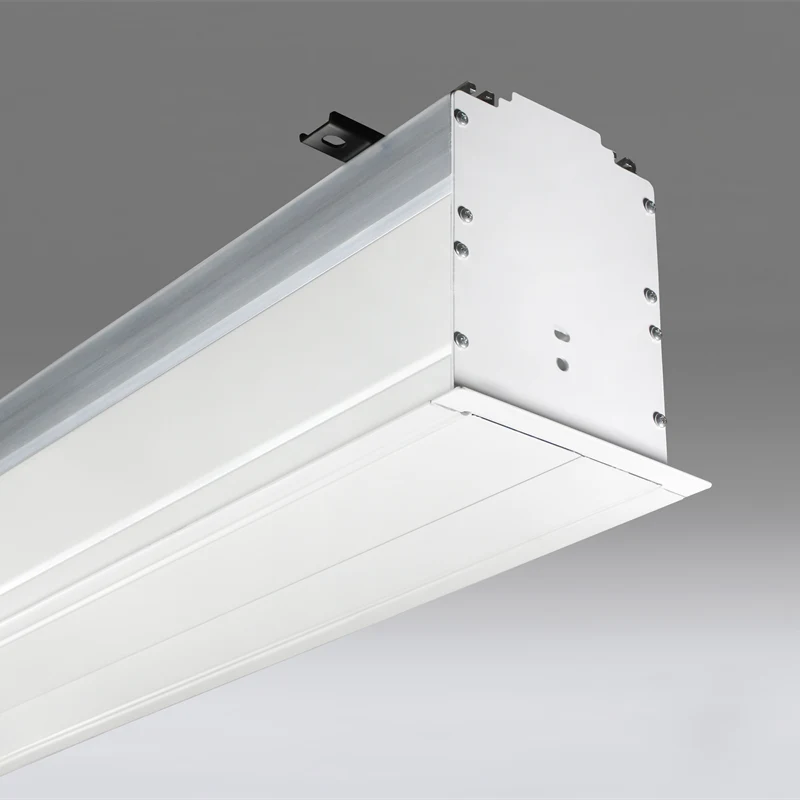

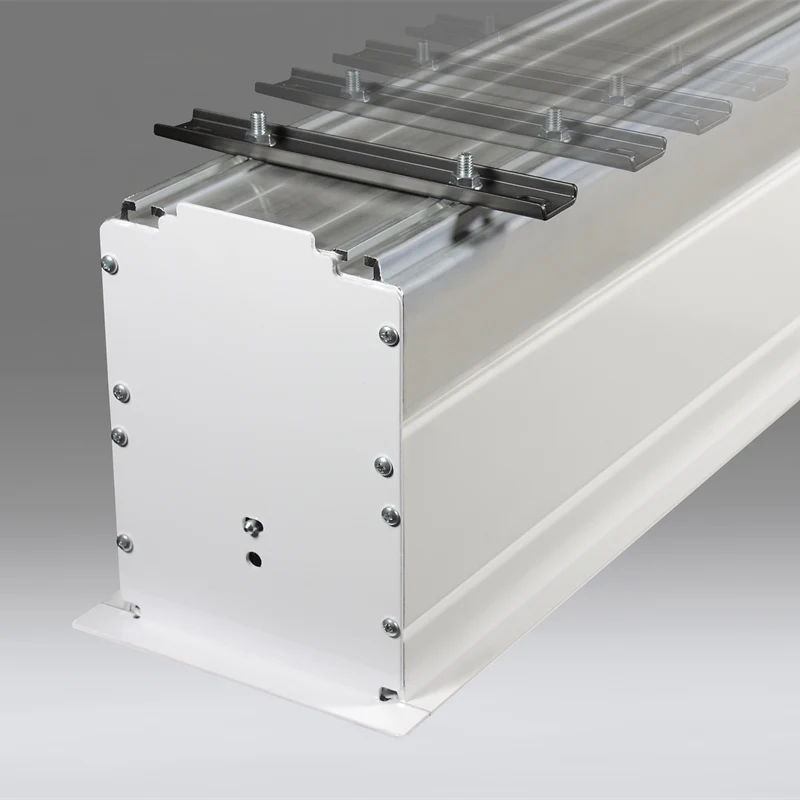

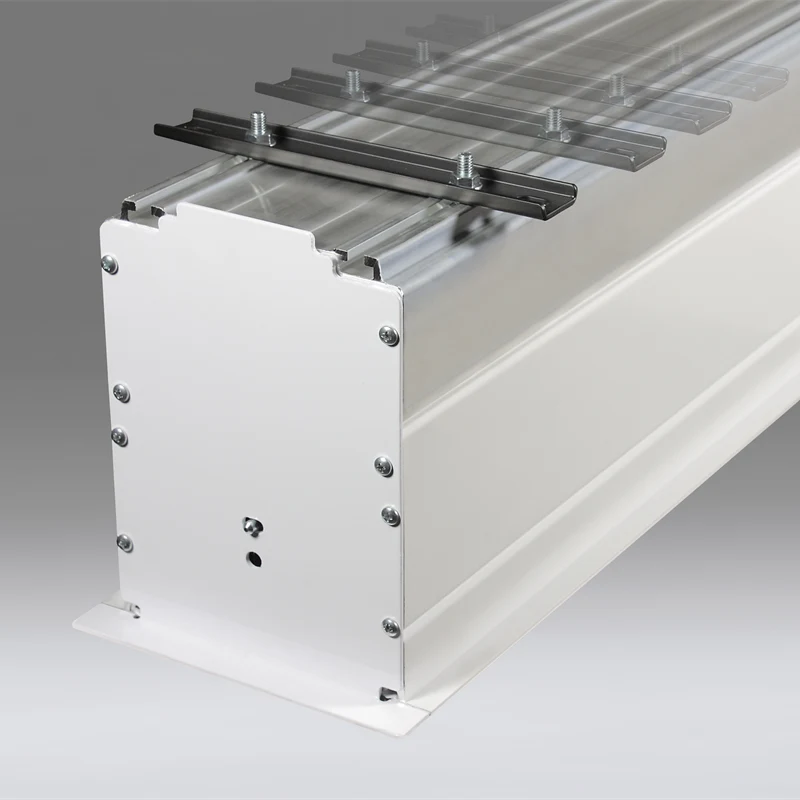

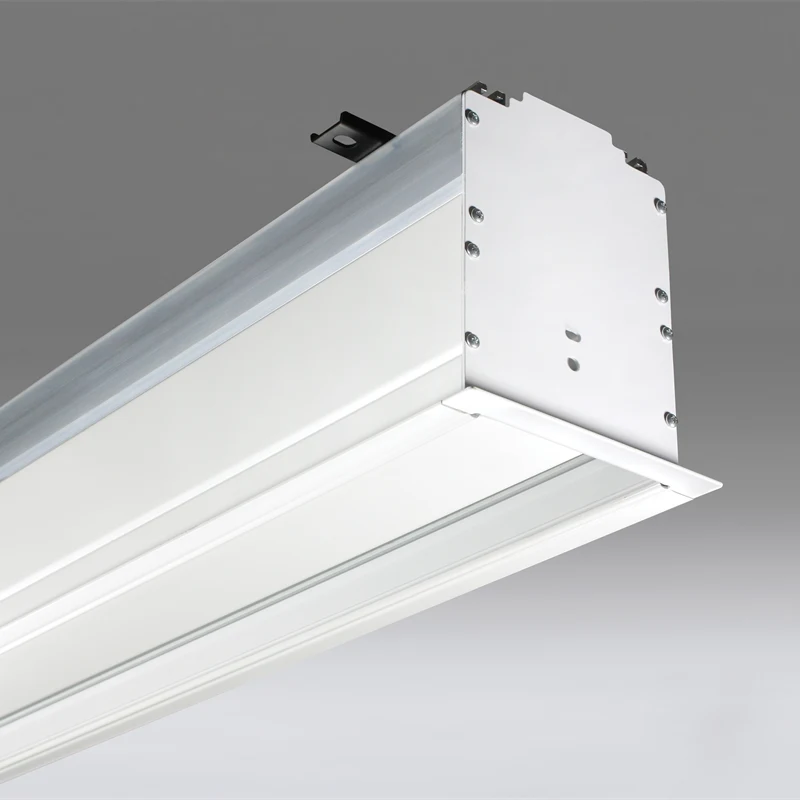

The Draper Ultimate Access E ceiling-recessed screen is engineered for AV system designers specifying concealed front projection in premium commercial interiors. The case installs into a ceiling pocket and includes a trim flange, and an independently motorized ceiling closure panel opens into the case so no fasteners are visible along the finished ceiling line. This is a Series E screen, so the viewing surface is free-hanging and non-tensioned, held flat by the weight of the surface and a bottom dowel, which keeps the assembly simple to service over a long deployment. Quick-connect wiring lets the case be set during rough-in and the screen added at the finish stage, protecting the surface during construction. A bottom access panel — detachable or hung on a 'T' bracket — simplifies maintenance and motor service from below the ceiling. The 109" 16:10 image geometry matches the throw distances and seating depth typical of a mid-sized commercial AV projection screen deployment, and maximum image width on this model reaches 12' (366 cm). The screen ships with a 110V three-position control switch, and a quiet motor, an LVC-IV low-voltage controller, and 220V operation are available for AV system integration with Control4, Crestron, and other third-party control platforms. The white case is standard, with black available on request, and the assembly is UL listed. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, configuration support, and lead times.

Key Features

• Ceiling-recessed concealment — The case installs into a ceiling pocket with a trim flange so the screen is hidden above the finished ceiling when retracted.

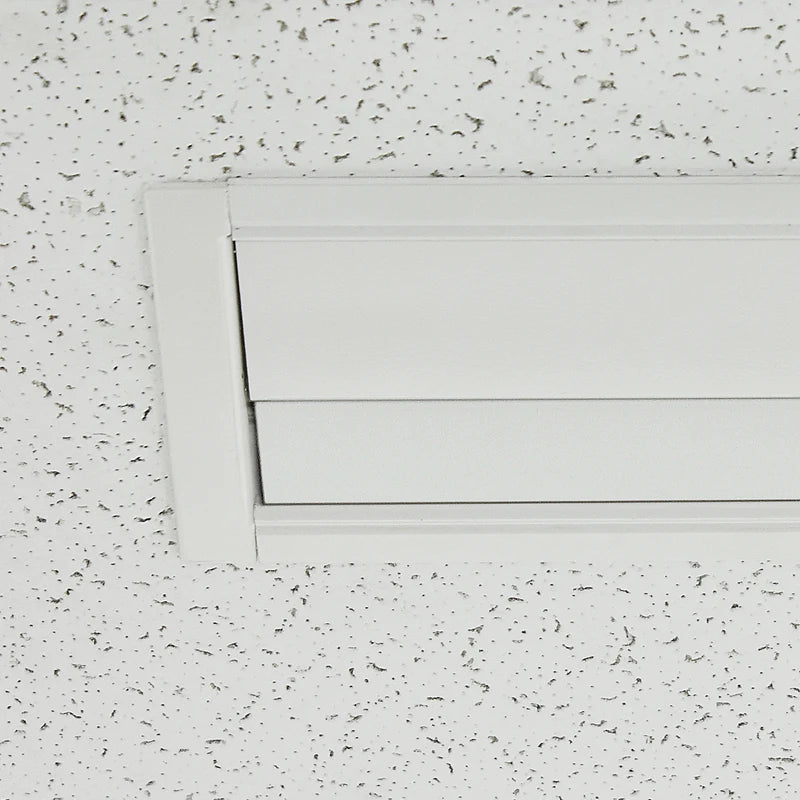

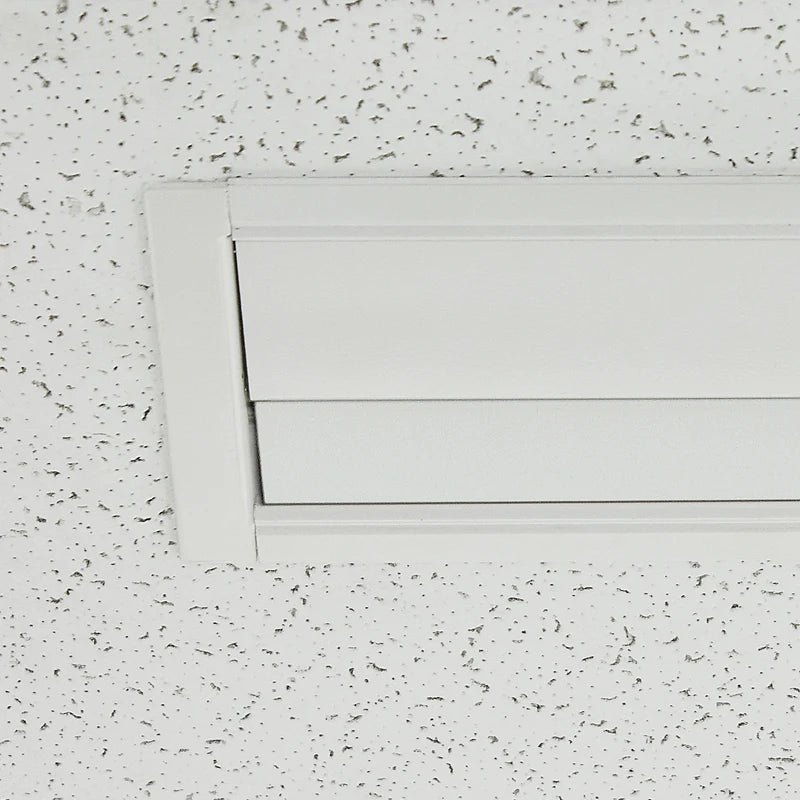

• Independently motorized closure panel — A second motor drives a ceiling closure panel that opens into the case, concealing the screen slot with no exposed fasteners.
• Matt White XT1000E surface — This unity-gain (1.0) surface offers a 180° viewing cone with typical contrast and is GREENGUARD Gold certified for controlled-ambient rooms.
• Free-hanging Series E surface — The non-tensioned surface stays flat under its own weight and a bottom dowel, simplifying long-term service.
• Case-now, screen-later installation — Quick-connect wiring lets the case be set during construction and the screen added at the finish stage to protect the surface.

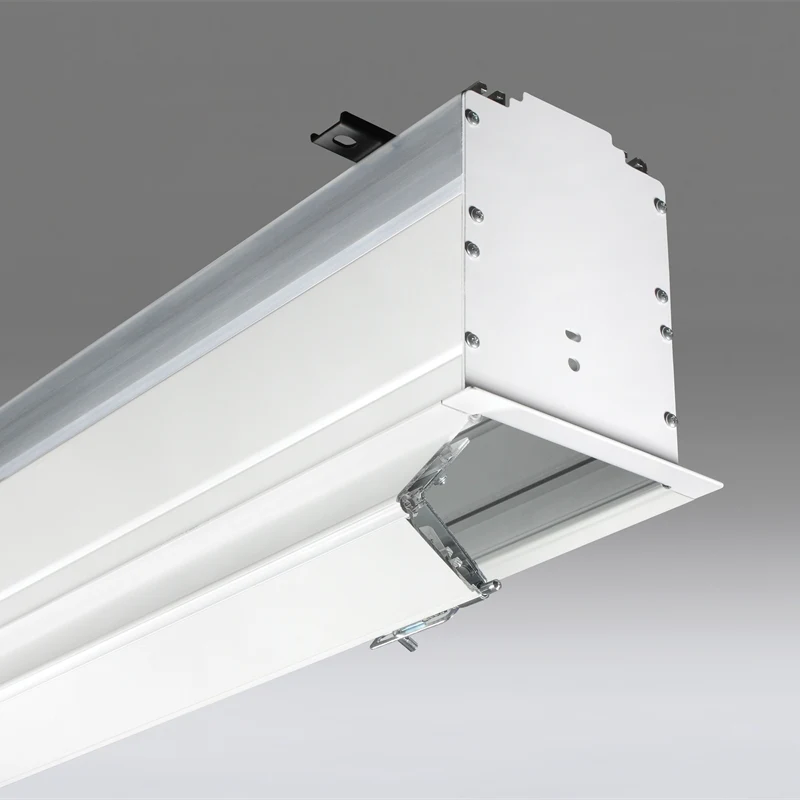

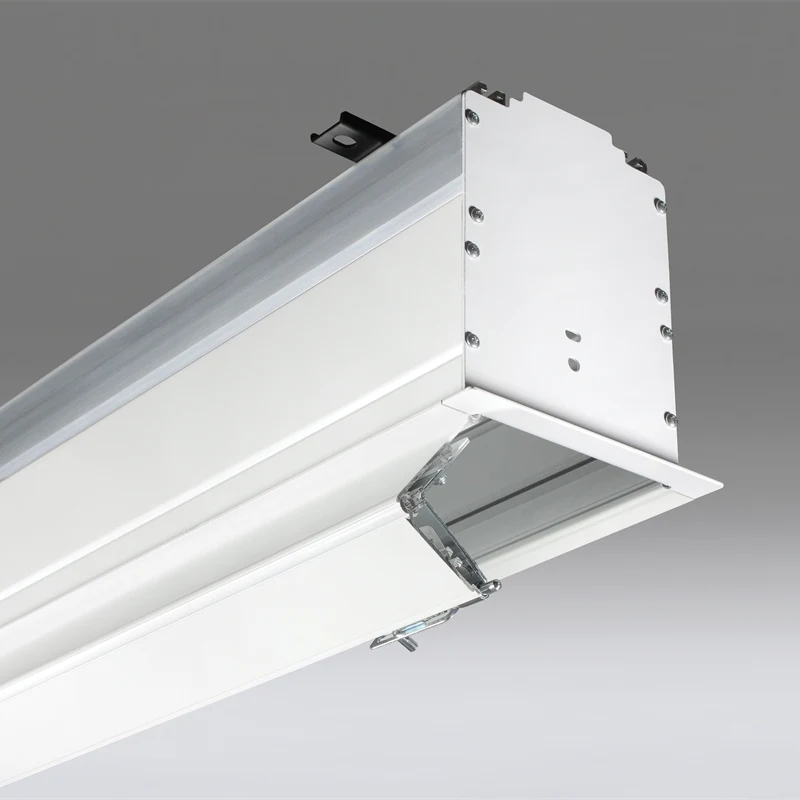

• Bottom access panel — A detachable or 'T'-bracket-hung access panel allows maintenance and motor service from below the ceiling.
• Control and voltage options — The screen includes a 110V three-position switch, with a quiet motor, LVC-IV low-voltage controller, and 220V operation available for integration.
• UL listed with 5-year warranty — The UL-listed assembly is supplied by Creation Networks as an authorized Draper dealer.

Typical Applications

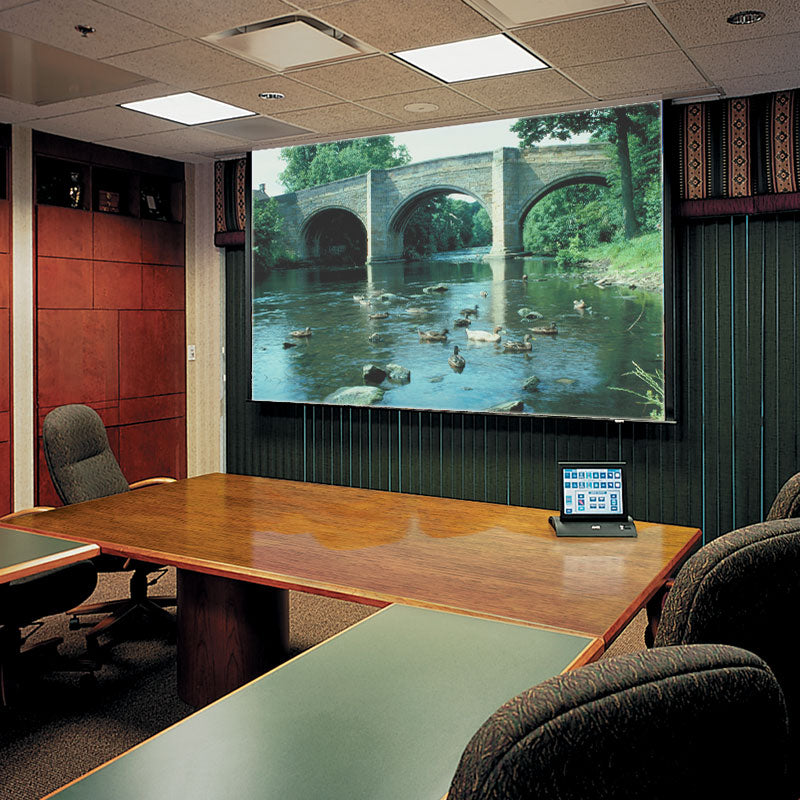

• Executive boardrooms requiring a fully concealed ceiling-recessed screen
• Conference rooms and commercial meeting spaces with controlled ambient light
• Training rooms and university lecture spaces
• Government spaces needing a finished, fastener-free ceiling line
• Multi-purpose rooms and all-hands rooms where the screen must hide when not in use

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, surface, and control configuration with Creation Networks before ordering.

Frequently Asked Questions

How is the Ultimate Access E installed?

It is a ceiling-recessed screen. The case installs into a pocket in the ceiling with a trim flange, and quick-connect wiring lets the case be set during construction with the screen added at the finish stage. A bottom access panel allows maintenance and motor service from below the ceiling.

What is the difference between the Ultimate Access E and the standard Access E?

The Ultimate Access E adds an independently motorized ceiling closure panel driven by a second motor. It opens into the case and conceals the screen slot with no exposed fasteners, producing a finished ceiling line the standard Access E does not provide.

Is the viewing surface tensioned?

No. This is a Series E screen with a free-hanging, non-tensioned Matt White XT1000E surface that stays flat under its own weight and a bottom dowel. If you require a tab-tensioned surface, the Series V (Ultimate Access V) is the tensioned equivalent.

What projectors and mounts are compatible?

The screen works with any commercial front projector matched to its 109" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Does it integrate with Crestron or Control4 control systems?

Yes. The screen ships with a 110V three-position switch, and an LVC-IV low-voltage controller and quiet motor are available so integrators can tie screen up/stop/down control into Crestron, Control4, and other third-party AV control platforms.

What warranty and support are included?

The Ultimate Access E is UL listed and carries Draper's 5-year warranty (valid in the U.S. and Canada), supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
