Draper Targa – 94", 16:10 – 116367SAU

Product Overview

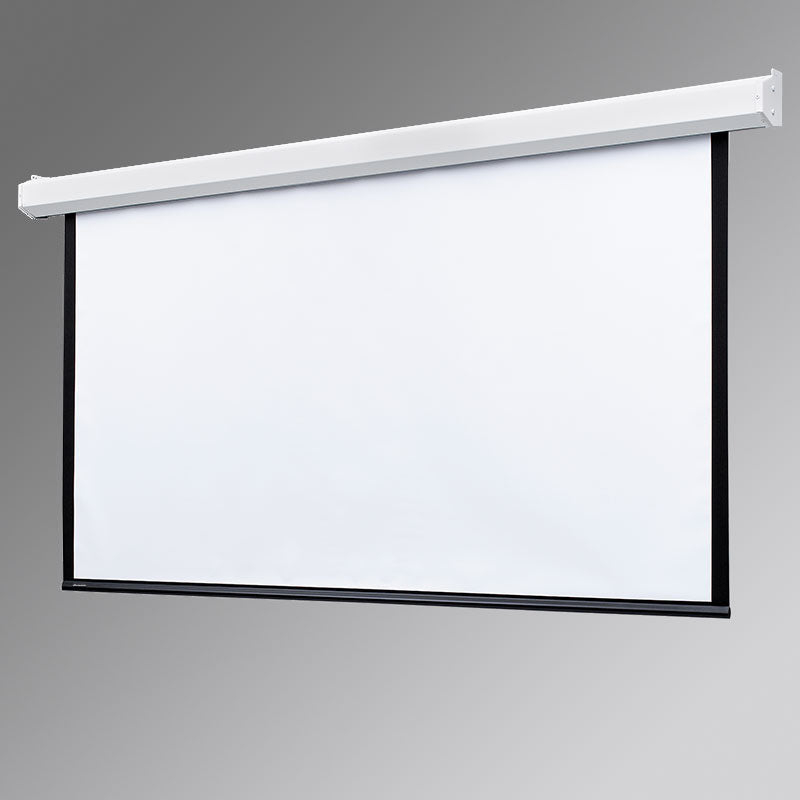

The Draper Targa is a motorized, free-hanging electric projection screen engineered for permanent commercial AV installations that need a clean, low-profile ceiling- or wall-mounted image surface. This 94" diagonal 16:10 widescreen model drops from a pentagonal steel case and is held flat by a weighted bottom dowel, making it a practical ceiling-mounted projection screen for conference rooms, boardrooms, training rooms, and houses of worship. The Matt White XT1000E surface delivers a unity 1.0 gain and a 180-degree viewing cone for accurate front-projected color in rooms with controlled ambient light. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Targa electric projection screen is specified by integrators who want a dependable motorized screen without the cost or case depth of a tab-tensioned system. As a Series E, non-tensioned design, the viewing surface hangs free from a 3" roller and stays flat under the weight of a bottom dowel, so it installs quickly and holds a usable image across the full 94" 16:10 format. The motor is housed inside the roller for quiet, low-profile operation, and this configuration includes Draper's LVC-IV low-voltage controller so the screen can be triggered from an AV control system alongside a 110-120V three-position wall switch. The pentagonal steel case carries a scratch-resistant white finish, with black available on request, and its matching endcaps double as universal mounting brackets for either wall or ceiling installation. An optional ceiling trim kit lets the case recess into a finished ceiling for a concealed appearance. Because the Targa offers a maximum image width up to 12' (366 cm), it fits the majority of small- to mid-size presentation rooms, with larger venues served by the Targa XL. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Free-hanging Series E design — The non-tensioned surface hangs from the roller and is held flat by a weighted bottom dowel, keeping the screen affordable and shallow in depth.
• Matt White XT1000E surface — A unity 1.0 gain, 180-degree viewing cone, and GREENGUARD Gold certification deliver accurate color across wide seating in controlled-light rooms.
• Pentagonal steel case — A scratch-resistant white finish protects the mechanism, with a black finish available on request to match finished interiors.
• Universal endcap mounting — Matching endcaps double as brackets for either wall or ceiling installation, and an optional ceiling trim kit allows recessed mounting.
• LVC-IV low-voltage control — The included LVC-IV controller lets the in-roller motor integrate with room automation and low-voltage trigger signals for coordinated AV control.
• In-roller motor — The motor is concealed inside the roller for low-profile, quiet operation during presentations.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with Draper's 5-year manufacturer warranty and UL-listed construction.

Typical Applications

• Conference rooms and boardrooms using motorized front projection
• Training rooms and corporate presentation spaces
• Houses of worship with front-projected lyrics and video
• Multi-purpose rooms that stow the screen when not in use
• Huddle rooms needing a clean, retractable image surface

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Targa a tensioned screen?

No. The Targa is a Series E, free-hanging (non-tensioned) electric screen. The viewing surface hangs from the roller and is kept flat by a weighted bottom dowel, which keeps the case shallow and the price lower than a tab-tensioned model.

What does the LVC-IV controller add to this configuration?

This unit includes Draper's LVC-IV low-voltage controller, which lets the screen respond to low-voltage trigger signals and integrate with projector and room-automation control. A 110-120V three-position wall switch is also included for manual operation.

Can the Targa be mounted to both walls and ceilings?

Yes. The matching endcaps double as universal mounting brackets for wall or ceiling installation. An optional ceiling trim kit allows the case to be recessed into a finished ceiling; Draper recommends an additional 12" top drop for optimal ceiling-recessed setups.

Which projectors and mounts are compatible with this 94" 16:10 screen?

Any commercial front projector matched to the 94" 16:10 format and your room's throw distance will work. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What viewing surface does this model use?

It uses Matt White XT1000E, a unity 1.0 gain surface with a 180-degree viewing cone and typical contrast. It is GREENGUARD Gold certified and recommended for rooms where ambient light is reasonably controlled.

What warranty and support are included?

The Targa carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
