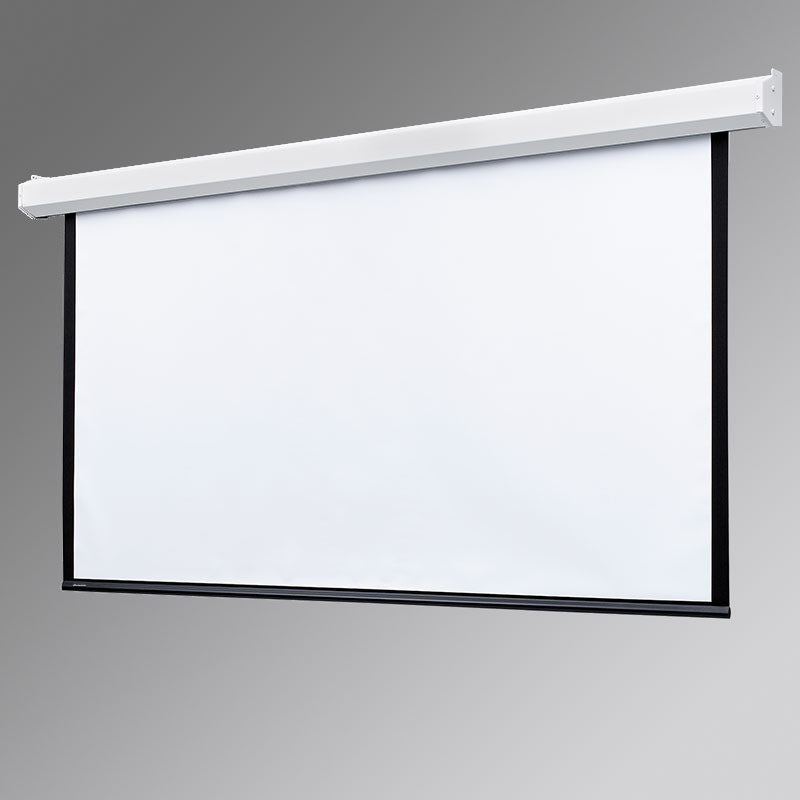

Draper Targa – 165", 16:10 – 116371Q

Product Overview

The Draper Targa is an electric, free-hanging 16:10 motorized projection screen built for permanent commercial AV installations in conference rooms, training rooms, and presentation spaces. This 165" widescreen (16:10) model pairs the unity-gain Matt White XT1000E surface with a low-profile pentagonal steel case and a Quiet Motor for near-silent operation. As a commercial electric projection screen, it lowers and raises at the touch of a button and integrates with third-party control systems. This unit is supplied by Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Targa electric projection screen (Part # 116371Q) is a Series E free-hanging screen for integrators specifying a large 16:10 image in widescreen motorized projection screen for conference rooms and multi-purpose spaces. The 165" diagonal 16:10 format provides an 87 1/2" x 140" image area, near the model's 12' maximum image width. The viewing surface hangs from a 3" (76 mm) metal roller and stays flat under its own weight with a weighted bottom dowel, eliminating any tab-tensioning system to maintain. This SKU uses Draper's Quiet Motor, mounted inside the roller on rubber isolation insulators and rated at 44 dB for near-silent cycling in quiet rooms. The motor is UL certified, instantly reversible, and lifetime-lubricated with preset limit switches. The one-piece 22-gauge pentagonal steel case measures 5-7/8" high by 5-1/4" deep with a scratch-resistant white finish, and its matching endcaps double as universal mounting brackets for wall or ceiling installation. The Matt White XT1000E surface is a unity-gain (1.0), GREENGUARD Gold certified material with a panoramic 180° viewing cone, well suited to rooms where ambient light is controlled. Pair the Targa with a matched unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup or the broader projection screens catalog for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, control-system integration, and lead times.

Key Features

• 165" 16:10 widescreen image — Delivers an 87 1/2" x 140" image area for data-heavy widescreen content in larger rooms.
• Quiet Motor operation — The 44 dB motor is housed inside the roller on rubber isolation insulators for near-silent raising and lowering.
• Electric free-hanging design — A weighted bottom dowel keeps the Matt White XT1000E surface flat with no tab-tensioning to service.
• Pentagonal steel case — A one-piece 22-gauge steel case (5-7/8" H x 5-1/4" D) with a scratch-resistant white finish protects the roller in permanent installations.
• Universal endcap mounting — Matching endcaps double as universal brackets for wall or ceiling installation.
• Unity-gain, wide viewing cone — The Matt White XT1000E surface delivers 1.0 gain and a 180° viewing cone for accurate color across wide seating layouts.
• Control-system compatible — Includes a 110–120V, 3-position control switch and works with third-party systems such as Crestron and Control4.
• UL Listed with GREENGUARD Gold surface — Certified motor and viewing surface support code-compliant commercial deployment.

Typical Applications

• Conference rooms and boardrooms with controlled ambient light
• Training rooms and corporate meeting spaces
• Lecture halls and higher-education classrooms

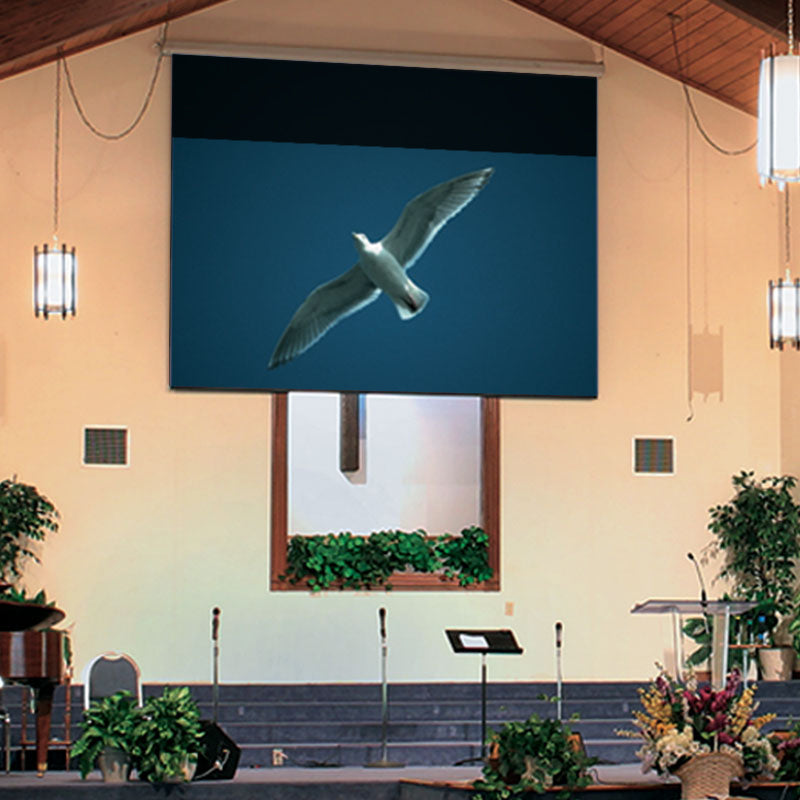

• Houses of worship using front projection
• Multi-purpose rooms in hospitality and healthcare facilities

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How quiet is the Quiet Motor on this Targa?

This SKU (116371Q) uses Draper's Quiet Motor, which is mounted inside the roller on rubber isolation insulators and rated at 44 dB. It is a good fit for boardrooms and worship spaces where motor noise during raising and lowering must be minimized.

Is the Draper Targa a tensioned screen?

No. The Targa is a Series E free-hanging (non-tensioned) electric screen. The Matt White XT1000E surface hangs from the roller and stays flat with a weighted bottom dowel. If you require a tab-tensioned surface for critical-viewing applications, consider Draper's Series V models.

Will a 165" 16:10 screen fit my room?

The 165" 16:10 image area is 87 1/2" x 140" (about 11'8" wide), close to the Targa's 12' maximum image width. Confirm ceiling height, mounting clearance, and viewing distances for your space—contact us for a layout review.

How is the Targa mounted?

The Targa installs on a wall or ceiling using its matching endcaps, which double as universal mounting brackets. The installer supplies the appropriate screws, toggle bolts, or anchors. Optional floating wall brackets are available for added placement flexibility.

What projectors and mounts are compatible with the Targa?

The Targa works with any commercial front projector matched to its 16:10 image area and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Targa carries Draper's standard manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help, control-system integration, and post-sale support.
