Draper Targa – 15', NTSC – 116019QU

Product Overview

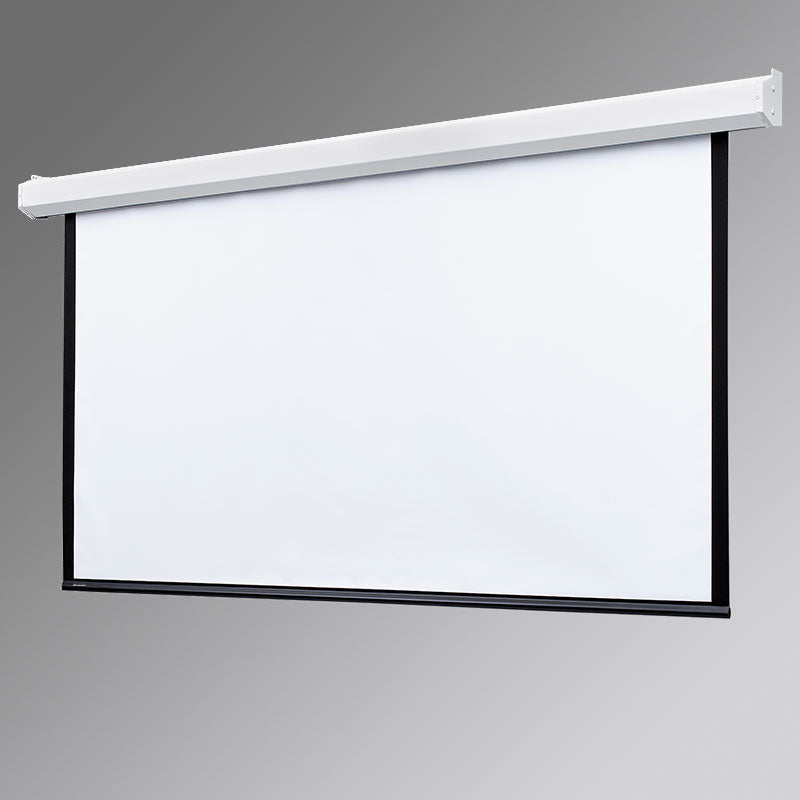

The Draper Targa is an electric, free-hanging quiet motorized projection screen engineered for permanent commercial AV installations in conference rooms, lecture halls, and multi-purpose spaces. This 15' NTSC (4:3) model pairs the unity-gain Matt White XT1000E surface with a low-profile pentagonal steel case, a Quiet Motor for near-silent operation, and Draper's LVC-IV Low Voltage Controller. As a commercial electric projection screen, it lowers and raises at the touch of a button and integrates with third-party control systems. This unit is supplied by Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Targa electric projection screen (Part # 116019QU) is a Series E free-hanging screen built for integrators who need a dependable quiet motorized projection screen for conference rooms, boardrooms, and houses of worship. The viewing surface hangs from a 3" (76 mm) metal roller and stays flat under its own weight with a weighted bottom dowel, so there is no tab-tensioning system to maintain. This SKU combines two upgrades: Draper's Quiet Motor, mounted inside the roller on rubber isolation insulators and rated at 44 dB for near-silent cycling, plus the LVC-IV Low Voltage Controller for clean integration into a low-voltage control bus. The motor is UL certified, instantly reversible, and lifetime-lubricated with preset limit switches. The one-piece 22-gauge pentagonal steel case measures 5-7/8" high by 5-1/4" deep with a scratch-resistant white finish, and its matching endcaps double as universal mounting brackets for wall or ceiling installation. The 4:3 NTSC image area is finished with a black frame for defined edges. The Matt White XT1000E surface is a unity-gain (1.0), GREENGUARD Gold certified material with a panoramic 180° viewing cone, well suited to rooms where ambient light is controlled. Pair the Targa with a matched unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup or the broader projection screens catalog for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, control-system integration, and lead times.

Key Features

• Quiet Motor operation — The 44 dB motor is housed inside the roller on rubber isolation insulators for near-silent raising and lowering.
• LVC-IV low-voltage control — Ships with Draper's LVC-IV Low Voltage Controller for integration into a low-voltage control bus and third-party systems.
• Electric free-hanging design — A weighted bottom dowel keeps the Matt White XT1000E surface flat with no tab-tensioning to service.
• Pentagonal steel case — A one-piece 22-gauge steel case (5-7/8" H x 5-1/4" D) with a scratch-resistant white finish protects the roller in permanent installations.
• Universal endcap mounting — Matching endcaps double as universal brackets for wall or ceiling installation.
• Unity-gain, wide viewing cone — The Matt White XT1000E surface delivers 1.0 gain and a 180° viewing cone for accurate color across wide seating layouts.
• UL Listed with GREENGUARD Gold surface — Certified motor and viewing surface support code-compliant commercial deployment.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference rooms and boardrooms with controlled ambient light
• Training rooms and corporate meeting spaces
• Lecture halls and higher-education classrooms

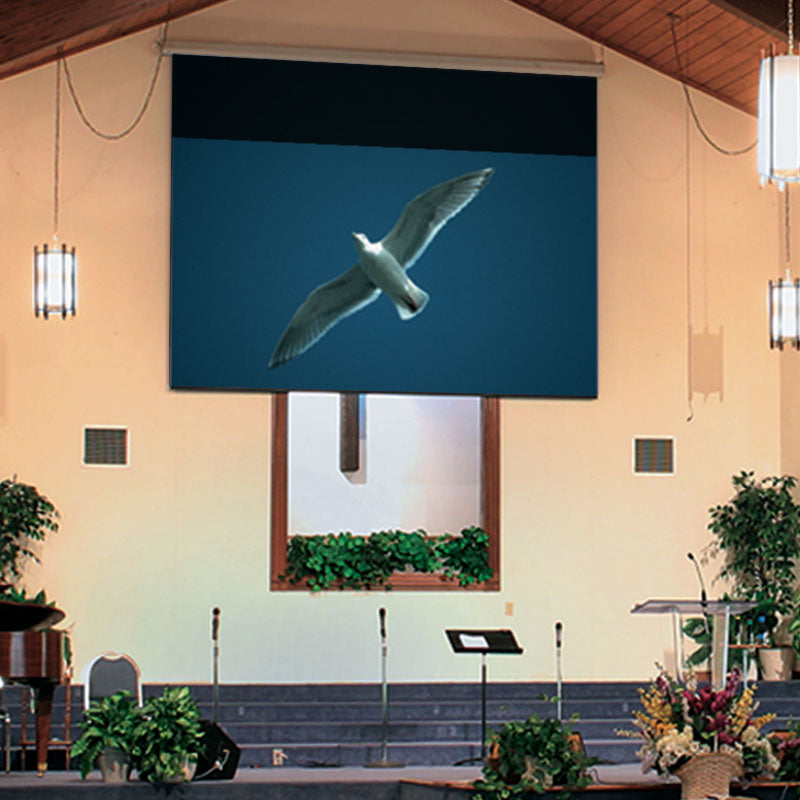

• Houses of worship using front projection
• Multi-purpose rooms in hospitality and healthcare facilities

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

What do the Q and U suffixes mean on this SKU?

Part # 116019QU combines two options: "Q" for Draper's Quiet Motor (44 dB, mounted inside the roller on rubber isolation insulators) and "U" for the LVC-IV Low Voltage Controller. Together they provide near-silent operation plus low-voltage control integration.

Is the Draper Targa a tensioned screen?

No. The Targa is a Series E free-hanging (non-tensioned) electric screen. The Matt White XT1000E surface hangs from the roller and stays flat with a weighted bottom dowel. If you require a tab-tensioned surface for critical-viewing applications, consider Draper's Series V models.

How does the LVC-IV controller integrate with automation systems?

The LVC-IV Low Voltage Controller lets the screen be operated from a low-voltage control bus and integrated with third-party automation such as Crestron and Control4. A standard 110–120V, 3-position control switch is also included.

How is the Targa mounted?

The Targa installs on a wall or ceiling using its matching endcaps, which double as universal mounting brackets. The installer supplies the appropriate screws, toggle bolts, or anchors. Optional floating wall brackets are available for added placement flexibility.

What projectors and mounts are compatible with the Targa?

The Targa works with any commercial front projector matched to its 4:3 NTSC image area and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Targa carries Draper's standard manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help, control-system integration, and post-sale support.
