Draper Targa – 137", 16:10 – 116370SAQ

Product Overview

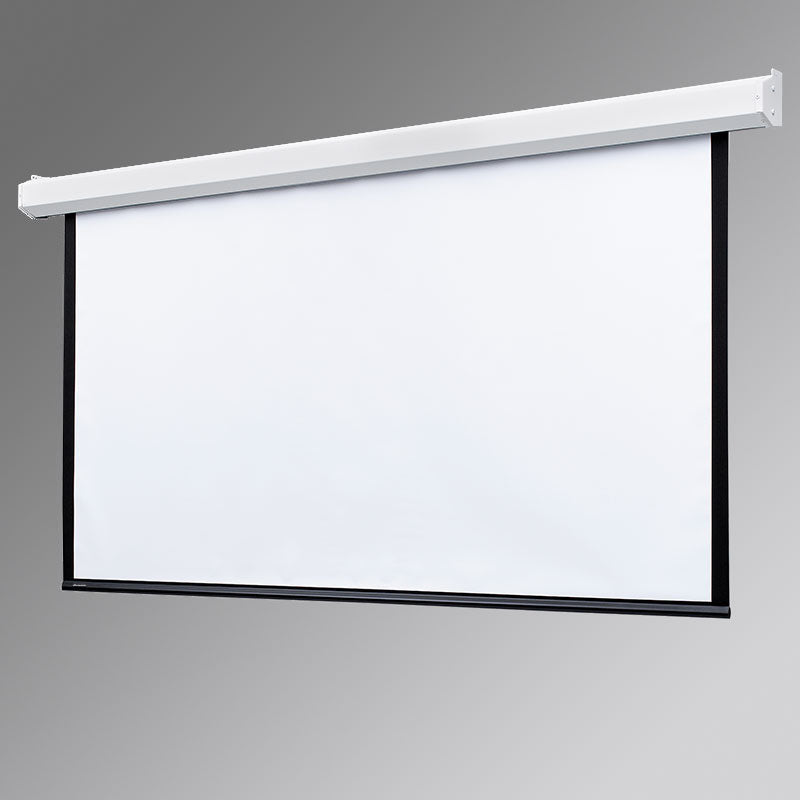

The Draper Targa is a free-hanging, ceiling- or wall-mounted electric projection screen for permanent commercial AV installations. This 137" diagonal 16:10 model is configured with Draper's Quiet Motor option, making it a large-format 137-inch motorized projection screen for larger conference rooms, auditoriums, and all-hands spaces. The tubular motor is housed inside the roller tube, so the screen retracts into a slim pentagonal steel case for a low-profile finish. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Targa electric projection screen is engineered for integrators specifying an affordable, motor-in-roller screen for larger fixed front-projection rooms in the 16:10 widescreen format. SKU 116370SAQ carries two option suffixes: the Q denotes Draper's Quiet Motor for reduced operating noise, while the SA suffix denotes an additional factory-configured option that Creation Networks can confirm against Draper's specification. The 137" 16:10 format provides a 72 1/2" x 116" image area for wide seating layouts. The screen is free-hanging and held flat by a weighted bottom dowel, and the fire-retardant, mildew-resistant viewing surface is available in Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E, or Chroma Key Green to match the room's lighting and application. The 22-gauge pentagonal steel case carries a scratch-resistant white finish, and the matching endcaps double as universal mounting brackets for either wall or ceiling installation, with optional floating wall brackets and a ceiling trim kit available for recessed jobs. A 110-120V three-position control switch lets an operator stop or reverse the screen at any point in its travel. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Quiet Motor option — This unit is configured with Draper's Quiet Motor to reduce operating noise in boardrooms, auditoriums, and other sound-sensitive spaces.
• Large-format 137" 16:10 image — Provides a 72 1/2" x 116" viewable area for wide seating in larger conference rooms and auditoriums.
• Motor-in-roller design — The tubular motor is concealed inside the 3" roller tube, keeping the case slim and the installation low-profile.
• Configurable viewing surface — Choose Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E, or Chroma Key Green to suit room lighting and application.
• Free-hanging with weighted dowel — The surface hangs flat under a weighted bottom dowel for a clean picture without field tensioning.
• Pentagonal steel case — A 22-gauge steel case with a scratch-resistant white finish (black available on request) protects the surface when retracted.
• Universal mounting endcaps — Matching endcaps double as wall or ceiling brackets, with optional floating wall brackets and a ceiling trim kit for recessed installs.
• UL Listed with 5-year warranty — The unit is UL Listed for the U.S. and Canada and supplied by Creation Networks with Draper's 5-year warranty.

Typical Applications

• Larger conference rooms and all-hands rooms with wide seating
• Auditoriums and multi-purpose rooms
• Corporate boardrooms requiring quiet motorized operation
• Training rooms with fixed front projection
• Houses of worship and government meeting spaces

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). The SA suffix denotes an additional factory-configured option; confirm exact viewable dimensions, surface selection, and configuration with Creation Networks before ordering.

Frequently Asked Questions

What do the SA and Q suffixes on SKU 116370SAQ mean?

The Q denotes Draper's Quiet Motor option, which reduces the operating noise of the tubular motor. The SA suffix denotes an additional factory-configured option; contact Creation Networks and we will verify the exact configuration against Draper's specification before you order.

What is the image size of this 137" Targa?

In the 16:10 widescreen format, the 137" diagonal provides a 72 1/2" x 116" viewable image area, suited to larger conference rooms, auditoriums, and all-hands spaces with wide seating.

Which viewing surface should I choose?

The Targa is available with Matt White XT1000E, Contrast Grey XH800E, ClearSound White Weave XT900E (acoustically transparent), or Chroma Key Green. Matt White suits controlled-light rooms, while Contrast Grey improves black levels under moderate ambient light. Contact us to match the surface to your room.

Can the Targa be ceiling-mounted or recessed?

Yes. The matching endcaps act as universal brackets for wall or ceiling surface mounting. For a recessed look, Draper offers an optional ceiling trim kit; Draper recommends an additional 12" (30 cm) of top drop for optimal ceiling-recessed installation.

What projectors and mounts are compatible?

The Targa works with any commercial front projector matched to its 137" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Targa carries Draper's 5-year warranty and is UL Listed for the U.S. and Canada, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
