Draper Targa – 11', NTSC – 116017U

Product Overview

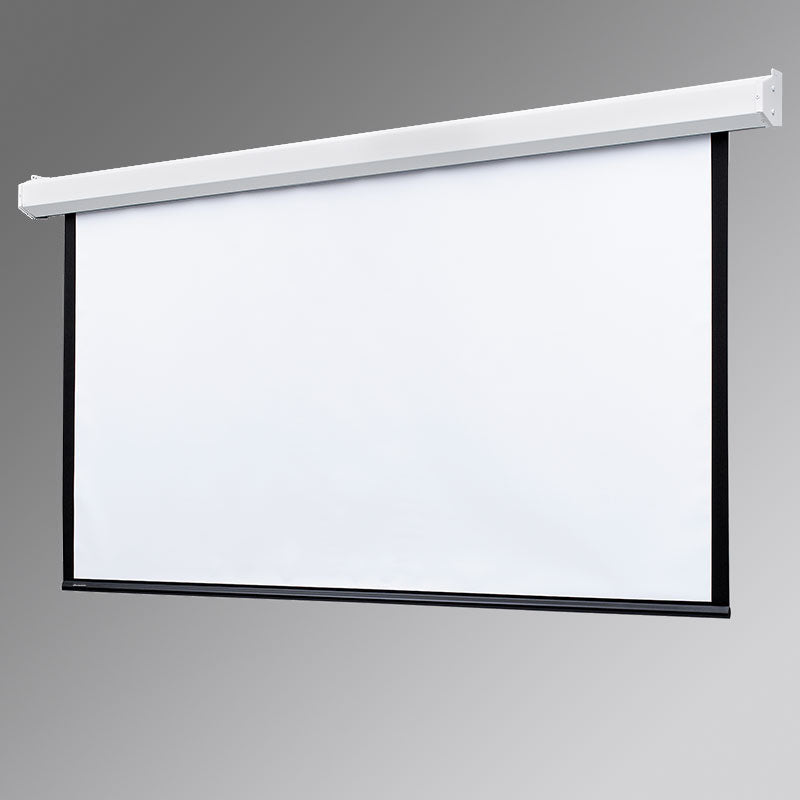

The Draper Targa is an electric, free-hanging projection screen built for permanent commercial AV installations in conference rooms, lecture halls, boardrooms, and houses of worship. This 11' NTSC (4:3) model runs a Matt White XT1000E surface, houses its motor inside the roller, and drops from a low-profile pentagonal steel case for clean wall or ceiling mounting. As a commercial motorized projection screen, it stays flat during use with a weighted bottom dowel and supports large 4:3 front-projected content. All units ship through Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

The Draper Targa electric projection screen is engineered for integrators specifying an affordable, low-profile motorized screen for everyday commercial deployment. This configuration pairs a 4:3 NTSC image area with the Matt White XT1000E surface, a unity-gain (1.0) matt white material that diffuses light across a panoramic 180° viewing cone for accurate color and wide off-axis viewing in rooms with controlled ambient light. The viewing surface is free-hanging and non-tensioned, held flat by a weighted bottom dowel, so it delivers a smooth image without the cost of a tab-tensioned system. Its pentagonal steel case carries a scratch-resistant white finish, with a black finish available on request, and matching endcaps double as universal mounting brackets for fast wall or ceiling installation. Because the tubular motor is housed inside the roller, the case stays compact at 5-7/8" high by 5-1/4" deep for a finished, unobtrusive appearance. This unit ships with a Low Voltage Control (LVC-IV) motor for integration with low-voltage control systems and a standard 110V three-position switch, with additional control options available for AV automation. An optional ceiling trim kit allows recessed installation where a flush ceiling look is required. The Targa suits training rooms, multi-purpose rooms, and commercial meeting spaces that need a dependable 4:3 motorized screen on a controlled budget. Pair it with a compatible unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for configuration support, throw-distance planning, and lead times.

Key Features

• Matt White XT1000E surface — A unity-gain (1.0) matt white surface with a panoramic 180° viewing cone and typical contrast for accurate color in controlled-light rooms.
• Electric free-hanging operation — The motor-in-roller design lowers and raises the surface at the touch of a switch for daily use in commercial rooms.
• Weighted bottom dowel — Keeps the non-tensioned viewing surface flat and stable for a clean front-projected image.
• Pentagonal steel case — A durable, scratch-resistant white steel case (black available on request) protects the roller and finishes the installation.
• Universal-mount endcaps — Matching endcaps double as universal mounting brackets for wall or ceiling installation, with optional floating wall brackets for discreet mounting.
• LVC-IV low-voltage motor — This unit uses Draper's Low Voltage Control motor on a 110V supply for straightforward integration with low-voltage control systems.
• Image width up to 12' — The Targa platform supports front-projection image widths up to 12' (366 cm) depending on surface selection.
• GREENGUARD Gold certified surface — The Matt White XT1000E surface is GREENGUARD Gold certified for low chemical emissions.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference rooms and boardrooms requiring a retractable 4:3 front-projection screen
• Training rooms and multi-purpose rooms with legacy 4:3 projection content

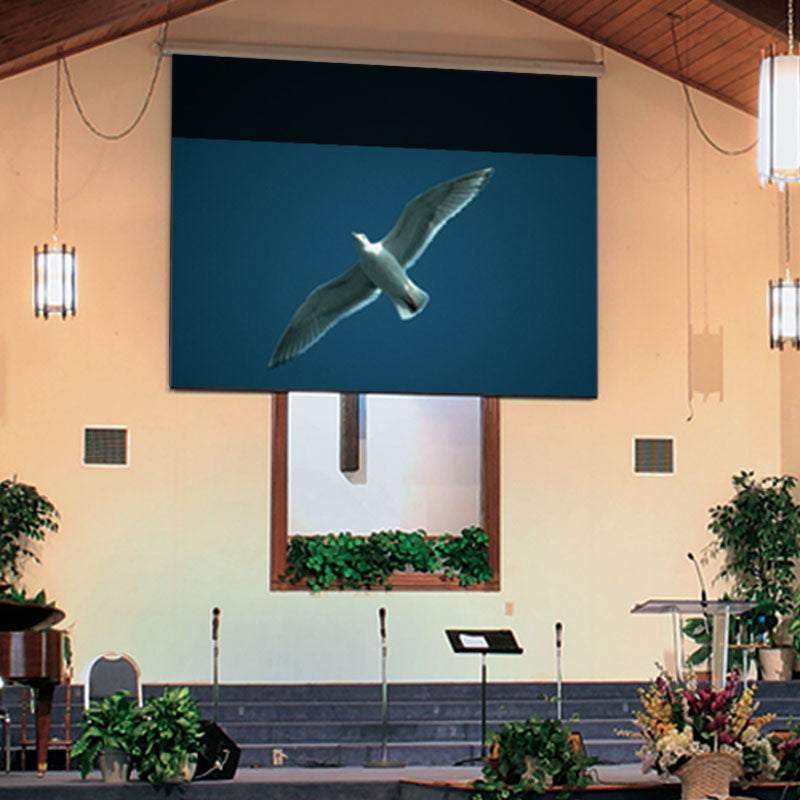

• Houses of worship using front projection from a fixed ceiling or wall position
• Lecture halls and commercial meeting spaces on a controlled equipment budget
• Government and hospitality spaces needing a clean, low-profile motorized screen

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

Is the Draper Targa a tensioned screen?

No. The Targa is a free-hanging, non-tensioned electric screen. The Matt White XT1000E surface is self-supporting and held flat by a weighted bottom dowel rather than a tab-tensioning system. For tab-tensioned performance in large-format rooms, consider Draper's Series V screens.

What are the optical characteristics of the Matt White XT1000E surface?

It is a unity-gain (1.0) matt white surface with a panoramic 180° viewing cone and typical contrast. It diffuses light in all directions for accurate color and wide off-axis viewing, and performs best where audience-area ambient light is controlled. The surface is GREENGUARD Gold certified.

Can the Targa be mounted on both walls and ceilings?

Yes. The matching endcaps double as universal mounting brackets for either wall or ceiling installation. Optional floating wall brackets are available for a more discreet mount, and an optional ceiling trim kit allows flush, recessed installation.

What projectors and mounts are compatible with the Targa?

The Targa works with any commercial front projector matched to its 4:3 NTSC format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What does the "U" in SKU 116017U mean for control integration?

This unit ships with Draper's Low Voltage Control (LVC-IV) motor on a 110V supply, designed for integration with low-voltage control systems. It also includes a standard three-position wall switch, and additional control options are available for AV automation.

What warranty and support are included?

The Targa carries Draper's 5-year manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
