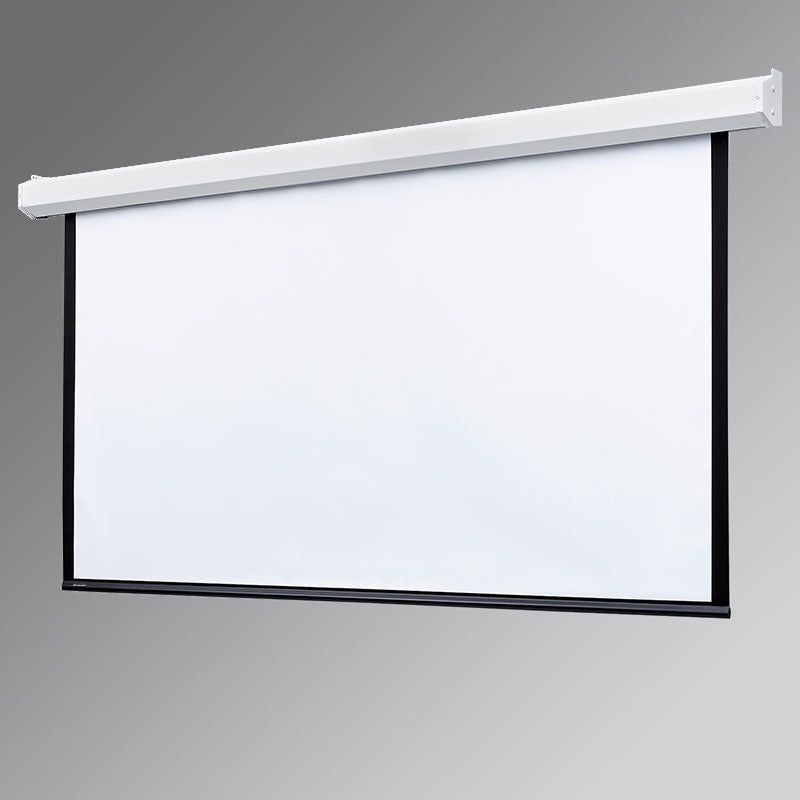

Draper Targa, 109", 16:10, Matt White XT1000E, 110 V, with Quiet Motor - 116368Q

Product Overview

The Draper Targa is a free-hanging, ceiling- or wall-mounted electric projection screen built for permanent commercial AV installations. This 109" diagonal 16:10 model pairs the Matt White XT1000E viewing surface with Draper's Quiet Motor option, making it a practical 109-inch motorized projection screen for conference rooms, boardrooms, and training rooms that need a clean, low-profile deployment. The tubular motor is housed inside the roller tube, so the screen retracts into a slim pentagonal steel case when not in use. All units ship through Creation Networks at authorized-dealer pricing with Draper's 5-year warranty.

Product Description

The Draper Targa electric projection screen is engineered for integrators specifying an affordable, motor-in-roller screen for fixed front-projection rooms. This configuration uses the unity-gain Matt White XT1000E surface, which diffuses light across a panoramic 180° viewing cone with accurate color reproduction, so the image stays consistent across wide seating layouts when ambient light is controlled. The screen is free-hanging and held flat by a weighted bottom dowel, and the fire-retardant, mildew-resistant surface is GREENGUARD Gold certified for low chemical emissions. The 22-gauge pentagonal steel case carries a scratch-resistant white finish, and the matching endcaps double as universal mounting brackets for either wall or ceiling installation, with optional floating wall brackets and a ceiling trim kit available for recessed jobs. A standard 110-120V three-position control switch lets an operator stop or reverse the screen at any point, and the Quiet Motor option reduces operating noise for boardrooms and other sound-sensitive rooms. Pair it with a unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup for alternate sizes and surfaces, or the broader projection screens catalog. Contact Creation Networks at creationnetworks.net for throw-distance planning and lead times.

Key Features

• Motor-in-roller design — The tubular motor is concealed inside the 3" roller tube, keeping the case slim and the installation low-profile.
• Quiet Motor option — This unit is configured with Draper's Quiet Motor to reduce operating noise in boardrooms and other sound-sensitive spaces.
• Matt White XT1000E surface — A unity-gain (1.0) surface with a 180° viewing cone delivers accurate color and uniform brightness across wide seating in controlled-light rooms.
• Free-hanging with weighted dowel — The surface hangs flat under a weighted bottom dowel for a clean picture without field tensioning.
• Pentagonal steel case — A 22-gauge steel case with a scratch-resistant white finish (black available on request) protects the surface when retracted.
• Universal mounting endcaps — Matching endcaps double as wall or ceiling brackets, with optional floating wall brackets and a ceiling trim kit for recessed installs.
• Three-position control — A 110-120V switch lets the operator stop or reverse the screen at any point in its travel.
• UL Listed with 5-year warranty — The unit is UL Listed for the U.S. and Canada and supplied by Creation Networks with Draper's 5-year warranty.

Typical Applications

• Corporate boardrooms requiring quiet motorized operation
• Conference rooms and commercial meeting spaces with fixed front projection
• Training rooms and multi-purpose rooms
• Houses of worship and government meeting spaces
• Hotel and hospitality presentation rooms

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewable dimensions, drop, and control configuration with Creation Networks before ordering.

Frequently Asked Questions

What does the Quiet Motor option change on this Targa?

The Quiet Motor is a Draper factory option (denoted by the Q suffix on SKU 116368Q) that reduces the operating noise of the tubular motor. It is well suited to boardrooms, conference rooms, and other spaces where motor noise during raise and lower would be noticeable.

Can the Targa be ceiling-mounted or recessed?

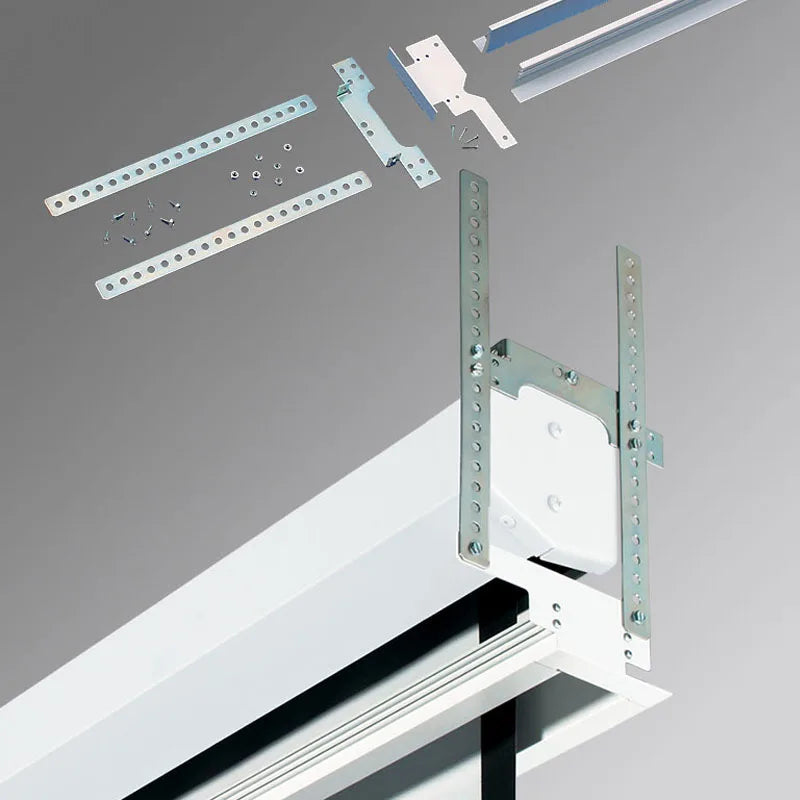

Yes. The matching endcaps act as universal brackets for wall or ceiling surface mounting. For a recessed look, Draper offers an optional ceiling trim kit; Draper recommends an additional 12" (30 cm) of top drop for optimal ceiling-recessed installation.

What projectors and mounts are compatible?

The Targa works with any commercial front projector matched to its 109" 16:10 format and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

Is the viewing surface suitable for rooms with ambient light?

The Matt White XT1000E is a unity-gain (1.0) surface with a 180° viewing cone. Draper recommends adequate control of ambient light in the audience area for best image quality, making it a strong choice for conference rooms and boardrooms with managed lighting.

How is the screen controlled?

It ships with a 110-120V three-position control switch that stops or reverses the screen at any point in its travel. Other control options are available from Draper; contact us for low-voltage or integration-friendly control configurations.

What warranty and support are included?

The Targa carries Draper's 5-year warranty and is UL Listed for the U.S. and Canada, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help and post-sale support.
