Draper Targa – 106", HDTV – 116301Q

Product Overview

The Draper Targa is an electric, free-hanging HDTV projection screen engineered for permanent commercial AV installations in conference rooms, training rooms, and huddle spaces. This 106" HDTV (16:9) model combines a low-profile pentagonal steel case with a Quiet Motor for near-silent operation, lowering and raising at the touch of a button. As a commercial motorized projection screen, it integrates with third-party control systems and mounts to either a wall or ceiling. This unit is supplied by Creation Networks at authorized-dealer pricing with Draper's standard warranty.

Product Description

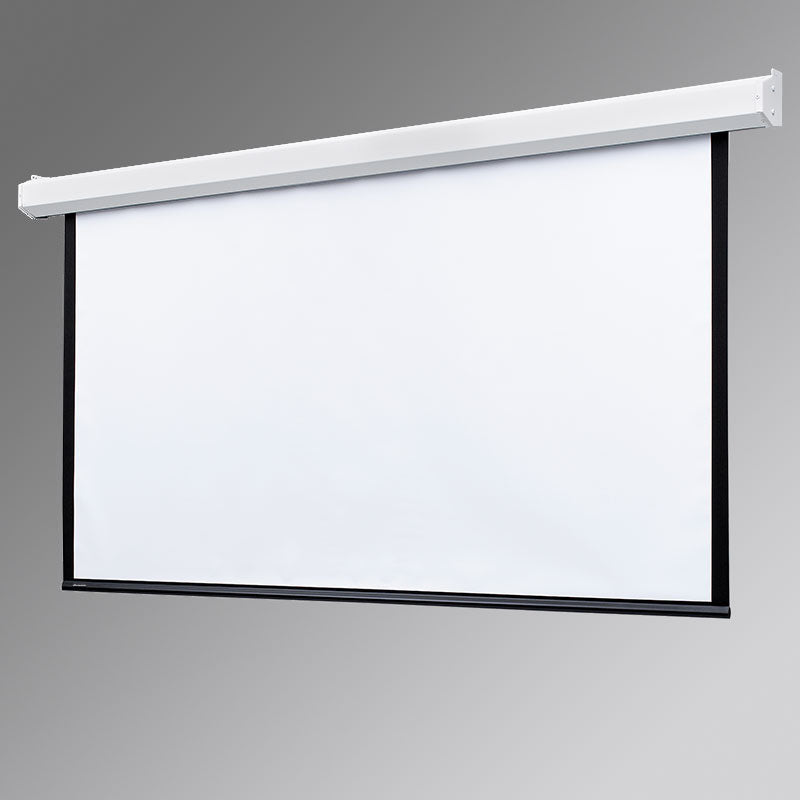

The Draper Targa electric projection screen (Part # 116301Q) is a Series E free-hanging screen for integrators specifying a 106-inch HDTV projection screen for corporate and education spaces. The 16:9 viewing surface hangs from a 3" (76 mm) metal roller and stays flat under its own weight with a weighted bottom dowel, so there is no tab-tensioning system to maintain. This SKU uses Draper's Quiet Motor, mounted inside the roller on rubber isolation insulators and rated at 44 dB for near-silent cycling in quiet rooms. The motor is UL certified, instantly reversible, and lifetime-lubricated with preset limit switches. The one-piece 22-gauge pentagonal steel case measures 5-7/8" high by 5-1/4" deep with a scratch-resistant white finish, and its matching endcaps double as universal mounting brackets for wall or ceiling installation. The HDTV image area is finished with a black frame for defined edges. The Targa is offered with a range of Draper viewing surfaces; confirm the exact surface, gain, and viewing cone for this configuration with Creation Networks before ordering. Pair the Targa with a matched unit from our commercial projectors collection and a bracket from our projector mounts and lifts collection to complete the system. Browse the full Draper projection screen lineup or the broader projection screens catalog for alternate sizes and surfaces. Contact Creation Networks at creationnetworks.net for throw-distance planning, control-system integration, and lead times.

Key Features

• 106" HDTV (16:9) image — A 16:9 format sized for conference rooms, training rooms, and huddle spaces running HD and UHD sources.
• Quiet Motor operation — The 44 dB motor is housed inside the roller on rubber isolation insulators for near-silent raising and lowering.
• Electric free-hanging design — A weighted bottom dowel keeps the surface flat with no tab-tensioning to service.
• Pentagonal steel case — A one-piece 22-gauge steel case (5-7/8" H x 5-1/4" D) with a scratch-resistant white finish protects the roller in permanent installations.
• Universal endcap mounting — Matching endcaps double as universal brackets for wall or ceiling installation.
• Control-system compatible — Includes a 110–120V, 3-position control switch and works with third-party systems such as Crestron and Control4.
• UL Listed motor — A UL certified, instantly reversible motor supports code-compliant commercial deployment.
• Draper warranty through an authorized dealer — Supplied by Creation Networks with full manufacturer warranty coverage.

Typical Applications

• Conference rooms and boardrooms with controlled ambient light
• Huddle rooms and small commercial meeting spaces
• Training rooms and corporate meeting spaces
• Higher-education classrooms and lecture spaces

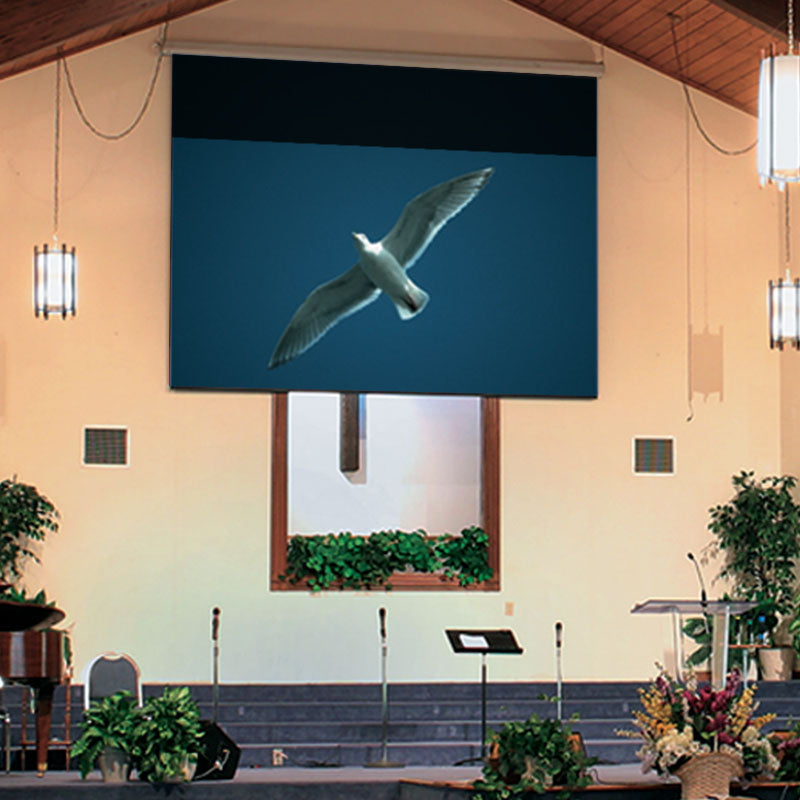

• Houses of worship using front projection

Technical Specifications

Specifications sourced from Draper, Inc. (draperinc.com). Confirm exact viewing surface, gain, viewable dimensions, and surface size limits with Creation Networks before ordering.

Frequently Asked Questions

How quiet is the Quiet Motor on this Targa?

This SKU (116301Q) uses Draper's Quiet Motor, which is mounted inside the roller on rubber isolation insulators and rated at 44 dB. It is a good fit for boardrooms, huddle rooms, and worship spaces where motor noise during raising and lowering must be minimized.

Is the Draper Targa a tensioned screen?

No. The Targa is a Series E free-hanging (non-tensioned) electric screen. The surface hangs from the roller and stays flat with a weighted bottom dowel. If you require a tab-tensioned surface for critical-viewing applications, consider Draper's Series V models.

Which viewing surface does this 106" HDTV model use?

The Targa is available with several Draper viewing surfaces, each with different gain and viewing-cone characteristics. Contact us to confirm the exact surface for this configuration and to match it to your projector and ambient-light conditions.

How is the Targa mounted?

The Targa installs on a wall or ceiling using its matching endcaps, which double as universal mounting brackets. The installer supplies the appropriate screws, toggle bolts, or anchors. Optional floating wall brackets are available for added placement flexibility.

What projectors and mounts are compatible with the Targa?

The Targa works with any commercial front projector matched to its 106" HDTV image area and your room's throw distance. Browse our commercial projectors and projector mounts and lifts, or contact us for a throw-distance calculation.

What warranty and support are included?

The Targa carries Draper's standard manufacturer warranty, supplied through Creation Networks as an authorized dealer. Contact us at creationnetworks.net for pre-sale specification help, control-system integration, and post-sale support.
